1. What is the main function of the DS215TCEAG1BZZ01A?

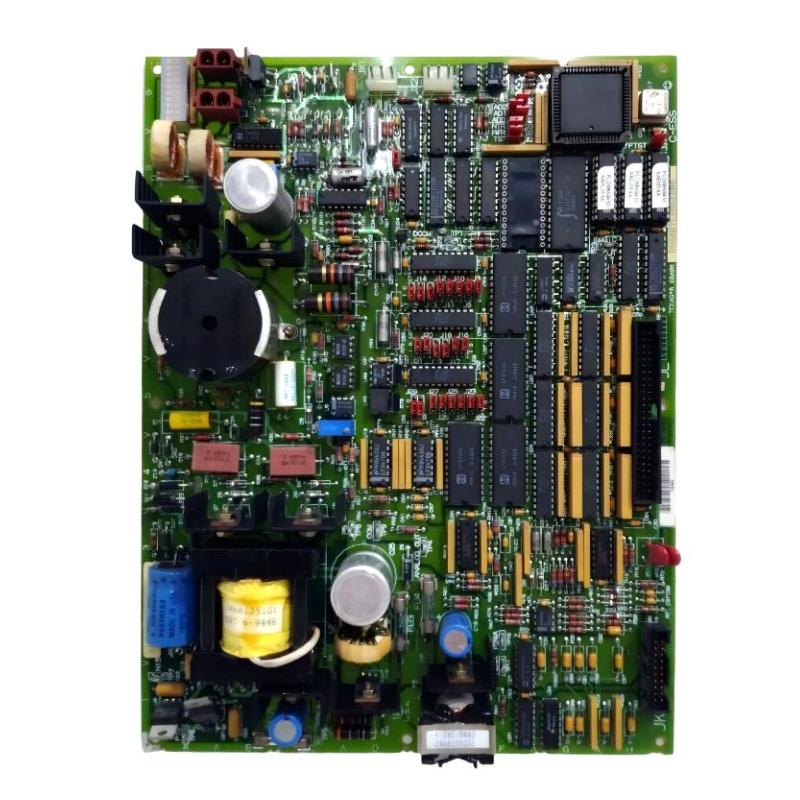

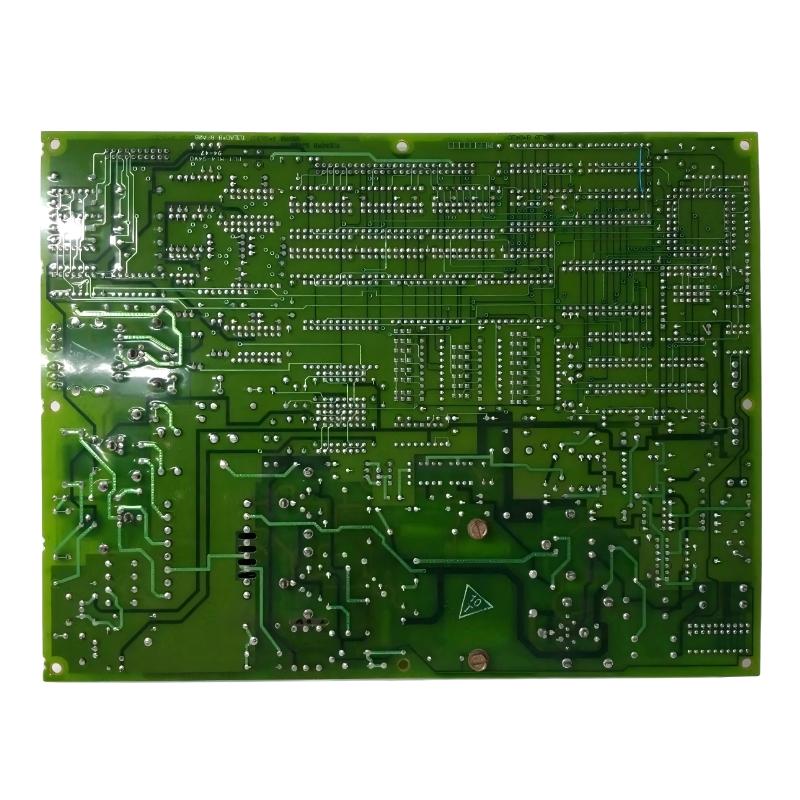

The DS215TCEAG1BZZ01A is a GE Mark V Speedtronic Emergency Overspeed Board designed to process turbine speed-related protection signals and support emergency trip functions. Its primary role is to monitor turbine speed conditions and participate in the generation of a protective trip command when a dangerous overspeed condition is detected. The board can also be associated with functions such as flame detection and automatic synchronization within the Mark V protection architecture. Unlike standard process-control I/O, the TCEA board is primarily associated with turbine protection and abnormal-condition handling. It works together with speed sensors, terminal interfaces, IONET communication, and the turbine trip circuit to provide the required protection response.

2. How does the DS215TCEAG1BZZ01A provide overspeed protection?

The DS215TCEAG1BZZ01A receives turbine shaft speed signals and processes the incoming speed pulses to determine the corresponding rotational speed condition. The processed speed information is evaluated against the configured overspeed protection parameters. When the detected condition meets the required emergency trip criteria, the board can participate in generating the appropriate turbine trip protection signal. High-pressure and low-pressure shaft-related settings can involve dedicated hardware configuration and system I/O settings. Because overspeed protection is directly related to turbine mechanical safety, troubleshooting should include the speed sensors, field wiring, terminal connections, TCEA configuration, communication path, and trip circuit rather than focusing only on the displayed speed value.

3. What is the purpose of the J4, J5 and J6 jumpers on the DS215TCEAG1BZZ01A?

J4, J5 and J6 are used for configuring the IONET identification of the TCEA board. A Mark V control system can contain multiple control and protection boards, so the correct network identification is necessary for the system to distinguish the TCEA board from other IONET devices. If the jumper positions are incorrect, the board may not be recognized correctly or could experience an address conflict with another device. When replacing a board, the original jumper configuration should be recorded before removing the existing unit. The replacement should then be configured to match the required system settings, followed by a communication and diagnostic check to confirm that the board is correctly identified.

4. How are the overspeed trip parameters configured on the DS215TCEAG1BZZ01A?

Overspeed protection parameters are determined through a combination of hardware jumper configuration and Mark V I/O configuration. Dedicated jumper settings are used for certain high-pressure and low-pressure shaft trip frequency configurations, while the corresponding system parameters are established through the control system configuration. The hardware configuration and software settings must agree with the actual turbine speed range, speed sensor characteristics, and protection requirements. Incorrect settings can result in an improper overspeed threshold or unexpected protection behavior. Because these are critical safety parameters, technicians should not change the overspeed configuration without verifying the complete system design and approved protection settings.

5. What should be checked if the DS215TCEAG1BZZ01A detects an incorrect speed signal?

If the speed value reported by the TCEA board does not correspond to the actual turbine condition, troubleshooting should begin with the speed sensors and field wiring. Verify that the speed sensor is producing a stable pulse signal and check the sensor installation, connection, wiring, shielding, and associated terminal interfaces. The signal path to the TCEA board should then be verified to ensure that the correct speed input reaches the appropriate circuit. High-pressure and low-pressure shaft configurations should also be checked against the system settings. If the field signal is correct but the processed value remains abnormal, the TCEA input circuitry, processor, memory devices, and configuration should be investigated. Intermittent speed problems may also be caused by loose connections, electrical interference, or unstable sensor signals.

6. What should be checked when the DS215TCEAG1BZZ01A has an IONET communication fault?

IONET troubleshooting should start with the JX1 and JX2 connectors and the associated communication wiring. Confirm that the connectors are properly seated and that there is no visible damage or intermittent connection. The IONET identification settings configured through the relevant hardware jumpers should then be verified against the Mark V system configuration. IONET termination settings should also be checked because incorrect termination can result in unstable or intermittent communication. If the board communicates only occasionally, the power supply, connector condition, network wiring, and other devices connected to the same IONET network should also be inspected. Mark V diagnostic information can help determine whether the problem is related to the TCEA board, network configuration, or another IONET node.

7. What should be checked before replacing the DS215TCEAG1BZZ01A?

Because the DS215TCEAG1BZZ01A is associated with the turbine emergency overspeed protection system, the actual source of the fault should be confirmed before replacement. Check the speed sensors, field wiring, terminal interfaces, IONET communication, power supply, hardware jumpers, and turbine trip circuit before concluding that the TCEA board has failed. The existing jumper positions should be documented before removing the board, including IONET identification and overspeed-related configuration. The replacement board should have compatible hardware and firmware characteristics for the existing Mark V system. After installation, verify all connectors and jumper settings, then perform appropriate tests of speed measurement, overspeed protection, emergency trip signals, communication, and related protection functions before returning the equipment to normal service.

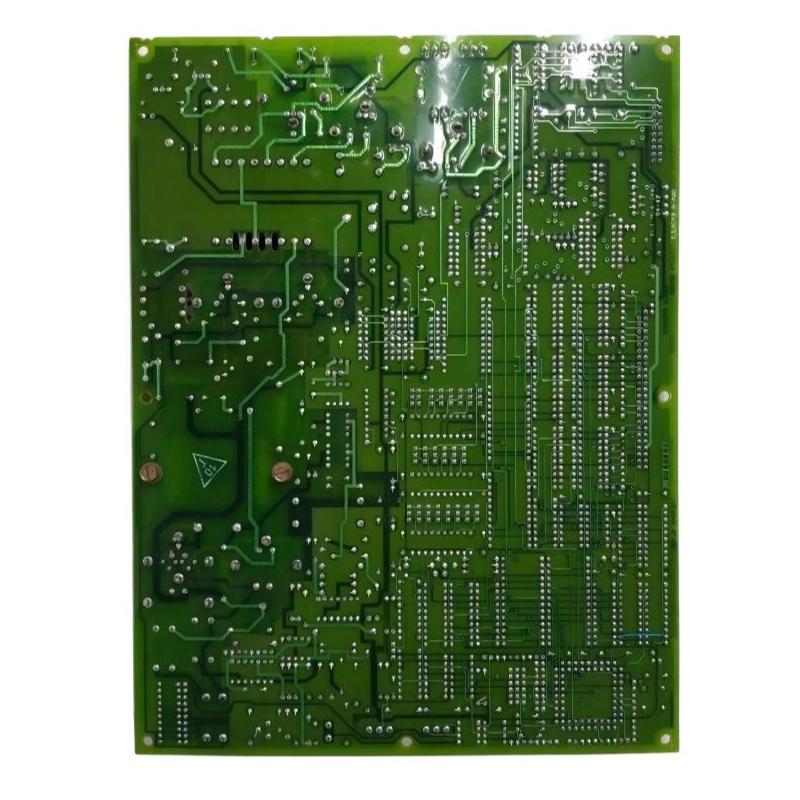

8. Can the DS200TCEAG1BNE directly replace the DS215TCEAG1BZZ01A?

The DS200TCEAG1BNE and DS215TCEAG1BZZ01A are associated with the GE Mark V TCEA Emergency Overspeed Board family, but direct interchangeability should be confirmed using the complete part numbers and the existing system configuration. A similar product description does not by itself guarantee complete compatibility. Hardware revision, programmable memory configuration, IONET settings, overspeed jumper configuration, connectors, and system requirements should all be compared before replacement. Once compatibility has been confirmed, the replacement board must be configured correctly and tested after installation. Speed input processing, overspeed detection, emergency trip logic, communication, and related protection functions should be verified before the turbine is returned to normal operation.
