1. What is the main function of the GE DS215UDSAG1AZZ01A Relay Board?

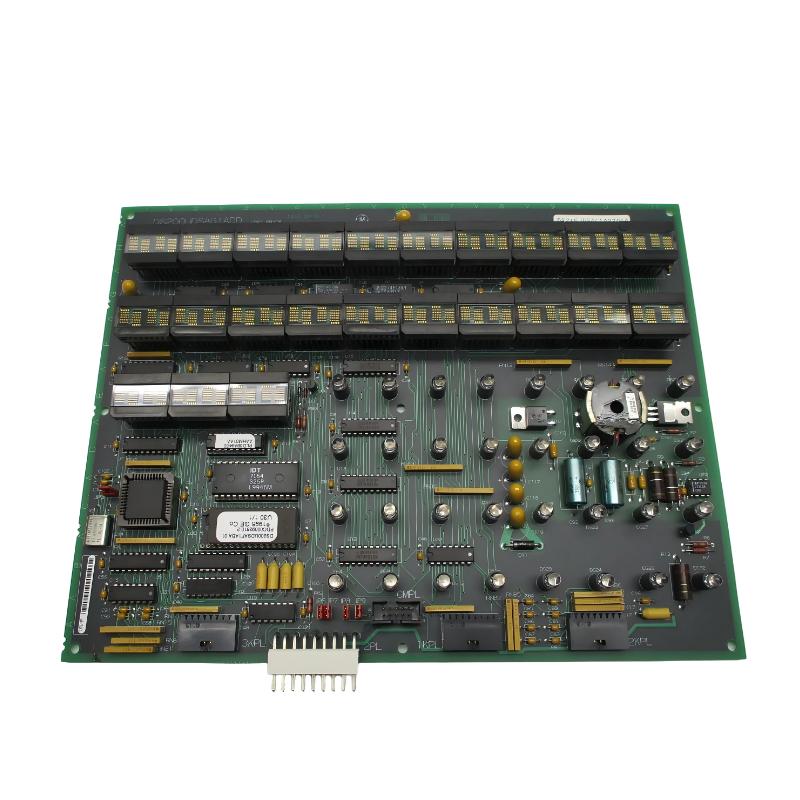

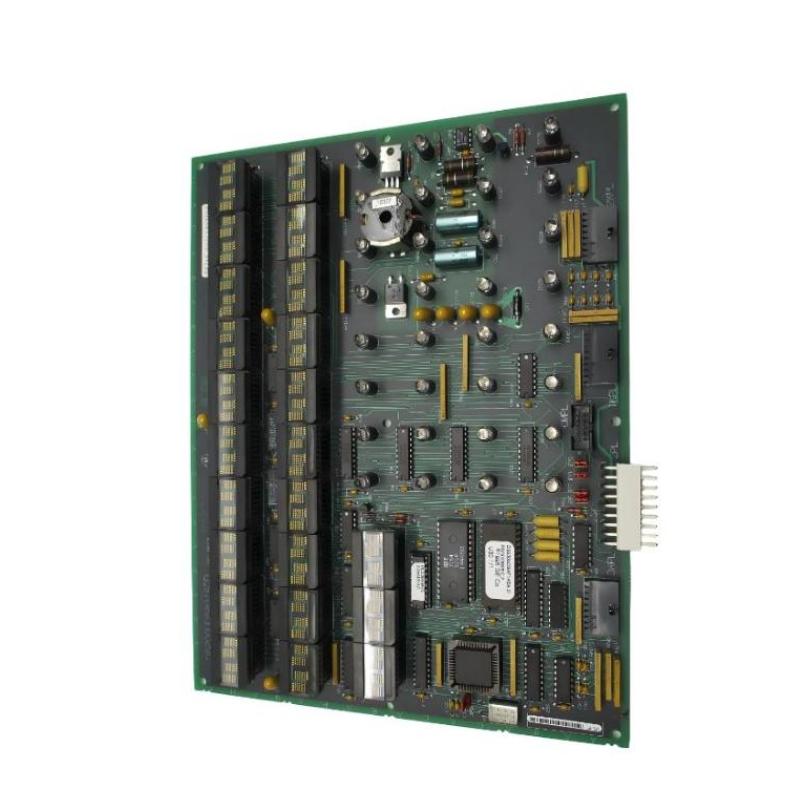

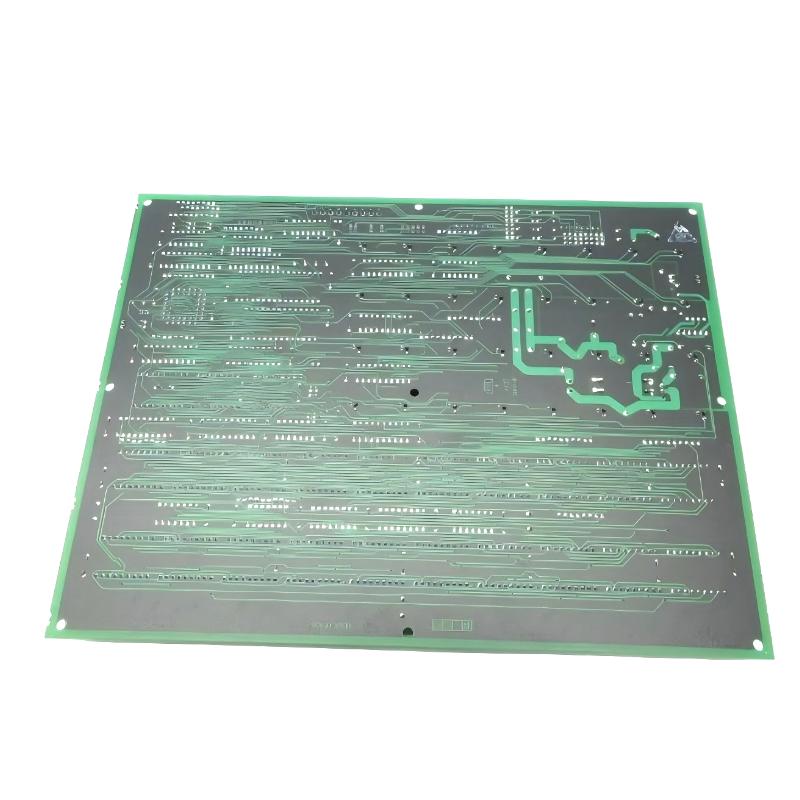

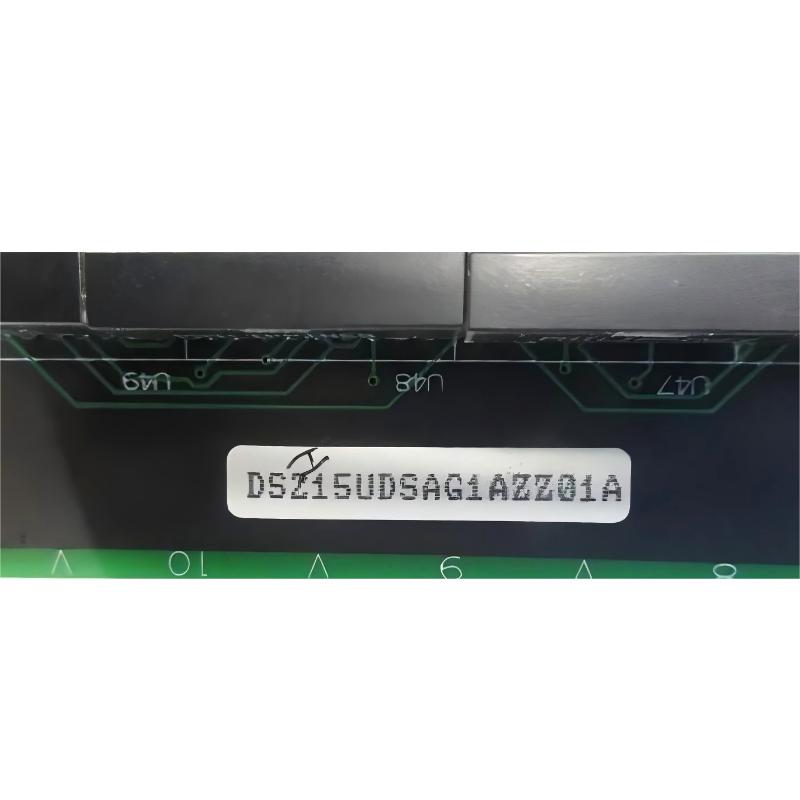

The GE DS215UDSAG1AZZ01A is a Mark V series board associated with GE turbine control and EX2000 excitation applications. It provides relay and discrete signal interface functions within the control architecture, allowing control commands and status information to be exchanged between the board and associated turbine or excitation equipment. The board also incorporates firmware, an onboard microprocessor, memory devices, display modules, and LED indicators for operational monitoring and diagnostic purposes. In an installed system, the board works together with other Mark V control boards rather than operating as an independent controller. Its actual signal assignments and control functions depend on the specific turbine or excitation system configuration.

2. What is the role of the 80196 microprocessor on the DS215UDSAG1AZZ01A?

The 80196 microprocessor provides the processing capability required for the board’s programmed control and monitoring functions. It works together with the installed EPROM modules, which contain the firmware and instruction information required for board operation. Incoming signals are processed according to the programmed logic, and the resulting information can be transferred to other components within the control system. The processor also supports the board’s diagnostic and status-monitoring functions. When troubleshooting a suspected processor-related problem, the EPROM configuration, power supply, board connections, and associated control-system interfaces should also be checked because abnormal operation is not necessarily caused by the processor itself.

3. What is the purpose of the EPROM modules on the DS215UDSAG1AZZ01A?

The EPROM modules contain the firmware and instruction code required for the DS215UDSAG1AZZ01A to perform its intended functions. The processor reads the programmed information from these memory devices during operation. Because the firmware is directly related to board functionality, the memory configuration is an important consideration when replacing the board. A replacement board with an incompatible firmware configuration may not operate correctly within the existing turbine control system. Before replacement, the EPROM locations and identification information should be documented. If memory devices need to be transferred from an existing board, they should be handled carefully using appropriate ESD protection and proper extraction and insertion procedures.

4. What are the functions of the displays and LEDs on the DS215UDSAG1AZZ01A?

The board provides multiple visual indicators that allow technicians and operators to monitor board activity and operating status. The 4-character display modules can present coded information or status information associated with board operation, while the LED indicators provide additional visual indications of operating conditions and signal states. These indicators can be useful during commissioning and troubleshooting because they allow abnormal conditions to be identified without relying entirely on external diagnostic equipment. When a fault occurs, the displayed information and LED states should be recorded before resetting or replacing the board. Comparing the observed indications with the approved system documentation can help determine whether the problem originates from the board, an external signal, or another component in the control system.

5. What should be checked if the DS215UDSAG1AZZ01A does not operate correctly?

Troubleshooting should begin with the basic electrical and configuration conditions. Check the board power supply, connectors, signal cables, and associated terminal connections first. The EPROM modules should then be inspected to ensure that they are correctly seated and that the installed firmware configuration matches the intended application. LED and display indications should also be recorded because they may provide useful information about the operating state or fault condition. If relay or discrete signals are abnormal, the associated field wiring and external devices should be checked before concluding that the board has failed. Communication or control problems may also originate from another Mark V board, so the complete signal path should be considered during diagnosis.

6. How should the DS215UDSAG1AZZ01A be replaced in a Mark V system?

Before removing the existing board, the complete model number, revision, EPROM arrangement, connector locations, cable connections, and relevant configuration information should be recorded. The control system should be placed in the appropriate maintenance condition according to the plant’s approved procedures. During handling, ESD protection should be used because the microprocessor, EPROM devices, and other electronic components are sensitive to static discharge. If firmware modules must be transferred, each module should remain in its original position unless the applicable technical documentation specifies otherwise. After installing the replacement board, verify all connectors, memory devices, power connections, and configuration details before returning the equipment to service.

7. What are common causes of relay or discrete signal problems on the DS215UDSAG1AZZ01A?

Relay and discrete signal problems can be caused by several factors, including incorrect field wiring, loose connectors, defective external relays, abnormal control voltages, damaged signal cables, incorrect configuration, or faults within the board itself. A problem affecting a single relay channel should be investigated at the corresponding field device and wiring first. If multiple channels are affected simultaneously, common power supplies, connectors, board interfaces, or internal circuitry should receive greater attention. The board’s LEDs and display information can provide additional clues during troubleshooting. It is also important to verify that the firmware and board configuration correspond to the installed Mark V application, as configuration mismatches can produce unexpected control behavior.

8. What should be verified after installing a replacement DS215UDSAG1AZZ01A?

After installation, verify the board model, revision, power connections, signal cables, connectors, EPROM modules, and configuration before performing functional testing. The board’s LEDs and display modules should be checked to confirm that the expected operating status is present. Relay and discrete signal channels should then be tested individually according to the approved commissioning procedure, including verification of both command signals and corresponding feedback or status indications. If the board is integrated with an EX2000 excitation or Mark V turbine control system, communication and interaction with the associated control boards should also be verified. Any unexpected diagnostic indication, relay state, or communication problem should be investigated before normal operation is restored.
