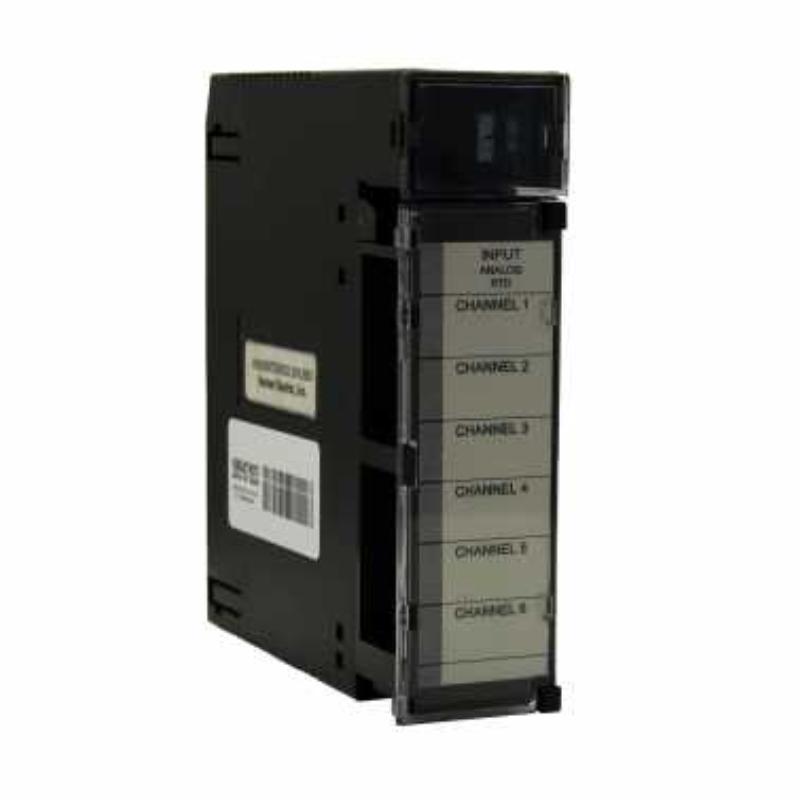

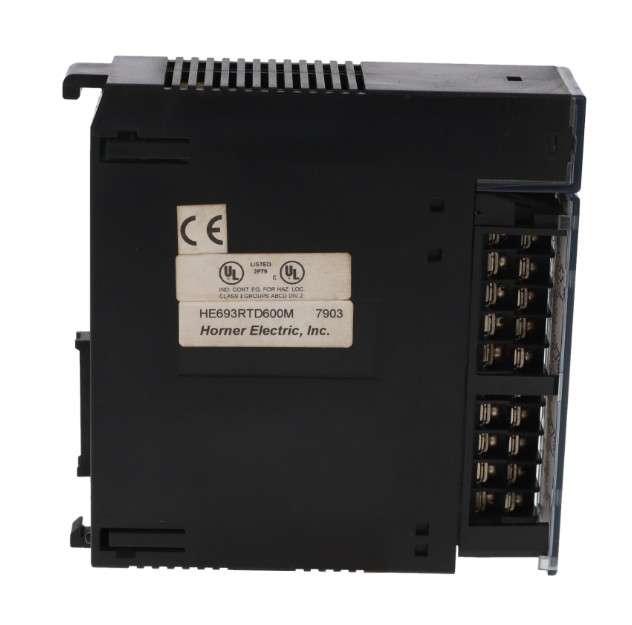

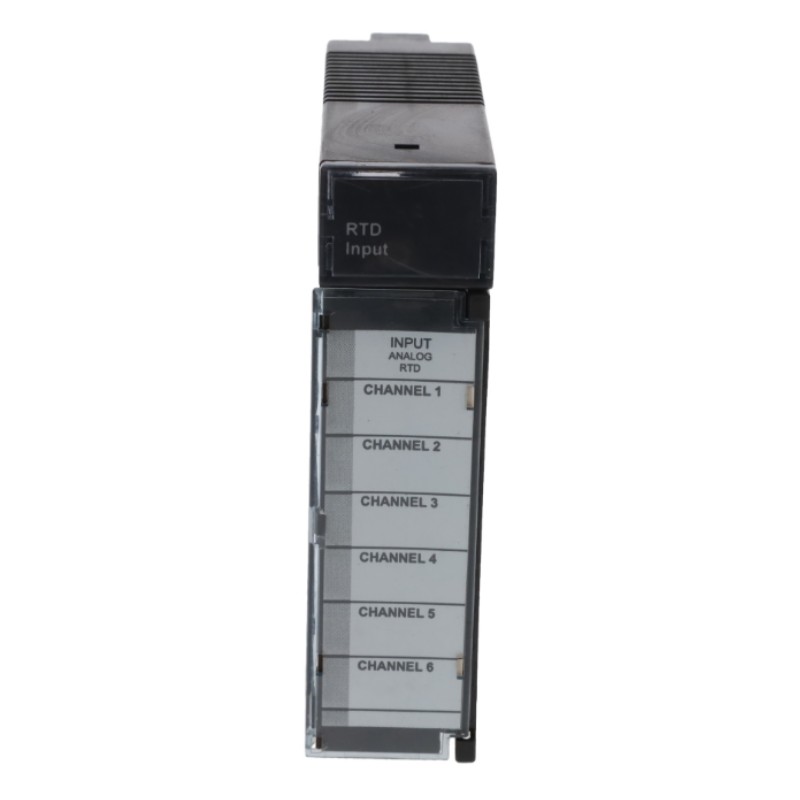

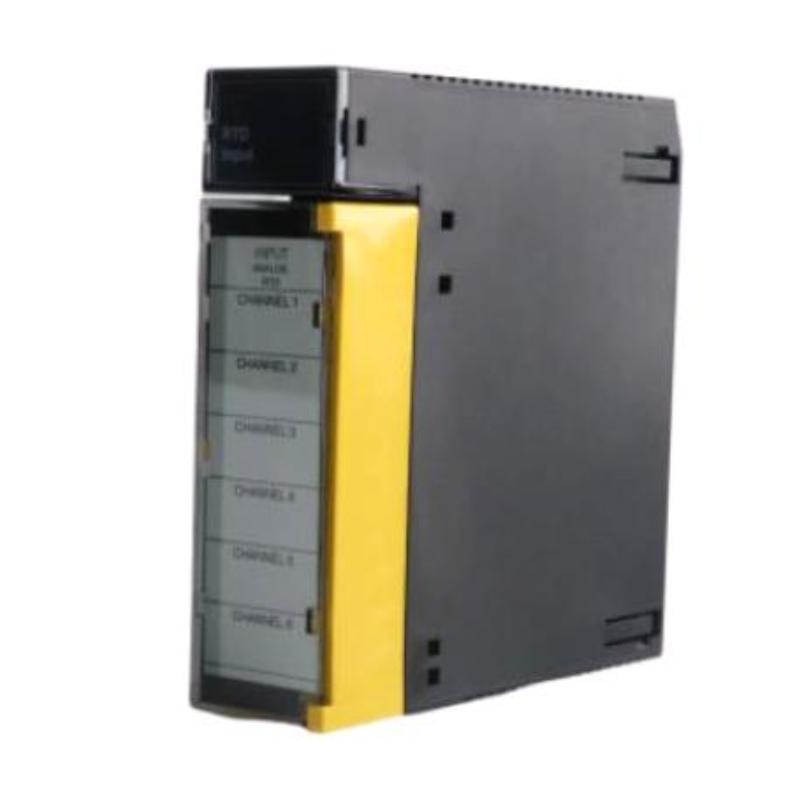

GE Fanuc HE693RTD600M RTD Temperature Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | HE693RTD600M |
| Product Series | Horner Electric / GE Fanuc Compatible PLC I/O |
| Product Type | RTD Temperature Input Module |
| Module Function | Provides direct connection of RTD temperature sensors to PLC systems for industrial temperature measurement applications |
| Number of Input Channels | 6 channels |
| Input Type | 3-wire RTD temperature inputs |
| Supported RTD Types | PT-100, PT-90, Ni-120, Cu-10, Cu-50, Cu-100, PT-1000, TD5R, and linear resistance inputs |
| Measurement Method | Resistance temperature measurement with integrated signal processing |
| A/D Conversion Type | 16-bit integrating analog-to-digital conversion |
| Temperature Resolution | 0.1°C |
| Channel Tracking Resolution | 0.1°C |
| Accuracy | Approximately ±0.5°C typical depending on sensor type |
| Input Impedance | Greater than 1000 MΩ |
| RTD Excitation Current | Approximately 330 μA for PT-100 sensors |
| Update Rate | Approximately 50 channels per second |
| Sensor Connection | 3-wire RTD connection |
| Fault Detection | RTD open circuit and input fault monitoring supported |
| Isolation Type | Input signal protection with PLC backplane interface |
| Power Consumption | Approximately 75 mA at 5 VDC |
| PLC Memory Requirement | Uses analog input data registers |
| Configuration Method | PLC software configuration and module parameter setup |
| Diagnostic Features | Sensor monitoring, input status checking, and fault indication |
| Status Indicators | LED indicators for module operating status |
| Installation Method | PLC rack-mounted installation |
| Compatibility | Horner Electric PLC systems and compatible GE Fanuc automation platforms |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions | Approximately 130 × 35 × 125 mm (5.12 × 1.38 × 4.92 in) |
| Weight | Approximately 0.32 kg (0.71 lb) |
| Typical Applications | Temperature monitoring, process control, heating systems, industrial ovens, and thermal measurement applications |
FAQ
Q1: What is the main function of the HE693RTD600M?
A: The HE693RTD600M is an RTD temperature input module designed to connect resistance temperature detectors directly to PLC systems. It converts temperature sensor resistance values into digital data for monitoring and control.
Q2: How many RTD input channels does the HE693RTD600M provide?
A: The module provides six independent RTD input channels, allowing multiple temperature points to be measured simultaneously.
Q3: Which RTD sensors are supported by the HE693RTD600M?
A: The module supports various RTD sensor types, including PT-100, PT-90, Ni-120, Cu-series sensors, PT-1000, TD5R, and linear resistance inputs.
Q4: What is the temperature resolution of the HE693RTD600M?
A: The module provides 0.1°C temperature resolution, allowing detailed temperature measurement for industrial control applications.
Q5: Does the HE693RTD600M require external signal converters?
A: No. The module performs RTD signal processing internally and allows direct connection of compatible RTD sensors without additional signal conditioning equipment.
Q6: What applications are suitable for the HE693RTD600M?
A: The module is commonly used in process temperature monitoring, heating equipment, industrial ovens, environmental systems, and automation applications requiring accurate RTD measurement.
Q7: How does the HE693RTD600M detect sensor problems?
A: The module supports RTD input monitoring and fault detection functions to help identify open circuits, wiring problems, or abnormal sensor conditions.
Q8: What should be checked when replacing a HE693RTD600M module?
A: Verify PLC compatibility, RTD sensor type, wiring configuration, channel settings, power requirements, and PLC application parameters before replacement.
GE Fanuc HE693RTD600M RTD Temperature Input Module is in stock. Please contact us for a quick quote and competitive pricing.
