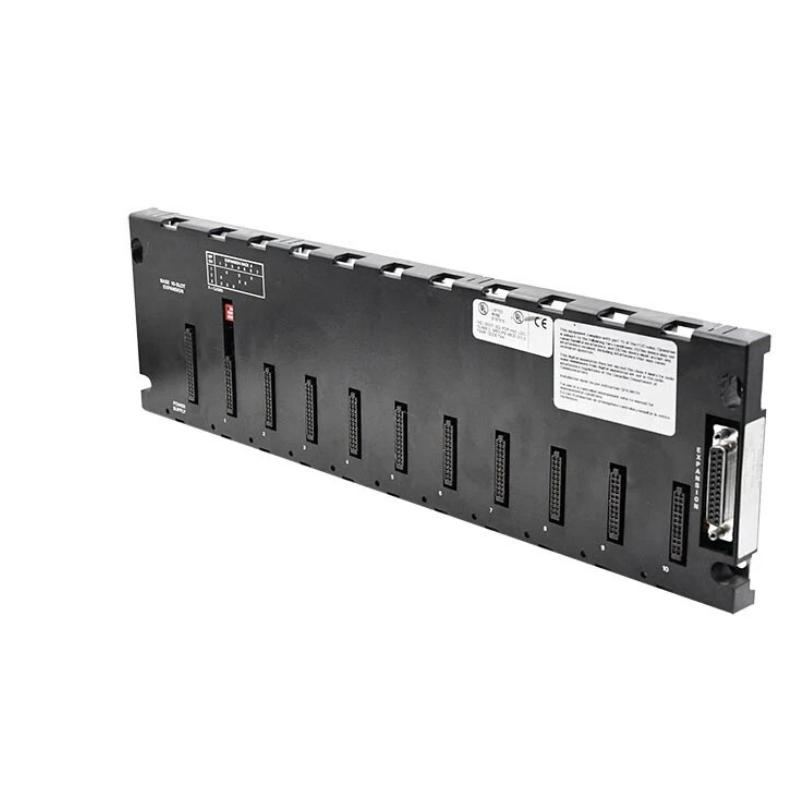

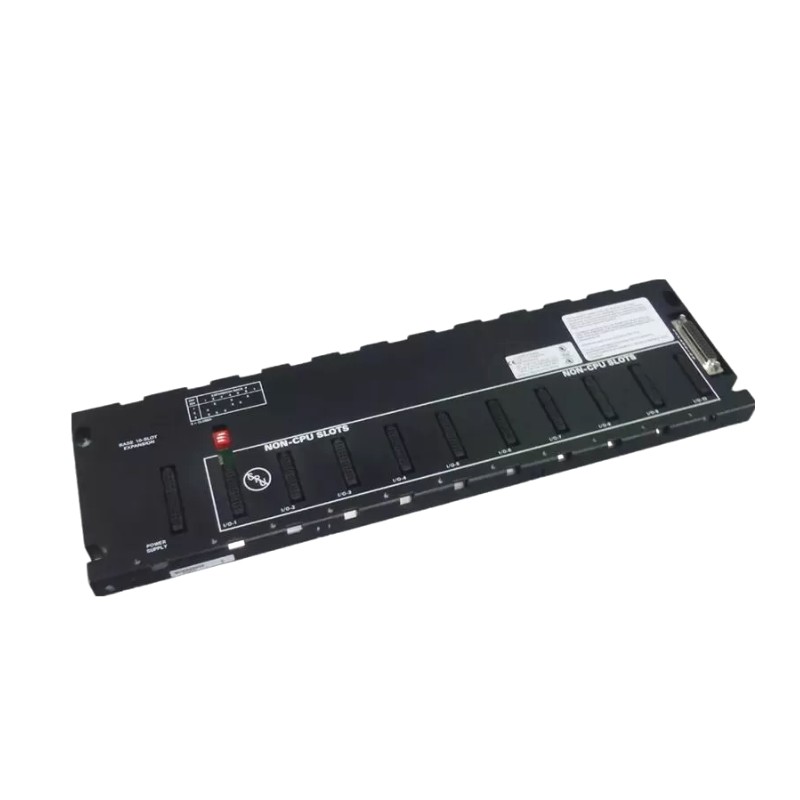

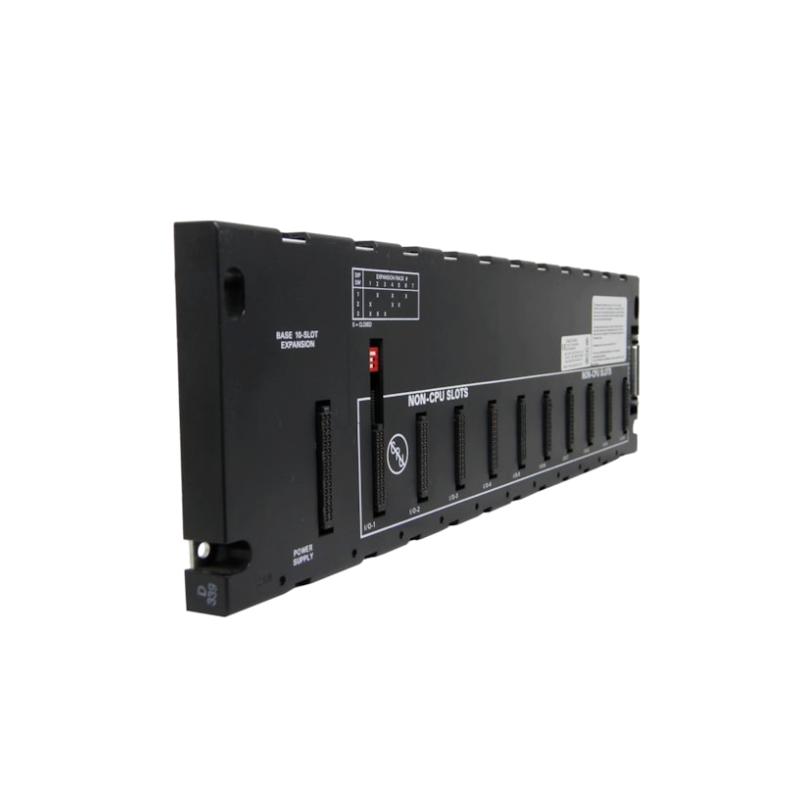

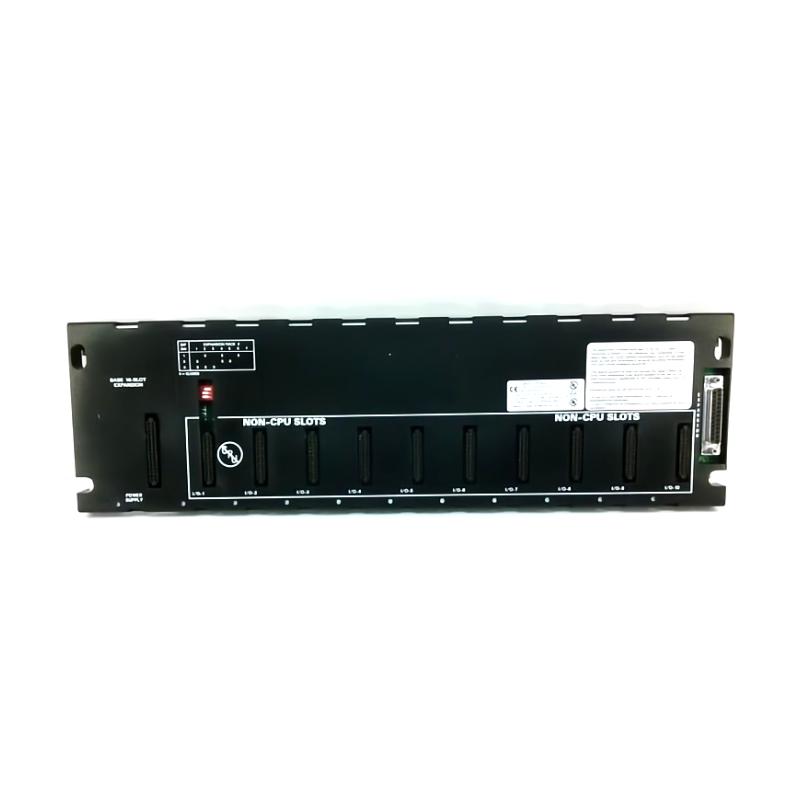

GE Fanuc IC693CHS392K 10-Slot Expansion Baseplate
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC693CHS392K |
| Product Series | GE Fanuc Series 90-30 |
| Product Type | 10-Slot Expansion Baseplate |
| Module Function | Provides additional mounting positions and backplane connections for Series 90-30 PLC system expansion |
| Baseplate Type | Expansion baseplate |
| Number of Slots | 10 slots |
| Slot Configuration | Dedicated power supply position with additional slots for CPU, I/O, and option modules depending on system configuration |
| CPU Support | Compatible with Series 90-30 CPU-based expansion systems |
| I/O Module Capacity | Supports multiple Series 90-30 I/O and option modules |
| Expansion Connector | 25-pin female D-type expansion connector |
| Expansion Distance | Up to 15 meters (50 ft) cable distance between connected baseplates |
| Backplane Power Consumption | Approximately 150 mA from 5 VDC supply |
| Power Source | Powered by the installed Series 90-30 power supply module |
| Communication Interface | Expansion bus connection interface |
| Installation Method | Panel-mounted PLC rack installation |
| Baseplate Addressing | Hardware-configured through PLC system setup |
| Compatible Systems | GE Fanuc Series 90-30 PLC systems |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Dimensions | Approximately 443 × 142 × 130 mm (17.44 × 5.59 × 5.12 in) |
| Weight | Approximately 0.6 kg (1.32 lb) |
| Typical Applications | PLC rack expansion, additional I/O capacity, distributed machine control, and industrial automation system extension |
FAQ
Q1: What is the main function of the IC693CHS392K?
A: The IC693CHS392K is a 10-slot expansion baseplate designed for GE Fanuc Series 90-30 PLC systems. It provides additional rack space for installing I/O and option modules to increase system capacity.
Q2: How many module slots does the IC693CHS392K provide?
A: The baseplate provides 10 slots for Series 90-30 modules. The available positions can be configured according to the PLC system design and application requirements.
Q3: Can the IC693CHS392K operate as an independent PLC rack?
A: No. The IC693CHS392K is an expansion baseplate and must be connected to a compatible Series 90-30 PLC system through the expansion bus.
Q4: What type of modules can be installed on the IC693CHS392K?
A: The baseplate supports compatible Series 90-30 I/O modules, communication modules, and other option modules used for PLC system expansion.
Q5: How is the IC693CHS392K connected to the main PLC rack?
A: The baseplate uses a 25-pin expansion connector and compatible expansion cables to communicate with the main PLC rack or other expansion racks.
Q6: What is the maximum expansion cable distance supported by the IC693CHS392K?
A: The expansion connection supports cable distances up to 15 meters (50 feet) when installed according to system requirements.
Q7: What should be checked before replacing an IC693CHS392K?
A: Verify Series 90-30 compatibility, rack configuration, expansion cable connections, installed module types, power supply capacity, and PLC hardware settings before replacement.
Q8: What are common applications for the IC693CHS392K?
A: The baseplate is commonly used in industrial automation systems requiring additional I/O capacity, larger PLC configurations, machine control expansion, and distributed control solutions.
GE Fanuc IC693CHS392K 10-Slot Expansion Baseplate is in stock. Please contact us for a quick quote and competitive pricing.
