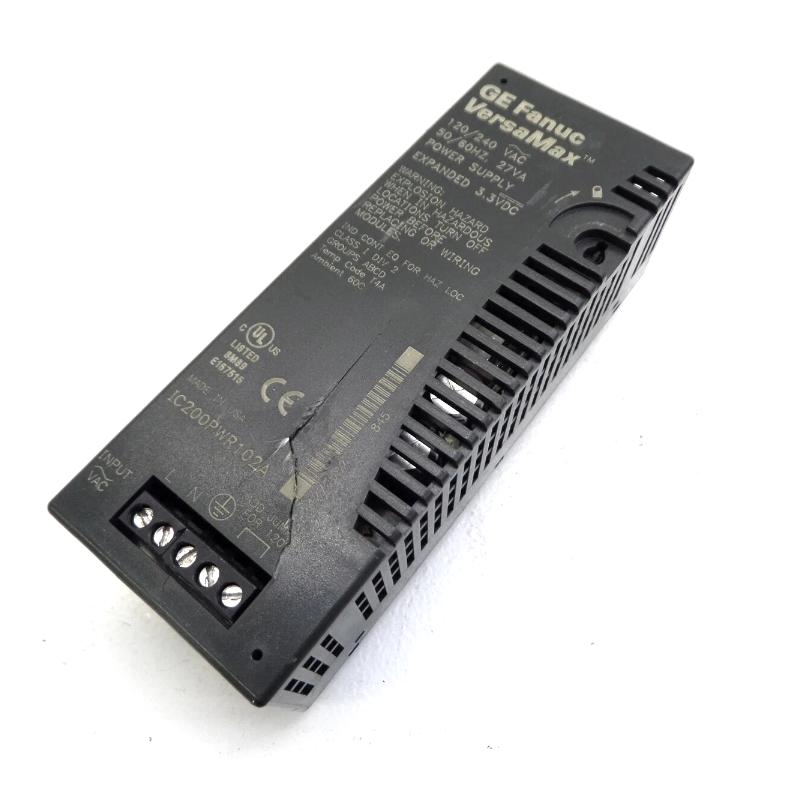

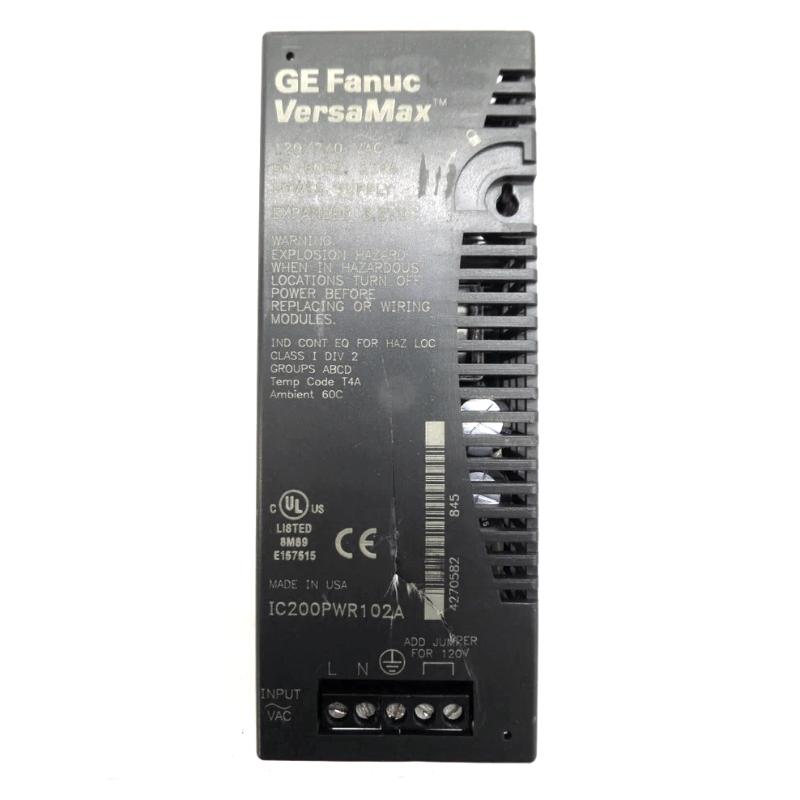

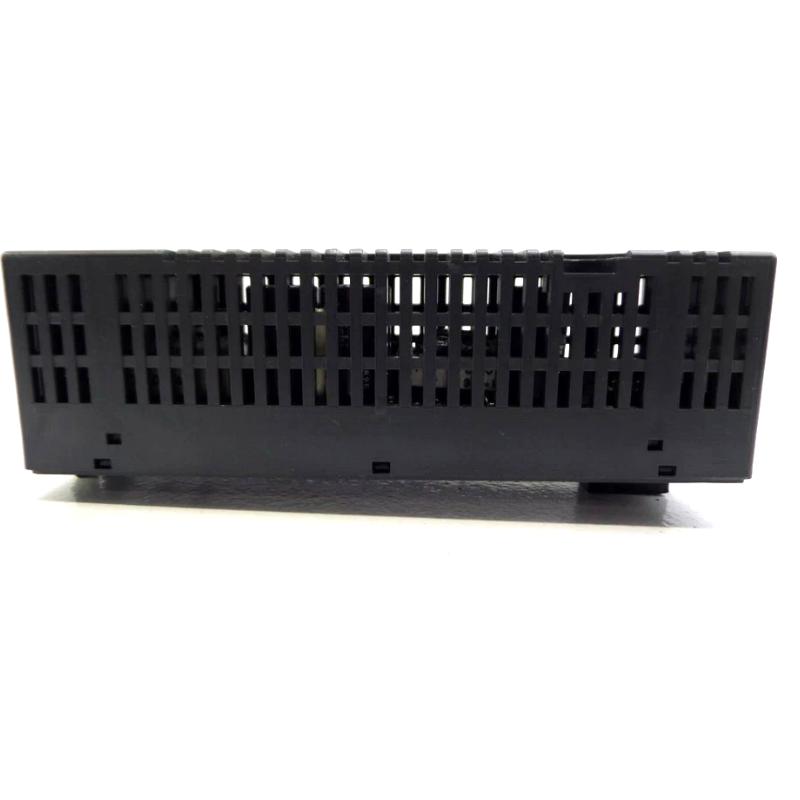

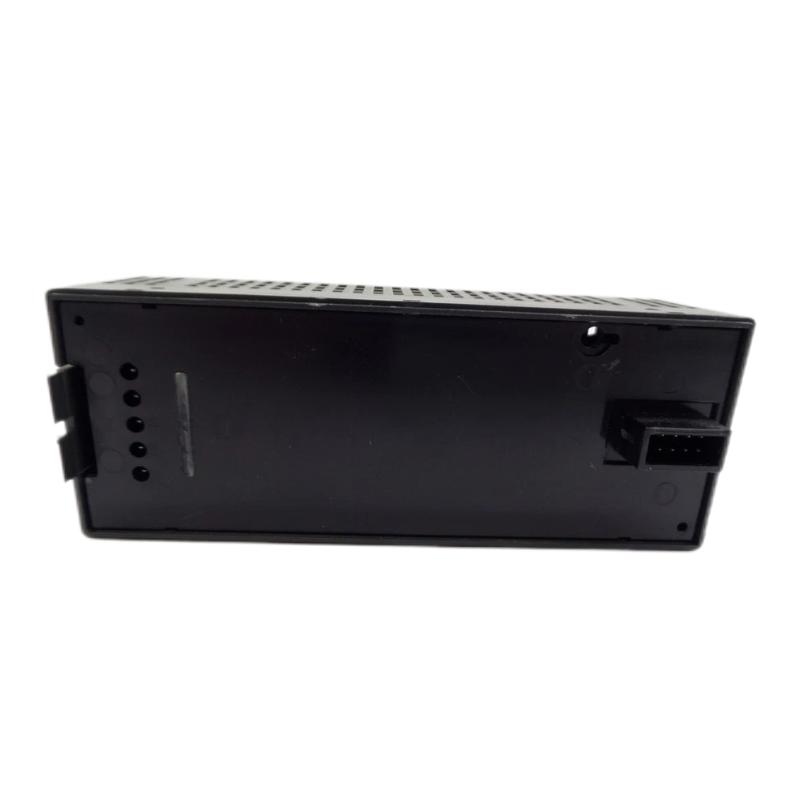

GE Fanuc IC200PWR102J Expanded Power Supply Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC200PWR102J |
| Product Series | GE Fanuc / Emerson VersaMax |
| Product Type | Expanded Power Supply Module |
| Module Function | Provides primary or supplemental power for VersaMax PLC CPUs, network interface units, and I/O modules |
| Input Voltage Type | AC input power supply |
| Rated Input Voltage | 120/240 VAC selectable |
| Input Voltage Range | 85 to 132 VAC (120 VAC nominal) / 176 to 264 VAC (240 VAC nominal) |
| Input Frequency | 47 to 63 Hz |
| Input Power Rating | 27 VA maximum |
| Output Voltage | 5 VDC and 3.3 VDC |
| Total Output Current | 1.5 A maximum |
| 3.3 VDC Output Current | 1.0 A maximum |
| 5 VDC Output Current | Up to 1.5 A depending on 3.3 VDC load |
| Power Supply Type | Expanded VersaMax power supply |
| Power Supply Application | Main station power supply or supplemental power source for expanded I/O systems |
| Voltage Selection Method | Jumper selectable for 120 VAC or 240 VAC operation |
| Hold-up Time | 20 ms minimum |
| Protection Features | Short circuit protection and overload protection |
| Output Regulation | Regulated DC output for VersaMax backplane power distribution |
| Mounting Method | VersaMax carrier or power supply booster carrier installation |
| Communication Function | Provides backplane power distribution without direct communication processing |
| Compatible Systems | GE Fanuc / Emerson VersaMax PLC systems |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Dimensions | Approximately 49 × 133.4 × 39 mm (1.93 × 5.25 × 1.54 in) |
| Weight | Approximately 0.14 kg (0.31 lb) |
| Typical Applications | PLC power expansion, VersaMax I/O station extension, industrial control cabinets, and automation system power management |
FAQ
Q1: What is the main function of the IC200PWR102J?
A: The IC200PWR102J is an expanded power supply module designed for VersaMax PLC systems. It provides regulated DC power for CPUs, network interface units, and I/O modules.
Q2: What input voltage does the IC200PWR102J support?
A: The module supports 120 VAC and 240 VAC nominal input operation. The correct voltage mode is selected through the jumper configuration.
Q3: What output voltages are provided by the IC200PWR102J?
A: The module provides 5 VDC and 3.3 VDC outputs for powering VersaMax system components through the backplane.
Q4: What is the maximum output current capacity of the IC200PWR102J?
A: The module provides a total maximum output current of 1.5 A, including up to 1.0 A on the 3.3 VDC output.
Q5: Can the IC200PWR102J be used as an expansion power supply?
A: Yes. The module is designed to provide additional power capacity for larger VersaMax PLC configurations that require extended I/O support.
Q6: What protection functions are included in the IC200PWR102J?
A: The power supply includes short circuit protection and overload protection to improve system stability during abnormal operating conditions.
Q7: How should the IC200PWR102J be installed?
A: The module should be installed on a compatible VersaMax carrier or booster carrier with correct AC input wiring and proper voltage selection settings.
Q8: What should be checked when replacing an IC200PWR102J module?
A: Verify input voltage configuration, VersaMax system compatibility, output power requirements, mounting position, wiring connections, and the total load capacity of connected modules before replacement.
GE Fanuc IC200PWR102J Expanded Power Supply Module is in stock. Please contact us for a quick quote and competitive pricing.
