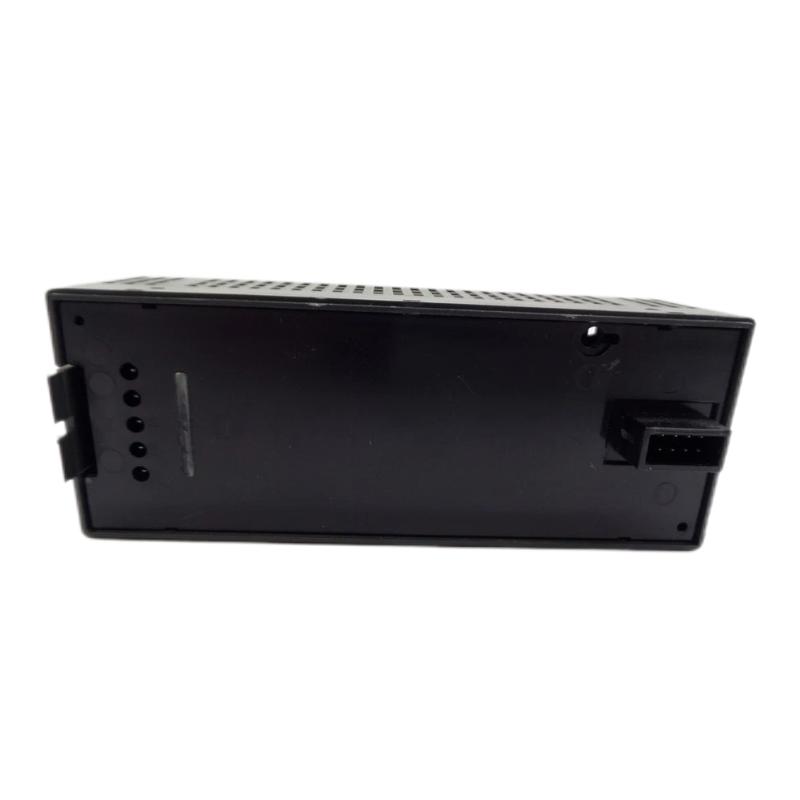

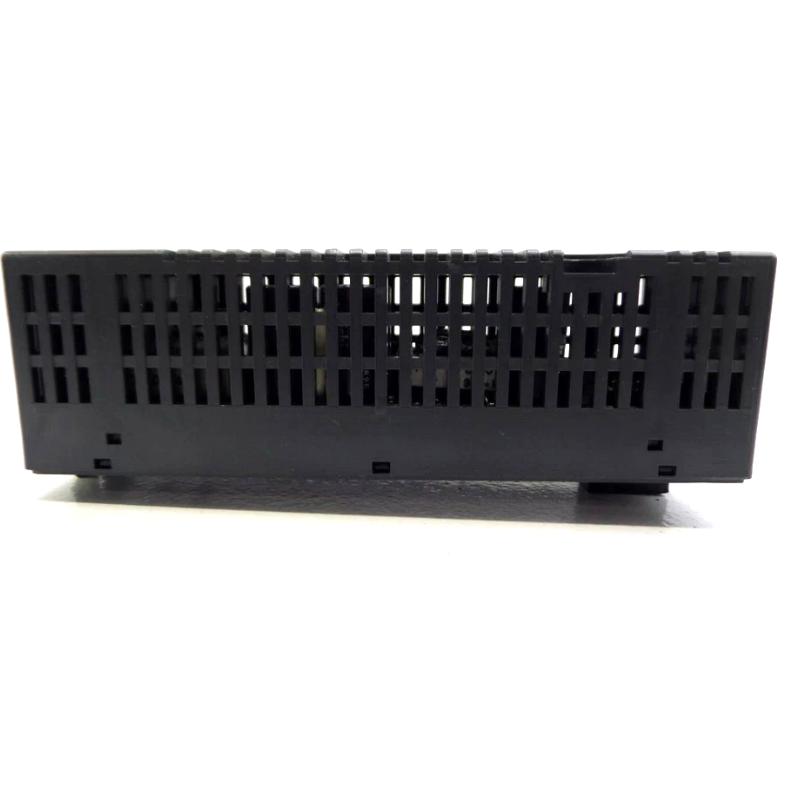

GE Fanuc IC200PWR101G AC Power Supply Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC200PWR101G |
| Product Series | GE Fanuc / Emerson VersaMax |
| Product Type | AC Power Supply Module |
| Module Function | Provides regulated backplane power for VersaMax PLC CPUs, network interface units, and I/O modules |
| Input Voltage Type | AC input power supply |
| Rated Input Voltage | 120/240 VAC selectable |
| Input Voltage Range | 85 to 132 VAC (120 VAC nominal, jumper installed) / 176 to 264 VAC (240 VAC nominal, jumper removed) |
| Input Frequency | 47 to 63 Hz |
| Input Power Rating | 27 VA maximum |
| Output Voltage | 5 VDC and 3.3 VDC |
| Total Output Current | 1.5 A maximum |
| 3.3 VDC Output Current | 0.25 A maximum |
| 5 VDC Output Current | Maximum 1.5 A minus the 3.3 VDC output current used |
| Power Supply Type | Standard VersaMax power supply |
| Main Application | Supplies power to CPU, NIU, and I/O modules through the VersaMax backplane |
| Supplemental Power Function | Supported when installed on a power supply booster carrier |
| Hold-up Time | 20 ms minimum |
| Protection Features | Short circuit protection and overload protection |
| Voltage Selection Method | Jumper configuration for 120 VAC or 240 VAC operation |
| Mounting Method | VersaMax CPU, NIU, or booster carrier mounting |
| Communication Function | Provides system power distribution without direct communication processing |
| Compatible Systems | GE Fanuc / Emerson VersaMax PLC systems |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Dimensions | Approximately 49 × 133.4 × 39 mm (1.93 × 5.25 × 1.54 in) |
| Weight | Approximately 0.14 kg (0.31 lb) |
| Typical Applications | VersaMax PLC installations, I/O station power supply, industrial control panels, and automation system expansion |
FAQ
Q1: What is the main function of the IC200PWR101G?
A: The IC200PWR101G is a VersaMax AC power supply module that converts incoming AC power into regulated 5 VDC and 3.3 VDC outputs for PLC CPUs, network interface units, and I/O modules.
Q2: What input voltage does the IC200PWR101G support?
A: The module supports both 120 VAC and 240 VAC nominal input operation. The correct voltage range is selected through the jumper configuration.
Q3: What output voltages are provided by the IC200PWR101G?
A: The module provides 5 VDC and 3.3 VDC outputs for powering VersaMax PLC system components through the backplane.
Q4: What is the maximum output current capacity of the IC200PWR101G?
A: The total output current capacity is 1.5 A maximum. The 3.3 VDC output can provide up to 0.25 A, while the remaining capacity is available for the 5 VDC output.
Q5: Can the IC200PWR101G be used as a supplemental power supply?
A: Yes. When installed with a compatible booster carrier, the module can provide additional power support for expanded VersaMax I/O configurations.
Q6: What protection features are included in the IC200PWR101G?
A: The power supply includes short circuit protection and overload protection to improve system reliability during abnormal operating conditions.
Q7: How should the IC200PWR101G be installed?
A: The module should be mounted on a compatible VersaMax CPU, network interface unit, or power supply carrier with correct AC wiring and proper jumper settings for the selected input voltage.
Q8: What should be checked when replacing an IC200PWR101G module?
A: Verify input voltage selection, VersaMax system compatibility, output power requirements, mounting position, wiring connections, and the total load demand of connected modules before replacement.
GE Fanuc IC200PWR101G AC Power Supply Module is in stock. Please contact us for a quick quote and competitive pricing.
