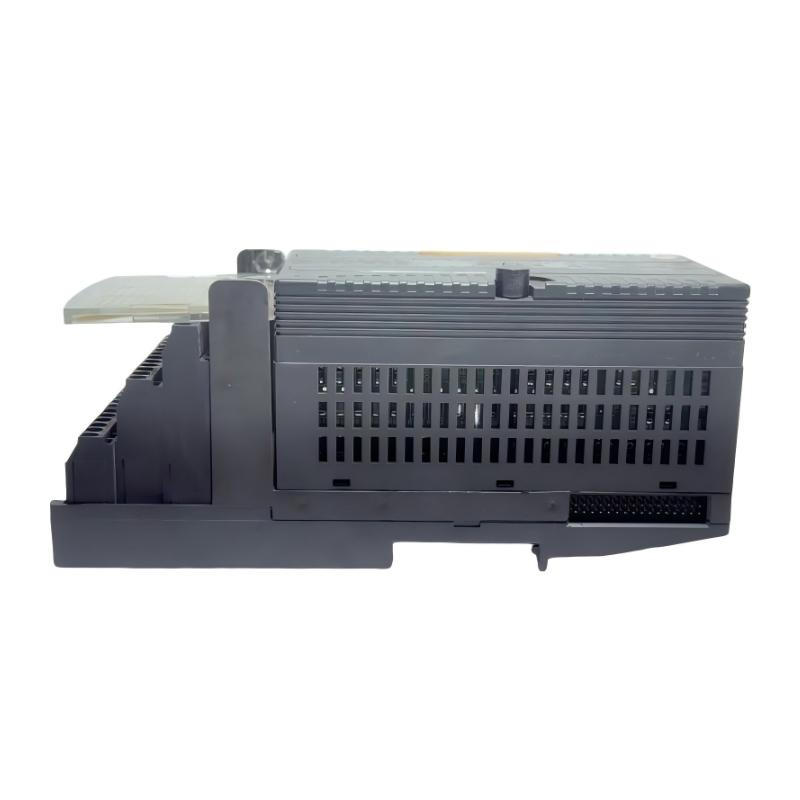

GE Fanuc IC200MDD840E Discrete Mixed Input/Output Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC200MDD840E |
| Product Series | GE Fanuc / Emerson VersaMax |
| Product Type | Discrete Mixed Input/Output Module |
| Module Function | Combines digital input and relay output functions in a single VersaMax PLC module for flexible field device control |
| Input Points | 20 points |
| Input Configuration | Two groups of 10 inputs |
| Input Type | 24 VDC Positive Logic Inputs |
| Input Voltage Range | 0 to +30 VDC |
| Rated Input Voltage | 24 VDC nominal |
| ON-State Voltage | +15 to +30 VDC |
| OFF-State Voltage | 0 to +5 VDC |
| ON-State Current | 2 to 5.5 mA |
| OFF-State Current | 0 to 0.5 mA |
| Input Impedance | Approximately 10 kΩ maximum |
| Input Response Time | 0.5 ms maximum |
| Output Points | 12 points |
| Output Configuration | Two groups of 6 relay outputs |
| Output Type | Relay Contact Output |
| Contact Type | Normally Open (Form A) relay contacts |
| Output Voltage Range | 0 to 125 VDC / 0 to 265 VAC |
| Rated Output Voltage | 5/24/125 VDC or 120/240 VAC |
| Output Current Rating | 2 A maximum per point |
| Output Group Current Capacity | 8 A maximum per output group |
| Output Response Time | 15 ms typical |
| Output Isolation | Relay isolation between output contacts and logic circuits |
| Isolation Rating | 250 VAC continuous; 1500 VAC for 1 minute |
| Backplane Current Consumption | Approximately 375 mA maximum from 5 VDC supply |
| External Power Supply | Required for relay output loads |
| Protection Features | External suppression recommended for inductive loads |
| Status Indicators | Individual LED indicators for input and output status |
| Installation Method | VersaMax carrier-based installation |
| Compatible Systems | GE Fanuc / Emerson VersaMax PLC systems |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Dimensions | Approximately 110 × 50 × 66.8 mm (4.33 × 1.97 × 2.63 in) |
| Weight | Approximately 0.16 kg (0.35 lb) |
| Typical Applications | Machine control, relay switching, sensor monitoring, motor control, and industrial automation systems |
FAQ
Q1: What is the main function of the IC200MDD840E?
A: The IC200MDD840E is a VersaMax mixed discrete I/O module that combines 20 DC input points and 12 relay output points in one compact module, reducing the need for separate input and output modules.
Q2: How many input and output channels does the IC200MDD840E provide?
A: The module provides 20 digital DC input points and 12 relay output points, allowing both signal monitoring and field device control within a single PLC slot.
Q3: What type of input signals are supported by the IC200MDD840E?
A: The input section supports 24 VDC positive logic signals from devices such as sensors, switches, and pushbuttons.
Q4: What type of outputs are available on the IC200MDD840E?
A: The module uses relay outputs, allowing it to control AC or DC loads such as contactors, solenoid valves, alarms, and industrial control devices.
Q5: What is the maximum output current capability of the IC200MDD840E?
A: Each relay output point can handle up to 2 A, while output groups have a maximum current capacity limit depending on operating conditions.
Q6: Does the IC200MDD840E provide electrical isolation?
A: Yes. The relay output section provides electrical isolation to help protect the PLC logic circuits from external field voltage conditions.
Q7: What applications are suitable for the IC200MDD840E?
A: The module is commonly used in compact automation systems requiring both digital signal collection and relay-based load control, including machinery, production lines, and process equipment.
Q8: What should be checked when replacing an IC200MDD840E module?
A: Confirm VersaMax compatibility, input voltage levels, relay output specifications, field wiring, external power supply requirements, PLC configuration, and connected load ratings before replacement.
