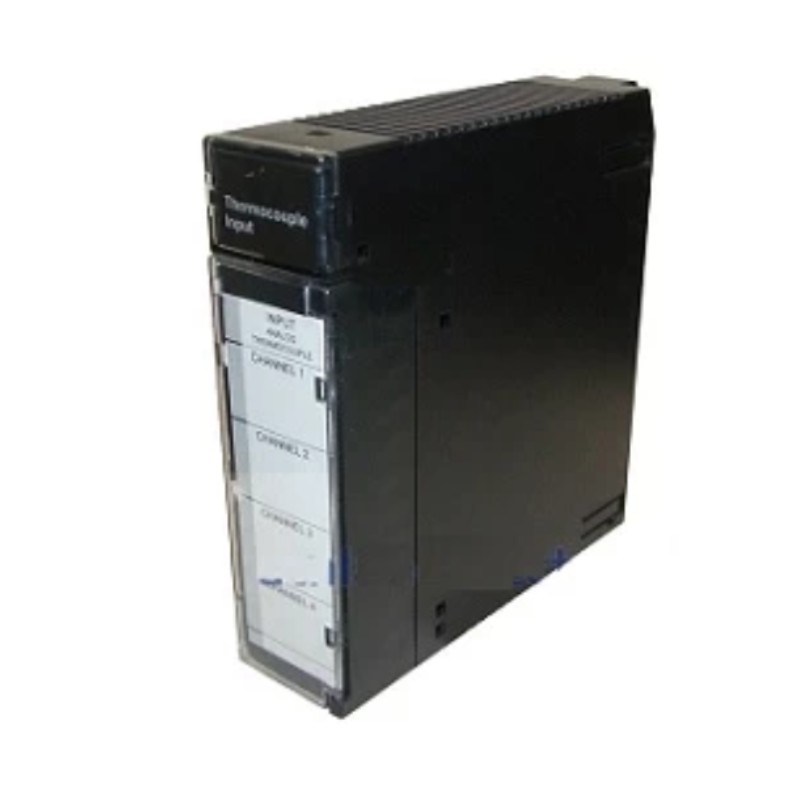

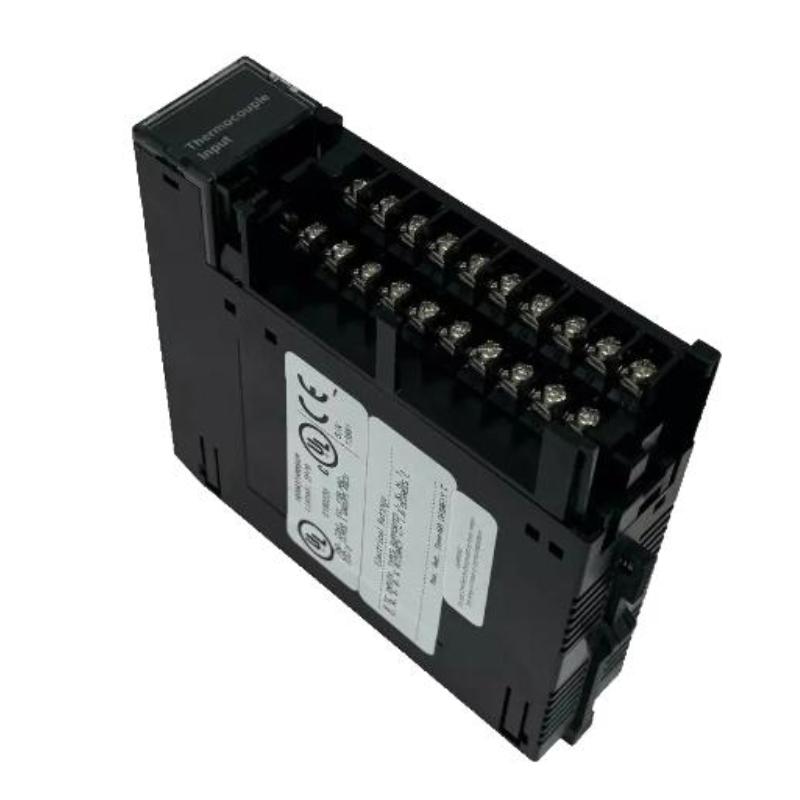

GE Fanuc HE693THM449C Thermocouple Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | HE693THM449C |
| Product Series | Horner Electric / GE Fanuc Series 90-30 Compatible |
| Product Type | Thermocouple Input Module |
| Module Function | Provides direct thermocouple signal acquisition for PLC-based temperature monitoring and control systems |
| Number of Input Channels | 4 channels |
| Input Type | Thermocouple temperature inputs |
| Supported Thermocouple Types | J, K, N, T, E, R, and S |
| Temperature Units | Celsius or Fahrenheit selectable |
| Input Resolution | 0.5°C |
| Accuracy | Approximately ±0.5°C typical depending on thermocouple type and operating conditions |
| Input Impedance | Greater than 20 MΩ |
| Maximum Input Protection | ±35 V overload protection |
| Common Mode Range | ±12 V |
| Common Mode Rejection Ratio | Greater than 100 dB |
| A/D Conversion Type | Integrating analog-to-digital conversion |
| A/D Conversion Time | Approximately 5 ms |
| Module Update Rate | Approximately 45 channels per second |
| Cold Junction Compensation | Built-in automatic compensation |
| Open Circuit Detection | Supported |
| PLC Data Interface | Analog data registers and diagnostic status information |
| Power Consumption | Approximately 70 mA at 5 VDC and 60 mA at 24 VDC supply |
| Communication Interface | PLC backplane communication |
| Configuration Method | PLC programming software and module parameter settings |
| Diagnostic Features | Thermocouple fault detection, input monitoring, and module status diagnostics |
| Status Indicators | LED indicators for module operation and fault status |
| Installation Method | PLC rack-mounted installation |
| Compatibility | Horner Electric PLC systems and GE Fanuc Series 90-30 compatible platforms |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions | Approximately 130 × 35 × 125 mm (5.12 × 1.38 × 4.92 in) |
| Weight | Approximately 0.42 kg (0.93 lb) |
| Typical Applications | Temperature monitoring, heating control, industrial ovens, process automation, and thermal measurement systems |
FAQ
Q1: What is the main function of the HE693THM449C?
A: The HE693THM449C is a four-channel thermocouple input module designed to collect temperature signals from thermocouple sensors and transfer processed data to a PLC control system.
Q2: How many thermocouple channels does the HE693THM449C provide?
A: The module provides four independent thermocouple input channels, allowing multiple temperature points to be monitored at the same time.
Q3: Which thermocouple types are supported by the HE693THM449C?
A: The module supports commonly used thermocouple types including J, K, N, T, E, R, and S, making it suitable for various industrial temperature ranges.
Q4: What is the temperature resolution of the HE693THM449C?
A: The module provides 0.5°C resolution, enabling reliable temperature measurement for industrial process monitoring and control.
Q5: Does the HE693THM449C support thermocouple fault detection?
A: Yes. The module includes open circuit detection to identify disconnected, damaged, or improperly wired thermocouple sensors.
Q6: What applications are suitable for the HE693THM449C?
A: The module is commonly used for furnace temperature control, industrial heating systems, ovens, process equipment, and automation applications requiring multi-point temperature monitoring.
Q7: How is the HE693THM449C configured in a PLC system?
A: The module is configured through PLC programming software by selecting thermocouple types, temperature units, input parameters, and diagnostic settings.
Q8: What should be checked when replacing a HE693THM449C module?
A: Verify PLC system compatibility, thermocouple type selection, sensor wiring, module configuration, power supply conditions, and PLC program settings before replacement.
GE Fanuc HE693THM449C Thermocouple Input Module is in stock. Please contact us for a quick quote and competitive pricing.
