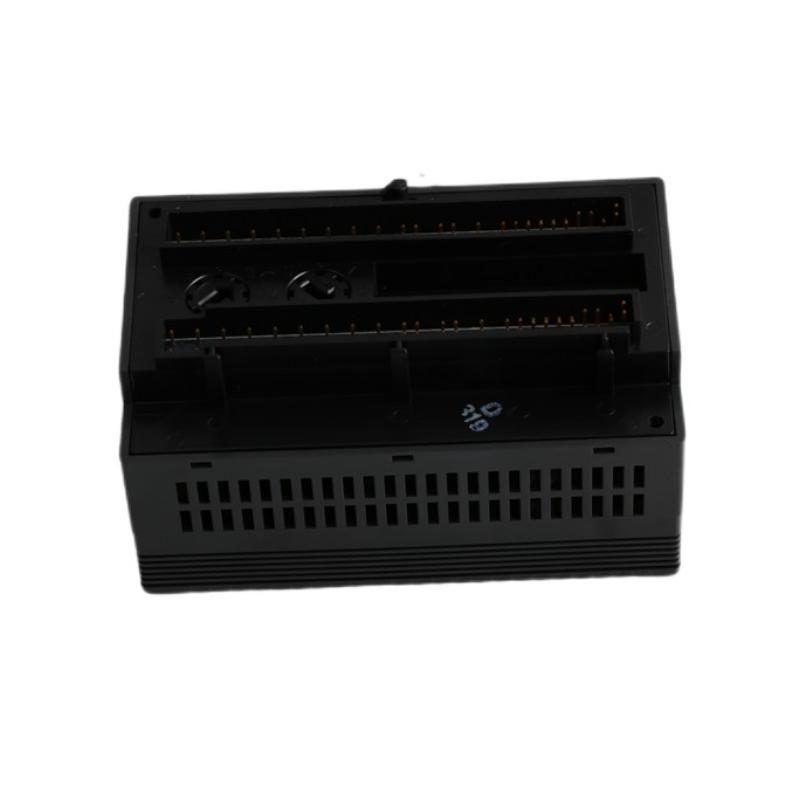

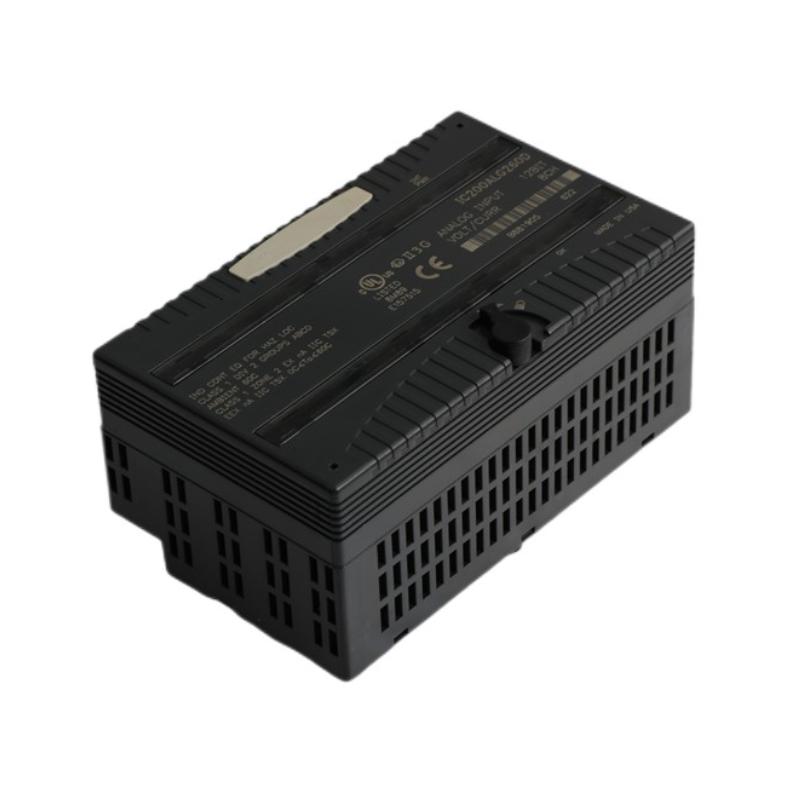

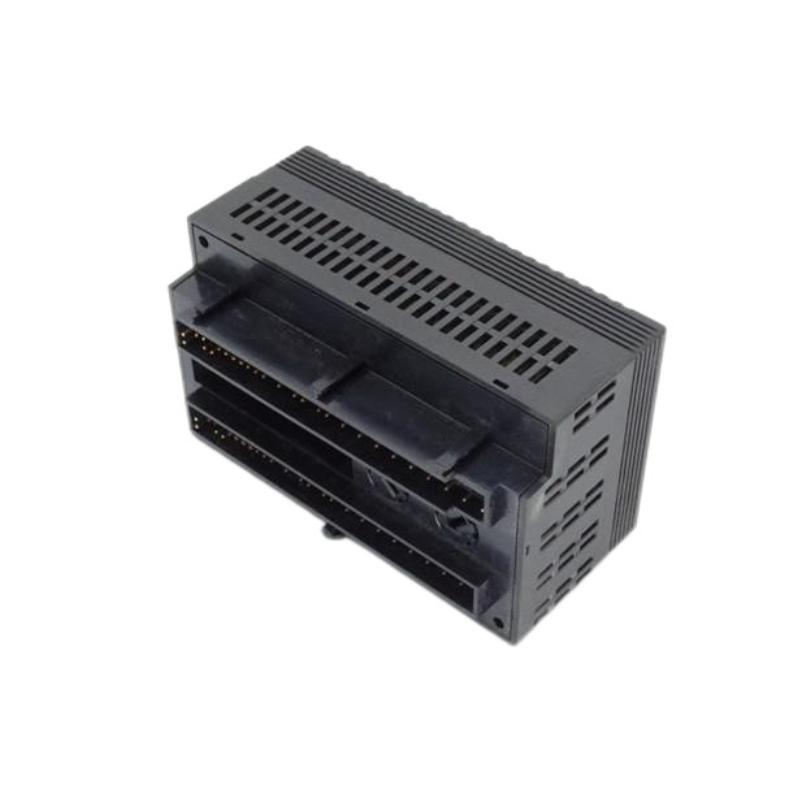

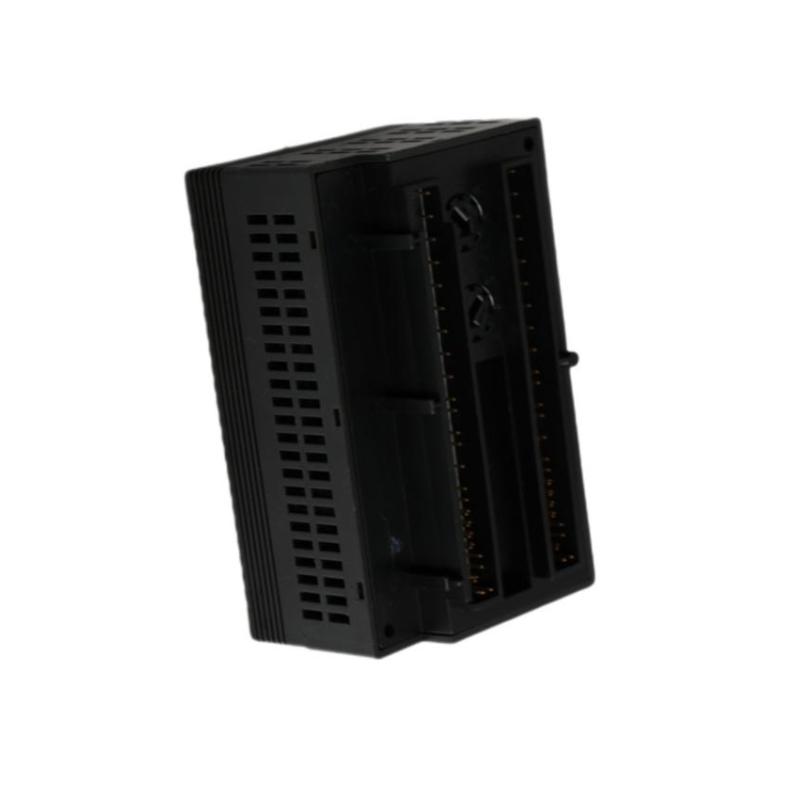

GE Fanuc IC200ALG260A Analog Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC200ALG260A |
| Product Series | GE Fanuc / Emerson VersaMax |
| Product Type | Analog Input Module |
| Module Function | Converts external analog voltage and current signals into digital values for VersaMax PLC processing |
| Number of Input Channels | 8 channels |
| Input Configuration | 8 single-ended analog inputs |
| Input Signal Type | Voltage and current analog inputs |
| Voltage Input Range | 0 to 10 VDC, -10 to +10 VDC |
| Current Input Range | 4 to 20 mA |
| Input Mode | Voltage mode or current mode selectable |
| Resolution | 12-bit analog-to-digital conversion |
| Input Accuracy | Approximately ±0.3% of full scale |
| Input Impedance | Approximately 126 kΩ in voltage mode; 200 Ω in current mode |
| Filter Response Time | Approximately 5 ms |
| Channel Update Rate | Approximately 0.4 ms |
| Channel Isolation | Non-isolated between individual input channels |
| Field Side Isolation | 250 VAC continuous; 1500 VAC for 1 minute between field input and logic circuits |
| Backplane Power Consumption | Approximately 130 mA from 5 VDC supply |
| External Field Power | Not required |
| Configuration Parameters | Input range selection and operating mode configuration |
| Diagnostic Features | Module status monitoring and internal power detection |
| Status Indicators | OK LED and internal power LED |
| Installation Method | VersaMax carrier-based installation |
| Compatible Systems | GE Fanuc / Emerson VersaMax PLC systems |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Dimensions | Approximately 109 × 67 × 50 mm (4.3 × 2.63 × 1.96 in) |
| Weight | Approximately 0.25 kg (0.55 lb) |
| Typical Applications | Process monitoring, pressure measurement, temperature transmitters, flow control, and industrial analog data acquisition |
FAQ
Q1: What is the main function of the IC200ALG260A?
A: The IC200ALG260A is an 8-channel analog input module designed for VersaMax PLC systems. It converts external voltage and current signals into digital values for PLC monitoring and control applications.
Q2: How many analog input channels does the IC200ALG260A provide?
A: The module provides eight single-ended analog input channels, allowing multiple field devices to be connected to one PLC system.
Q3: What types of analog signals are supported by the IC200ALG260A?
A: The module supports voltage inputs such as 0 to 10 VDC and -10 to +10 VDC, as well as 4 to 20 mA current signals.
Q4: What is the resolution of the IC200ALG260A?
A: The module uses a 12-bit analog-to-digital converter to provide accurate conversion of analog field signals into PLC-readable data.
Q5: Does the IC200ALG260A require an external field power supply?
A: No. The module receives operating power through the VersaMax backplane and does not require a separate field power source for analog signal measurement.
Q6: How is the operating status of the IC200ALG260A monitored?
A: The module provides LED status indicators that display module operation and power conditions for easier maintenance and troubleshooting.
Q7: What applications are suitable for the IC200ALG260A?
A: The module is commonly used for process monitoring, pressure sensing, flow measurement, temperature transmitter integration, and other industrial analog acquisition tasks.
Q8: What should be checked when replacing an IC200ALG260A module?
A: Verify VersaMax compatibility, analog input range settings, field wiring, connected device specifications, PLC hardware configuration, and application parameters before replacement.
GE Fanuc IC200ALG260A Analog Input Module is in stock. Please contact us for a quick quote and competitive pricing.
