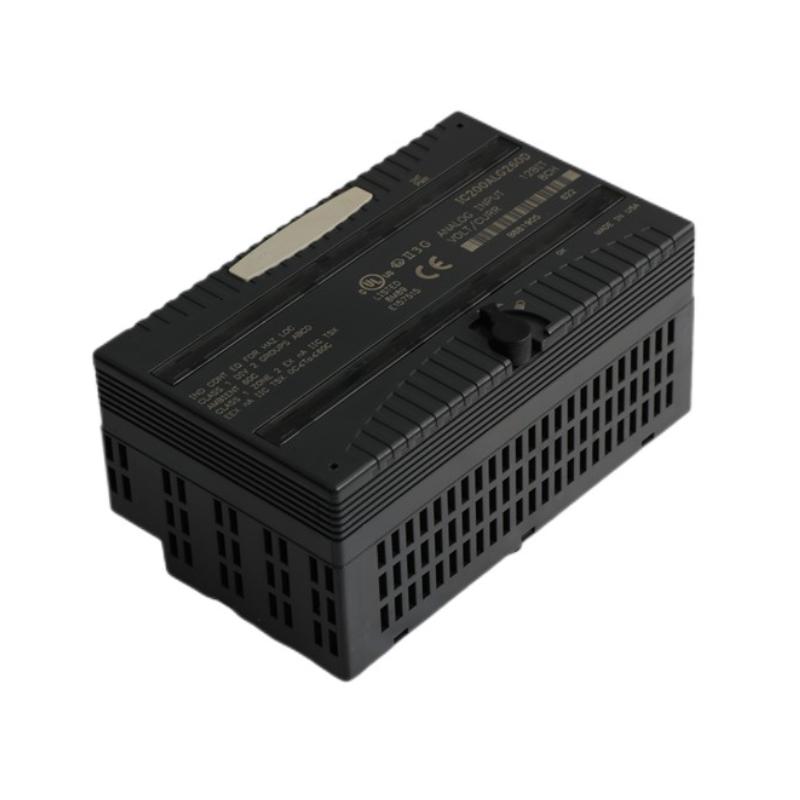

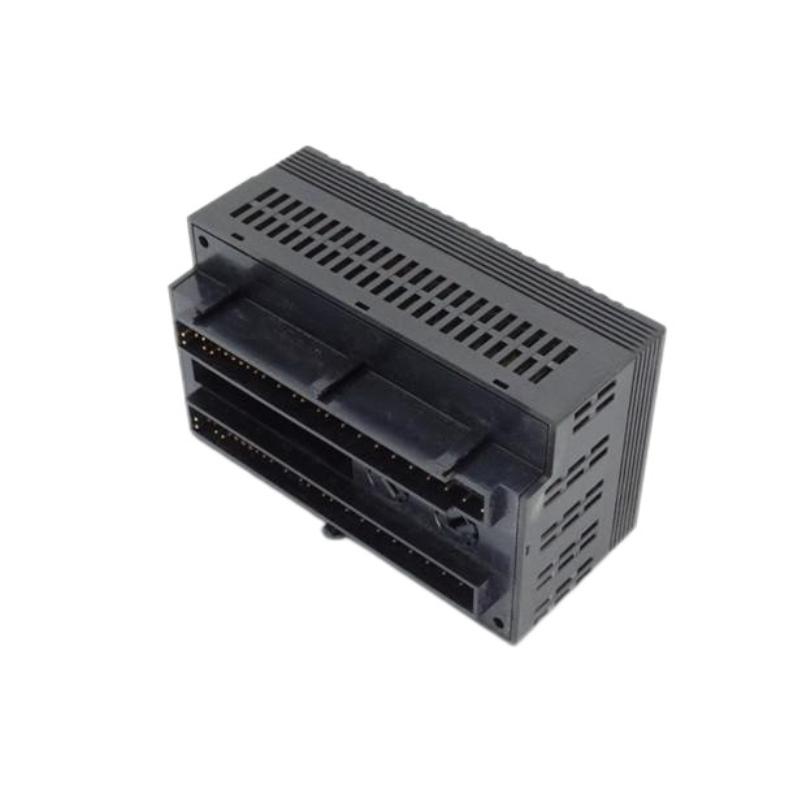

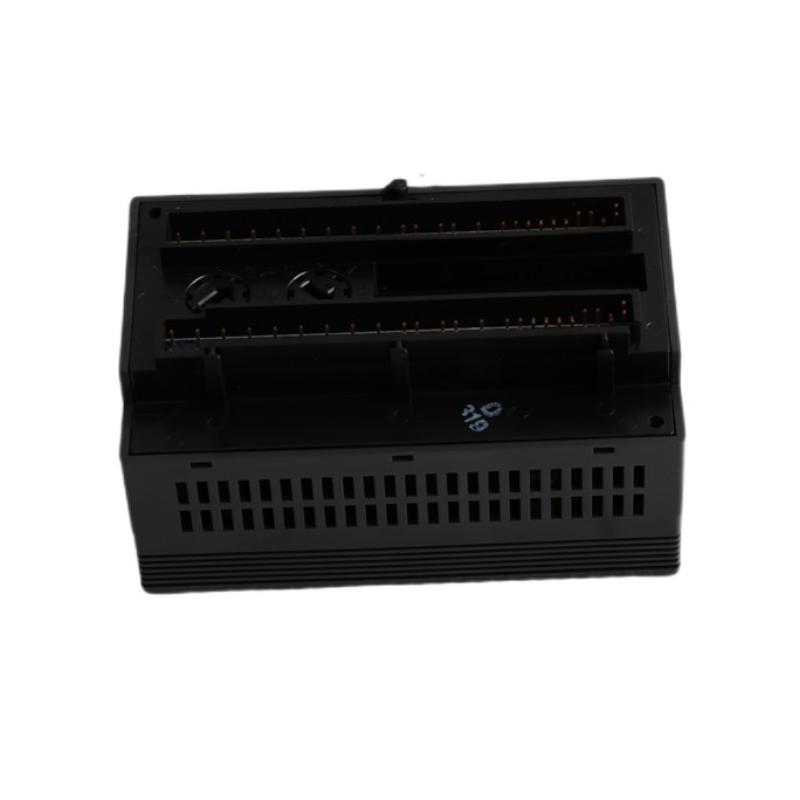

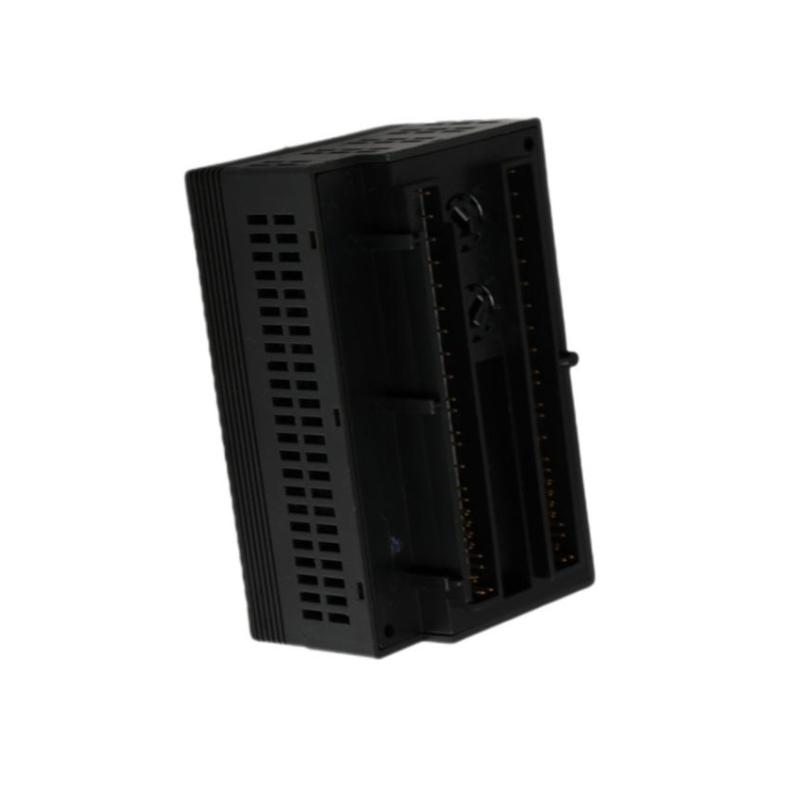

GE Fanuc IC200ALG260J Analog Voltage/Current Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC200ALG260J |
| Manufacturer | GE Fanuc / Emerson |
| Product Series | VersaMax Distributed I/O |
| Product Type | Analog Voltage/Current Input Module |
| Main Function | Converts analog voltage or current signals from field devices into digital values for PLC processing |
| Application | Industrial automation, process monitoring, temperature/pressure/flow control, transmitter signal acquisition, distributed control systems |
| Number of Input Channels | 8 channels |
| Input Configuration | 8 single-ended analog inputs, one group |
| Input Type | Voltage or current selectable |
| Input Signal Range | ±10 VDC, 0–10 VDC, or 4–20 mA |
| Resolution | 12-bit analog-to-digital conversion |
| Input Impedance | Voltage mode: approximately 126 kΩ / Current mode: approximately 100–200 Ω |
| Accuracy (25°C) | ±0.3% typical of full scale |
| Accuracy (0–60°C) | ±1% maximum of full scale |
| Filter Response Time | Approximately 5 ms |
| Data Update Rate | Approximately 0.4 ms |
| Isolation Type | Optical isolation between user input, logic side, and frame ground |
| Isolation Rating | 250 VAC continuous / 1500 VAC for 1 minute |
| Channel Isolation | No individual channel-to-channel isolation |
| External Power Supply | Not required for module operation |
| Backplane Power Consumption | Approximately 130 mA at 5 VDC maximum |
| Input Modes | Voltage mode / Current mode selectable by jumper |
| Current Input Range | 4–20 mA |
| Voltage Input Range | ±10 VDC (default) / 0–10 VDC selectable |
| Diagnostics | Internal power loss detection, input status monitoring |
| LED Indicators | INT PWR LED (field power status), OK LED (backplane power status) |
| Configuration | Jumper selectable input mode and range |
| Mounting Type | VersaMax I/O carrier mounting |
| Terminal Connection | VersaMax terminal carrier interface |
| Compatible Modules | VersaMax CPU, Network Interface Unit, and I/O carrier systems |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions | Approximately 110 mm × 66.8 mm × 50 mm |
| Weight | Approximately 0.25 kg |
| Compatibility | GE Fanuc / Emerson VersaMax PLC and distributed I/O systems |
FAQ
Q1: What is the main function of the IC200ALG260J?
A: The IC200ALG260J is a VersaMax analog input module that converts external voltage or current signals into digital data for PLC processing.
Q2: How many analog input channels does the IC200ALG260J provide?
A: The module provides 8 single-ended analog input channels.
Q3: What input signals are supported by the IC200ALG260J?
A: It supports ±10 VDC, 0–10 VDC voltage signals, and 4–20 mA current signals.
Q4: What is the resolution of the IC200ALG260J?
A: The module provides 12-bit analog-to-digital conversion resolution.
Q5: Does the IC200ALG260J require an external power supply?
A: No. The module receives operating power from the VersaMax backplane. External power may be required for connected field transmitters.
Q6: Does the IC200ALG260J provide signal isolation?
A: Yes. It provides optical isolation between the user input side, PLC logic side, and frame ground, but individual channels are not isolated from each other.
Q7: What should be checked before replacing an IC200ALG260J?
A: Verify VersaMax system compatibility, input signal type, jumper settings, field wiring, transmitter power supply, and PLC configuration.
Q8: How can the reliability of the IC200ALG260J be maintained?
A: Use shielded analog wiring, avoid electrical interference, maintain proper grounding, keep terminals secure, and operate the module within specified environmental limits.
