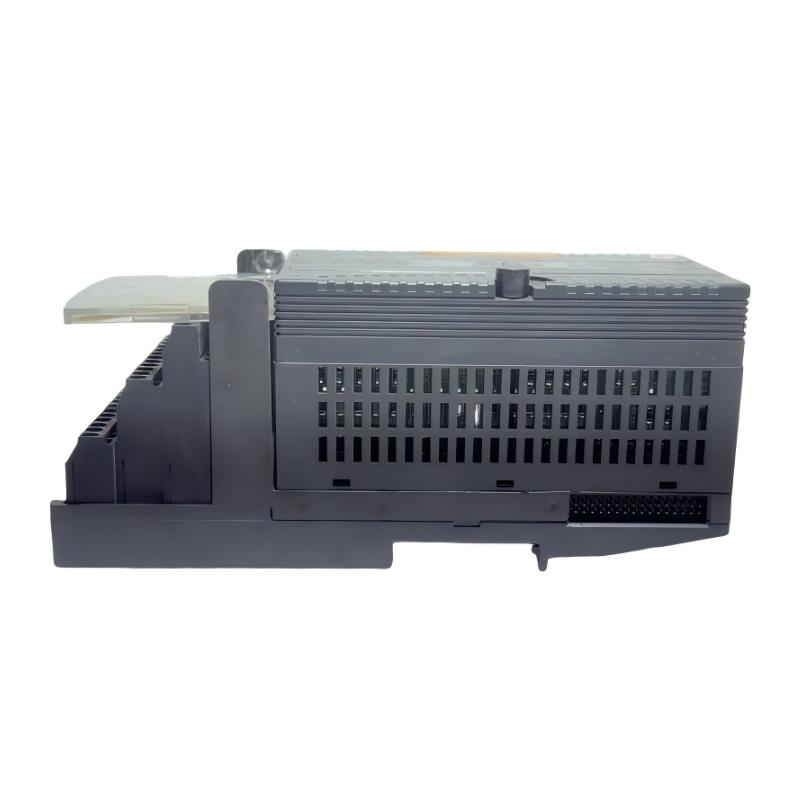

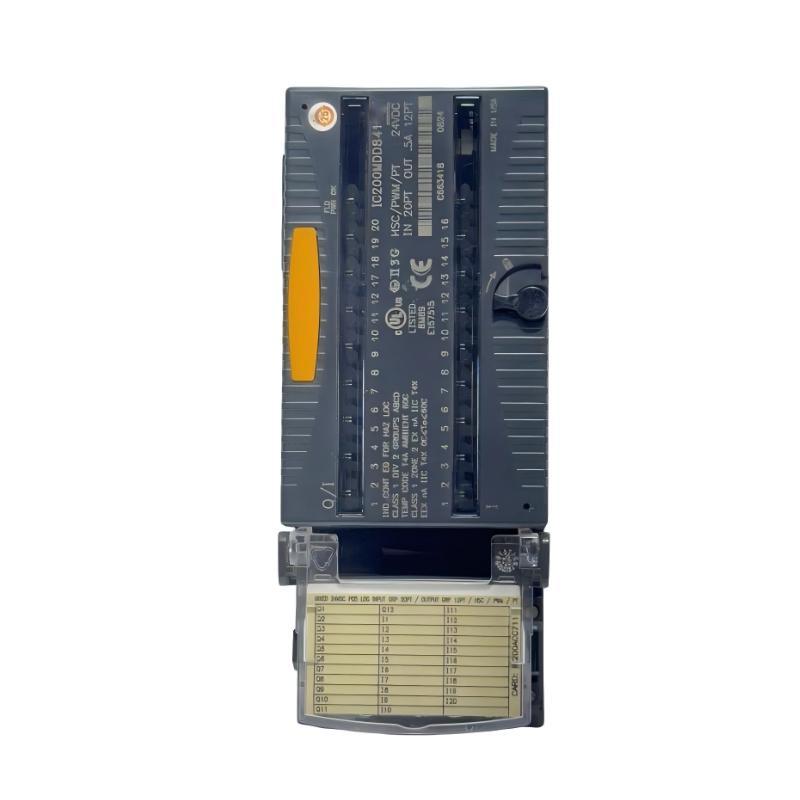

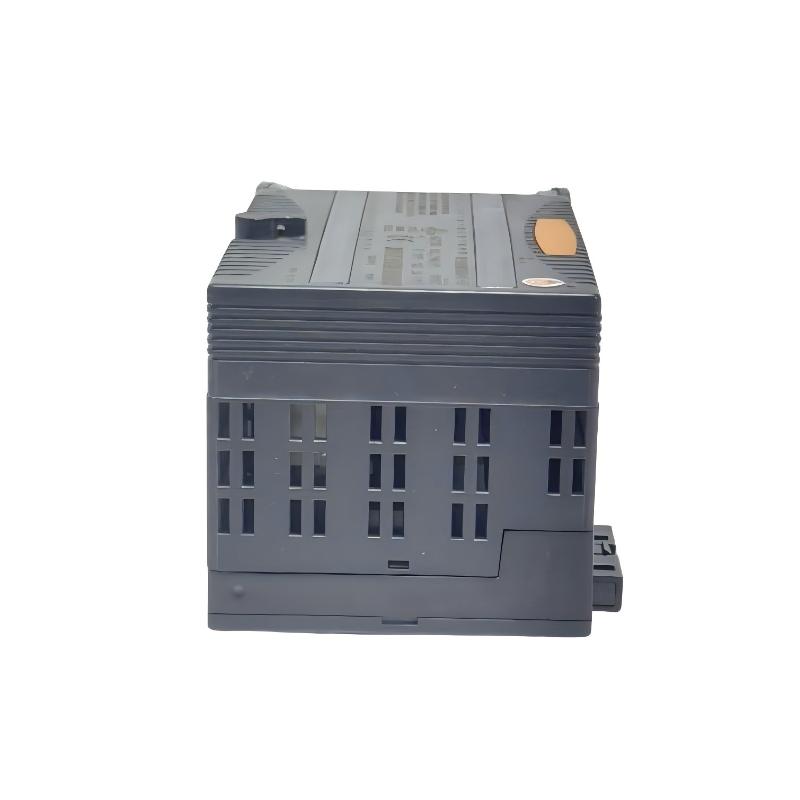

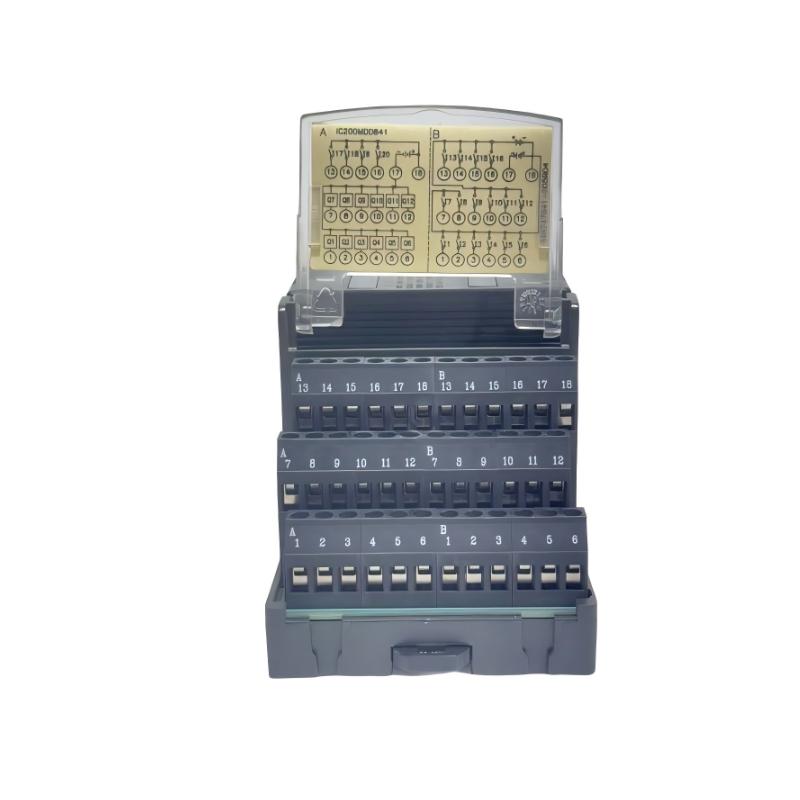

GE Fanuc IC200MDD841-AD Mixed Discrete / High-Speed Counter Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC200MDD841-AD |
| Manufacturer | GE Fanuc / Emerson |
| Product Series | VersaMax Distributed I/O |
| Product Type | Mixed Discrete / High-Speed Counter Module |
| Main Function | Provides configurable digital inputs, digital outputs, and high-speed counting functions for VersaMax PLC systems |
| Application | Industrial automation, motion control, position detection, encoder counting, packaging equipment, conveyor systems, and process control |
| Total I/O Points | 32 points configurable |
| Digital Inputs | 20 points |
| Digital Outputs | 12 points |
| Input Type | 24 VDC positive logic inputs |
| Output Type | 24 VDC positive logic transistor outputs |
| Output Current Rating | 0.5 A maximum per point |
| High-Speed Counter Channels | 4 Type A high-speed counters |
| Maximum Input Frequency | 80 kHz |
| Counter Modes | Four Type A counters / Two Type A counters plus one A-Quad-B counter / One A-Quad-B counter with homing |
| Output Functions | Standard output, PWM output, pulse train output, ramping pulse train output, high-speed counter output |
| PWM Frequency Range | 22 Hz to 2 kHz |
| Pulse Train Output Frequency | Up to 5 kHz total |
| Acceleration/Deceleration Setting | 10 to 1,000,000 pulses/s² |
| Input Voltage | 24 VDC nominal |
| External Field Power | Required for field devices |
| Backplane Power Supply | 5 VDC from VersaMax backplane |
| Backplane Current Consumption | Approximately 30 mA |
| Input Current | Approximately 3–8 mA ON state |
| Output Isolation | No individual channel isolation |
| Diagnostics | Status monitoring and fault diagnostics |
| LED Indicators | Individual I/O status LEDs, FLD PWR indicator, OK status indicator |
| Configuration | Software configurable through VersaMax configuration tools |
| Mounting Type | VersaMax I/O carrier mounting |
| Terminal Connection | VersaMax terminal carrier interface |
| Compatible Modules | VersaMax CPU, Network Interface Unit, and I/O carrier systems |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions | Approximately 110 mm × 66.8 mm × 50 mm |
| Weight | Approximately 0.16 kg |
| Compatibility | GE Fanuc / Emerson VersaMax PLC and distributed I/O systems |
FAQ
Q1: What is the main function of the IC200MDD841-AD?
A: The IC200MDD841-AD is a VersaMax mixed discrete high-speed counter module that combines digital inputs, transistor outputs, and high-speed counting functions in one module.
Q2: How many I/O points does the IC200MDD841-AD provide?
A: The module provides 32 configurable I/O points, including 20 digital inputs and 12 digital outputs.
Q3: What high-speed counting functions does the IC200MDD841-AD support?
A: It supports up to four Type A high-speed counters with pulse processing up to 80 kHz.
Q4: What output functions are available on the IC200MDD841-AD?
A: Four outputs can be configured for PWM, pulse train, ramping pulse train, or high-speed counter output functions.
Q5: What voltage do the inputs and outputs use?
A: The module uses 24 VDC positive logic inputs and 24 VDC transistor outputs.
Q6: Does the IC200MDD841-AD require external power?
A: Yes. The module receives operating power from the VersaMax backplane, but connected field devices require an external 24 VDC supply.
Q7: What should be checked before replacing an IC200MDD841-AD?
A: Verify VersaMax system compatibility, I/O configuration, encoder or pulse input wiring, output load requirements, field power supply, and software configuration.
Q8: How can the reliability of the IC200MDD841-AD be maintained?
A: Use proper shielded wiring for high-speed signals, separate pulse lines from high-current cables, maintain stable 24 VDC power, secure terminal connections, and operate within specified environmental limits.
GE Fanuc IC200MDD841-AD Mixed Discrete / High-Speed Counter Module is in stock. Please contact us for a quick quote and competitive pricing.
