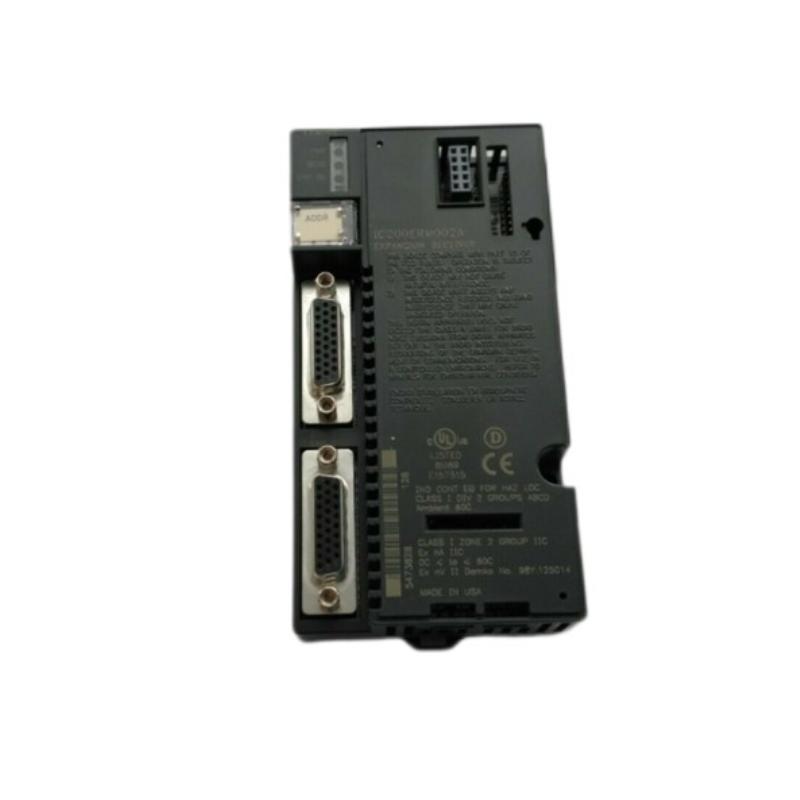

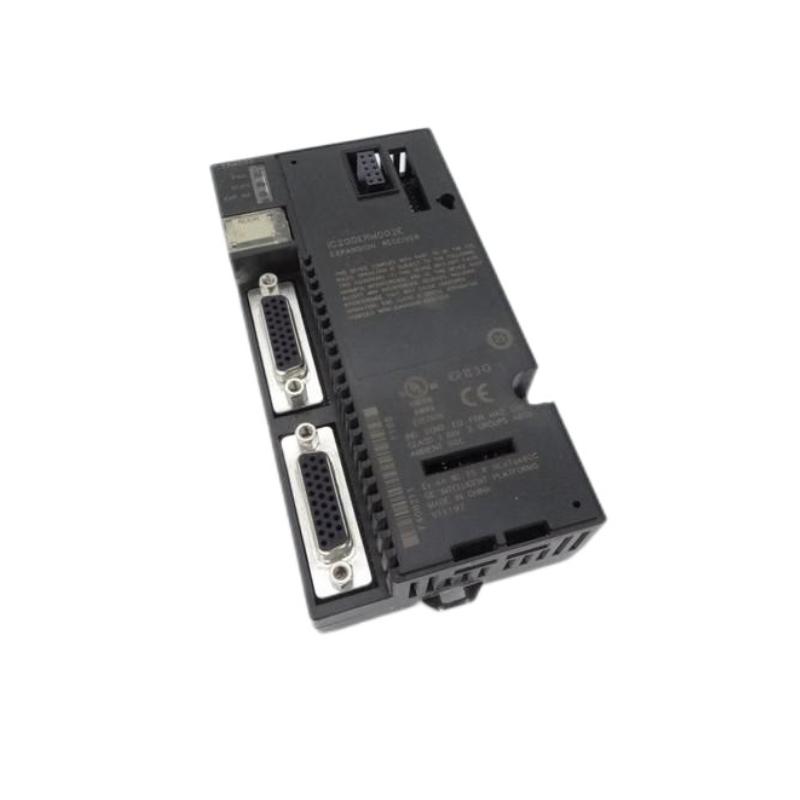

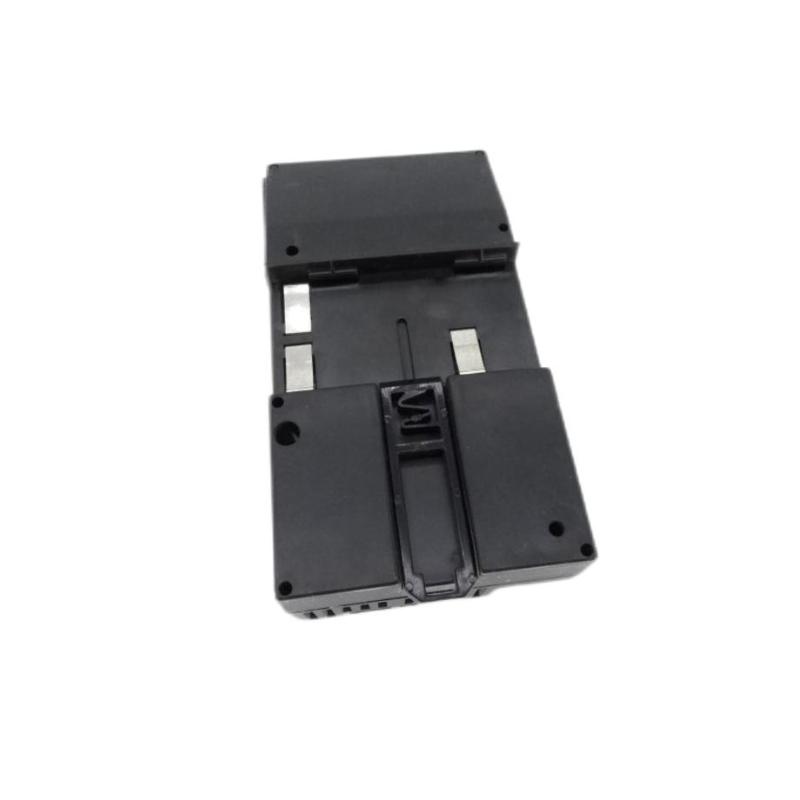

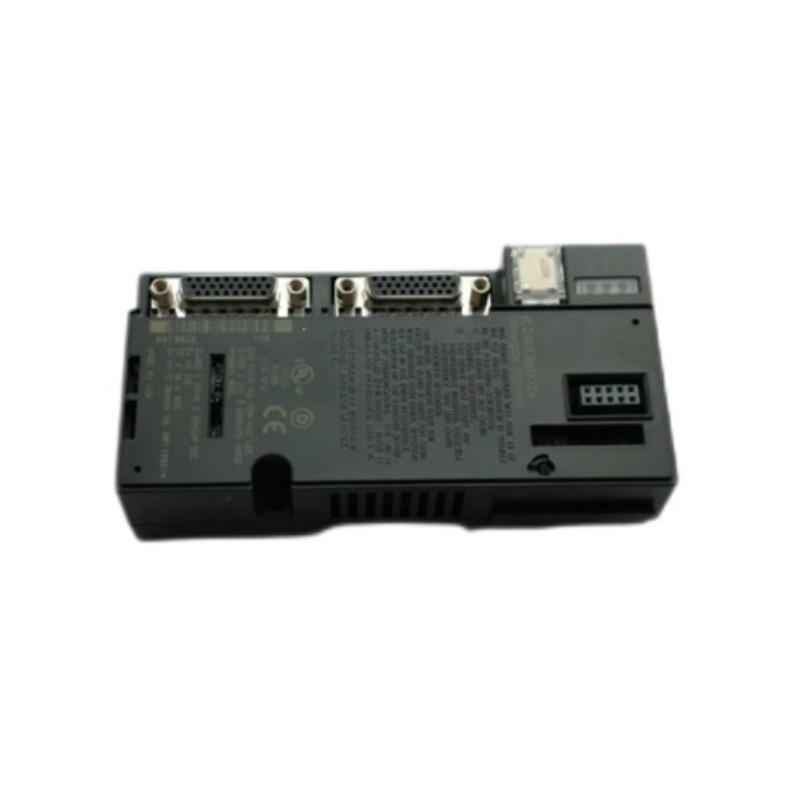

GE Fanuc IC200ERM002F Non-Isolated Expansion Receiver Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC200ERM002F |
| Manufacturer | GE Fanuc / Emerson |
| Product Series | VersaMax Distributed I/O |
| Product Type | Non-Isolated Expansion Receiver Module |
| Main Function | Receives expansion bus communication signals and connects additional VersaMax I/O expansion racks to the main PLC or I/O station |
| Application | Industrial automation, distributed I/O systems, remote I/O expansion, and large-scale control systems |
| Expansion Type | I/O expansion receiver module |
| Isolation Type | Non-isolated expansion receiver |
| Expansion Distance | Up to 15 m maximum expansion cable distance |
| Expansion Configuration | Supports single-ended and multi-rack expansion systems |
| Communication Interface | VersaMax expansion bus |
| Data Transfer Rate | 5 Mbps / 2.765 Mbps (depending on system configuration) |
| Expansion Ports | Two 26-pin D-shell female expansion connectors |
| Backplane Voltage | 5 VDC and 3.3 VDC |
| Backplane Current Consumption | Approximately 70 mA at 5 VDC; 20 mA at 3.3 VDC |
| LED Indicators | PWR power status LED, EXP RX expansion communication LED, SCAN I/O scanning status LED |
| Power Supply | Requires VersaMax power supply through installed station configuration |
| Mounting Type | VersaMax DIN rail mounted |
| Terminal Connection | Expansion bus connector interface |
| Compatible Modules | VersaMax CPU, Network Interface Unit (NIU), Expansion Transmitter Module, and I/O modules |
| Cable Type | VersaMax expansion cable connection |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions | Approximately 66.8 mm × 128 mm × 50 mm |
| Weight | Approximately 0.2 kg |
| Compatibility | GE Fanuc VersaMax PLC and distributed I/O systems |
FAQ
Q1: What is the main function of the IC200ERM002F?
A: The IC200ERM002F is a VersaMax non-isolated expansion receiver module used to connect additional VersaMax expansion racks and extend the PLC I/O system capacity.
Q2: Is the IC200ERM002F an isolated expansion receiver?
A: No. The IC200ERM002F is a non-isolated expansion receiver module. For long-distance isolated expansion applications, an isolated expansion receiver module is required.
Q3: What is the maximum expansion distance supported by the IC200ERM002F?
A: The IC200ERM002F supports expansion cable distances up to 15 meters.
Q4: How does the IC200ERM002F communicate with the main PLC system?
A: It communicates through the VersaMax expansion bus using dedicated expansion cables connected between expansion transmitter and receiver modules.
Q5: How many expansion ports does the IC200ERM002F provide?
A: The module provides two 26-pin D-shell female expansion bus ports for communication connections.
Q6: What should be checked before replacing an IC200ERM002F module?
A: Verify VersaMax system compatibility, expansion cable type, rack configuration, power supply status, connector condition, and PLC hardware configuration.
Q7: What factors may affect the performance of the IC200ERM002F?
A: Incorrect expansion cable wiring, excessive cable length, loose connectors, unstable power supply, electrical noise, and improper rack configuration may affect communication reliability.
Q8: How can the reliability of the IC200ERM002F be maintained?
A: Use approved expansion cables, maintain secure connections, keep cable lengths within limits, provide proper cabinet installation, and regularly check expansion communication status.
GE Fanuc IC200ERM002F Non-Isolated Expansion Receiver Module is in stock. Please contact us for a quick quote and competitive pricing.
