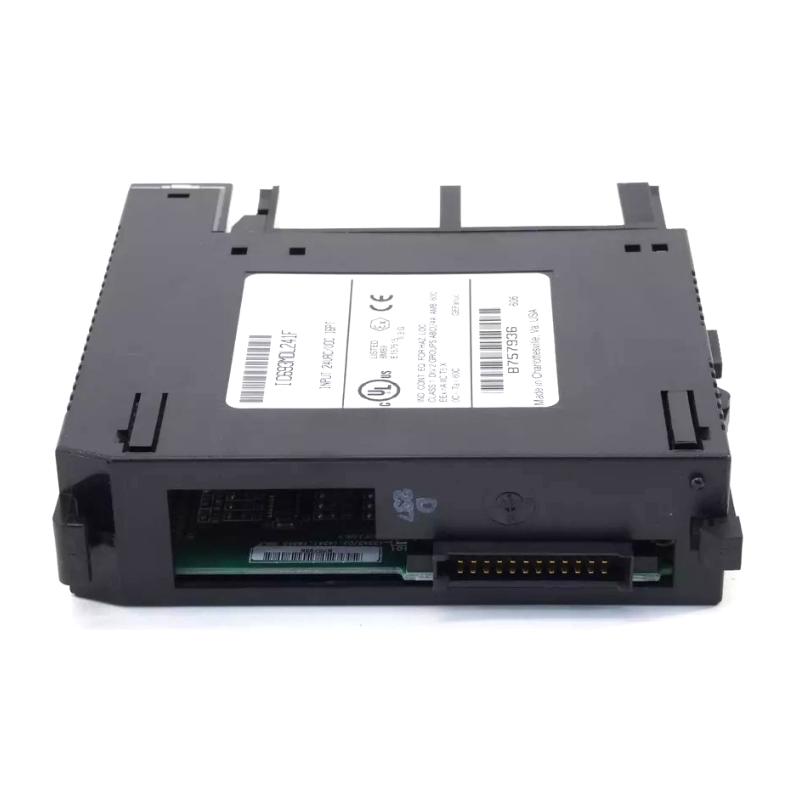

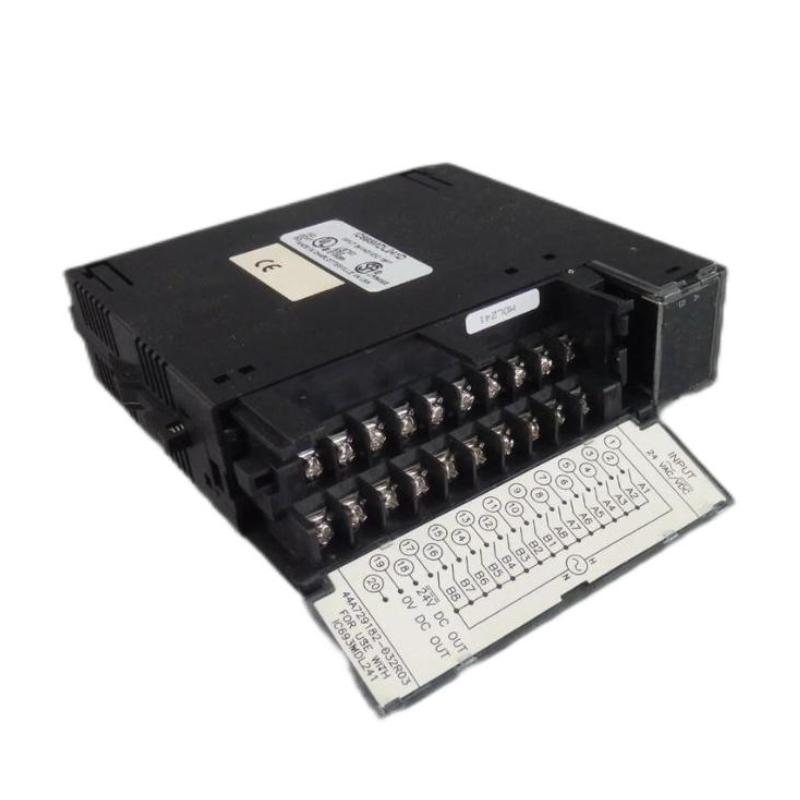

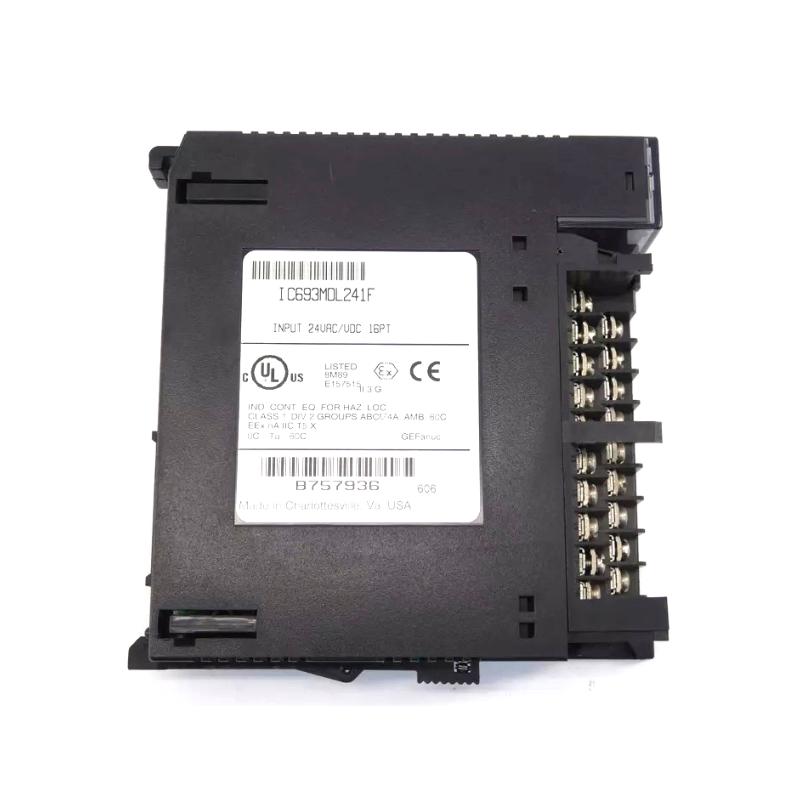

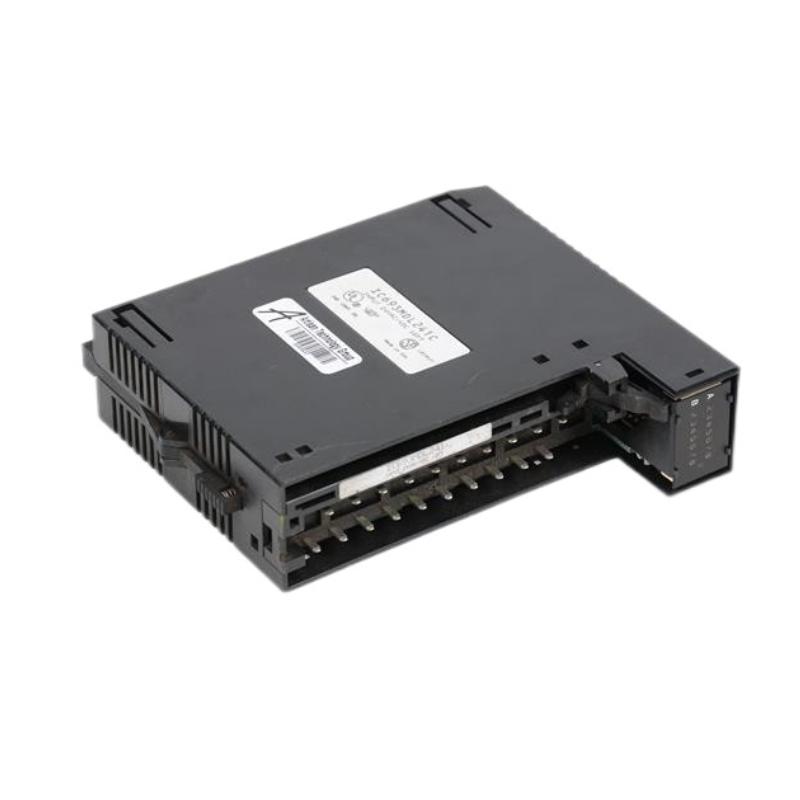

GE Fanuc IC200MDL241B AC Digital Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC200MDL241B |
| Manufacturer | GE Fanuc / Emerson |
| Product Series | VersaMax Distributed I/O |
| Product Type | AC Digital Input Module |
| Main Function | Receives AC voltage signals from field devices and transfers input status data to the PLC CPU or Network Interface Unit |
| Application | Industrial automation, machine control, process monitoring, and distributed control systems |
| Input Type | AC discrete input |
| Number of Inputs | 16 input points |
| Input Configuration | Two groups of 8 inputs |
| Rated Input Voltage | 240 VAC |
| Input Voltage Range | 0 to 264 VAC |
| Frequency | 47 to 63 Hz |
| Input Logic | Positive logic |
| Input Current | Approximately 8 mA at rated voltage |
| Input Response Time | ON: maximum 1 cycle; OFF: maximum 2 cycles |
| Isolation Type | Field input to logic and frame ground isolation |
| Isolation Rating | 250 VAC continuous; 1500 VAC for 1 minute |
| LED Indicators | Individual input status LEDs and module OK indicator |
| Backplane Power Supply | Powered from VersaMax backplane |
| Backplane Current Consumption | Approximately 110 mA at 5 VDC |
| Terminal Connection | VersaMax terminal carrier interface |
| Mounting Type | VersaMax base/carrier or DIN rail mounted |
| Module Processing | Managed by CPU or Network Interface Unit |
| Field Device Compatibility | AC switches, pushbuttons, limit switches, and AC sensors |
| Protection Features | Designed for industrial environments with electrical isolation |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions | Approximately 110 mm × 66.8 mm × 50 mm |
| Weight | Approximately 0.2 kg |
| Compatibility | GE Fanuc VersaMax PLC and distributed I/O systems |
FAQ
Q1: What is the main function of the IC200MDL241B?
A: The IC200MDL241B is a VersaMax 240 VAC discrete input module used to collect AC ON/OFF signals from field devices and send input status information to the PLC control system.
Q2: How many input channels does the IC200MDL241B provide?
A: The module provides 16 AC discrete input points arranged in two groups of eight inputs.
Q3: What voltage does the IC200MDL241B support?
A: The module is designed for 240 VAC input applications and supports an input range from 0 to 264 VAC at 47–63 Hz.
Q4: What type of field devices can be connected to the IC200MDL241B?
A: It can connect to AC switches, pushbuttons, limit switches, sensors, and other industrial AC digital signal devices.
Q5: Does the IC200MDL241B require an external power supply?
A: No. The module receives its internal operating power from the VersaMax backplane, while field input signals are supplied externally.
Q6: What should be checked before replacing an IC200MDL241B module?
A: Confirm VersaMax system compatibility, AC input voltage level, field wiring arrangement, terminal connections, PLC configuration, and power conditions before replacement.
Q7: What factors may affect the performance of the IC200MDL241B?
A: Incorrect voltage levels, loose wiring, electrical interference, damaged terminals, unstable AC supply, and improper installation may affect input signal reliability.
Q8: How can the reliability of the IC200MDL241B be maintained?
A: Regular inspection of field wiring, secure terminal connections, proper cabinet installation, stable power conditions, and periodic PLC diagnostics help ensure reliable long-term operation.
GE Fanuc IC200MDL241B AC Digital Input Module is in stock. Please contact us for a quick quote and competitive pricing.
