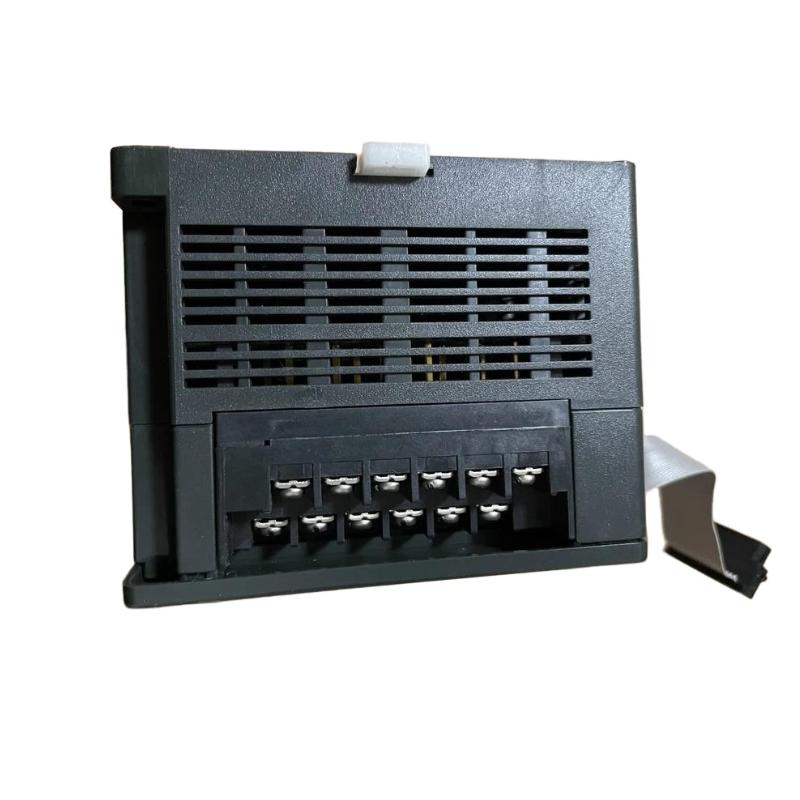

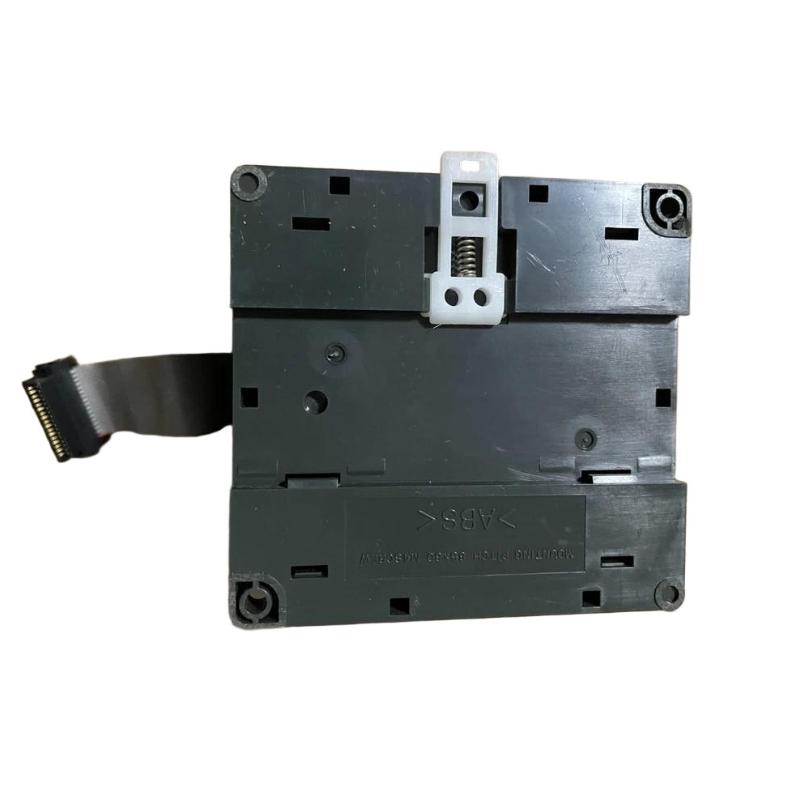

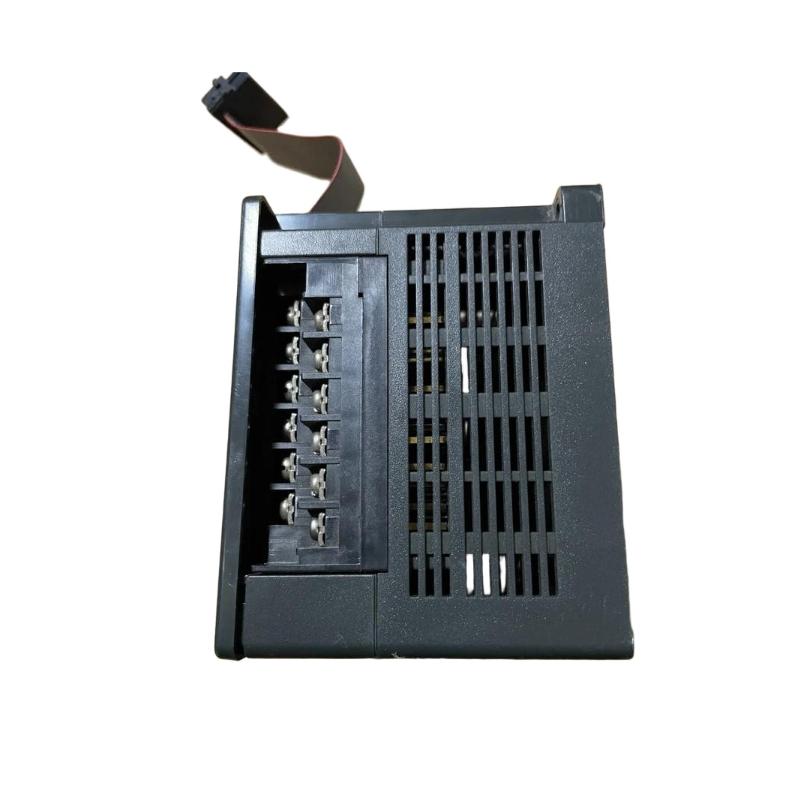

GE Fanuc IC200UEX011 Expansion Unit
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC200UEX011 |
| Manufacturer | GE Fanuc / Emerson |
| Product Series | VersaMax Micro PLC |
| Product Type | Expansion Unit |
| Main Function | Expands VersaMax Micro PLC I/O capacity by providing additional digital inputs and relay outputs |
| Application | Industrial automation, machine control, small-scale PLC systems, and distributed control applications |
| Expansion Type | Digital I/O expansion module |
| Total I/O Points | 14 points |
| Digital Inputs | 8 points |
| Input Type | 24 VDC digital inputs |
| Input Logic | Positive logic / Negative logic selectable |
| Input Voltage Range | 0 to 30 VDC |
| Input Current | Approximately 7.5 mA typical |
| Input Response Time | Approximately 0.5 to 20 ms |
| Digital Outputs | 6 points |
| Output Type | Relay output |
| Relay Contact Type | Form A (SPST), normally open |
| Output Voltage Range | 5 to 250 VAC / 5 to 30 VDC |
| Output Current Rating | 2 A maximum per point |
| Maximum Resistive Load | 2 A at 24 VDC or 240 VAC |
| Relay Isolation | Field side to logic side isolation |
| Relay Response Time | Approximately 15 ms ON/OFF |
| Internal Power Supply | 24 VDC internal supply for relay coils |
| Field Device Power Output | Isolated +24 VDC, maximum 200 mA |
| Input Power Supply | 100 to 240 VAC nominal |
| Input Frequency | 50/60 Hz |
| Input Power Consumption | Approximately 13 VA |
| Mounting Type | VersaMax Micro PLC expansion mounting |
| Terminal Connection | Removable screw terminal blocks |
| LED Indicators | Input/output status indicators and power status indicator |
| Expansion Capability | Up to 4 expansion units per VersaMax Micro PLC system |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions | Approximately 95 mm × 90 mm × 76 mm |
| Weight | Approximately 370 g |
| Compatibility | GE Fanuc VersaMax Micro PLC systems |
FAQ
Q1: What is the main function of the IC200UEX011?
A: The IC200UEX011 is a VersaMax Micro PLC expansion unit that adds 8 DC input points and 6 relay output points to increase PLC control capacity.
Q2: How many I/O points does the IC200UEX011 provide?
A: The module provides 14 total I/O points: 8 × 24 VDC digital inputs and 6 × relay outputs.
Q3: What type of output does the IC200UEX011 use?
A: The module uses six normally open Form A relay outputs, capable of switching AC or DC loads within the rated limits.
Q4: What voltage can the relay outputs control?
A: The relay outputs can control devices from 5–30 VDC or 5–250 VAC, with a maximum resistive load of 2 A.
Q5: What type of input devices can be connected to the IC200UEX011?
A: It supports 24 VDC field devices such as pushbuttons, limit switches, proximity sensors, and other digital switching devices.
Q6: Does the IC200UEX011 require AC power?
A: Yes. The expansion unit requires 100–240 VAC nominal input power for operation.
Q7: What should be checked before replacing an IC200UEX011?
A: Verify VersaMax Micro PLC compatibility, AC supply voltage, input/output wiring, relay load ratings, terminal connections, and system configuration.
Q8: How can the reliability of the IC200UEX011 be maintained?
A: Maintain correct wiring, avoid exceeding relay ratings, ensure stable power supply, inspect terminals regularly, and keep the installation environment within specified temperature and humidity limits.
GE Fanuc IC200UEX011 Expansion Unit is in stock. Please contact us for a quick quote and competitive pricing.
