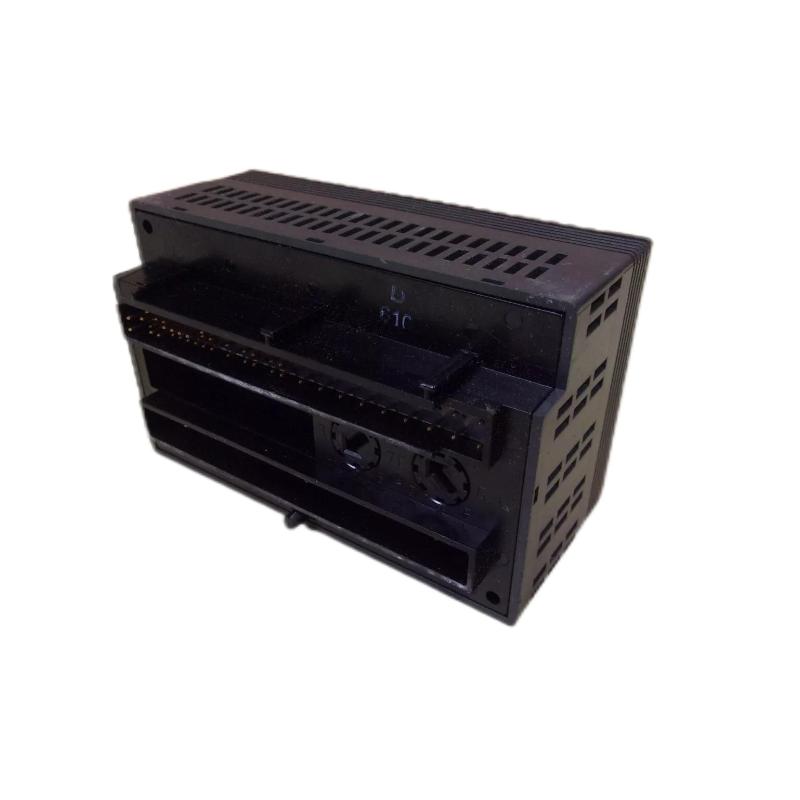

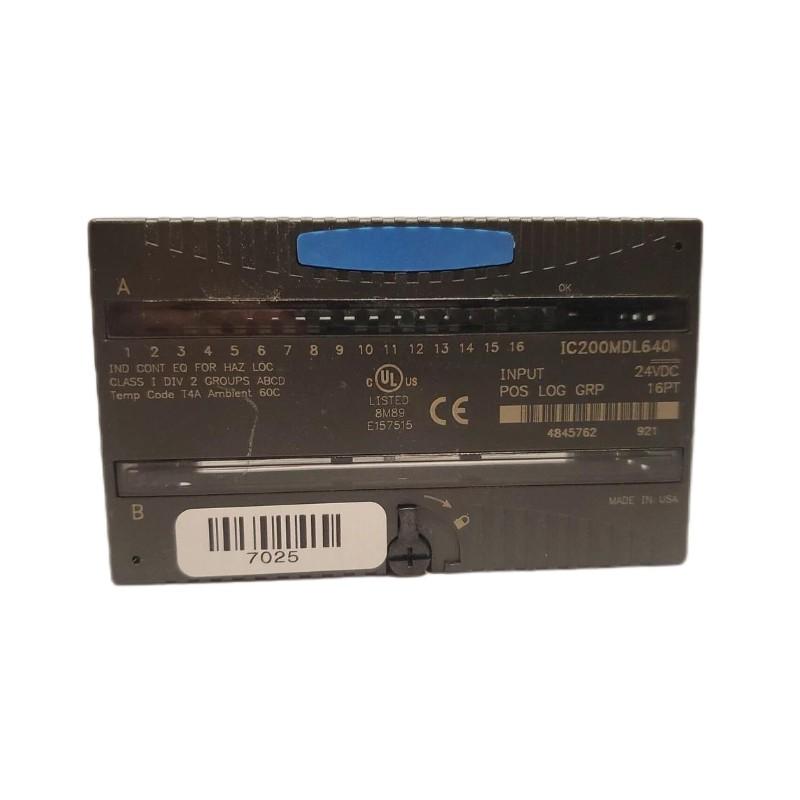

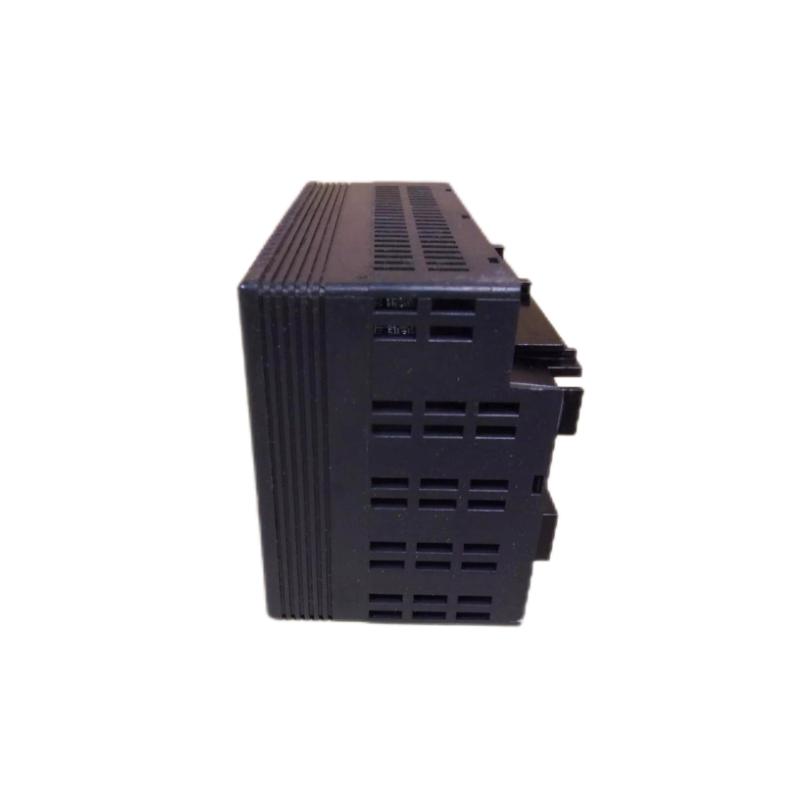

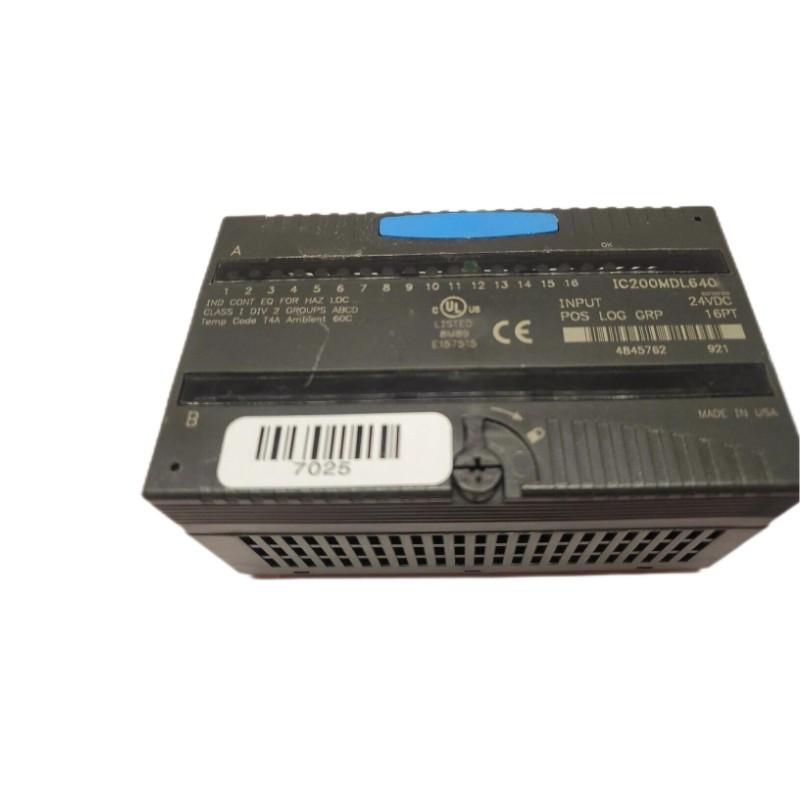

GE Fanuc IC200MDL640D Discrete DC Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC200MDL640D |
| Product Series | GE Fanuc / Emerson VersaMax I/O |
| Product Type | Discrete DC Input Module |
| Input Function | Digital signal acquisition for VersaMax PLC systems |
| Number of Input Points | 16 points |
| Input Configuration | 2 groups of 8 inputs |
| Input Logic Type | Positive Logic and Negative Logic selectable |
| Nominal Input Voltage | 24 VDC |
| Input Voltage Range | 0 to +30 VDC |
| ON-State Voltage | +15 to +30 VDC |
| OFF-State Voltage | 0 to +5 VDC |
| ON-State Current | 2.0 to 5.5 mA |
| OFF-State Current | 0 to 0.5 mA |
| Input Impedance | 10 kΩ maximum |
| Input Response Time | 0.5 ms maximum |
| Configurable Filter Time | 0 ms, 1.0 ms, or 7.0 ms |
| Isolation Type | Optical isolation between user input circuits and logic circuits |
| Isolation Rating | 250 VAC continuous; 1500 VAC for 1 minute |
| Group-to-Group Isolation | 250 VAC continuous; 1500 VAC for 1 minute |
| External Power Supply | Not required |
| Backplane Current Consumption | 25 mA maximum at 5 VDC |
| Status Indicators | Individual green LEDs for input status and OK LED for module power status |
| Module Processing | Managed by PLC CPU or Network Interface Unit |
| Mounting Method | VersaMax carrier mounting |
| Compatibility | GE Fanuc / Emerson VersaMax PLC systems |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Dimensions | Approximately 66.8 × 133.4 × 70 mm (2.63 × 5.25 × 2.76 in) |
| Weight | Approximately 0.15 kg (0.33 lb) |
| Typical Applications | Factory automation, sensor monitoring, machine control, and distributed I/O systems |
FAQ
Q1: What is the main function of the IC200MDL640D?
A: The IC200MDL640D is a VersaMax 24 VDC discrete input module used to collect ON/OFF signals from field devices and transfer input data to the PLC control system.
Q2: How many input channels does the IC200MDL640D provide?
A: The module provides 16 digital input points divided into two groups of eight inputs.
Q3: Does the IC200MDL640D support both positive and negative logic inputs?
A: Yes. The module supports both positive logic and negative logic wiring configurations, allowing flexible connection with different industrial input devices.
Q4: What types of devices can be connected to the IC200MDL640D?
A: The module can be connected to 24 VDC field devices such as proximity sensors, limit switches, push buttons, and other discrete signal sources.
Q5: Does the IC200MDL640D require an external power supply?
A: No. The module receives operating power directly from the VersaMax backplane and does not require a separate external power supply.
Q6: How can users monitor the input status of the IC200MDL640D?
A: Each input point has an individual green LED indicator showing the current ON/OFF status, while the OK LED indicates that the module is operating correctly.
Q7: What input filtering options are available on the IC200MDL640D?
A: The module supports configurable input filter times of 0 ms, 1.0 ms, and 7.0 ms, helping reduce electrical noise and improve signal stability.
Q8: What should be checked when replacing an IC200MDL640D module?
A: Verify VersaMax system compatibility, carrier type, input wiring configuration, logic selection, module addressing, and PLC application parameters before replacement.
GE Fanuc IC200MDL640D Discrete DC Input Module is in stock. Please contact us for a quick quote and competitive pricing.
