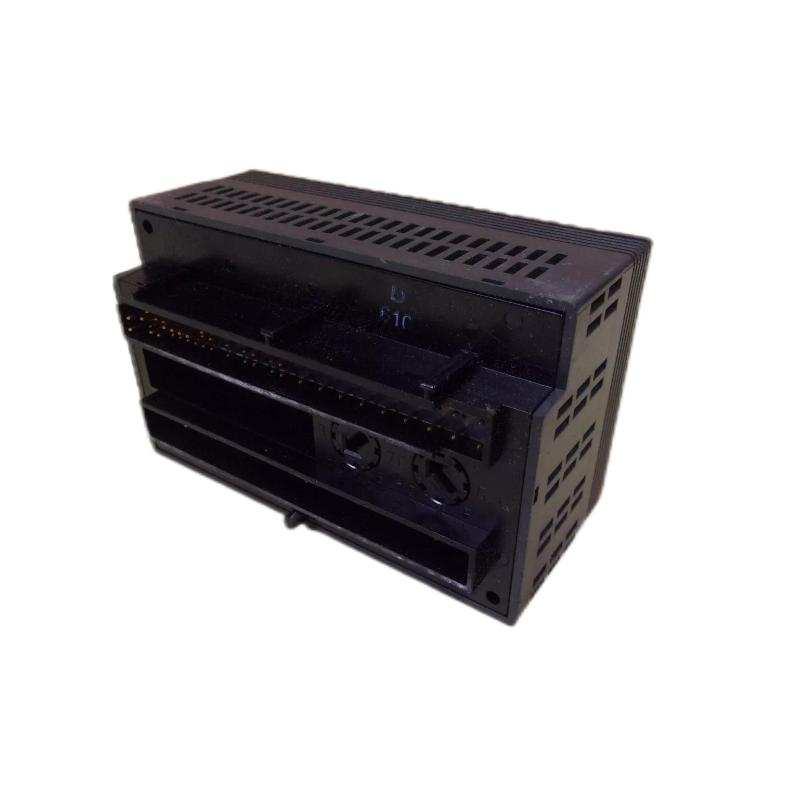

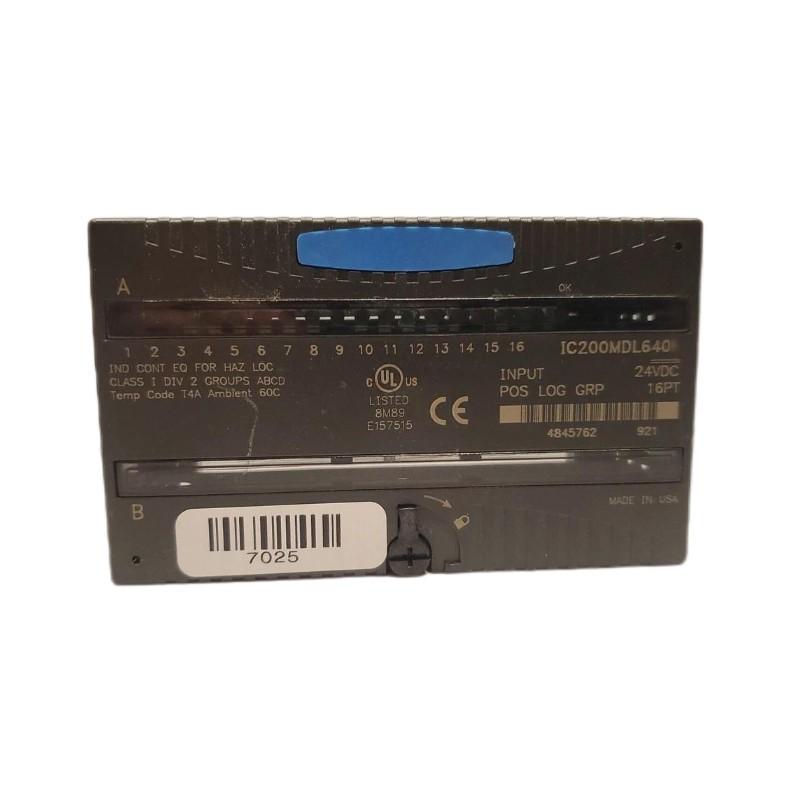

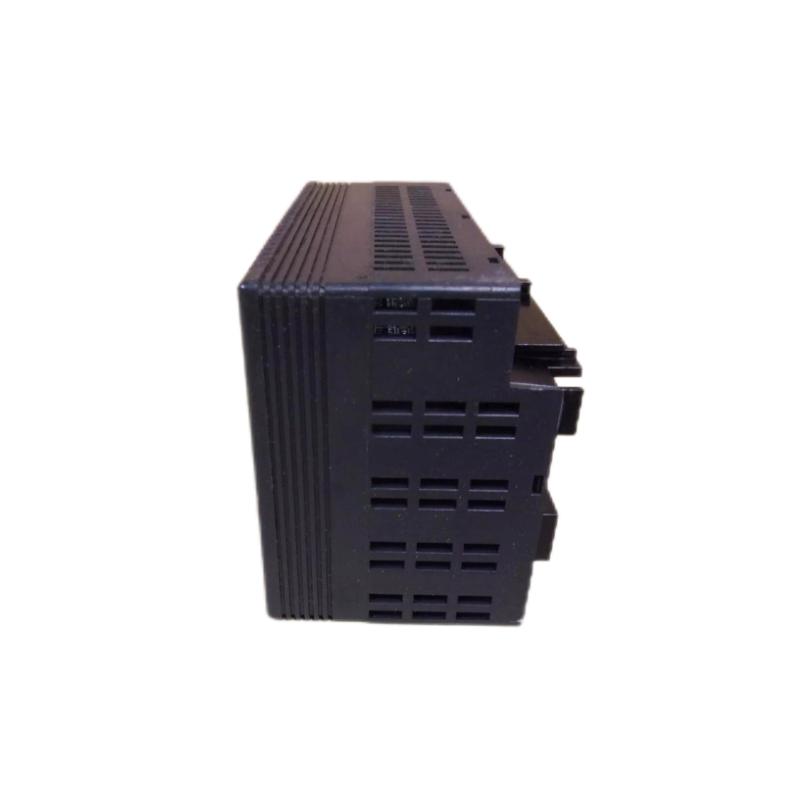

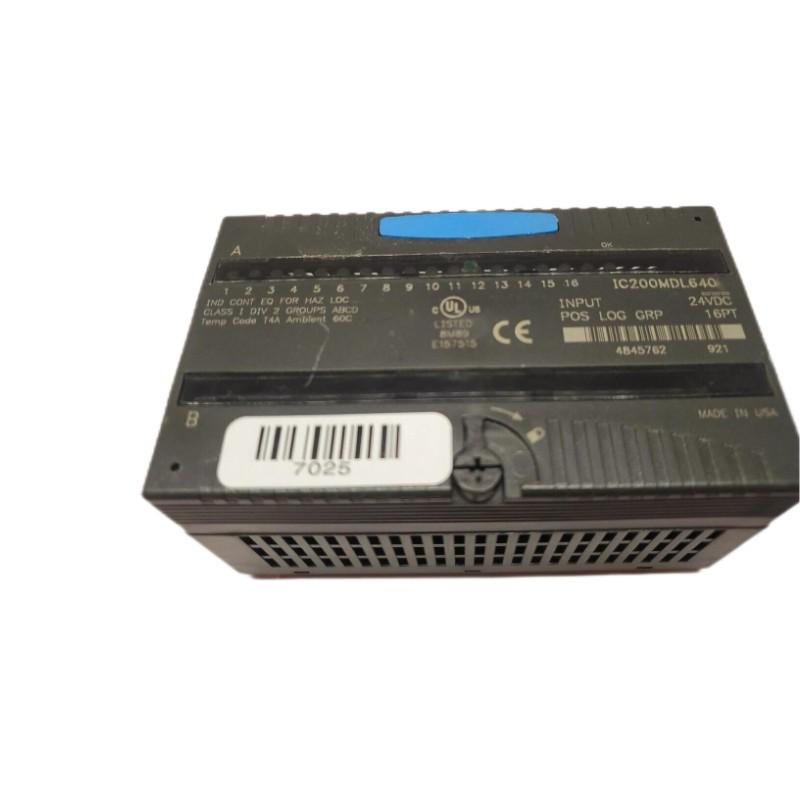

GE Fanuc IC200MDL640E Discrete DC Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC200MDL640E |
| Product Series | GE Fanuc / Emerson VersaMax I/O |
| Product Type | Discrete DC Input Module |
| Input Function | Collects digital ON/OFF signals from industrial field devices and transfers status data to VersaMax PLC systems |
| Number of Input Points | 16 points |
| Input Configuration | 2 groups of 8 inputs |
| Input Logic Type | Positive Logic and Negative Logic selectable |
| Nominal Input Voltage | 24 VDC |
| Input Voltage Range | 0 to +30 VDC |
| ON-State Voltage | +15 to +30 VDC |
| OFF-State Voltage | 0 to +5 VDC |
| ON-State Current | 2.0 to 5.5 mA |
| OFF-State Current | 0 to 0.5 mA |
| Input Impedance | 10 kΩ maximum |
| Input Response Time | 0.5 ms maximum |
| Configurable Filter Time | 0 ms, 1.0 ms, or 7.0 ms |
| Isolation Type | Optical isolation between input circuits and logic circuits |
| Isolation Rating | 250 VAC continuous; 1500 VAC for 1 minute |
| Group-to-Group Isolation | 250 VAC continuous; 1500 VAC for 1 minute |
| Point-to-Point Isolation | Not provided |
| External Power Supply | Not required |
| Backplane Current Consumption | 25 mA maximum at 5 VDC |
| Status Indicators | Individual LED indicators for each input point and OK status LED |
| Module Processing | Controlled by PLC CPU or Network Interface Unit |
| Mounting Method | VersaMax carrier mounting |
| Compatibility | GE Fanuc / Emerson VersaMax PLC systems |
| Housing Material | V0-rated plastic housing |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Dimensions | Approximately 110 × 66.8 × 50 mm (4.33 × 2.63 × 1.97 in) |
| Weight | Approximately 0.11 kg (0.25 lb) |
| Typical Applications | Industrial automation, sensor monitoring, machine control, and distributed I/O systems |
FAQ
Q1: What is the main function of the IC200MDL640E?
A: The IC200MDL640E is a VersaMax 24 VDC discrete input module designed to collect digital signals from field devices and provide input status information to the PLC control system.
Q2: How many input points does the IC200MDL640E provide?
A: The module provides 16 digital input points arranged in two groups of eight channels.
Q3: Does the IC200MDL640E support positive and negative logic inputs?
A: Yes. The module supports both positive and negative logic configurations, allowing flexible connection with various industrial input devices.
Q4: What type of field devices can be connected to the IC200MDL640E?
A: The module can be connected to 24 VDC devices such as proximity sensors, limit switches, push buttons, relay contacts, and other discrete signal sources.
Q5: Does the IC200MDL640E require an external power supply?
A: No. The module receives operating power directly from the VersaMax backplane and does not require a separate external power source.
Q6: How can users monitor the input status of the IC200MDL640E?
A: Each input point has an individual LED indicator showing the ON/OFF condition of the connected signal, while the OK LED indicates proper backplane power availability.
Q7: What input filtering options are available on the IC200MDL640E?
A: The module provides configurable input filter settings of 0 ms, 1.0 ms, and 7.0 ms to improve signal stability and reduce electrical noise effects.
Q8: What should be checked when replacing an IC200MDL640E module?
A: Confirm VersaMax system compatibility, carrier installation, input wiring configuration, logic selection, field device voltage levels, and PLC configuration parameters before replacement.
