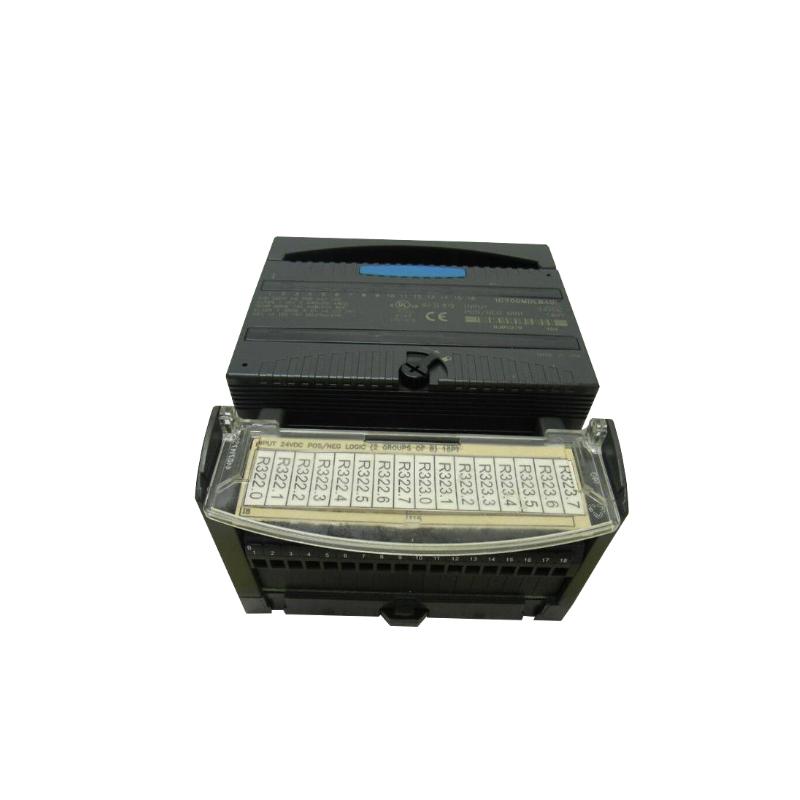

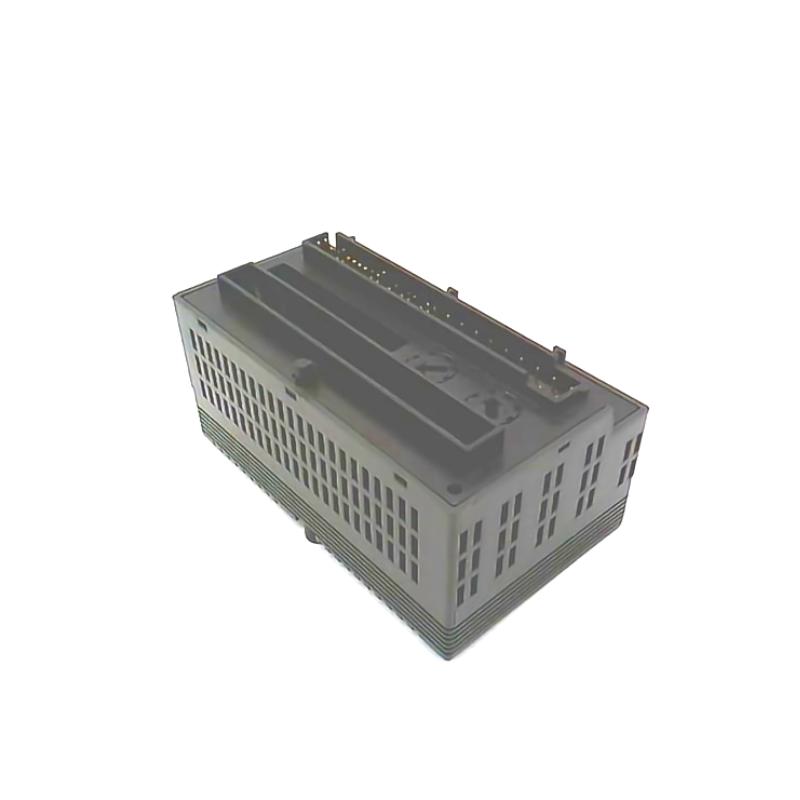

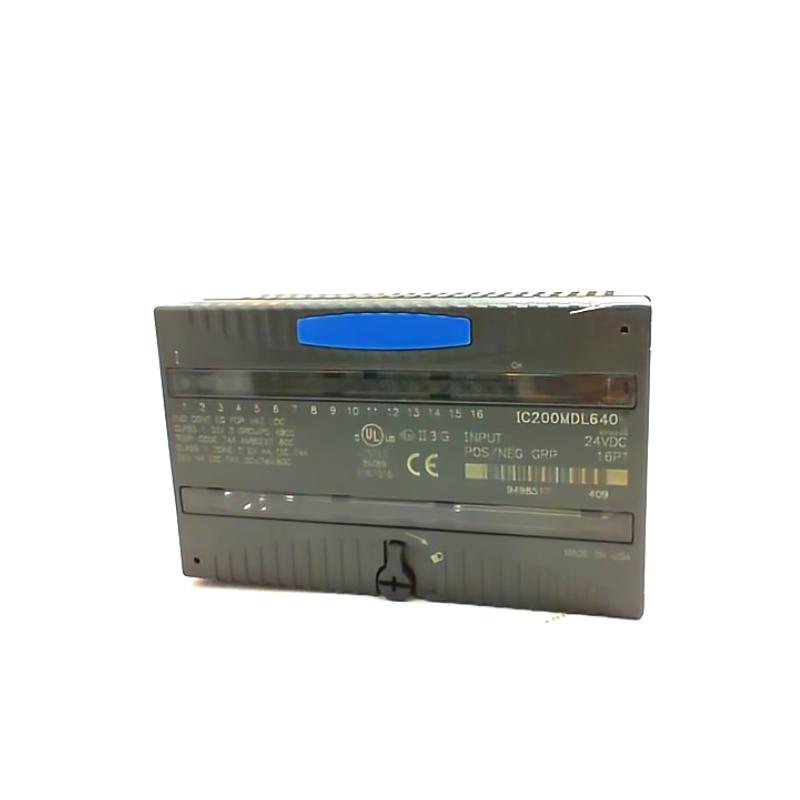

GE Fanuc IC200MDL640F Discrete DC Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC200MDL640F |
| Manufacturer | GE Fanuc |
| Product Series | VersaMax Distributed I/O |
| Product Type | Discrete DC Input Module |
| Main Function | Receives 24 VDC digital signals from field devices and transfers input status data to the PLC CPU or Network Interface Unit |
| Application | Industrial automation, machine control, remote I/O systems, and process monitoring |
| Input Type | DC digital input |
| Input Logic | Positive logic / Negative logic selectable |
| Number of Inputs | 16 input points |
| Input Configuration | Two groups of 8 inputs |
| Rated Input Voltage | 24 VDC |
| Input Voltage Range | 0 to +30 VDC |
| ON-State Voltage | +15 to +30 VDC |
| OFF-State Voltage | 0 to +5 VDC |
| ON-State Current | 2.0 to 5.5 mA |
| OFF-State Current | 0 to 0.5 mA |
| Input Impedance | 10 kΩ maximum |
| Input Response Time | 0.5 ms maximum (basic response) |
| Configurable Filter Time | 0 ms, 1 ms, or 7 ms |
| Total Response Time | 0.5 ms, 1.5 ms, or 7.5 ms depending on filter setting |
| Isolation Type | Field input isolation from backplane |
| LED Indicators | Individual green LEDs for input ON/OFF status and OK power indicator |
| Backplane Power Supply | Powered from VersaMax backplane |
| Backplane Current Consumption | Approximately 50 mA maximum at 5 VDC |
| Terminal Connection | VersaMax terminal carrier interface |
| Mounting Type | VersaMax base/carrier mounted module |
| Special Feature | Supports positive and negative logic input wiring |
| Hazardous Location Support | Suitable for specified industrial hazardous location applications |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions | Approximately 50 mm × 110 mm × 66.8 mm |
| Weight | Approximately 0.2 kg |
| Compatibility | GE Fanuc VersaMax PLC and distributed I/O systems |
FAQ
Q1: What is the main function of the IC200MDL640F?
A: The IC200MDL640F is a VersaMax 24 VDC digital input module used to collect ON/OFF signals from field devices and provide input information to the PLC control system.
Q2: How many input channels does the IC200MDL640F provide?
A: The module provides 16 discrete input points arranged in two groups of eight inputs.
Q3: What input voltage does the IC200MDL640F support?
A: The module is designed for 24 VDC input applications and supports an input range from 0 to +30 VDC.
Q4: Does the IC200MDL640F support both positive and negative logic?
A: Yes. The module supports both positive logic and negative logic input configurations, allowing flexible connection with different types of field devices.
Q5: What devices can be connected to the IC200MDL640F?
A: The module can connect to industrial switches, proximity sensors, pushbuttons, limit switches, and other 24 VDC digital signal devices.
Q6: What should be checked before replacing an IC200MDL640F module?
A: Confirm VersaMax system compatibility, input wiring arrangement, field voltage level, terminal connections, network configuration, and PLC hardware settings before replacement.
Q7: What factors may affect IC200MDL640F performance?
A: Incorrect wiring, unstable 24 VDC supply, electrical noise, grounding problems, damaged terminals, and improper input filtering settings may affect signal reliability.
Q8: How can the reliability of the IC200MDL640F be maintained?
A: Regular inspection of field wiring, secure terminal connections, proper cabinet installation, stable power supply, and periodic system diagnostics help maintain long-term reliable operation.
GE Fanuc IC200MDL640F Discrete DC Input Module is in stock. Please contact us for a quick quote and competitive pricing.
