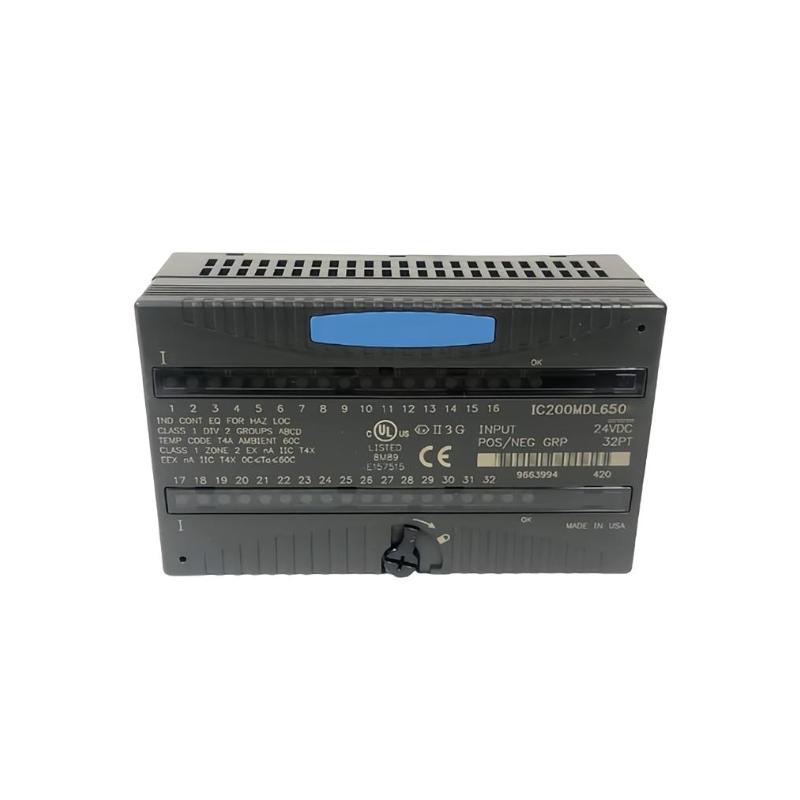

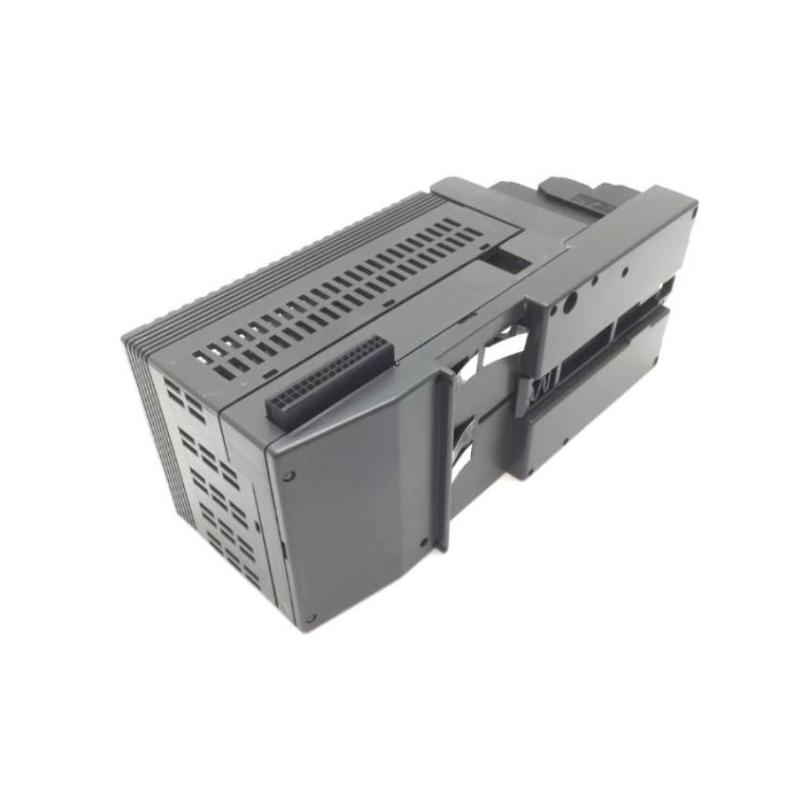

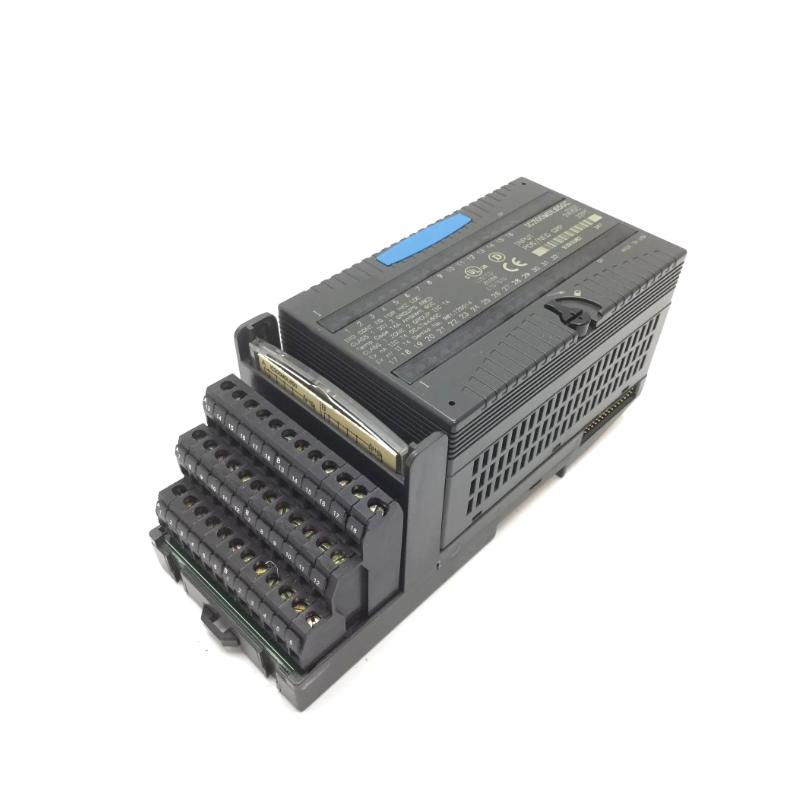

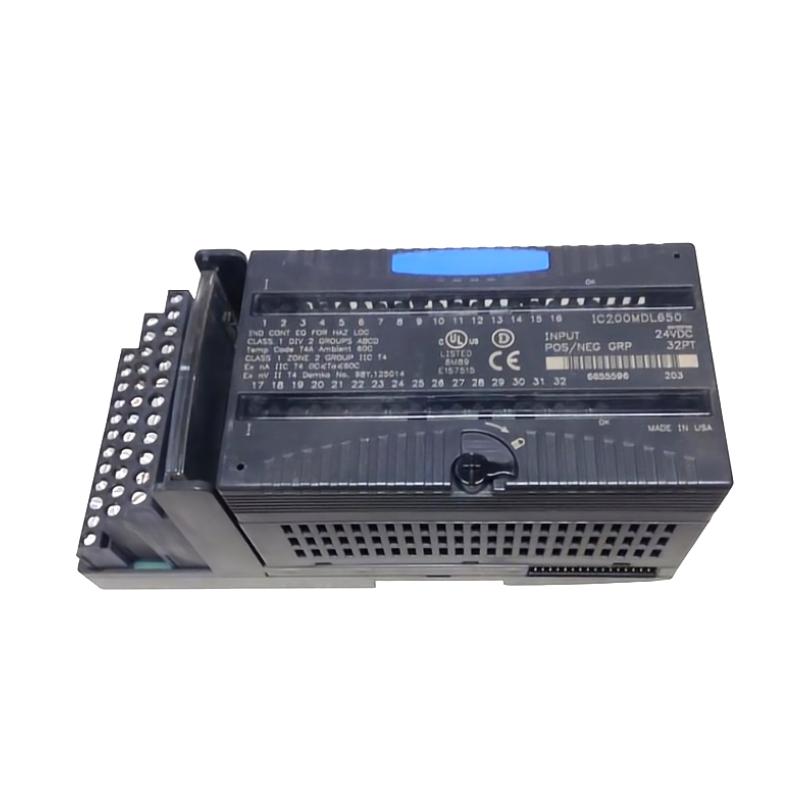

GE Fanuc IC200MDL650J Discrete Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC200MDL650J |
| Product Series | GE Fanuc / Emerson VersaMax I/O |
| Product Type | Discrete Input Module |
| Input Function | Digital DC Input |
| Number of Input Points | 32 points |
| Input Configuration | 4 groups of 8 inputs |
| Input Logic Type | 24 VDC Positive/Negative Logic |
| Nominal Input Voltage | 24 VDC |
| Input Voltage Range | 0 to 30 VDC |
| ON State Voltage | 15 to 30 VDC |
| OFF State Voltage | 0 to 5 VDC |
| ON State Current | 2.0 to 5.5 mA |
| OFF State Current | 0 to 0.5 mA |
| Input Impedance | 10 kΩ maximum |
| Input Response Time | 0.5 ms maximum |
| Configurable Filter Time | 0 ms, 1.0 ms, 7.0 ms |
| Isolation Type | Group-to-group isolation |
| Isolation Rating | 250 VAC continuous, 1500 VAC for 1 minute |
| LED Indicators | Individual input status LEDs and module OK LED |
| Backplane Current Consumption | 50 mA maximum at 5 VDC |
| External Power Supply | Not required |
| Mounting Method | VersaMax carrier mounting |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Dimensions | Approximately 110 × 50 × 66.8 mm (4.3 × 1.96 × 2.63 in) |
| Weight | Approximately 0.31 kg (0.69 lb) |
| Typical Applications | Industrial automation, machine control, sensor monitoring, and distributed I/O systems |
FAQ
Q1: What is the main function of the IC200MDL650J?
A: The IC200MDL650J is a VersaMax discrete input module used to collect digital signals from field devices and transfer input status information to a PLC control system.
Q2: How many input channels does the IC200MDL650J provide?
A: The module provides 32 digital input points arranged into four groups, with eight input channels in each group.
Q3: What type of input signals can be connected to the IC200MDL650J?
A: The module supports 24 VDC digital signals from industrial devices such as proximity sensors, push buttons, limit switches, and other ON/OFF signal sources.
Q4: Does the IC200MDL650J support both positive and negative logic wiring?
A: Yes. The module supports configurable positive and negative logic input wiring, allowing flexible connection methods for different field device configurations.
Q5: Does the IC200MDL650J require an external power supply?
A: No. The module receives operating power directly through the VersaMax backplane connection and does not require a separate external power source.
Q6: How can users monitor the input status of the IC200MDL650J?
A: Each input point has an individual LED indicator that displays the current ON/OFF status, while the OK LED indicates proper module power and operation.
Q7: What should be considered when replacing an existing IC200MDL650J module?
A: Users should confirm the PLC platform compatibility, input wiring configuration, module addressing, and application requirements before replacement.
Q8: What are common applications for the IC200MDL650J?
A: The module is commonly used in factory automation systems, production equipment, conveyor systems, packaging machinery, and other industrial control applications.**
GE Fanuc IC200MDL650J Discrete Input Module is in stock. Please contact us for a quick quote and competitive pricing.
