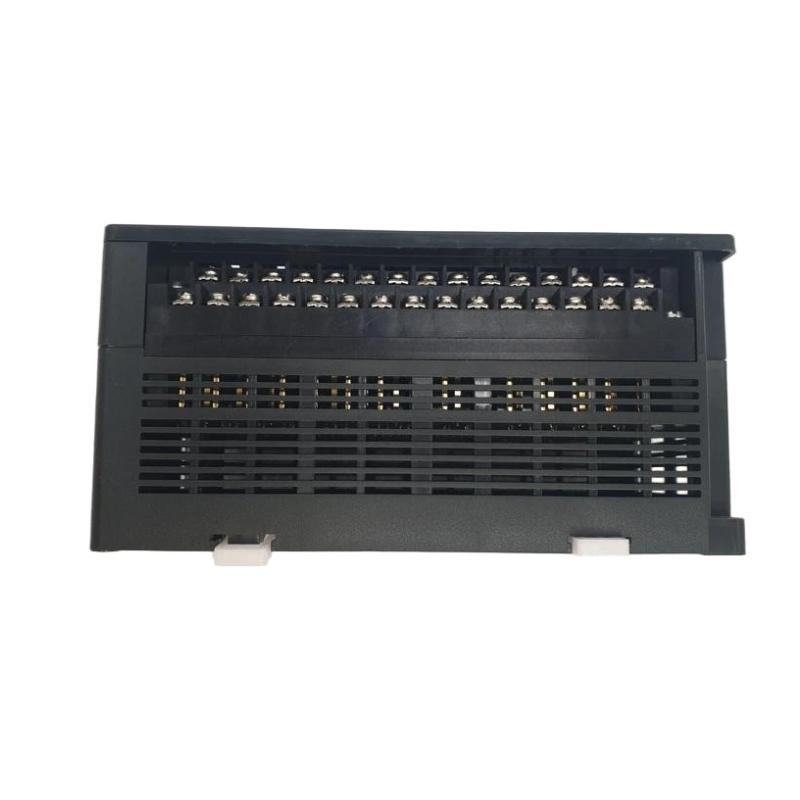

GE Fanuc IC200UDR064 64-Point Micro PLC Controller
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC200UDR064 |
| Product Series | GE Fanuc / Emerson VersaMax Micro PLC |
| Product Type | 64-Point Micro PLC Controller |
| Power Supply | 24 VDC nominal |
| Power Supply Range | 19.2 to 30 VDC |
| Input Points | 40 digital DC inputs |
| Input Type | 24 VDC positive/negative logic inputs |
| Input Voltage Range | 0 to 30 VDC |
| Input Current | Approximately 8 mA typical at 24 VDC |
| Input Threshold Voltage | ON: 18 VDC minimum; OFF: 5 VDC maximum |
| Output Points | 24 relay outputs |
| Output Type | Normally open Form A relay contacts |
| Relay Output Rating | 2 A maximum at 24 VDC or 240 VAC |
| Output Switching Voltage | 5 to 30 VDC or 5 to 250 VAC |
| High-Speed Counter Function | Supports up to four Type A counters or combined Type A/Type B configurations |
| High-Speed Counter Frequency | Up to 100 kHz |
| Isolation Voltage | 1500 VRMS field side to logic side |
| Communication Interface | Serial communication port with optional expansion communication port |
| Expansion Capability | Supports VersaMax Micro expansion modules |
| User Device Power Supply | +24 VDC output, maximum 200 mA |
| Serial Port +5 VDC Output | Maximum 100 mA |
| Input Power Consumption | Approximately 5 W |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |

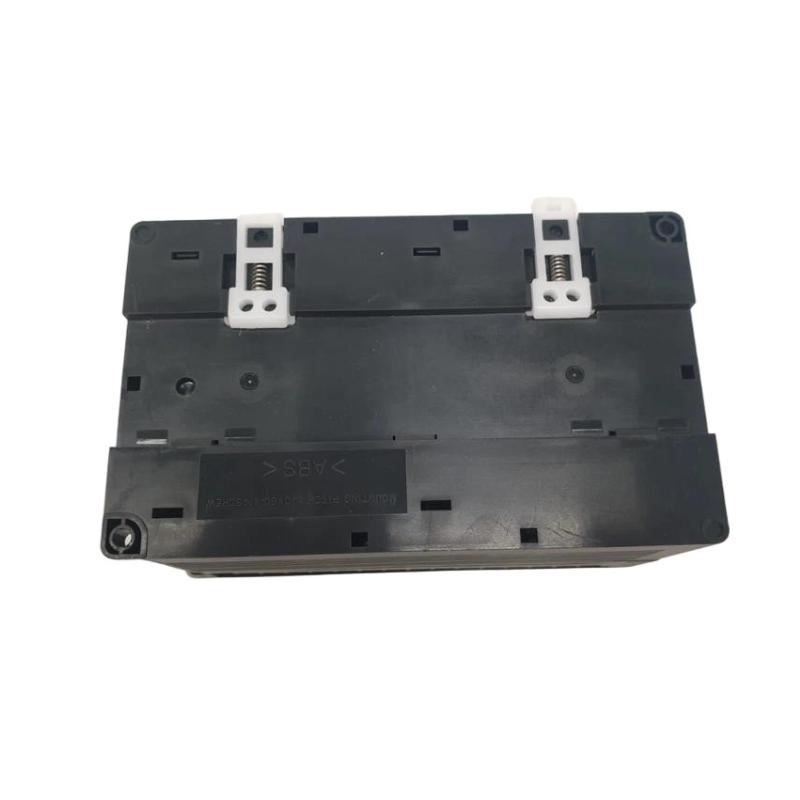

| Mounting Method | Panel mounting or DIN rail installation |
| Dimensions | Approximately 152 × 89 × 76 mm (6.0 × 3.5 × 3.0 in) |
| Weight | Approximately 580 g (1.28 lb) |
| Typical Applications | Industrial machinery, production lines, packaging systems, material handling equipment, and automation control systems |
FAQ
Q1: What is the main function of the IC200UDR064?
A: The IC200UDR064 is a VersaMax Micro PLC controller designed to handle digital input monitoring and relay output control in compact industrial automation systems.
Q2: How many I/O points does the IC200UDR064 provide?
A: The module provides 64 total I/O points, including 40 configurable 24 VDC digital inputs and 24 normally open relay outputs.
Q3: What type of input signals can the IC200UDR064 receive?
A: The PLC accepts 24 VDC digital signals from devices such as proximity sensors, limit switches, push buttons, and other industrial field devices. The inputs support both positive and negative logic configurations.
Q4: What type of loads can the relay outputs control?
A: The relay outputs can control various industrial loads, including contactors, solenoids, indicator lamps, and motor control devices within the rated current and voltage limits.
Q5: Does the IC200UDR064 support high-speed counting applications?
A: Yes. Selected input channels can be configured for high-speed counter functions, allowing the PLC to process pulse-based signals from devices such as encoders and frequency sensors.
Q6: What power supply is required for the IC200UDR064?
A: The controller requires a 24 VDC power supply and can operate within a voltage range of 19.2 to 30 VDC for industrial control applications.
Q7: Can the IC200UDR064 be expanded with additional modules?
A: Yes. The PLC supports compatible VersaMax Micro expansion modules, allowing users to increase system capacity based on application requirements.
Q8: What should be checked when replacing an IC200UDR064 in an existing system?
A: Before replacement, verify the wiring configuration, power supply specifications, I/O allocation, communication settings, and PLC program compatibility to ensure proper system operation.
GE Fanuc IC200UDR064 64-Point Micro PLC Controller is in stock. Please contact us for a quick quote and competitive pricing.
