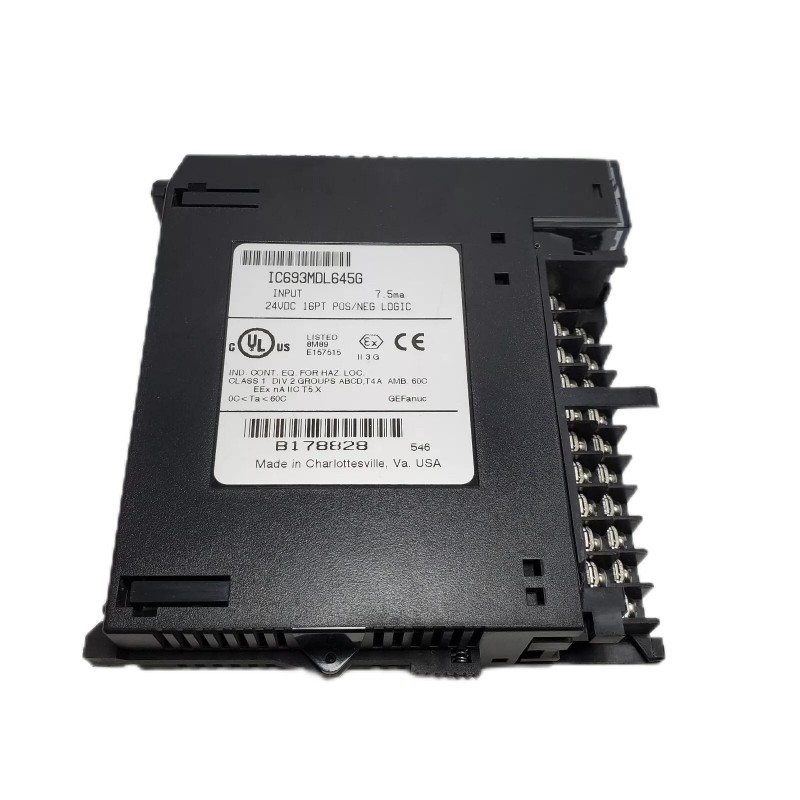

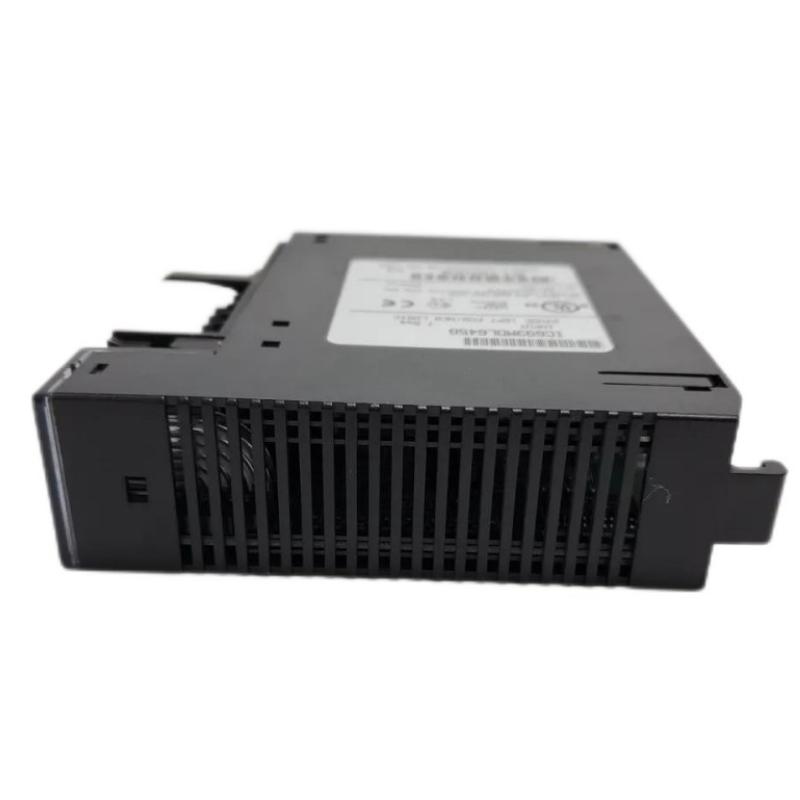

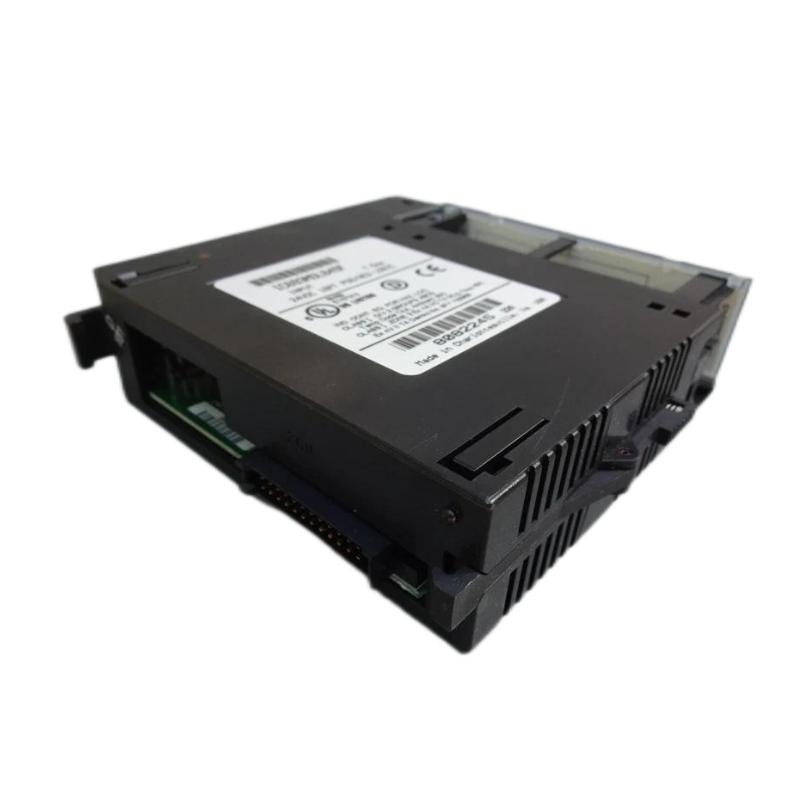

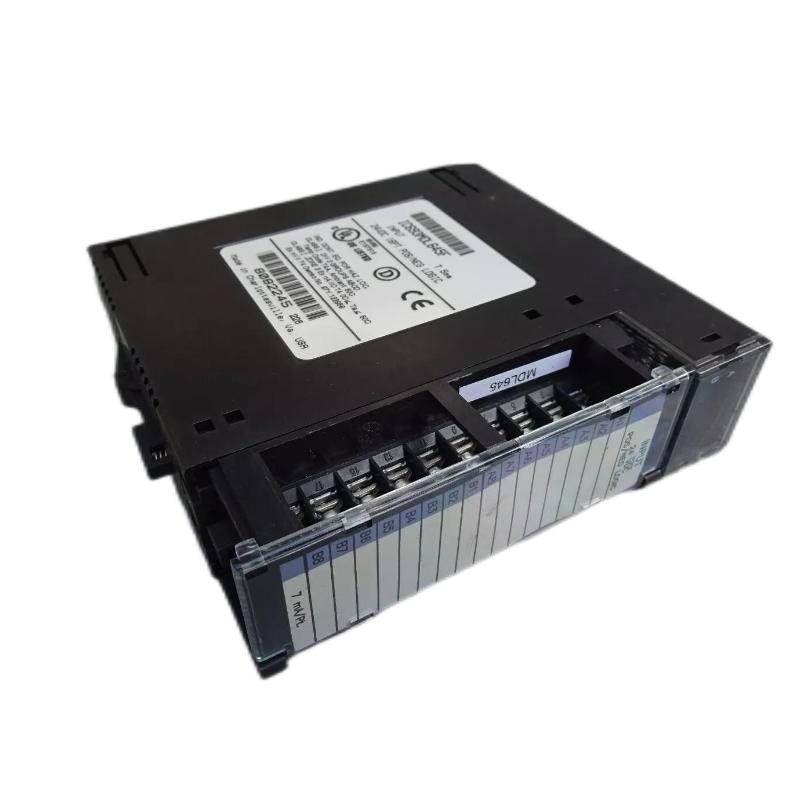

GE Fanuc IC693MDL645G Discrete Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | IC693MDL645G |
| Product Type | GE Fanuc Series 90-30 Digital Input Module |
| Module Function | |
| Input Type | DC Input |
| Number of Inputs | 16 Input Points |
| Input Voltage Range | 24 VDC |
| Input Current | Approximately 7 mA per point |
| Input Logic | Positive Logic |
| Isolation Type | Group Isolation |
| Input Threshold Voltage | ON: Typically 15 VDC minimum; OFF: Typically 5 VDC maximum |
| Backplane Current Consumption | Approximately 50 mA at 5 VDC |
| Terminal Type | Removable Terminal Block |
| Mounting Method | PLC Rack Mounting |
| Compatibility | GE Fanuc Series 90-30 PLC Systems |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions | Approximately 4.3 × 1.6 × 5.1 inches (109 × 41 × 130 mm) |
| Weight | Approximately 0.3 kg (0.66 lb) |
| Application Areas | Industrial automation, machine control, process monitoring, and factory equipment |
FAQ
Q1: What is the main function of the IC693MDL645G module?
A: The IC693MDL645G is a 16-point DC digital input module designed for GE Fanuc Series 90-30 PLC systems. It collects ON/OFF signals from field devices such as sensors, switches, and industrial control components.
Q2: What voltage does the IC693MDL645G support?
A: This module is designed for 24 VDC input signals, making it suitable for common industrial control applications that use standard DC field devices.
Q3: How many input channels are available on the IC693MDL645G?
A: The module provides 16 independent digital input points, allowing multiple external devices to be connected within a single PLC configuration.
Q4: Is the IC693MDL645G compatible with other GE Fanuc Series 90-30 modules?
A: Yes. The IC693MDL645G is designed specifically for the Series 90-30 PLC platform and can be integrated with compatible CPU modules, power supplies, and I/O modules.
Q5: What type of signals can be connected to this input module?
A: The module accepts standard DC switching signals from industrial devices, including proximity sensors, limit switches, push buttons, and other discrete field equipment.
Q6: What environmental conditions are suitable for operating the IC693MDL645G?
A: The module is intended for industrial environments and typically operates reliably within a temperature range of 0°C to 60°C with controlled humidity conditions.
Q7: How can users identify whether the IC693MDL645G input channels are working correctly?
A: The module includes status indicators that provide visual feedback for input conditions, helping technicians monitor signal activity and troubleshoot field connections.
Q8: What should be considered when replacing an existing IC693MDL645G module?
A: Before replacement, users should verify PLC compatibility, wiring configuration, power requirements, and application parameters to ensure smooth integration and avoid system interruptions.
GE Fanuc IC693MDL645G Discrete Input Module is in stock. Please contact us for a quick quote and competitive pricing.
