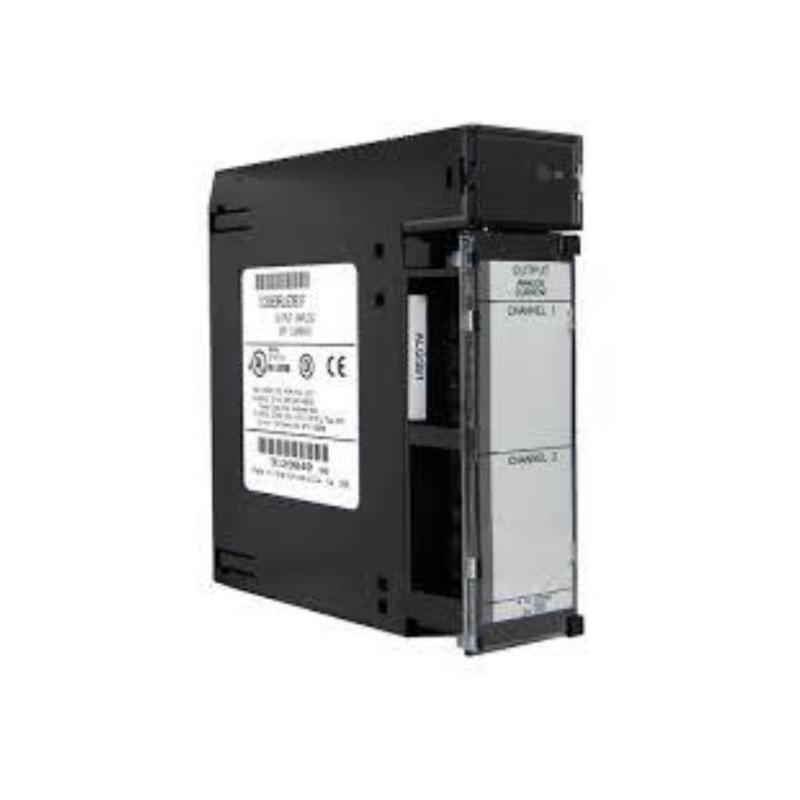

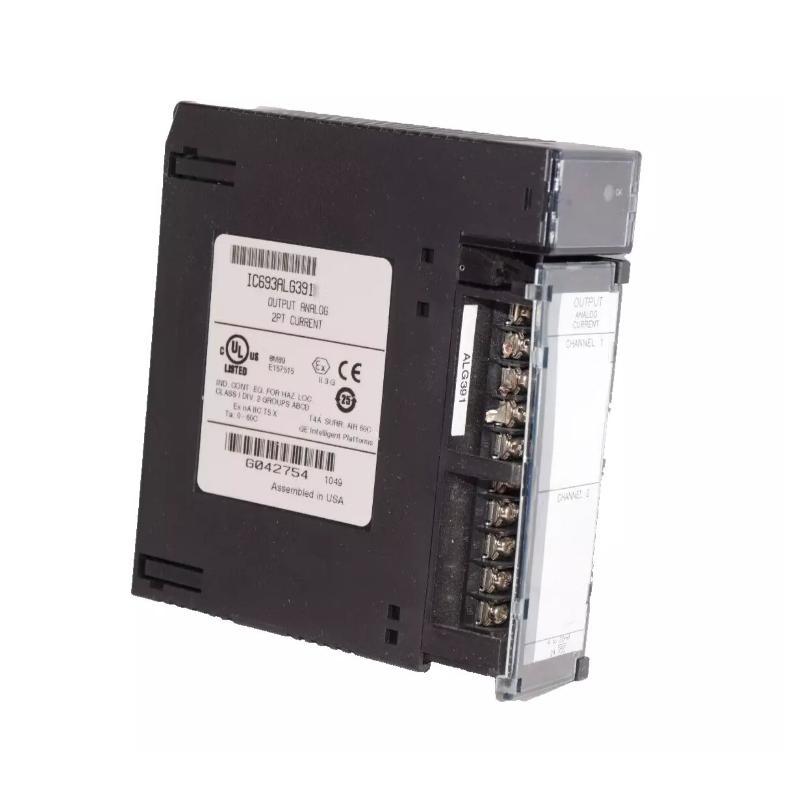

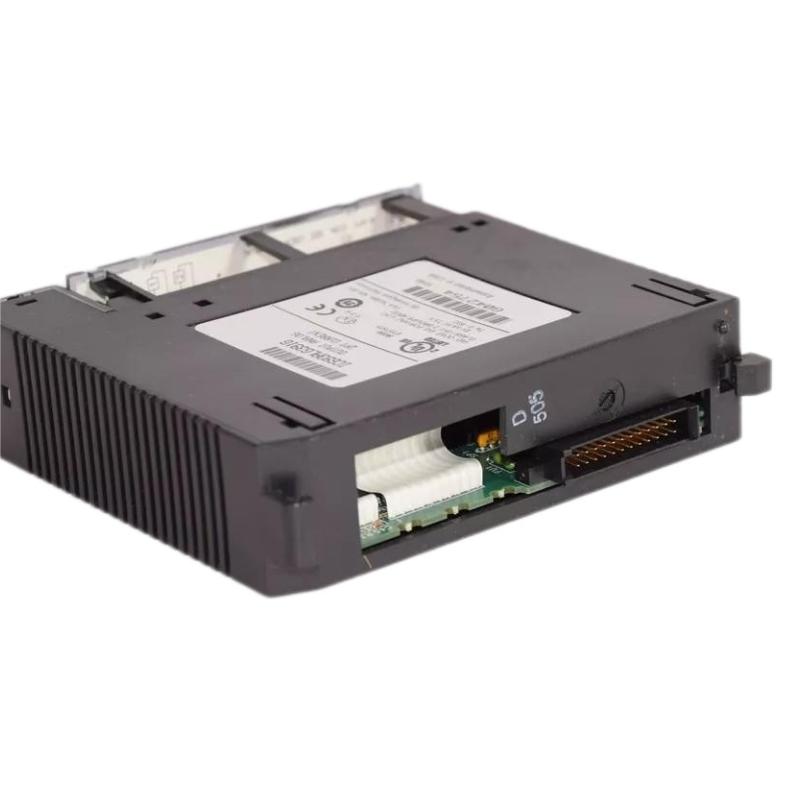

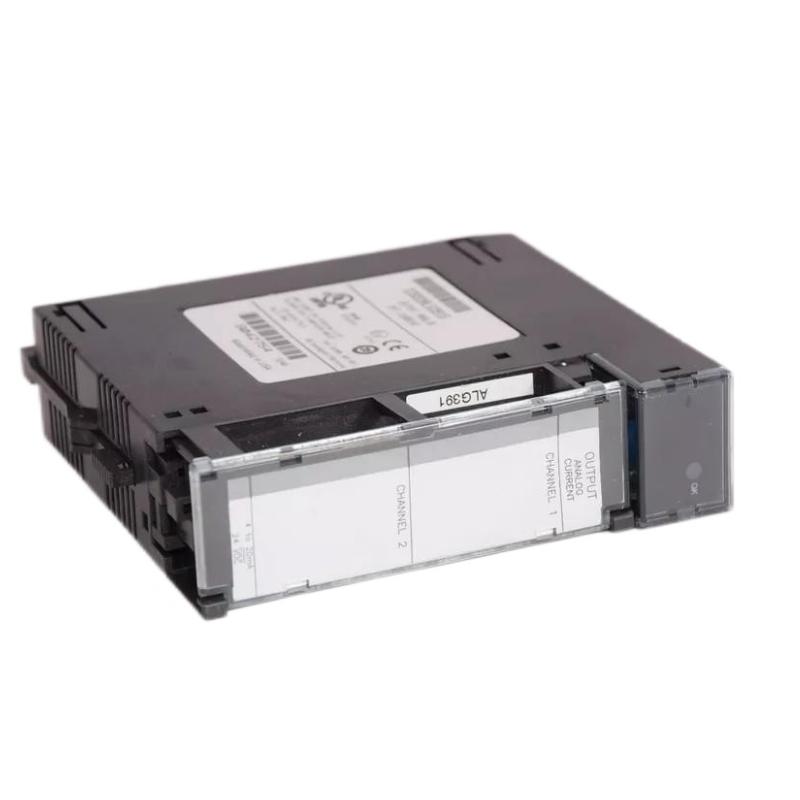

GE Fanuc IC693ALG391G Analog Current Output Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC693ALG391G |
| Manufacturer | GE Fanuc / Emerson |
| Product Series | Series 90-30 PLC |
| Product Type | Analog Current Output Module |
| Main Function | Converts PLC digital values into analog current output signals for controlling field devices |
| Application | Industrial automation, valve control, actuator control, process regulation, analog signal transmission |
| Number of Output Channels | 2 channels |
| Output Type | Analog current output |
| Output Current Range | 0–20 mA / 4–20 mA |
| Output Voltage Range | 0–5 VDC / 1–5 VDC (with external resistor) |
| Resolution | 12-bit digital-to-analog conversion |
| Update Rate | Approximately 5 ms |
| Output Accuracy | ±8 µA (4–20 mA range, 25°C) / ±10 µA (0–20 mA range, 25°C) |
| Maximum Compliance Voltage | 25 V |
| Current Output Load | 0–850 Ω |
| Voltage Output Load | Minimum 2 kΩ resistance, maximum 5 mA |
| External Supply Voltage | 20–30 VDC |
| Nominal Supply Voltage | +24 VDC isolated supply and +5 VDC backplane supply |
| Power Consumption | Approx. 30 mA from +5 VDC bus; approx. 215 mA from +24 VDC supply |
| Isolation | 1500 VAC field side to logic side |
| Output Type | Source current driver |
| Calibration | Factory calibrated |
| LED Indicators | Module power/status indicator |
| Mounting Type | Series 90-30 PLC rack mounting |
| Installation Position | Any available Series 90-30 I/O slot |
| Terminal Connection | Removable terminal block |
| Compatible Modules | GE Fanuc / Emerson Series 90-30 CPU, power supply, and I/O modules |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions | Approximately 130 mm × 140 mm × 40 mm |
| Weight | Approximately 0.50 kg |
| Compatibility | GE Fanuc / Emerson Series 90-30 PLC systems |
FAQ
Q1: What is the main function of the IC693ALG391G?
A: The IC693ALG391G is a Series 90-30 analog current output module that converts PLC digital values into analog current signals for controlling external devices.
Q2: How many output channels does the IC693ALG391G provide?
A: It provides 2 analog output channels.
Q3: What output signals are supported by the IC693ALG391G?
A: It supports 0–20 mA and 4–20 mA current outputs. With external conversion, it can also provide 0–5 VDC and 1–5 VDC signals.
Q4: What is the resolution of the IC693ALG391G?
A: The module uses 12-bit digital-to-analog conversion.
Q5: Does the IC693ALG391G require an external power supply?
A: Yes. It requires a 20–30 VDC external supply, typically using a 24 VDC source.
Q6: What load can the current output support?
A: The current output supports loads from 0 to 850 Ω.
Q7: What should be checked before replacing an IC693ALG391G?
A: Verify Series 90-30 compatibility, output signal type, external 24 VDC supply, wiring configuration, load resistance, and PLC program scaling settings.
Q8: How can the reliability of the IC693ALG391G be maintained?
A: Use shielded twisted-pair wiring for analog signals, ensure proper grounding, maintain stable power supply, avoid excessive electrical noise, and keep terminal connections secure.
GE Fanuc IC693ALG391G Analog Current Output Module is in stock. Please contact us for a quick quote and competitive pricing.
