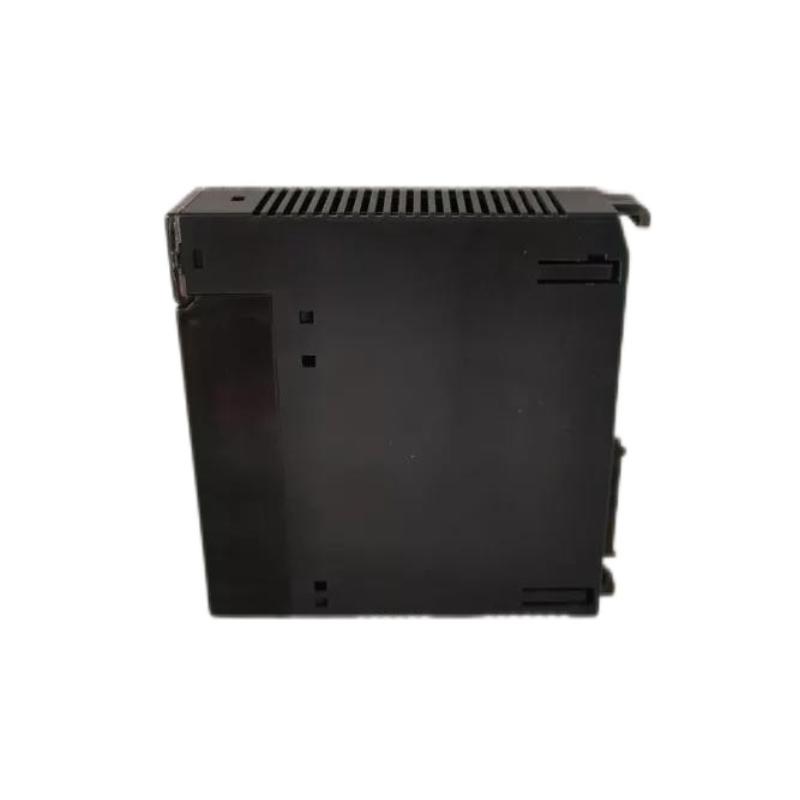

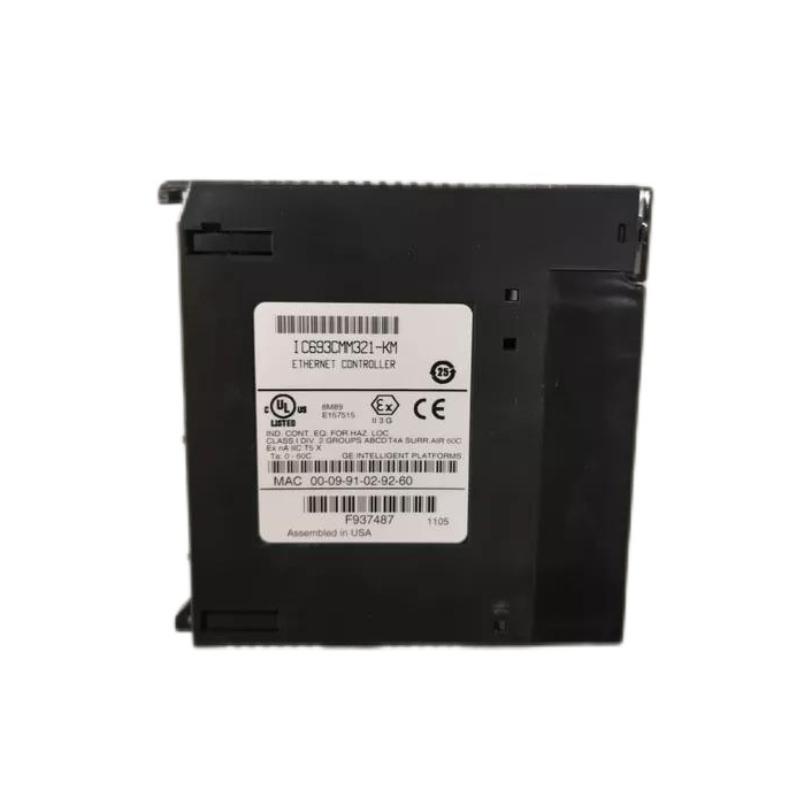

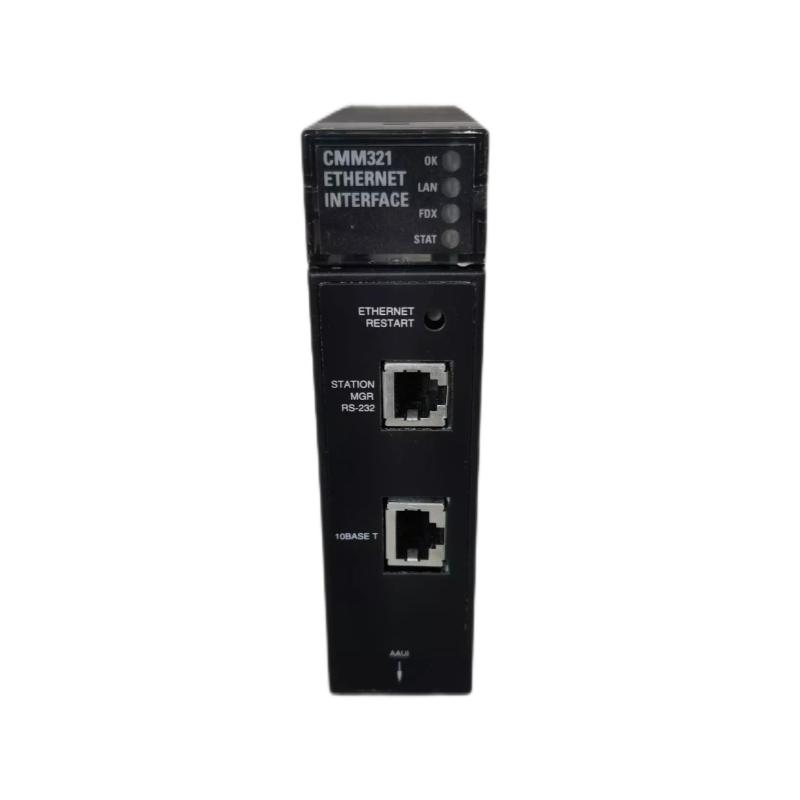

GE Fanuc IC693CMM321-JK Ethernet Interface Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC693CMM321-JK |
| Manufacturer | GE Fanuc / Emerson |
| Product Series | Series 90-30 PLC |
| Product Type | Ethernet Interface Module |
| Main Function | Provides TCP/IP Ethernet communication capability for Series 90-30 PLC systems |
| Application | Industrial Ethernet networking, PLC-to-PLC communication, HMI communication, SCADA systems, remote monitoring and control |
| Communication Protocols | SRTP (Service Request Transfer Protocol), TCP/IP, Ethernet Global Data (EGD), Modbus/TCP |
| Ethernet Speed | 10 Mbps Ethernet |
| Ethernet Interface | 10Base-T Ethernet communication |
| Serial Ports | 1 × RS-232 Station Manager port / 1 × RS-485 serial port |
| Maximum Server Connections | 16 simultaneous connections |
| Communication Mode | Client and Server operation supported |
| Firmware Version | Version 3.12 |
| Network Function | PLC Ethernet data exchange and host computer communication |
| CPU Compatibility | Series 90-30 CPU firmware 6.50 or higher recommended |
| Data Exchange | Supports PLC-to-PLC communication and Ethernet data transfer |
| Diagnostics | Ethernet status monitoring and module diagnostics |
| LED Indicators | OK, LAN, SER, STAT status LEDs |
| Mounting Type | Series 90-30 rack mounting |
| Installation Position | Any available Series 90-30 rack slot |
| Module Width | Single slot |
| Backplane Power Supply | Powered from PLC backplane |
| Backplane Current Consumption | Approximately 1 A at 5 VDC |
| Isolation | Ethernet interface isolation |
| Compatible Modules | GE Fanuc / Emerson Series 90-30 CPU and I/O modules |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions | Approximately 130 mm × 125 mm × 35 mm |
| Weight | Approximately 0.23 kg |
| Compatibility | GE Fanuc / Emerson Series 90-30 PLC systems |
FAQ
Q1: What is the main function of the IC693CMM321-JK?
A: The IC693CMM321-JK is a Series 90-30 Ethernet interface module used to connect PLC systems to Ethernet networks for data communication.
Q2: What communication protocols does the IC693CMM321-JK support?
A: It supports SRTP over TCP/IP, Ethernet Global Data (EGD), and Modbus/TCP communication.
Q3: What ports are available on the IC693CMM321-JK?
A: It provides an Ethernet communication interface, an RS-232 Station Manager port, and an RS-485 serial port.
Q4: How many network connections can the IC693CMM321-JK support?
A: It supports up to 16 simultaneous server connections.
Q5: What does the JK revision represent?
A: The JK revision is a hardware/firmware revision of the IC693CMM321 Ethernet interface module, corresponding to firmware version 3.12.
Q6: Is the IC693CMM321-JK compatible with all Series 90-30 CPUs?
A: Full functionality is recommended with Series 90-30 CPUs using firmware version 6.50 or higher.
Q7: What should be checked before replacing an IC693CMM321-JK?
A: Check CPU firmware compatibility, Ethernet network configuration, IP address settings, communication protocols, and PLC application configuration.
Q8: How can the reliability of the IC693CMM321-JK be maintained?
A: Maintain stable PLC power, ensure proper Ethernet wiring, monitor communication status LEDs, keep the module environment within specifications, and regularly check network parameters.
GE Fanuc IC693CMM321-JK Ethernet Interface Module is in stock. Please contact us for a quick quote and competitive pricing.
