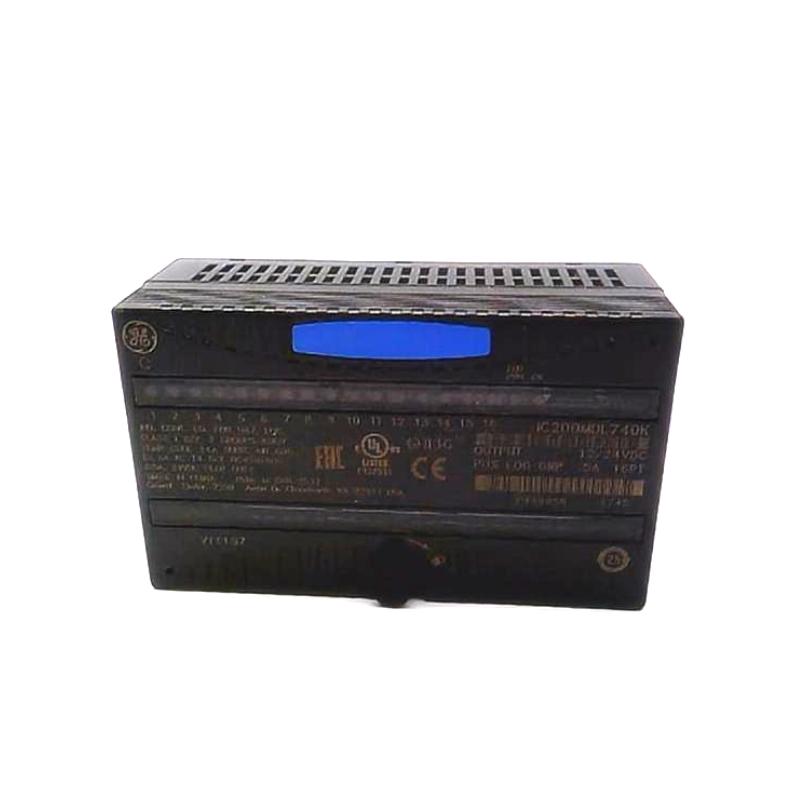

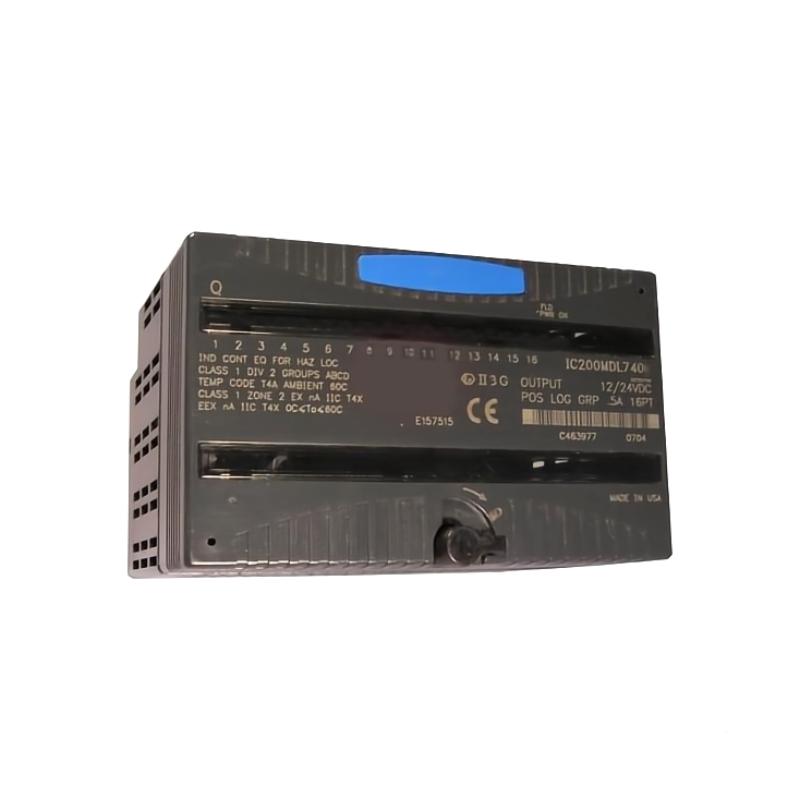

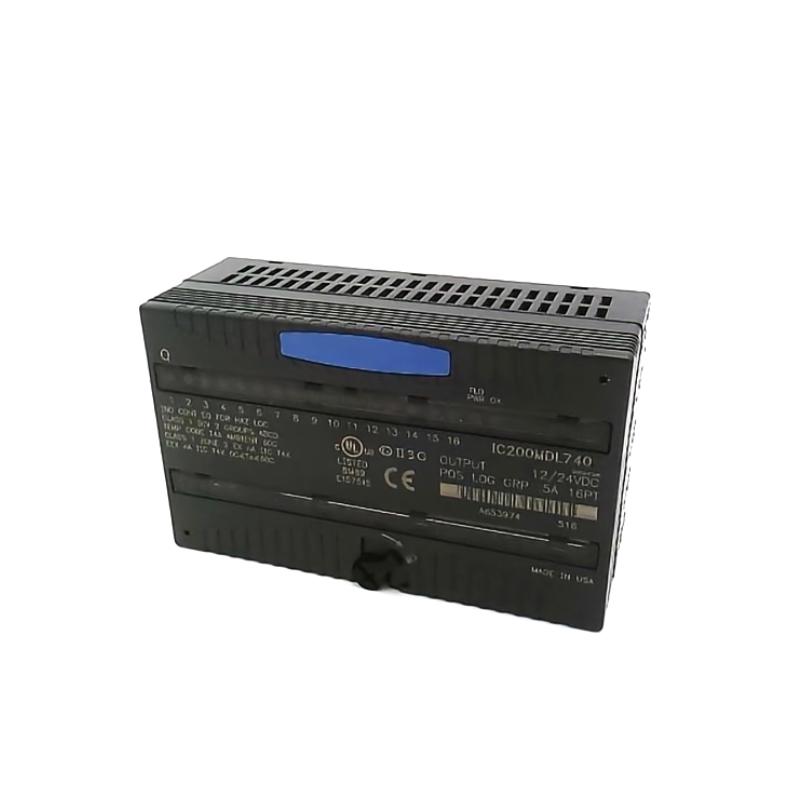

GE Fanuc IC200MDL740J Discrete DC Output Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC200MDL740J |
| Manufacturer | GE Fanuc / Emerson |
| Product Series | VersaMax Distributed I/O |
| Product Type | Discrete DC Output Module |
| Main Function | Provides 12/24 VDC positive logic (sourcing) transistor outputs for controlling DC field devices |
| Application | Industrial automation, machine control, remote I/O systems, actuators, solenoids, relays, and indicators |
| Output Type | DC transistor output |
| Logic Type | Positive logic (sourcing output) |
| Number of Outputs | 16 output points |
| Output Configuration | One group of 16 outputs |
| Rated Output Voltage | 12/24 VDC |
| Output Voltage Range | 10.2 to 30 VDC |
| Output Current | 0.5 A maximum per point |
| Maximum Inrush Current | 2.0 A for 100 ms |
| Output Voltage Drop | 0.3 V maximum |
| Output Leakage Current | 0.5 mA maximum at 30 VDC |
| Output Response Time | ON: approximately 0.2 ms maximum; OFF: approximately 1.0 ms maximum |
| External Power Supply | Required, 10.2 to 30 VDC nominal |
| Isolation Type | Optical isolation between field side and logic side |
| Isolation Rating | 250 VAC continuous; 1500 VAC for 1 minute |
| Channel Isolation | No point-to-point isolation |
| Protection | External protection recommended; no internal fuse |
| LED Indicators | Individual output status LEDs, field power LED, module OK LED |
| Backplane Current Consumption | Approximately 45 mA maximum at 5 VDC |
| Output Data | Receives 16-bit discrete output data from CPU or Network Interface Unit |
| Terminal Connection | VersaMax terminal carrier interface |
| Mounting Type | VersaMax base/carrier mounted module |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions | Approximately 50 mm × 110 mm × 66.8 mm |
| Weight | Approximately 0.45 kg |
| Compatibility | GE Fanuc VersaMax PLC and distributed I/O systems |
FAQ
Q1: What is the main function of the IC200MDL740J?
A: The IC200MDL740J is a VersaMax 16-point DC transistor output module used to switch and control external 12/24 VDC field devices.
Q2: How many output channels does the IC200MDL740J provide?
A: The module provides 16 positive logic sourcing output points in one output group.
Q3: What voltage range does the IC200MDL740J support?
A: The module supports 12/24 VDC operation with an allowable voltage range of approximately 10.2 to 30 VDC.
Q4: What type of devices can be controlled by the IC200MDL740J?
A: It can control DC loads such as solenoid valves, indicator lamps, relays, actuators, and other industrial DC devices.
Q5: Is an external power supply required for the IC200MDL740J?
A: Yes. An external 10.2–30 VDC field power supply is required to provide output power to connected loads.
Q6: What should be checked before replacing an IC200MDL740J module?
A: Verify VersaMax compatibility, output wiring, load voltage, external power supply polarity, terminal connections, and PLC configuration before replacement.
Q7: What factors may affect the performance of the IC200MDL740J?
A: Overcurrent conditions, incorrect wiring polarity, unstable field power, excessive temperature, electrical noise, and insufficient protection may affect output reliability.
Q8: How can the reliability of the IC200MDL740J be maintained?
A: Maintain correct wiring, use suitable external protection devices, keep terminals secure, ensure proper cabinet ventilation, and perform regular PLC diagnostics.
GE Fanuc IC200MDL740J Discrete DC Output Module is in stock. Please contact us for a quick quote and competitive pricing.
