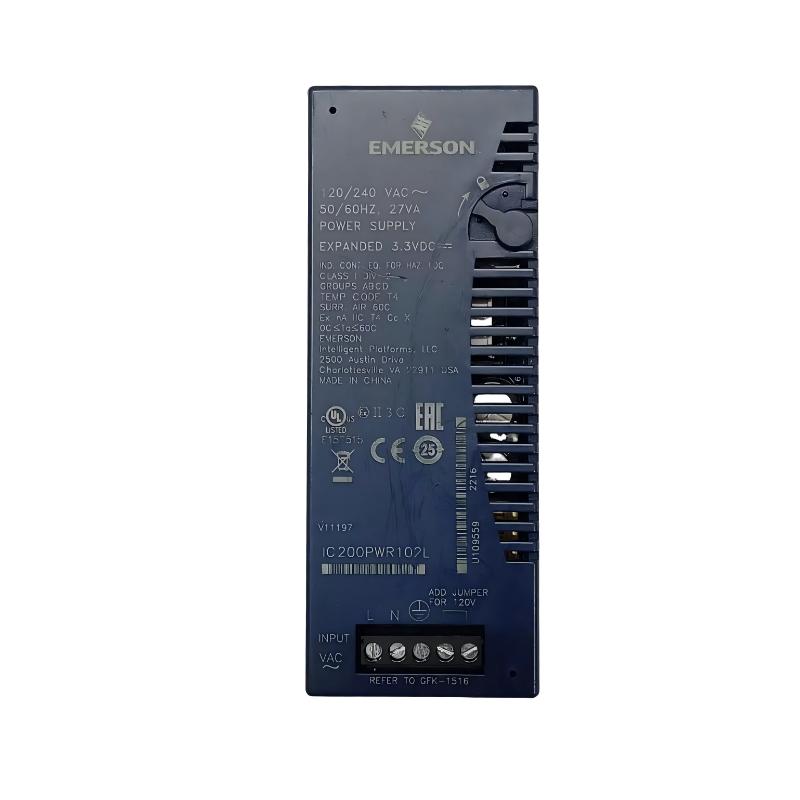

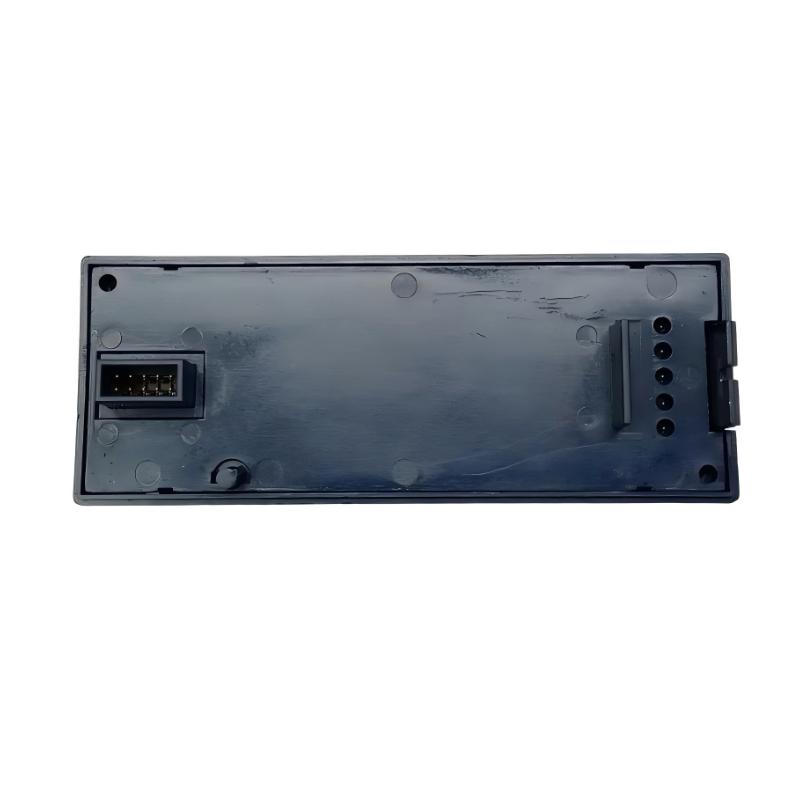

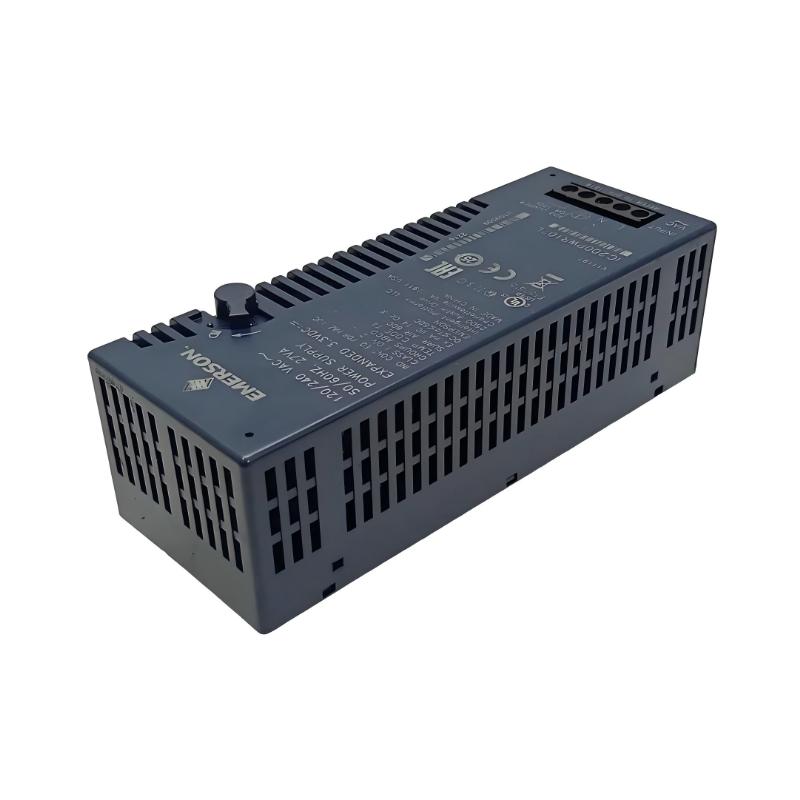

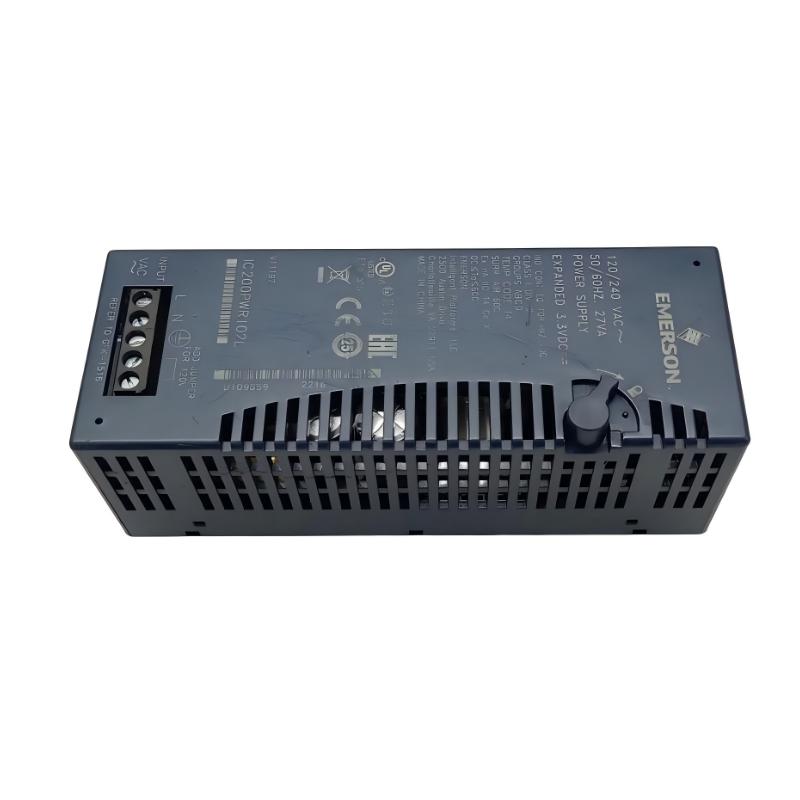

GE Fanuc IC200PWR101B AC Power Supply Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC200PWR101B |
| Manufacturer | GE Fanuc / Emerson |
| Product Series | VersaMax Distributed I/O |
| Product Type | AC Power Supply Module |
| Main Function | Provides backplane power for VersaMax CPUs, Network Interface Units, and I/O modules |
| Application | Industrial automation, PLC control systems, remote I/O stations, and distributed control applications |
| Input Voltage | 120/240 VAC selectable |
| Input Voltage Range | 85–132 VAC (120 VAC nominal, jumper installed) / 176–264 VAC (240 VAC nominal, jumper removed) |
| Input Frequency | 47–63 Hz |
| Input Power | 27 VA maximum |
| Output Voltage | 5 VDC and 3.3 VDC |
| Maximum Output Current | 1.5 A total output current |
| 3.3 VDC Output Current | 0.25 A maximum |
| 5 VDC Output Current | 1.5 A minus 3.3 VDC load current |
| Hold-up Time | 20 ms minimum |
| Protection Features | Short circuit protection and overload protection |
| Power Supply Type | Non-isolated AC input power supply |
| Primary Function | Main power source or supplemental power source for VersaMax stations |
| Mounting Type | Mounted on VersaMax CPU, Network Interface Unit, or Power Supply Booster Carrier |
| Backplane Power Supply | Provides power to CPU, NIU, and I/O modules |
| LED Indicators | Power status indication |
| Compatible Systems | GE Fanuc VersaMax PLC and distributed I/O systems |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions | Approximately 49 mm × 133.4 mm × 39 mm (excluding carrier/DIN rail height) |
| Weight | Approximately 0.25 kg |
FAQ
Q1: What is the main function of the IC200PWR101B?
A: The IC200PWR101B is a VersaMax AC power supply module that converts 120/240 VAC input power into 5 VDC and 3.3 VDC outputs for powering PLC CPUs, network modules, and I/O modules.
Q2: What input voltage does the IC200PWR101B support?
A: The module supports selectable 120 VAC or 240 VAC input operation. A jumper is used for 120 VAC operation, while 240 VAC operation requires the jumper to be removed.
Q3: What output voltages are provided by the IC200PWR101B?
A: The power supply provides 5 VDC and 3.3 VDC outputs for VersaMax system components.
Q4: What is the maximum output current of the IC200PWR101B?
A: The total combined output current is 1.5 A maximum, including both the 5 VDC and 3.3 VDC outputs.
Q5: Where can the IC200PWR101B be installed?
A: It can be installed on VersaMax CPU modules, Network Interface Units, or a Power Supply Booster Carrier for additional system power requirements.
Q6: What protections are included in the IC200PWR101B?
A: The module includes short-circuit protection and overload protection to help protect the VersaMax control system.
Q7: What should be checked before replacing an IC200PWR101B?
A: Verify AC input voltage selection, jumper configuration, VersaMax compatibility, power requirements of connected modules, wiring connections, and system configuration before replacement.
Q8: How can the reliability of the IC200PWR101B be maintained?
A: Proper input voltage selection, correct wiring, stable AC supply, adequate cabinet ventilation, and regular inspection of power connections help ensure reliable long-term operation.
GE Fanuc IC200PWR101B AC Power Supply Module is in stock. Please contact us for a quick quote and competitive pricing.
