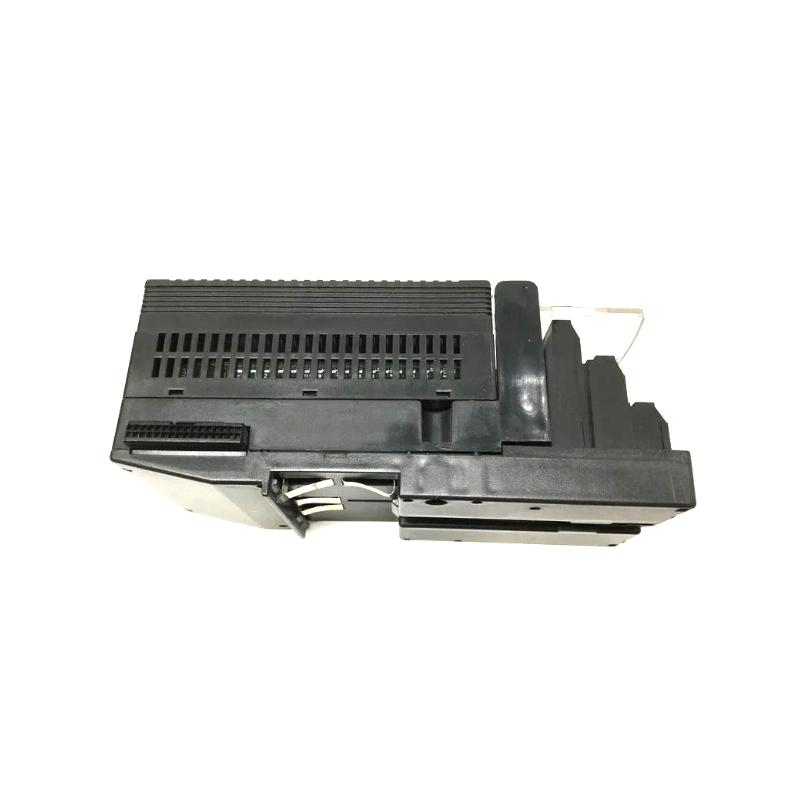

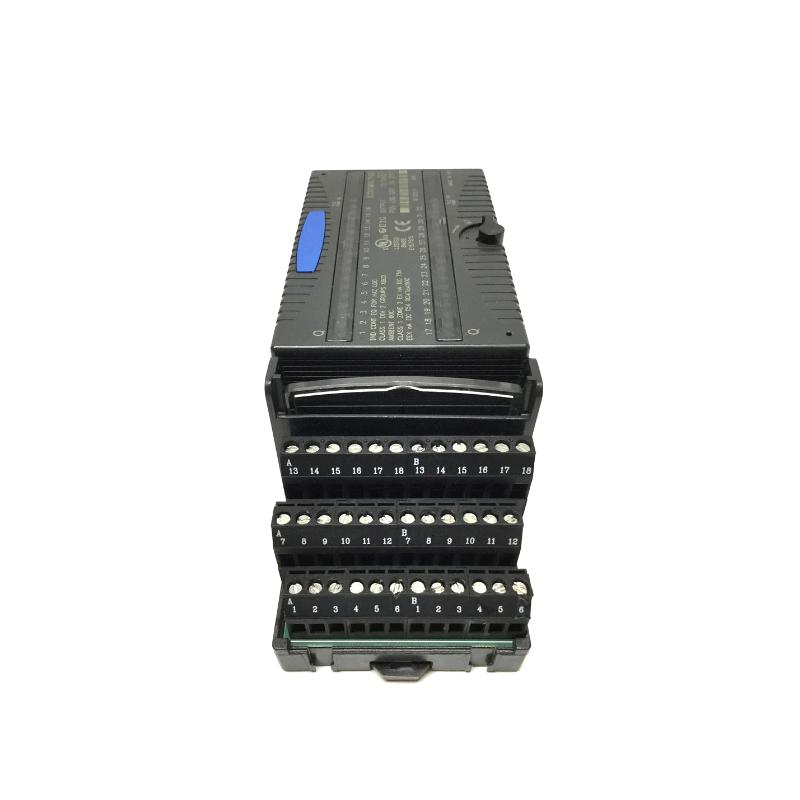

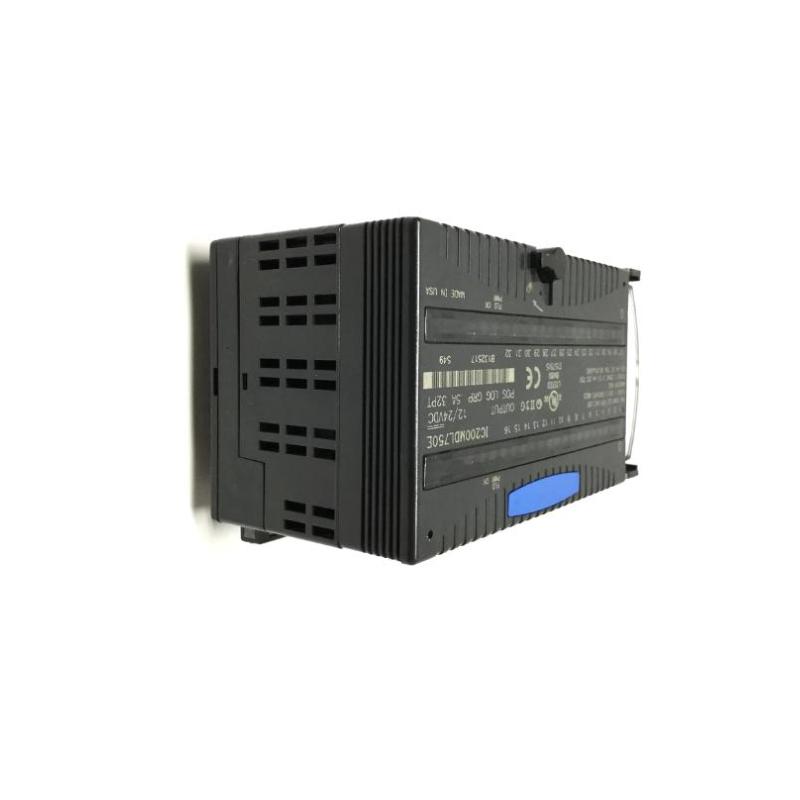

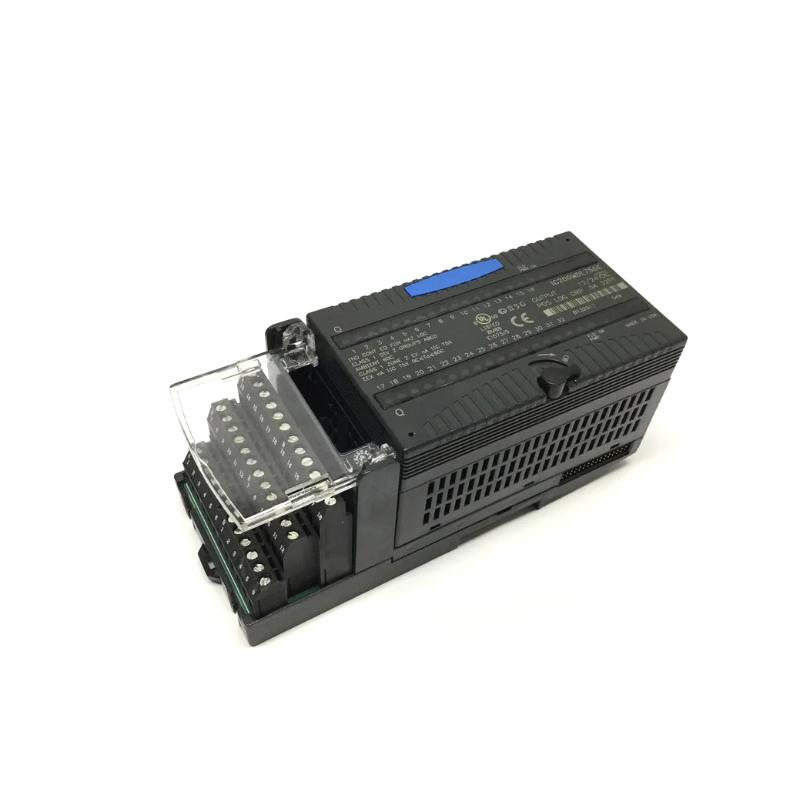

GE Fanuc IC200MDL750G Discrete DC Output Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC200MDL750G |
| Manufacturer | GE Fanuc / Emerson |
| Product Series | VersaMax Distributed I/O |
| Product Type | Discrete DC Output Module |
| Main Function | Provides 32-channel digital DC transistor output control for external field devices |
| Application | Industrial automation, solenoid control, relay control, actuator control, indicator control, machine automation |
| Output Type | Transistor output |
| Logic Type | Positive logic (Sourcing output) |
| Number of Outputs | 32 points |
| Output Configuration | 2 groups of 16 outputs |
| Rated Output Voltage | 12/24 VDC |
| Output Voltage Range | 10.2–30 VDC |
| Output Current Rating | 0.5 A maximum per point |
| Maximum Inrush Current | 2 A for 100 ms maximum |
| Output Load Type | DC resistive and inductive loads (with external suppression recommended) |
| Output Response Time | ON: 0.2 ms maximum / OFF: 1.0 ms maximum |
| Output Leakage Current | 0.5 mA maximum at 30 VDC |
| External Power Supply | 12/24 VDC field power required |
| Backplane Current Consumption | 90 mA maximum |
| Isolation Type | Group isolation (16-point groups) |
| Isolation Rating | 250 VAC continuous / 1500 VAC for 1 minute |
| Protection Function | Thermal protection; external suppression recommended for inductive loads |
| LED Indicators | Individual channel status LEDs, OK LED, FLD PWR LED |
| Mounting Type | VersaMax I/O carrier mounting |
| Installation Position | DIN rail or panel mounting through VersaMax carrier |
| Terminal Connection | VersaMax terminal carrier connection |
| Compatible Modules | VersaMax CPU, Network Interface Units, I/O carriers and expansion modules |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions | Approximately 110 mm × 66.8 mm × 50 mm |
| Weight | Approximately 0.14 kg |
| Compatibility | GE Fanuc / Emerson VersaMax PLC and distributed I/O systems |
FAQ
Q1: What is the main function of the IC200MDL750G?
A: The IC200MDL750G is a VersaMax 32-point DC output module used to control external 12/24 VDC field devices such as solenoid valves, relays, contactors, and indicator lamps.
Q2: How many output points does the IC200MDL750G provide?
A: It provides 32 digital transistor outputs divided into two groups of 16 points.
Q3: What type of output does the IC200MDL750G use?
A: It uses positive logic (sourcing) transistor outputs, switching the positive side of the DC supply to drive loads.
Q4: What voltage and current can the outputs handle?
A: Each output supports 12/24 VDC operation with a maximum current rating of 0.5 A per point.
Q5: Does the IC200MDL750G require an external power supply?
A: Yes. An external 12/24 VDC field power supply is required for output loads.
Q6: Does the IC200MDL750G provide individual channel isolation?
A: No. The module does not provide individual point-to-point isolation, but the two groups of 16 outputs have group-level isolation.
Q7: What should be checked before replacing an IC200MDL750G?
A: Verify VersaMax system compatibility, output voltage requirements, load current, field power supply, wiring connections, and PLC configuration.
Q8: How can the reliability of the IC200MDL750G be maintained?
A: Use proper DC wiring, add suppression circuits for inductive loads, avoid exceeding output current ratings, maintain secure terminal connections, and operate within specified environmental conditions.
GE Fanuc IC200MDL750G Discrete DC Output Module is in stock. Please contact us for a quick quote and competitive pricing.
