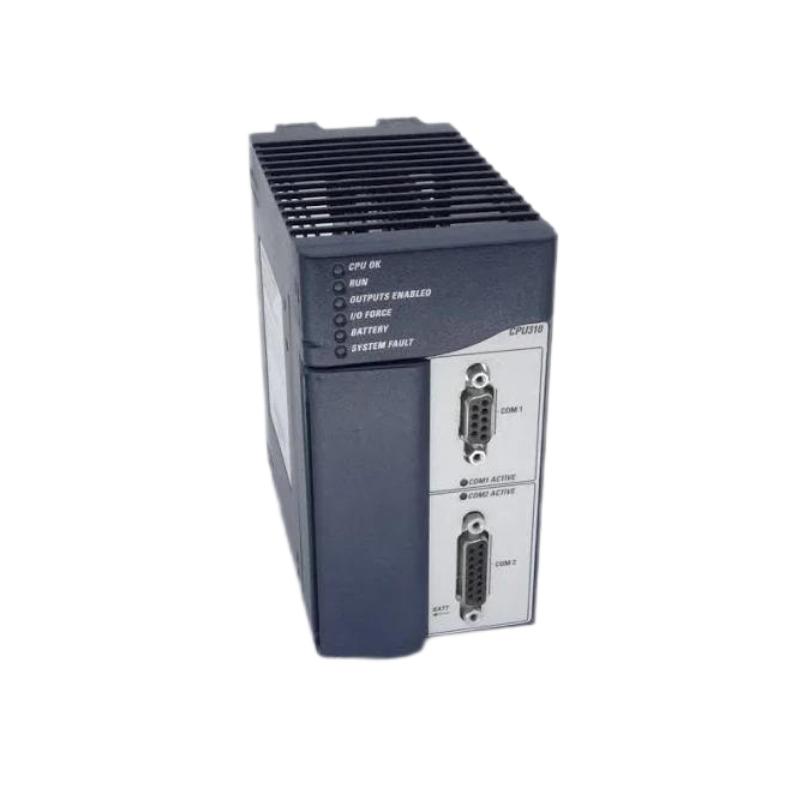

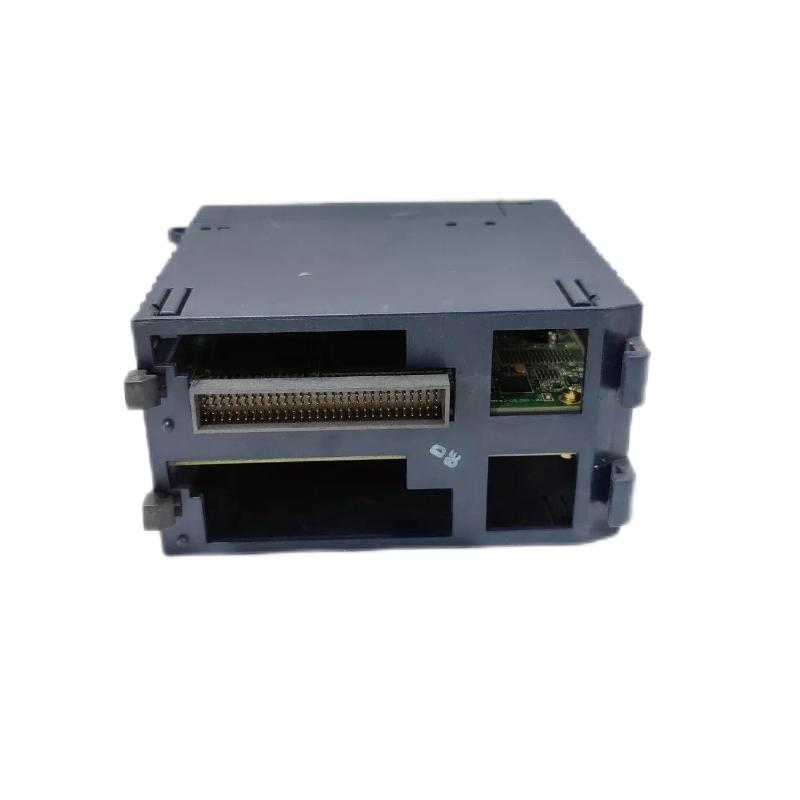

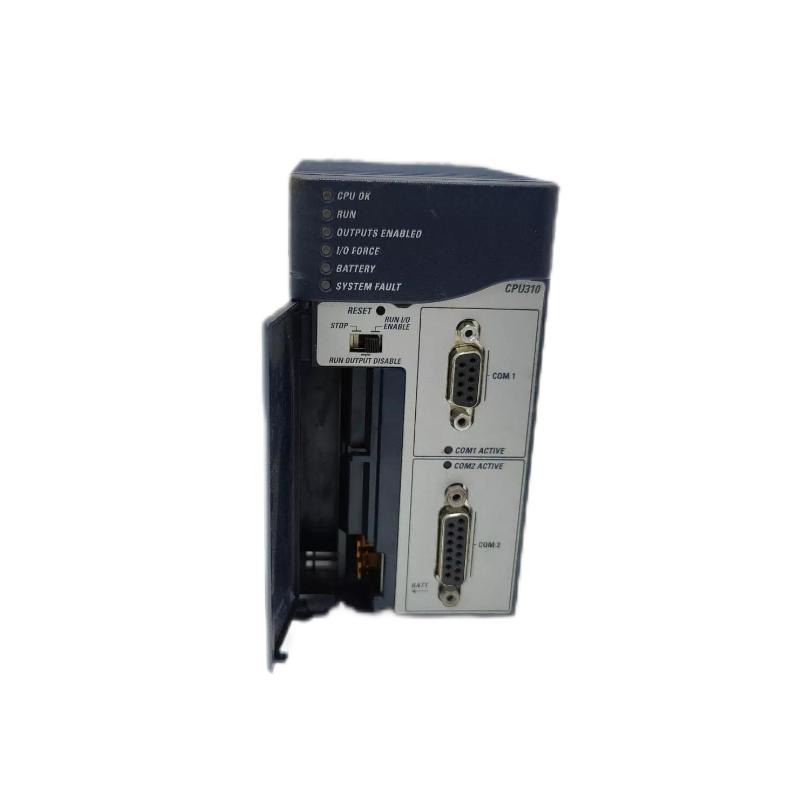

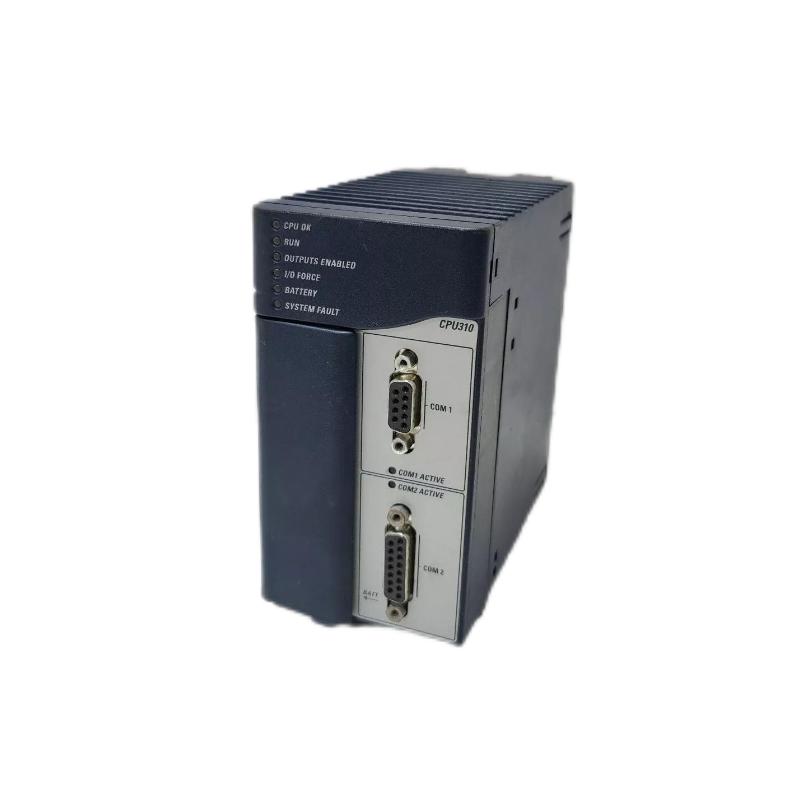

GE Fanuc IC695CMU310-CJ Max-ON Hot Standby Redundancy CPU Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC695CMU310-CJ |
| Manufacturer | GE Fanuc / Emerson |
| Product Series | PACSystems RX3i |
| Product Type | Max-ON Hot Standby Redundancy CPU Module |
| Main Function | Provides high-performance PLC processing and hot standby redundancy control for RX3i automation systems |
| Application | Critical industrial automation, redundant control systems, power generation, process control, manufacturing systems |
| Processor Type | Intel Celeron-based processor |
| Processor Speed | 300 MHz |
| Firmware Version | Version 5.50 |
| Redundancy Function | Max-ON hot standby redundancy |
| Redundancy Communication | Dedicated Ethernet LAN communication |
| Program Storage | 10 MB battery-backed RAM |
| Non-volatile Memory | 10 MB flash user memory |
| Program Blocks | Up to 512 blocks |
| Maximum Block Size | 128 KB |
| Boolean Execution Speed | Approximately 0.195 ms per 1000 Boolean contacts/coils |
| Floating Point Support | Yes |
| Supported Programming Languages | Ladder Diagram (LD), Structured Text (ST), Function Block Diagram (FBD), C programming |
| Discrete Memory | %I / %Q up to 32 Kbits |
| Analog Memory | %AI / %AQ configurable up to 32 Kwords |
| Symbolic Memory | Up to available user RAM |
| Communication Ports | RS-232 and RS-485 serial ports |
| Supported Serial Protocols | Modbus RTU Slave, SNP, Serial I/O |
| Ethernet Communication | Requires RX3i Ethernet modules for network communication and redundancy applications |
| Backplane Compatibility | RX3i Universal Backplane and Series 90-30 expansion backplanes |
| Backplane Bus | Dual backplane bus support (RX3i PCI and Series 90-30 serial) |
| Power Requirements | +5 VDC: approximately 1.0 A / +3.3 VDC: approximately 1.25 A |
| Module Size | Single-slot module |
| LED Indicators | CPU status, OK, RUN, fault, redundancy status indicators |
| Configuration Software | Proficy Machine Edition / Max-ON Configuration Utility |
| Battery Backup | Supports battery-backed memory retention |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | 35 mm × 135 mm × 135 mm |
| Weight | Approximately 0.43 kg |
| Compatibility | GE Fanuc / Emerson PACSystems RX3i PLC systems |
FAQ
Q1: What is the main function of the IC695CMU310-CJ?
A: The IC695CMU310-CJ is a PACSystems RX3i Max-ON hot standby redundancy CPU module used to build high-availability control systems with automatic CPU failover capability.
Q2: What does the “CJ” version indicate?
A: The CJ revision corresponds to firmware version 5.50.
Q3: Is the IC695CMU310-CJ a standard CPU module?
A: No. It is a redundancy CPU designed for hot standby applications and requires a compatible RX3i redundant system configuration.
Q4: What memory capacity does the IC695CMU310-CJ provide?
A: It provides 10 MB battery-backed RAM for user memory and 10 MB flash memory for non-volatile storage.
Q5: What communication functions are available?
A: The module provides RS-232 and RS-485 serial communication ports, supporting protocols such as Modbus RTU Slave, SNP, and Serial I/O.
Q6: What should be checked before replacing an IC695CMU310-CJ?
A: Verify RX3i backplane compatibility, redundancy configuration, firmware compatibility, communication settings, battery condition, and application program compatibility.
Q7: Can the IC695CMU310-CJ work in a non-redundant RX3i system?
A: It is primarily designed for Max-ON redundancy applications. System configuration requirements should be confirmed before installation.
Q8: How can the reliability of the IC695CMU310-CJ be maintained?
A: Maintain stable PLC power, monitor CPU diagnostics, keep redundant CPUs on compatible firmware versions, maintain battery condition, and ensure correct network configuration.
GE Fanuc IC695CMU310-CJ Max-ON Hot Standby Redundancy CPU Module is in stock. Please contact us for a quick quote and competitive pricing.
