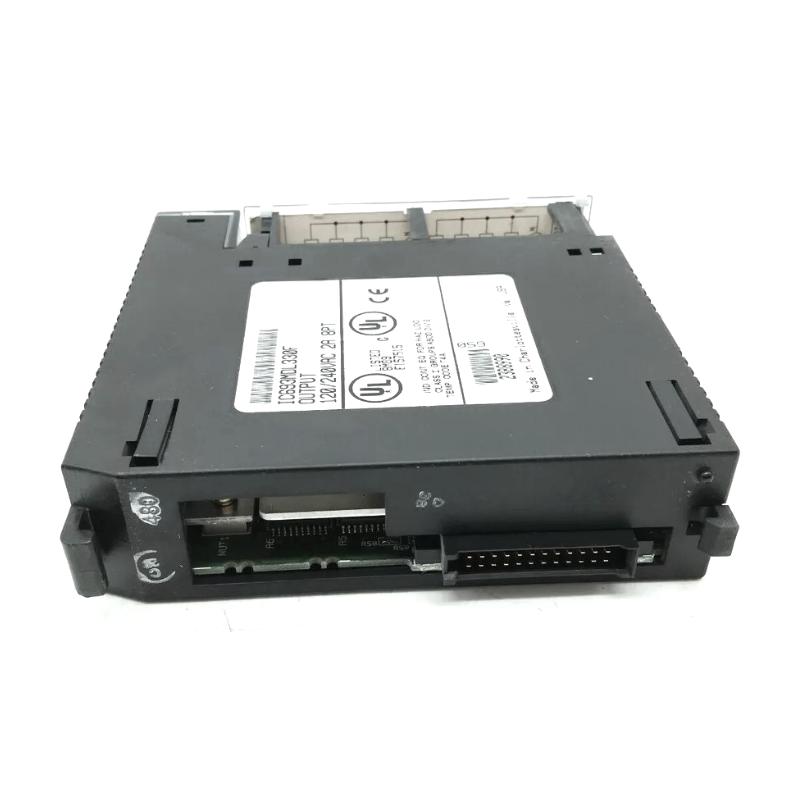

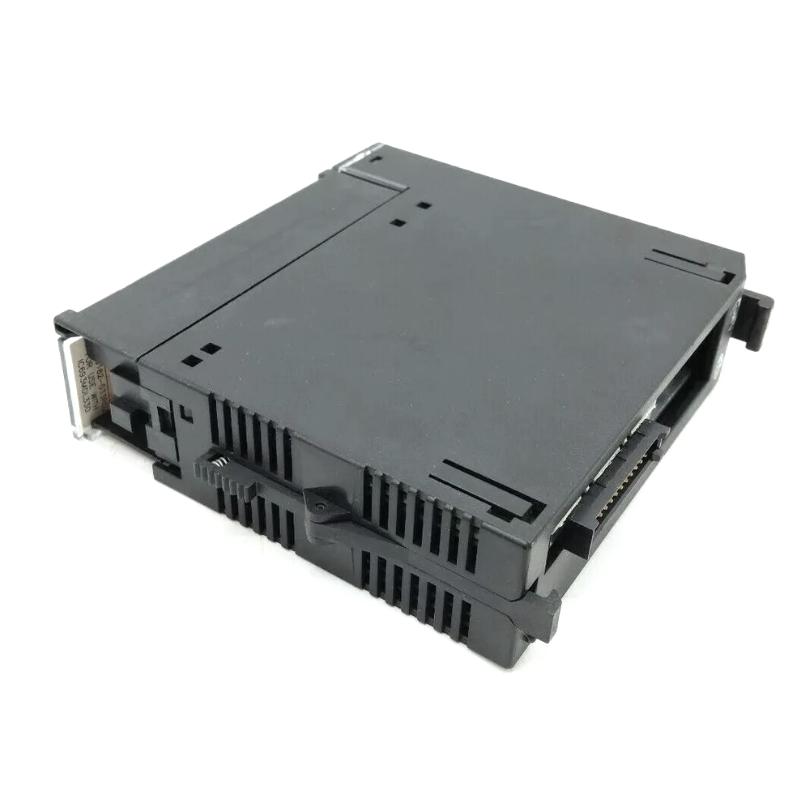

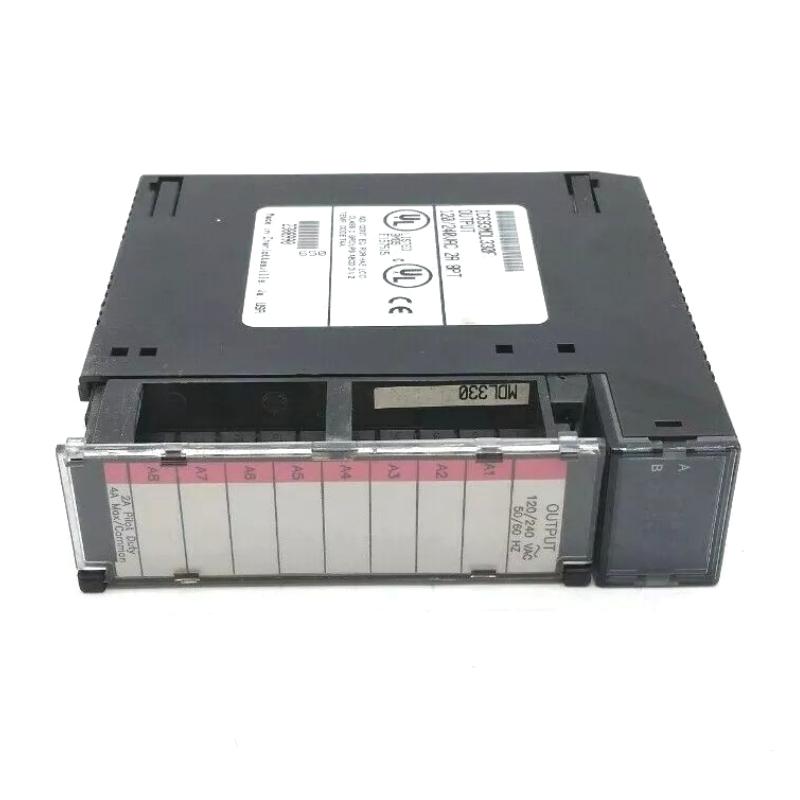

GE Fanuc IC693MDL330F AC Output Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC693MDL330F |
| Manufacturer | GE Fanuc / Emerson |
| Product Series | Series 90-30 PLC |
| Product Type | AC Output Module |
| Main Function | Provides AC switching outputs for controlling external AC field devices |
| Application | Industrial automation, machine control, motor starters, solenoid valves, contactors, indicators, and AC load control |
| Output Type | Triac AC output |
| Number of Outputs | 8 points |
| Output Configuration | 2 isolated groups of 4 outputs each |
| Rated Output Voltage | 120/240 VAC |
| Output Voltage Range | 85–264 VAC |
| Output Frequency | 47–63 Hz |
| Output Current Rating | 2 A maximum per point |
| Maximum Group Current | 4 A maximum per output group at 40°C |
| Minimum Load Current | 100 mA |
| Maximum Inrush Current | 20 A per cycle |
| Output Voltage Drop | 1.5 V maximum |
| Output Response Time | ON: 1 ms maximum / OFF: 1/2 cycle maximum |
| Isolation Type | Optical isolation between field side and logic side |
| Isolation Voltage | 1500 VAC for 1 minute |
| Output Protection | 5 A fuse protection per output group |
| Noise Suppression | RC snubber protection on outputs |
| Power Consumption | Approximately 110 mA from 5 VDC backplane supply |
| LED Indicators | Individual output status LEDs |
| Mounting Type | Series 90-30 PLC rack mounting |
| Installation Position | Any available Series 90-30 I/O slot |

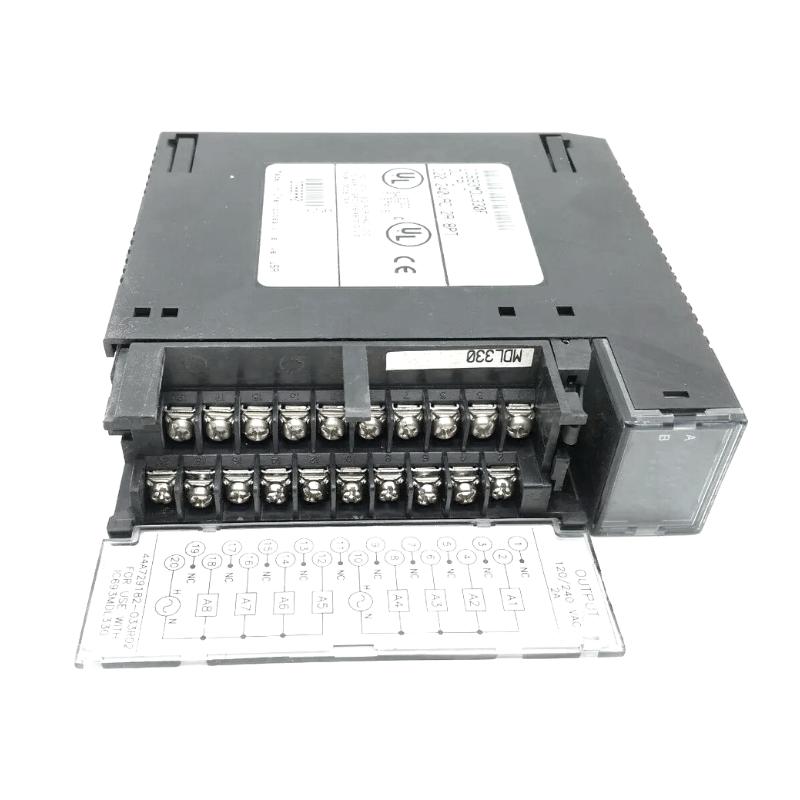

| Terminal Connection | Removable terminal block |
| Compatible Modules | GE Fanuc / Emerson Series 90-30 CPU, power supply, and I/O modules |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions | Approximately 130 mm × 125 mm × 35 mm |
| Weight | Approximately 0.37 kg |
| Compatibility | GE Fanuc / Emerson Series 90-30 PLC systems |
FAQ
Q1: What is the main function of the IC693MDL330F?
A: The IC693MDL330F is a Series 90-30 AC output module used to switch and control external AC loads in industrial automation systems.
Q2: How many output points does the IC693MDL330F provide?
A: The module provides 8 AC output points arranged into two isolated groups of 4 outputs each.
Q3: What type of output does the IC693MDL330F use?
A: It uses solid-state Triac AC outputs for switching AC loads.
Q4: What voltage and current can the outputs handle?
A: Each output supports 85–264 VAC operation with a maximum current rating of 2 A per point.
Q5: Does the IC693MDL330F provide output isolation?
A: Yes. The module provides isolation between the field side and PLC logic side, with two isolated output groups.
Q6: Does the IC693MDL330F require an external AC power supply?
A: Yes. External AC power is required to operate connected field devices.
Q7: What should be checked before replacing an IC693MDL330F?
A: Verify Series 90-30 compatibility, AC voltage level, load current requirements, fuse condition, terminal wiring, and PLC configuration.
Q8: How can the reliability of the IC693MDL330F be maintained?
A: Avoid exceeding output current ratings, use proper AC wiring, inspect fuses regularly, ensure secure terminal connections, and maintain suitable cabinet temperature and humidity conditions.
