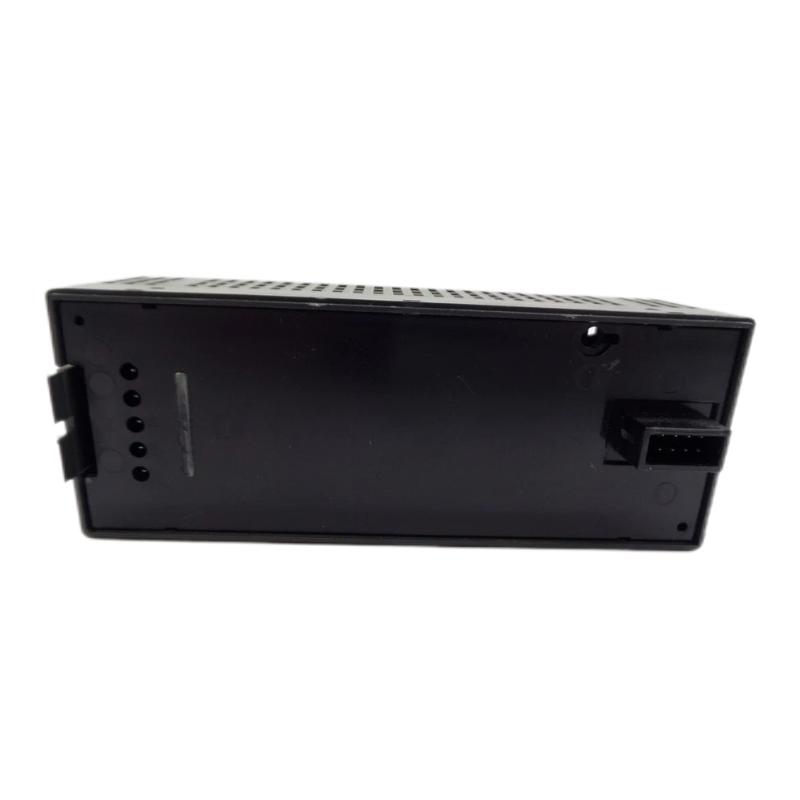

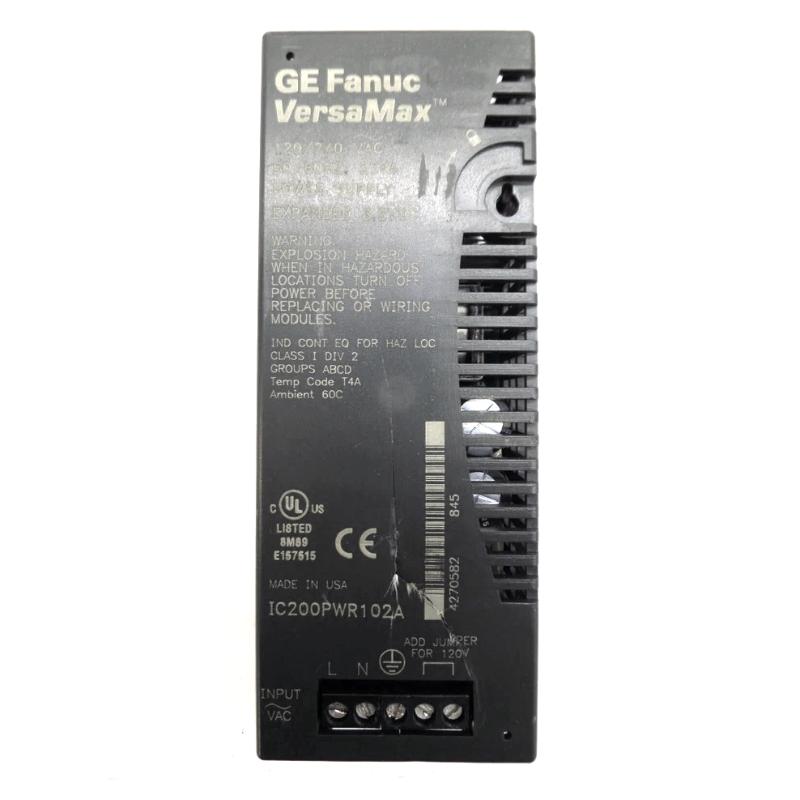

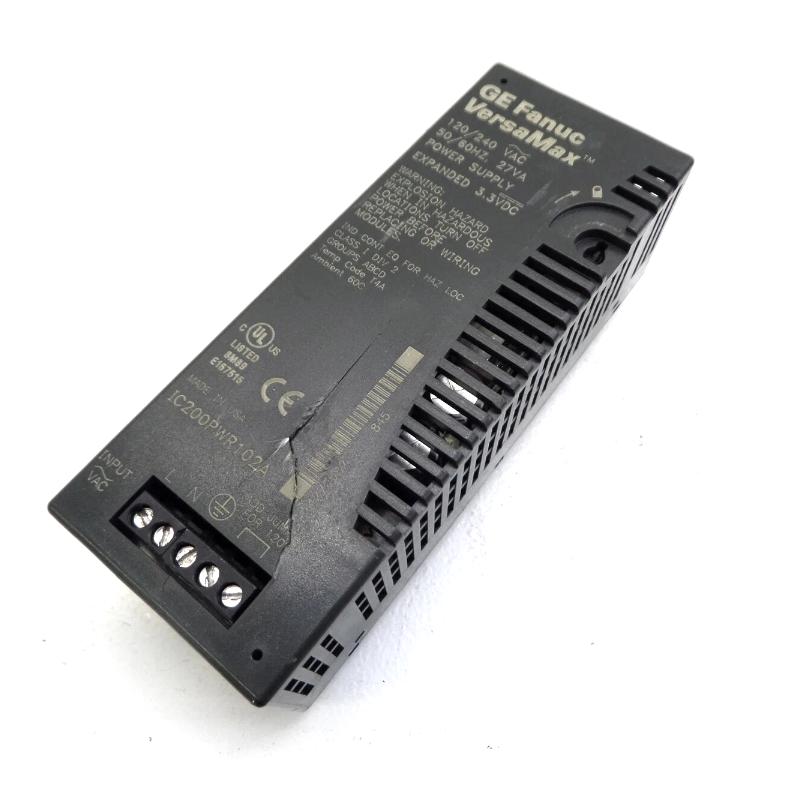

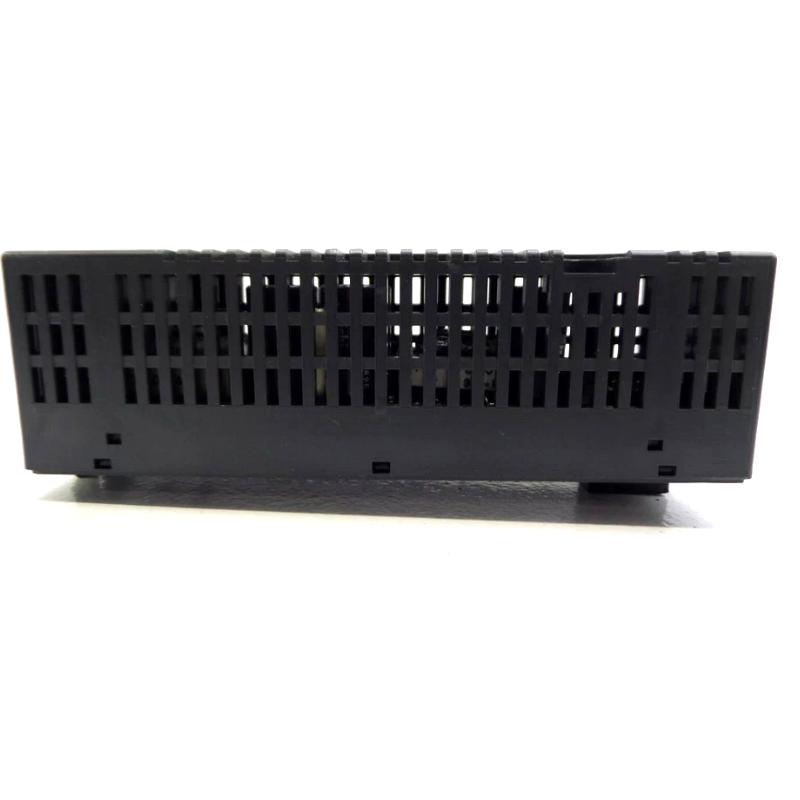

GE Fanuc IC200PWR102B Expanded Power Supply Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC200PWR102B |
| Product Series | GE Fanuc / Emerson VersaMax |
| Product Type | Expanded Power Supply Module |
| Module Function | Provides main or supplemental power for VersaMax PLC CPUs, network interface units, and I/O modules |
| Input Voltage Type | AC input power supply |
| Rated Input Voltage | 120/240 VAC selectable |
| Input Voltage Range | 85 to 132 VAC (120 VAC nominal) / 176 to 264 VAC (240 VAC nominal) |
| Input Frequency | 47 to 63 Hz |
| Input Power Rating | 27 VA maximum |
| Output Voltage | 5 VDC and 3.3 VDC |
| Total Output Current | 1.5 A maximum |
| 3.3 VDC Output Current | 1.0 A maximum |
| 5 VDC Output Current | Maximum depends on 3.3 VDC load, up to 1.5 A total output limit |
| Power Supply Type | Expanded VersaMax power supply |
| Power Supply Application | Main station power supply or supplemental power supply |
| Voltage Selection Method | Jumper installed for 120 VAC operation; jumper removed for 240 VAC operation |
| Protection Features | Short circuit protection and overload protection |
| Hold-up Time | 20 ms minimum |
| Output Regulation | Regulated DC output for VersaMax backplane power |
| Mounting Method | Mounted on VersaMax CPU, NIU, or power supply booster carrier |
| Communication Function | Provides system power distribution through the backplane |
| Compatible Systems | GE Fanuc / Emerson VersaMax PLC systems |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Dimensions | Approximately 49 × 133.4 × 39 mm (1.93 × 5.25 × 1.54 in) |
| Weight | Approximately 0.14 kg (0.31 lb) |
| Typical Applications | VersaMax PLC power expansion, industrial control panels, I/O station power management, and automation system upgrades |
FAQ
Q1: What is the main function of the IC200PWR102B?
A: The IC200PWR102B is an expanded power supply module for VersaMax PLC systems. It provides regulated 5 VDC and 3.3 VDC power for CPUs, network interface units, and I/O modules.
Q2: What input voltage does the IC200PWR102B support?
A: The module supports both 120 VAC and 240 VAC nominal input operation. The input voltage selection is configured through the jumper setting.
Q3: What output voltages are available from the IC200PWR102B?
A: The module provides 5 VDC and 3.3 VDC outputs to supply power for VersaMax PLC components and connected modules.
Q4: What is the maximum output current capacity of the IC200PWR102B?
A: The module provides a maximum total output current of 1.5 A, with up to 1.0 A available on the 3.3 VDC output.
Q5: Can the IC200PWR102B be used as a supplemental power supply?
A: Yes. The module can be used as either the main station power source or as additional power support in larger VersaMax PLC configurations.
Q6: What protection functions are included in the IC200PWR102B?
A: The power supply includes short circuit protection and overload protection to improve system reliability and reduce the risk of damage during abnormal conditions.
Q7: How should the IC200PWR102B be installed?
A: The module should be installed on a compatible VersaMax CPU, network interface unit, or power supply carrier with correct AC wiring and proper voltage selection.
Q8: What should be checked when replacing an IC200PWR102B module?
A: Verify input voltage settings, system power requirements, mounting configuration, output load capacity, wiring connections, and compatibility with existing VersaMax modules before replacement.
GE Fanuc IC200PWR102B Expanded Power Supply Module is in stock. Please contact us for a quick quote and competitive pricing.
