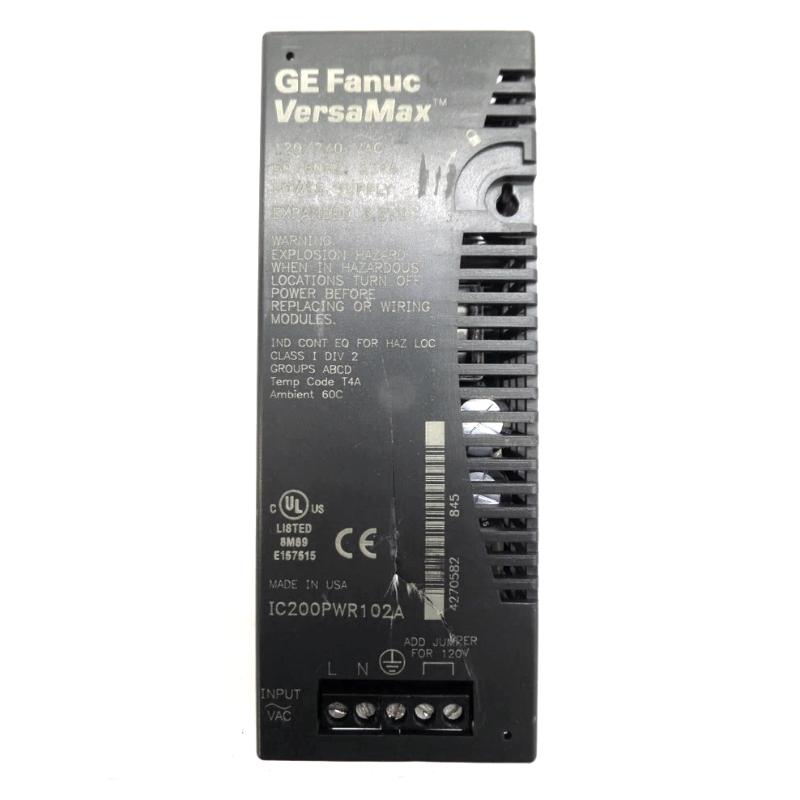

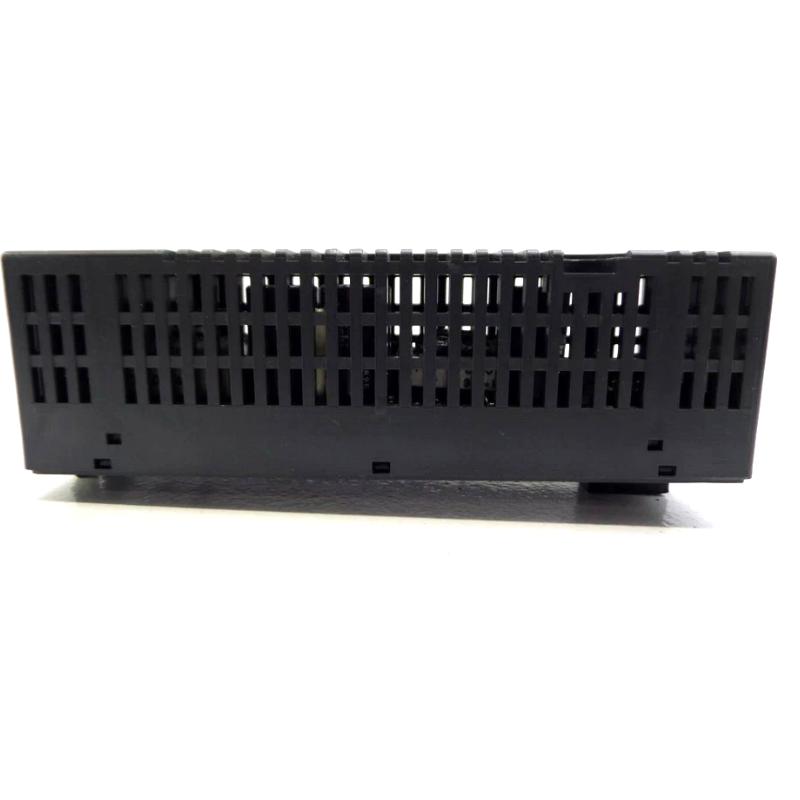

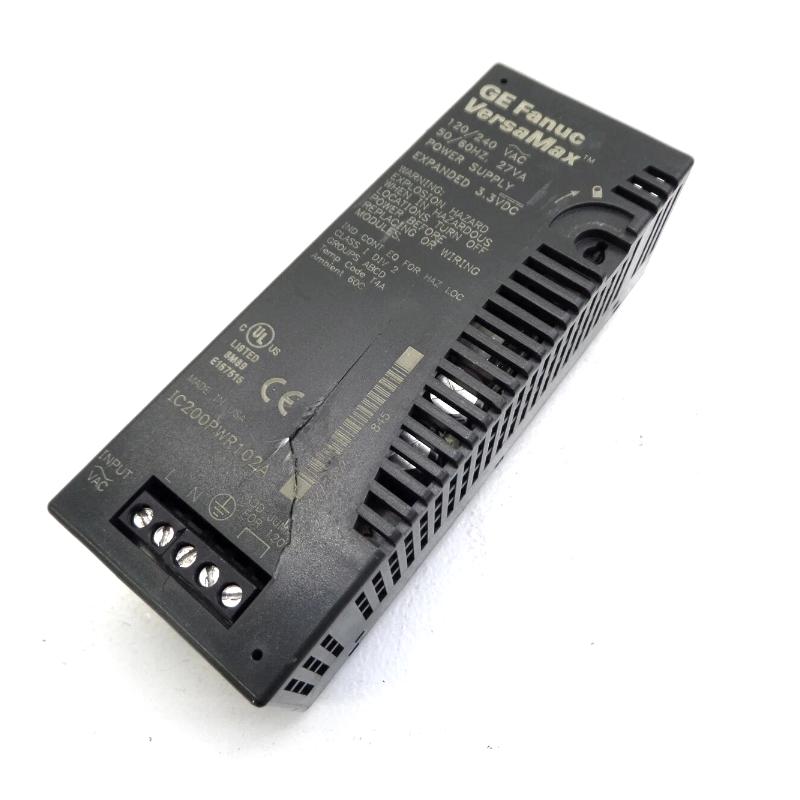

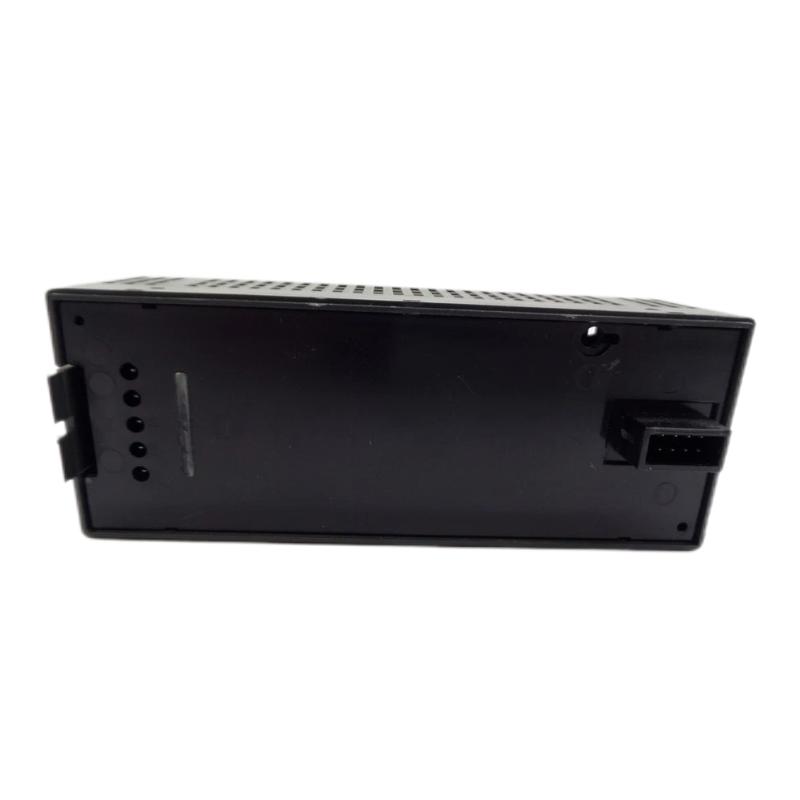

GE Fanuc IC200PWR102E Expanded AC Power Supply Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC200PWR102E |
| Manufacturer | GE Fanuc / Emerson |
| Product Series | VersaMax Distributed I/O |
| Product Type | Expanded AC Power Supply Module |
| Main Function | Provides regulated backplane power for VersaMax CPU, NIU, and I/O modules |
| Application | Industrial automation, distributed control systems, PLC power management, VersaMax I/O stations |
| Input Voltage Type | AC input |
| Nominal Input Voltage | 120/240 VAC |
| Input Voltage Range | 85–132 VAC / 176–264 VAC |
| Input Frequency | 47–63 Hz |
| Input Power Consumption | 27 VA maximum |
| Output Voltage | 5 VDC and 3.3 VDC |
| Total Output Current | 1.5 A maximum |
| 5 VDC Output Current | Up to 1.5 A (shared load) |
| 3.3 VDC Output Current | Up to 1.0 A |
| Hold-up Time | Approximately 20 ms |
| Protection Functions | Short-circuit protection and overload protection |
| Voltage Selection | 120 VAC / 240 VAC selectable |
| Power Supply Function | Can be used as main power supply or supplemental power supply with booster carrier |
| Backplane Power Supply | Supplies power to CPU, NIU, and I/O modules |
| LED Indicators | Power/status indicator |
| Mounting Type | VersaMax CPU, NIU, or booster carrier mounting |
| Terminal Connection | Screw terminal connection |
| Compatible Modules | VersaMax CPU modules, Network Interface Units, I/O modules, and booster carriers |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions | Approximately 49 mm × 133.4 mm × 39 mm |
| Weight | Approximately 0.14 kg |
| Compatibility | GE Fanuc / Emerson VersaMax PLC and distributed I/O systems |
FAQ
Q1: What is the main function of the IC200PWR102E?
A: The IC200PWR102E is a VersaMax expanded power supply module that provides regulated 5 VDC and 3.3 VDC power for VersaMax CPU, network interface units, and I/O modules.
Q2: What input voltage does the IC200PWR102E support?
A: It supports 120/240 VAC input, with a range of 85–132 VAC or 176–264 VAC depending on the voltage selection configuration.
Q3: What output voltages does the IC200PWR102E provide?
A: It provides 5 VDC and 3.3 VDC outputs with a maximum combined output current of 1.5 A.
Q4: Can the IC200PWR102E be used as an expansion power supply?
A: Yes. It can work as the primary power source when mounted on a CPU or NIU, or as an additional power source when installed on a power supply booster carrier.
Q5: Does the IC200PWR102E provide protection functions?
A: Yes. It includes short-circuit protection and overload protection.
Q6: Where is the IC200PWR102E installed?
A: It is mounted on VersaMax CPU modules, Network Interface Units, or power supply booster carriers.
Q7: What should be checked before replacing an IC200PWR102E?
A: Verify AC input voltage selection, VersaMax system compatibility, power load requirements, terminal wiring, and connected module quantity.
Q8: How can the reliability of the IC200PWR102E be maintained?
A: Ensure correct voltage selection, maintain proper ventilation, avoid overloading, keep terminals tight, and inspect the PLC power system regularly.
GE Fanuc IC200PWR102E Expanded AC Power Supply Module is in stock. Please contact us for a quick quote and competitive pricing.
