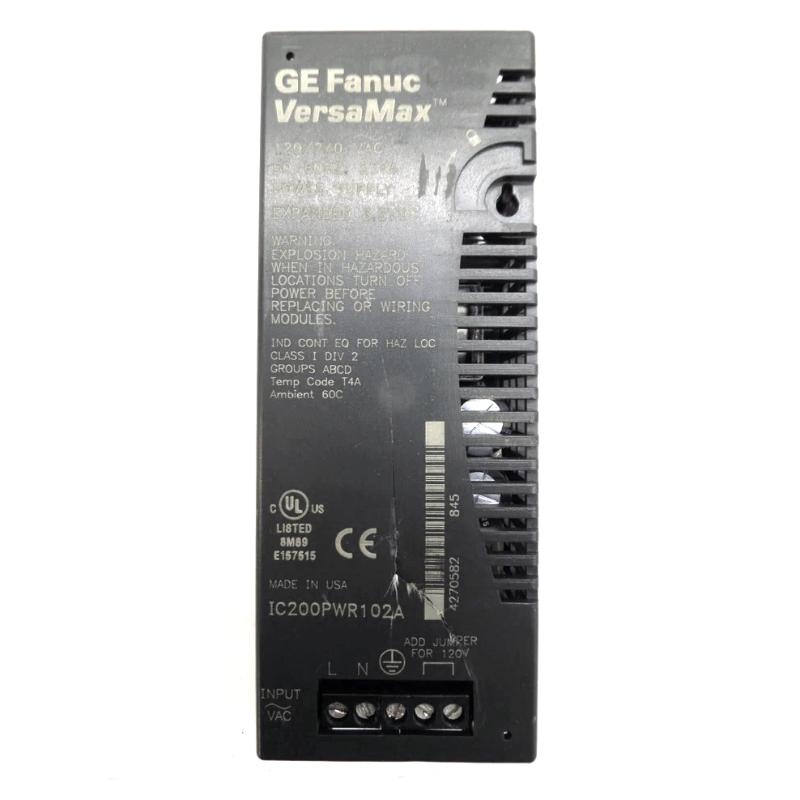

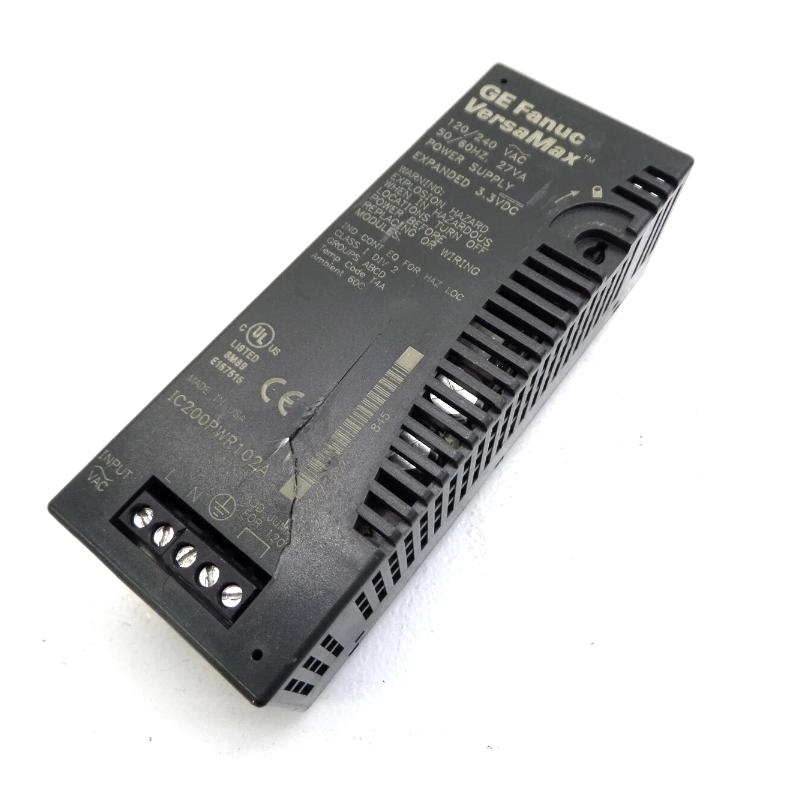

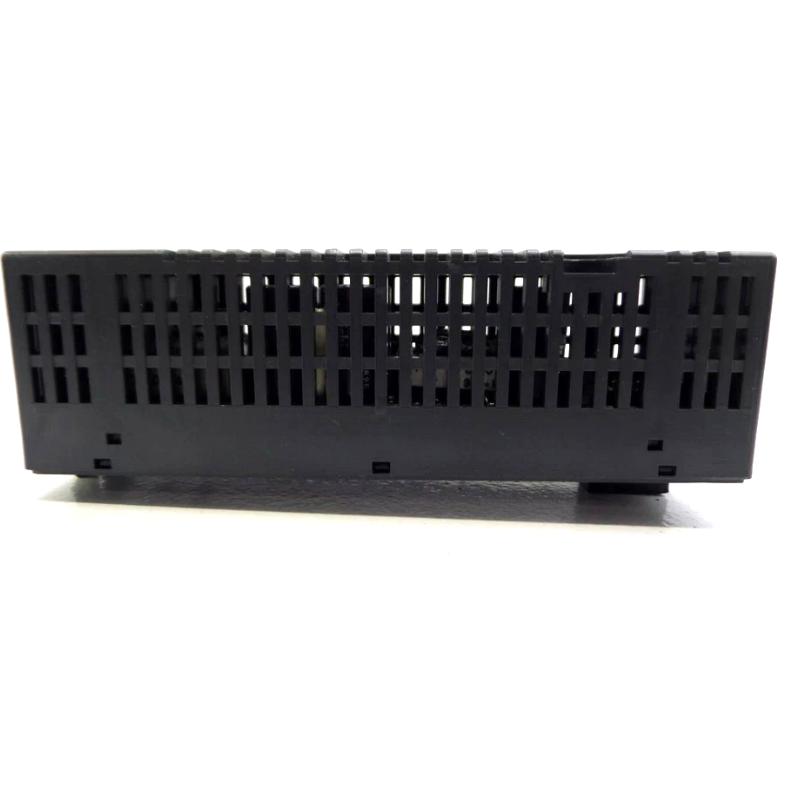

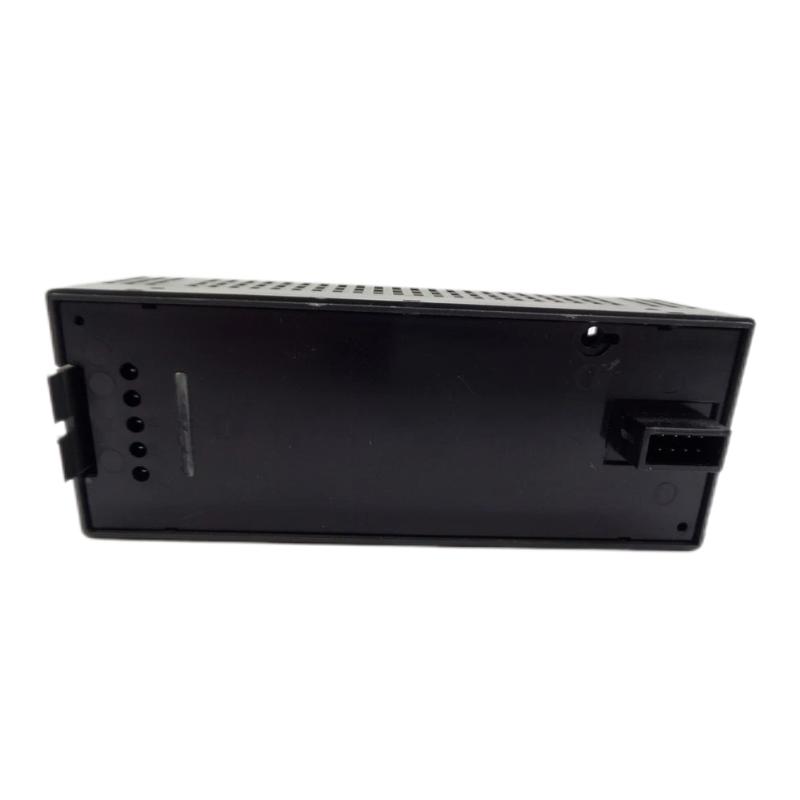

GE Fanuc IC200PWR102F Expanded Power Supply Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC200PWR102F |
| Manufacturer | GE Fanuc / Emerson |
| Product Series | VersaMax Distributed I/O |
| Product Type | Expanded Power Supply Module |
| Main Function | Provides power for VersaMax I/O stations, CPU modules, network interface units, and connected I/O modules |
| Application | Industrial automation, distributed control systems, PLC power supply, and VersaMax I/O station power management |
| Input Voltage Type | AC input |
| Rated Input Voltage | 120/240 VAC |
| Input Voltage Range | 85–132 VAC / 176–264 VAC |
| Input Frequency | 47–63 Hz |
| Input Power Consumption | Approximately 27 VA |
| Output Voltage | 5 VDC and 3.3 VDC |
| Total Output Current | 1.5 A maximum |
| 5 VDC Output Current | Up to 1.5 A (shared output capacity) |
| 3.3 VDC Output Current | Up to 1.0 A |
| Hold-up Time | Approximately 20 ms |
| Protection Functions | Short-circuit protection and overload protection |
| Power Supply Type | Expanded VersaMax power supply |
| Main Power Capability | Can serve as primary power supply or supplemental power source with booster carrier |
| Backplane Power Supply | Provides regulated power to VersaMax backplane modules |
| LED Indicators | Power/status indication |
| Mounting Type | VersaMax carrier / DIN rail mounting |
| Terminal Connection | Removable terminal block |
| Compatible Modules | VersaMax CPU, Network Interface Unit, I/O modules, and expansion modules |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions | Approximately 49 mm × 133.4 mm × 39 mm |
| Weight | Approximately 0.14 kg |
| Compatibility | GE Fanuc / Emerson VersaMax PLC and distributed I/O systems |
FAQ
Q1: What is the main function of the IC200PWR102F?
A: The IC200PWR102F is a VersaMax expanded power supply module that provides regulated 5 VDC and 3.3 VDC power for VersaMax PLC and distributed I/O systems.
Q2: What input voltage does the IC200PWR102F support?
A: It supports 120/240 VAC input, with an operating range of approximately 85–132 VAC or 176–264 VAC.
Q3: What output voltages are provided by the IC200PWR102F?
A: It provides 5 VDC and expanded 3.3 VDC outputs with a maximum combined output current of 1.5 A.
Q4: Can the IC200PWR102F be used as a supplemental power supply?
A: Yes. It can operate as a main VersaMax power supply or as an additional power source when used with a booster carrier.
Q5: What protection features does the IC200PWR102F provide?
A: The module includes short-circuit protection and overload protection to help protect the PLC system.
Q6: What modules are compatible with the IC200PWR102F?
A: It is compatible with VersaMax CPUs, network interface units, I/O modules, and expansion modules.
Q7: What should be checked before replacing an IC200PWR102F?
A: Verify AC input voltage, VersaMax system compatibility, output power requirements, terminal wiring, module configuration, and installation environment.
Q8: How can the reliability of the IC200PWR102F be maintained?
A: Ensure stable AC power input, maintain proper ventilation, avoid exceeding output ratings, keep terminals secure, and regularly inspect the PLC power system.
GE Fanuc IC200PWR102F Expanded Power Supply Module is in stock. Please contact us for a quick quote and competitive pricing.
