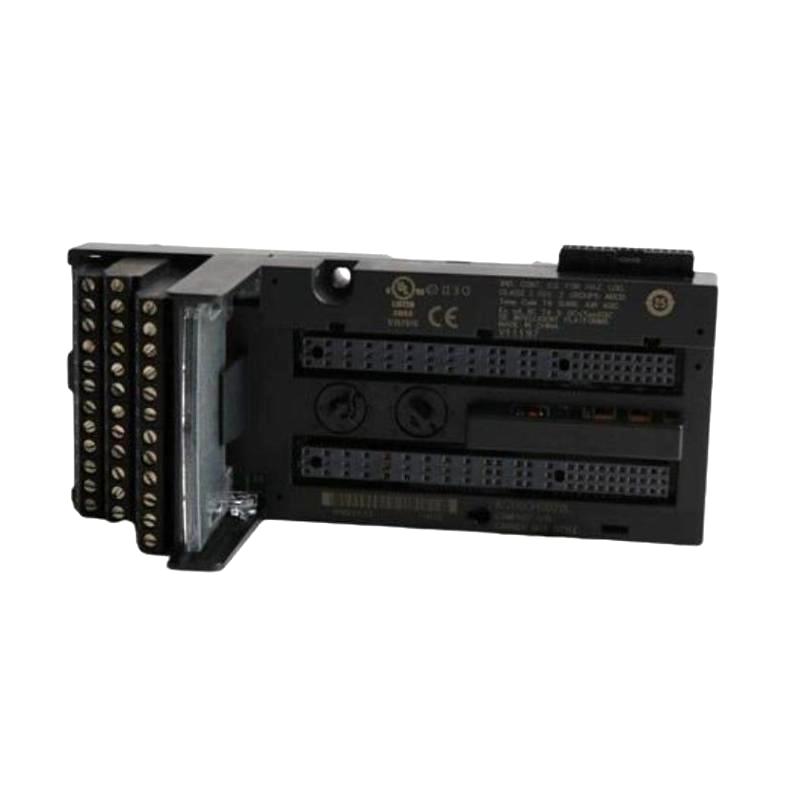

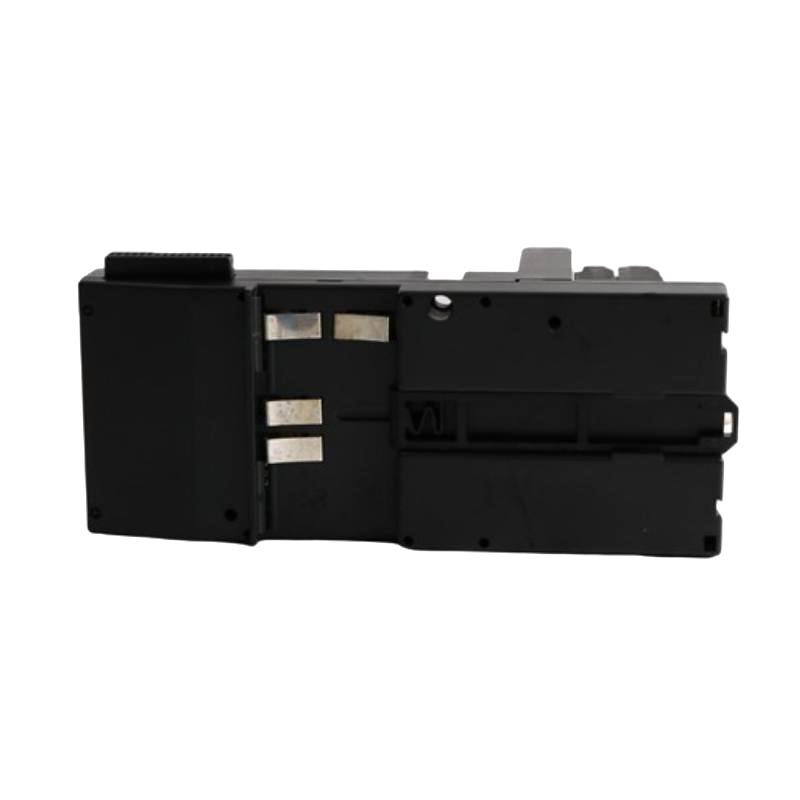

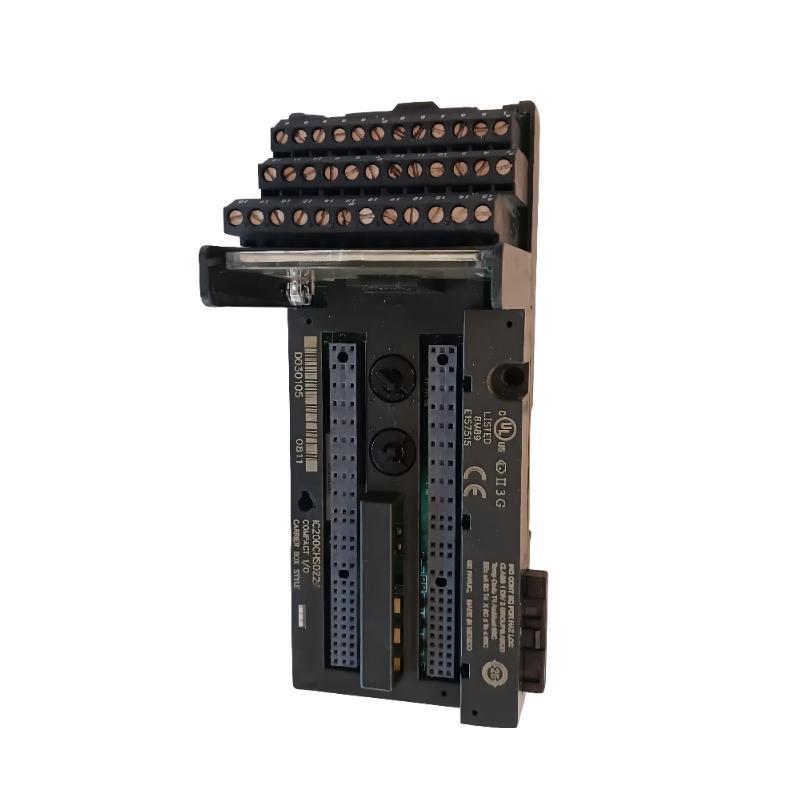

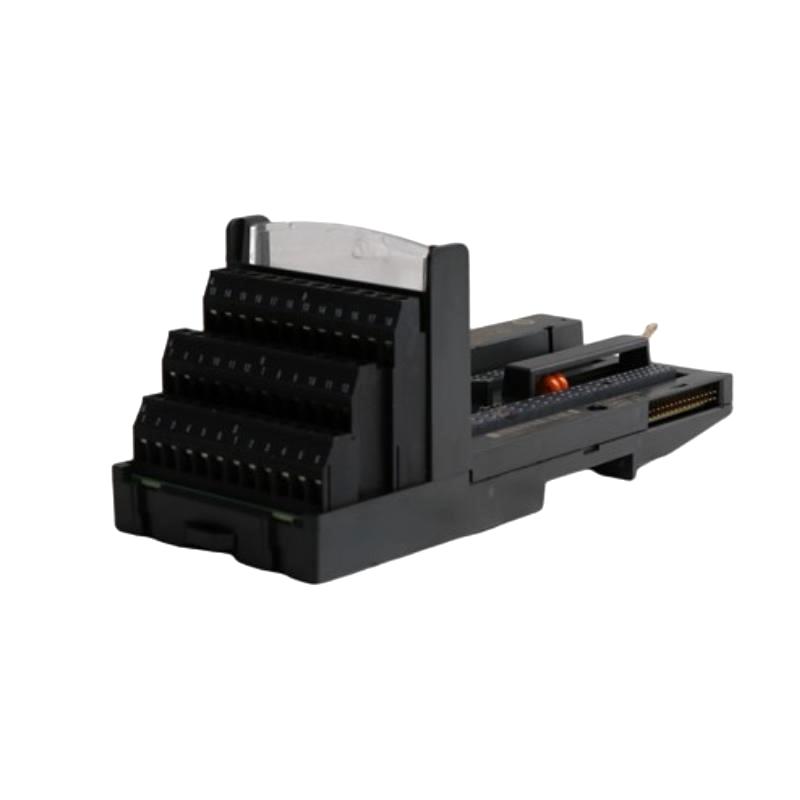

GE Fanuc IC200CHS022J Compact Box-Style I/O Carrier
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC200CHS022J |
| Manufacturer | GE Fanuc / Emerson |
| Product Series | VersaMax Distributed I/O |
| Product Type | Compact Box-Style I/O Carrier |
| Main Function | Provides mounting, backplane communication, and field wiring connection for VersaMax I/O modules |
| Application | Industrial automation, distributed I/O systems, machine control, and modular PLC installations |
| Carrier Type | Compact local I/O carrier |
| Supported Modules | One VersaMax I/O module |
| I/O Capacity | Up to 32 I/O points |
| Common Connections | 4 common power connections |
| Terminal Type | IEC box-style terminal blocks |
| Number of Terminals | 36 terminals |
| Terminal Arrangement | Three terminal strips, 12 terminals each |
| Voltage Rating | 0–264 VAC maximum |
| Current Rating per Point | 2 A maximum |
| Current Rating per Power/Ground Terminal | 8 A maximum |
| Wire Size | AWG #14 to AWG #22 |
| Two-Wire Connection Size | Up to AWG #18 |
| Mounting Type | DIN rail mounting or panel mounting |
| Installation Orientation | Vertical mounting orientation |
| Backplane Communication | Integrated VersaMax internal bus connection |
| Carrier Connection | Carrier-to-carrier connector interface |
| Module Retention | Integrated module latch mechanism |
| Power Distribution | Provides internal power and communication connection between carrier and I/O module |
| LED Indicators | Depends on installed I/O module |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions | Approximately 166.8 mm × 66.8 mm × 71 mm |
| Weight | Approximately 0.2–0.3 kg |
| Compatibility | GE Fanuc / Emerson VersaMax PLC and distributed I/O systems |
FAQ
Q1: What is the main function of the IC200CHS022J?
A: The IC200CHS022J is a VersaMax compact box-style I/O carrier used to mount one VersaMax I/O module and provide field wiring terminals and internal backplane communication.
Q2: How many I/O modules can the IC200CHS022J support?
A: The carrier supports one VersaMax I/O module.
Q3: How many terminals does the IC200CHS022J have?
A: It provides 36 IEC box-style terminals for field wiring connections.
Q4: What is the maximum voltage and current rating of the terminals?
A: The terminals support up to 264 VAC and a maximum current of 2 A per point.
Q5: What type of mounting is used for the IC200CHS022J?
A: It supports standard DIN rail mounting and panel mounting for industrial control cabinets.
Q6: Is the IC200CHS022J a PLC CPU or I/O module?
A: No. It is an I/O carrier base used together with VersaMax I/O modules. It provides mechanical mounting, wiring terminals, and communication connections.
Q7: What should be checked before replacing an IC200CHS022J?
A: Verify VersaMax module compatibility, terminal wiring, DIN rail installation, field voltage/current ratings, and the installed I/O module type.
Q8: How can the reliability of the IC200CHS022J be maintained?
A: Keep terminal connections tight, ensure proper DIN rail grounding, protect the cabinet from dust and vibration, avoid exceeding terminal ratings, and inspect connectors regularly.
GE Fanuc IC200CHS022J Compact Box-Style I/O Carrier is in stock. Please contact us for a quick quote and competitive pricing.
