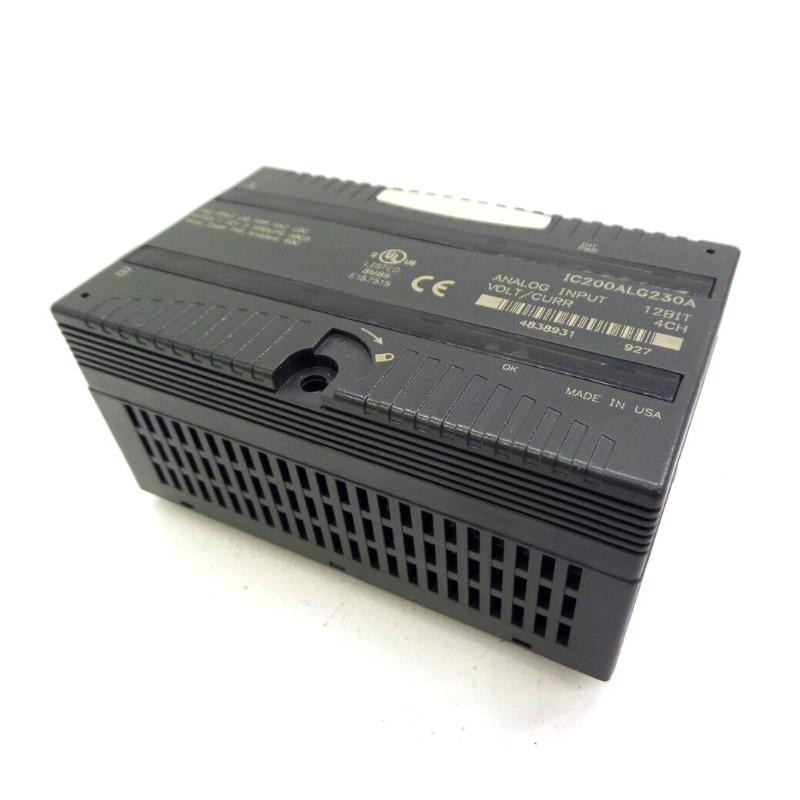

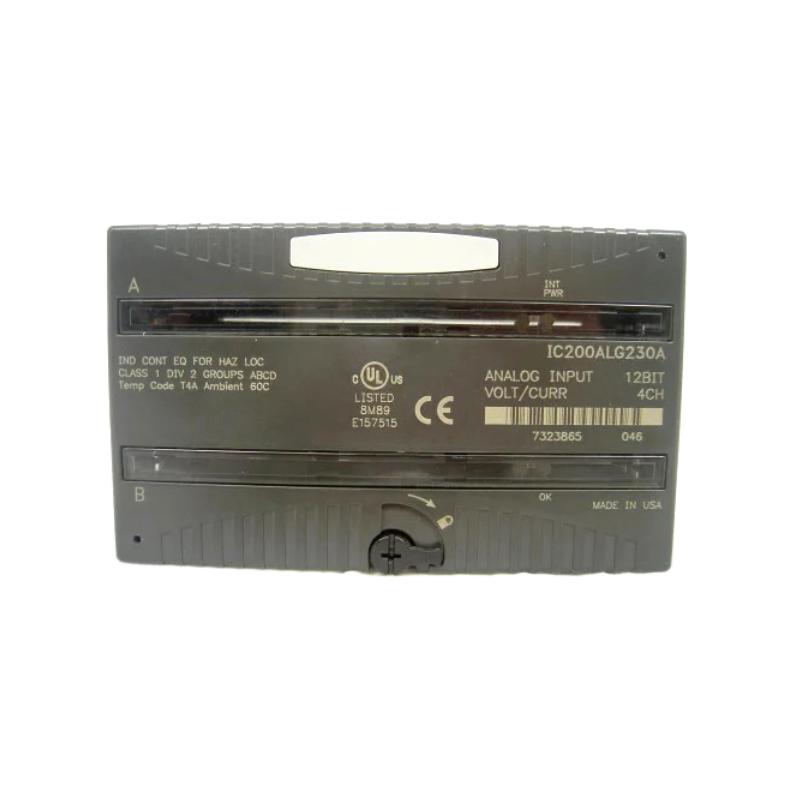

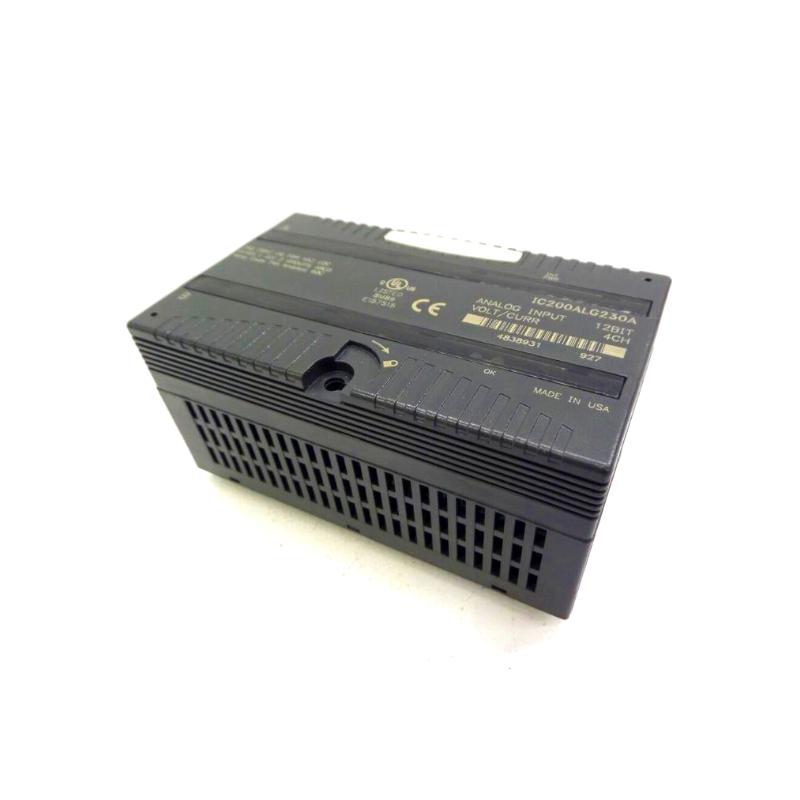

GE Fanuc IC200ALG230D Analog Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC200ALG230D |
| Manufacturer | GE Fanuc / Emerson |
| Product Series | VersaMax Distributed I/O |
| Product Type | Analog Input Module |
| Main Function | Converts analog voltage and current signals from field devices into digital values for PLC processing |
| Application | Industrial automation, process control, sensor monitoring, transmitter signal acquisition, and distributed control systems |
| Input Type | Analog voltage / current input |
| Number of Inputs | 4 channels |
| Input Configuration | Single-ended inputs |
| Supported Voltage Ranges | ±10 VDC, 0–10 VDC, ±5 VDC |
| Supported Current Range | 4–20 mA (requires external 250 Ω resistor) |
| Input Resolution | 12-bit |
| Input Accuracy | Approximately ±0.1% of full scale at 25°C |
| Input Impedance | Voltage input: ≥1 MΩ; Current input: approximately 250 Ω with external resistor |
| Input Update Rate | Approximately 0.4 ms per channel |
| Input Filter Response Time | Approximately 5 ms |
| Channel Isolation | Channel-to-backplane isolation |
| Channel-to-Channel Isolation | Not isolated |
| Isolation Rating | 250 VAC continuous / 1500 VAC for 1 minute |
| Backplane Power Consumption | Approximately 125 mA at 5 VDC |
| Diagnostic Functions | Internal power monitoring, module status monitoring |
| Module Error Response | Hold last value or return to predefined value |
| LED Indicators | INT PWR LED, OK status LED |
| Configuration Method | Software configuration and module settings |
| Mounting Type | VersaMax I/O carrier mounting |
| Terminal Connection | VersaMax terminal carrier interface |
| Compatible Modules | VersaMax CPU, Network Interface Unit, and I/O carrier systems |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions | Approximately 110 mm × 66.8 mm × 50 mm |
| Weight | Approximately 0.14 kg |
| Compatibility | GE Fanuc / Emerson VersaMax PLC and distributed I/O systems |
FAQ
Q1: What is the main function of the IC200ALG230D?
A: The IC200ALG230D is a VersaMax analog input module used to collect voltage and current signals from field devices and convert them into digital data for PLC control.
Q2: How many analog input channels does the IC200ALG230D provide?
A: The module provides 4 single-ended analog input channels.
Q3: What input signals are supported by the IC200ALG230D?
A: It supports ±10 VDC, 0–10 VDC, ±5 VDC voltage signals and 4–20 mA current signals with an external resistor.
Q4: What is the resolution of the IC200ALG230D?
A: The module provides 12-bit analog-to-digital conversion resolution.
Q5: Does the IC200ALG230D support electrical isolation?
A: Yes. It provides isolation between the field input circuits and the backplane logic, but individual channels are not isolated from each other.
Q6: What devices can be connected to the IC200ALG230D?
A: It can connect to analog sensors, pressure transmitters, temperature transmitters, flow meters, level sensors, and other industrial analog signal devices.
Q7: What should be checked before replacing an IC200ALG230D module?
A: Verify VersaMax system compatibility, input signal type, wiring configuration, external resistor requirements for current input, terminal connections, and PLC configuration.
Q8: How can the reliability of the IC200ALG230D be maintained?
A: Use proper shielded analog wiring, avoid electrical noise interference, maintain secure terminal connections, ensure correct input ranges, and keep the installation environment within specifications.
GE Fanuc IC200ALG230D Analog Input Module is in stock. Please contact us for a quick quote and competitive pricing.
