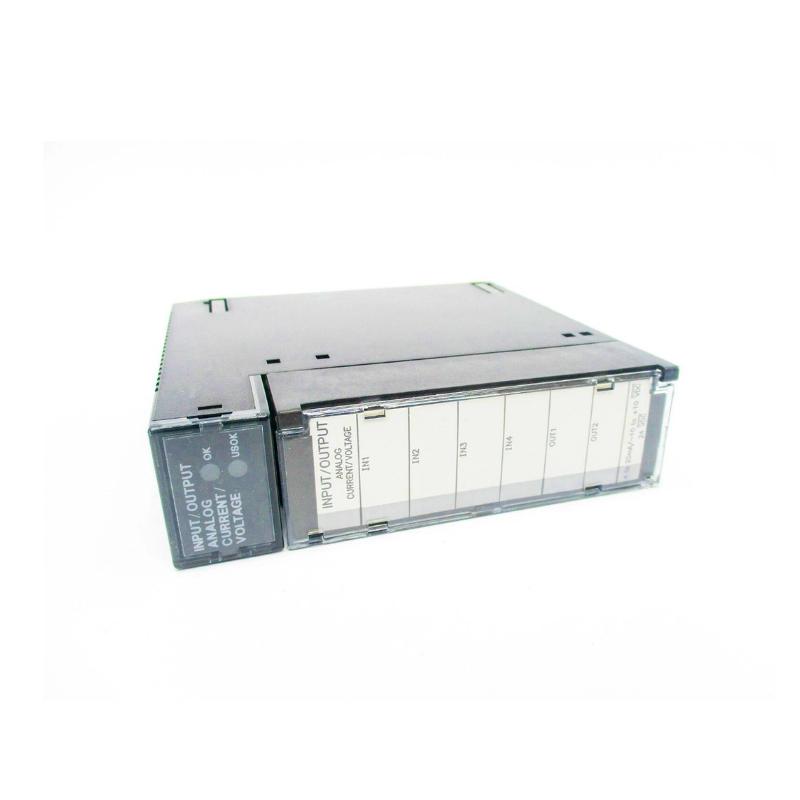

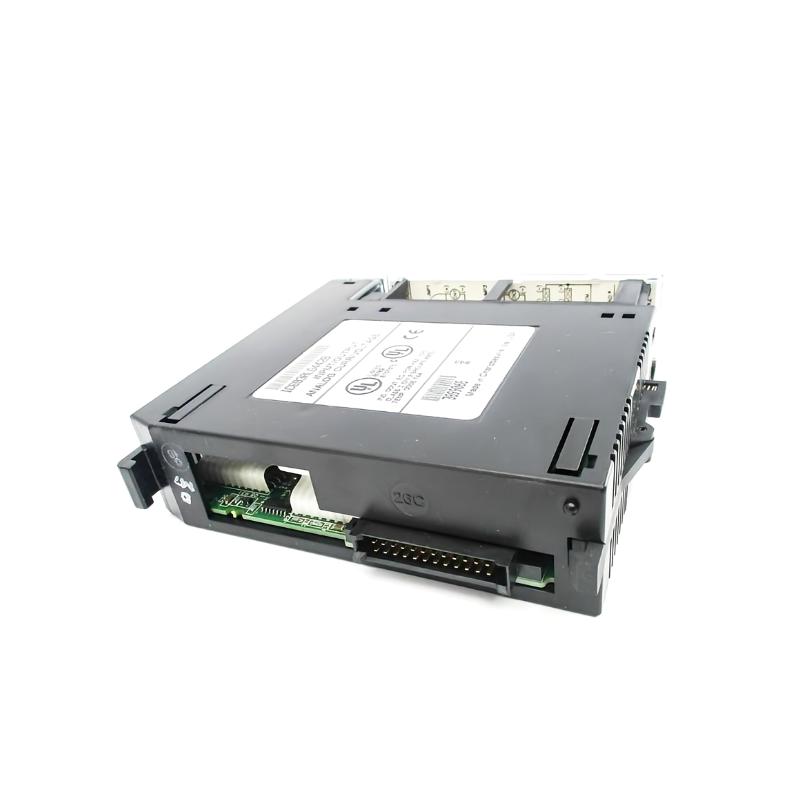

GE Fanuc IC693ALG442B Analog Combination Input/Output Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC693ALG442B |
| Manufacturer | GE Fanuc / Emerson |
| Product Series | Series 90-30 PLC |
| Product Type | Analog Combination Input/Output Module |
| Main Function | Provides analog signal acquisition and analog signal output for PLC control systems |
| Application | Industrial automation, process control, sensor monitoring, actuator control, transmitter interface, and analog regulation systems |
| Analog Input Channels | 4 channels |
| Input Type | Differential analog input |
| Input Signal Range | 0 to +10 VDC / -10 to +10 VDC |
| Current Input Range | 0–20 mA / 4–20 mA |
| Input Resolution | 12-bit |
| Input Accuracy | ±0.25% of full scale maximum |
| Input Impedance | Approximately 250 Ω (current input) |
| Analog Output Channels | 2 channels |
| Output Type | Single-ended analog output |
| Voltage Output Range | 0 to +10 VDC / -10 to +10 VDC |
| Current Output Range | 0–20 mA / 4–20 mA |
| Output Resolution | Voltage: 0.3125 mV/LSB; Current: approximately 0.5–0.6 μA/LSB |
| Output Accuracy | ±0.25% of full scale maximum |
| Output Load Capacity | Maximum 5 mA |
| Output Update Rate | Approximately 4 ms (all channels) |
| External Power Supply | 20–30 VDC (24 VDC typical) |
| Backplane Power Consumption | Approximately 95 mA from +5 VDC bus |
| External Power Consumption | Approximately 129–150 mA from 24 VDC supply |
| Isolation Type | Optical isolation between field side and backplane |
| Isolation Rating | 250 VAC continuous / 1500 VAC for 1 minute |
| Diagnostic Functions | Module health monitoring, input status monitoring, output overload detection, open-wire detection |
| LED Indicators | Module status and power indicators |
| Mounting Type | Series 90-30 PLC rack mounting |
| Installation Position | Any available Series 90-30 I/O slot |

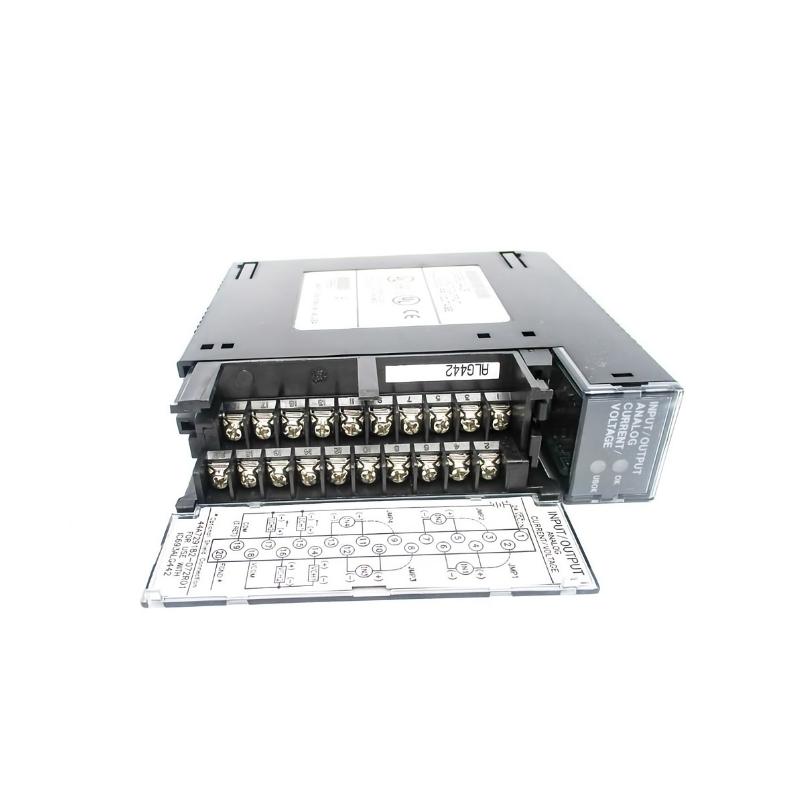

| Terminal Connection | Removable terminal block |
| Compatible Modules | Series 90-30 CPU, power supply, and I/O modules |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions | Approximately 130 mm × 130 mm × 40 mm |
| Weight | Approximately 0.30 kg |
| Compatibility | GE Fanuc / Emerson Series 90-30 PLC systems |
FAQ
Q1: What is the main function of the IC693ALG442B?
A: The IC693ALG442B is a Series 90-30 analog combination module that provides four analog inputs and two analog outputs for PLC monitoring and control applications.
Q2: How many analog channels does the IC693ALG442B provide?
A: The module provides 6 analog channels in total: 4 differential analog inputs and 2 single-ended analog outputs.
Q3: What input signals are supported by the IC693ALG442B?
A: It supports voltage inputs of 0–10 VDC and ±10 VDC, as well as current inputs of 0–20 mA and 4–20 mA.
Q4: What output signals are supported by the IC693ALG442B?
A: It supports voltage outputs of 0–10 VDC and ±10 VDC, and current outputs of 0–20 mA and 4–20 mA.
Q5: Does the IC693ALG442B require an external power supply?
A: Yes. The module requires a 20–30 VDC external supply in addition to the PLC backplane power.
Q6: What devices can be connected to the IC693ALG442B?
A: It can connect to analog sensors, transmitters, flow meters, pressure sensors, valve positioners, motor controllers, and other industrial analog devices.
Q7: What should be checked before replacing an IC693ALG442B module?
A: Verify Series 90-30 compatibility, analog input/output ranges, external 24 VDC supply, wiring connections, terminal configuration, and PLC program settings.
Q8: How can the reliability of the IC693ALG442B be maintained?
A: Use shielded analog wiring, maintain stable power supply, avoid electrical interference, secure terminal connections, and perform regular PLC diagnostics.
GE Fanuc IC693ALG442B Analog Combination Input/Output Module is in stock. Please contact us for a quick quote and competitive pricing.
