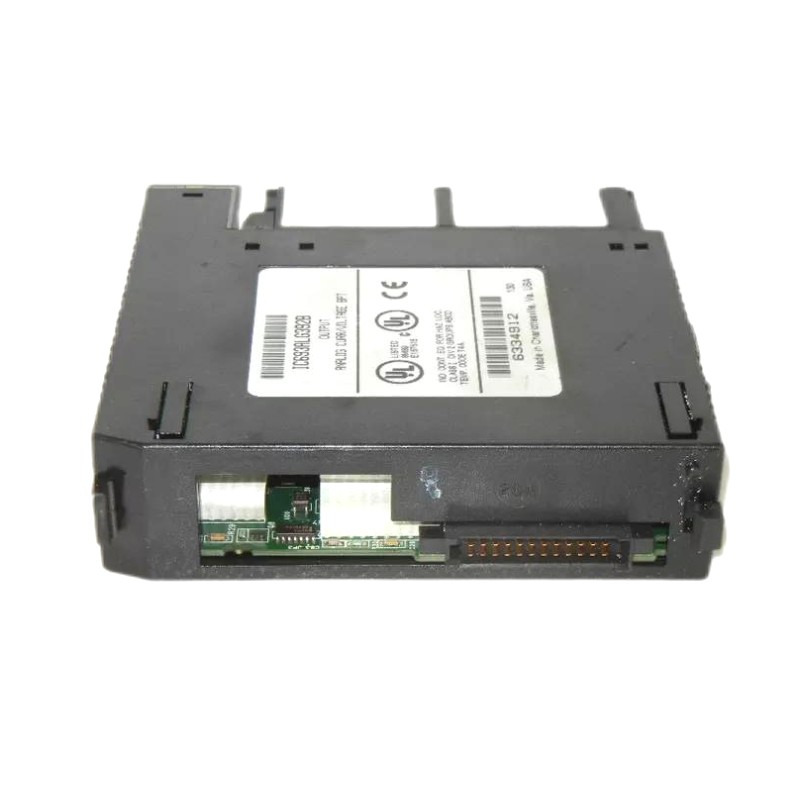

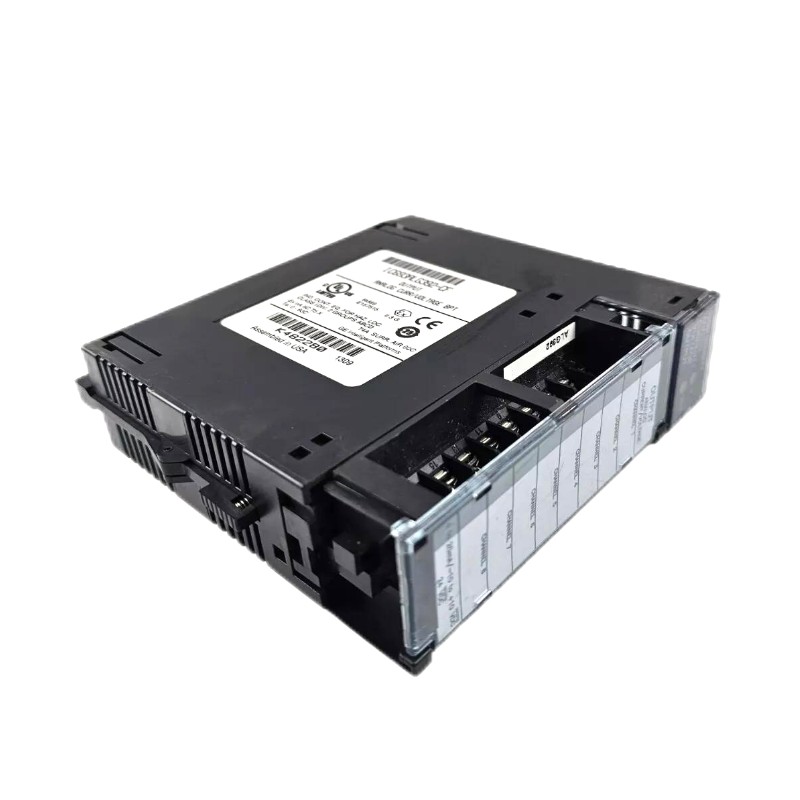

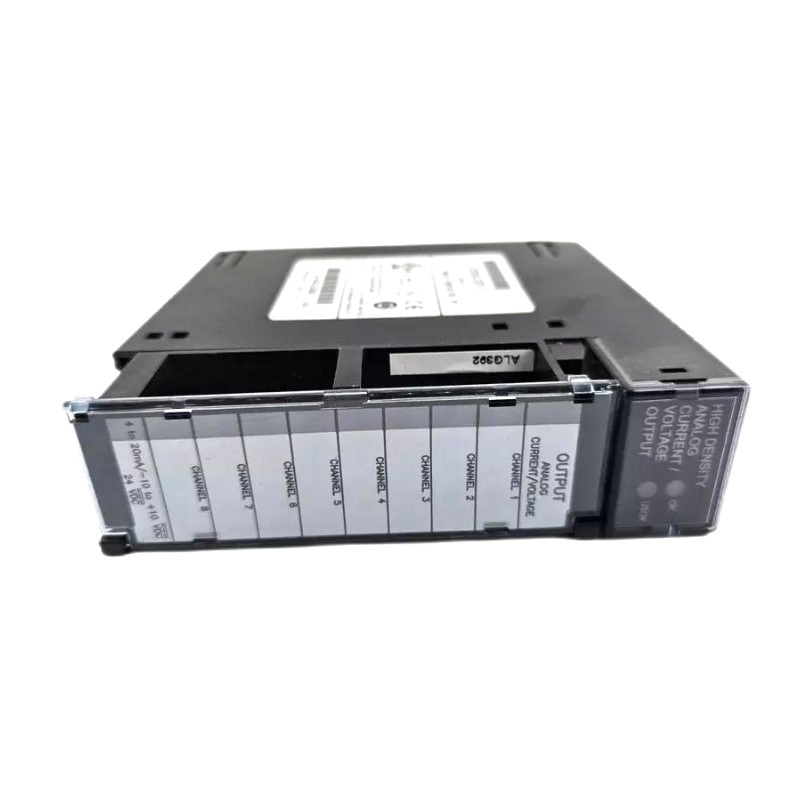

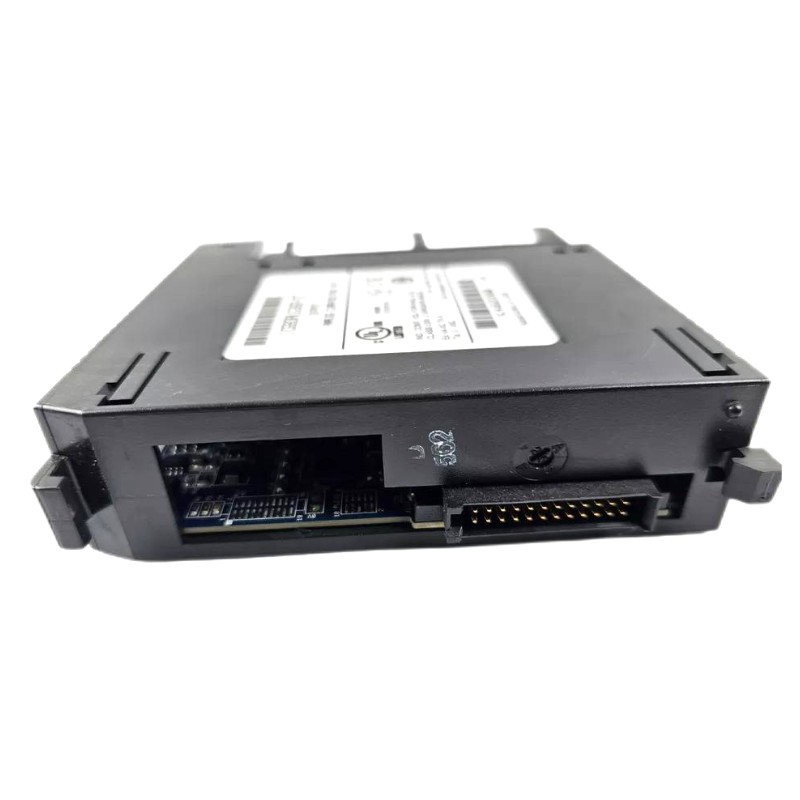

GE Fanuc IC693ALG392B Analog Current/Voltage Output Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC693ALG392B |
| Product Series | GE Fanuc Series 90-30 |
| Product Type | Analog Current/Voltage Output Module |
| Output Function | Converts PLC digital values into analog voltage or current signals for industrial control devices |
| Number of Output Channels | 8 channels |
| Output Configuration | 8 single-ended configurable analog outputs |
| Output Signal Type | Analog voltage and current output |
| Current Output Range | 0 to 20 mA, 4 to 20 mA |
| Voltage Output Range | 0 to +10 VDC, -10 to +10 VDC |
| Resolution | 15-bit to 16-bit depending on selected output range |
| Resolution for 4 to 20 mA | Approximately 0.5 µA per count |
| Resolution for 0 to 20 mA | Approximately 0.625 µA per count |
| Resolution for 0 to 10 V | Approximately 0.312 mV per count |
| Update Rate | Approximately 8 ms for all channels |
| Output Load Capability | 5 mA maximum for voltage output |
| External Power Supply | 20 to 30 VDC |
| Nominal External Supply | +24 VDC user-supplied power |
| Backplane Power Supply | +5 VDC from PLC backplane |
| Power Consumption | Approximately 110 mA from +5 VDC bus; 315 mA from +24 VDC user supply |
| Isolation Type | Field-to-backplane isolation |
| Isolation Rating | 1500 VAC for 1 minute |
| Output Calibration | Factory calibrated |
| Fault Detection | Open-wire detection available in current output mode |
| Output Behavior During Fault | Configurable hold-last-value or reset-to-zero operation |
| Status Indicators | LED indicators for module status and power condition |
| Mounting Method | Series 90-30 PLC rack installation |
| Compatibility | GE Fanuc Series 90-30 PLC systems and compatible PACSystems RX3i configurations |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Dimensions | Approximately 130 × 130 × 36 mm (5.12 × 5.12 × 1.42 in) |
| Weight | Approximately 0.40 kg (0.88 lb) |
| Typical Applications | Variable frequency drive control, valve positioning, actuator regulation, process control, and analog signal retransmission |
FAQ
Q1: What is the main function of the IC693ALG392B?
A: The IC693ALG392B is an analog output module designed for GE Fanuc Series 90-30 PLC systems. It converts PLC digital commands into analog voltage or current signals for controlling external industrial devices.
Q2: How many analog output channels does the IC693ALG392B provide?
A: The module provides eight single-ended analog output channels, with each channel configurable for voltage or current output applications.
Q3: What output signal ranges are supported by the IC693ALG392B?
A: The module supports common industrial analog ranges including 0 to 20 mA, 4 to 20 mA, 0 to +10 VDC, and -10 to +10 VDC.
Q4: What devices can be controlled by the IC693ALG392B?
A: The module can control analog devices such as variable frequency drives, proportional valves, actuators, position controllers, and other industrial equipment requiring analog reference signals.
Q5: Does the IC693ALG392B require an external power supply?
A: Yes. The module requires an external 20 to 30 VDC power source, typically a 24 VDC supply, to operate the analog output circuits.
Q6: How does the IC693ALG392B handle output faults?
A: The module can detect open-wire conditions when operating in current output mode and provides configurable output behavior during fault conditions.
Q7: Can the IC693ALG392B be installed in any Series 90-30 rack slot?
A: The module can be installed in compatible Series 90-30 I/O slots when sufficient rack power capacity and proper system configuration are available.
Q8: What should be checked when replacing an IC693ALG392B module?
A: Confirm PLC system compatibility, output signal configuration, external power supply requirements, terminal wiring, connected device specifications, and PLC configuration settings before replacement.
GE Fanuc IC693ALG392B Analog Current/Voltage Output Module is in stock. Please contact us for a quick quote and competitive pricing.
