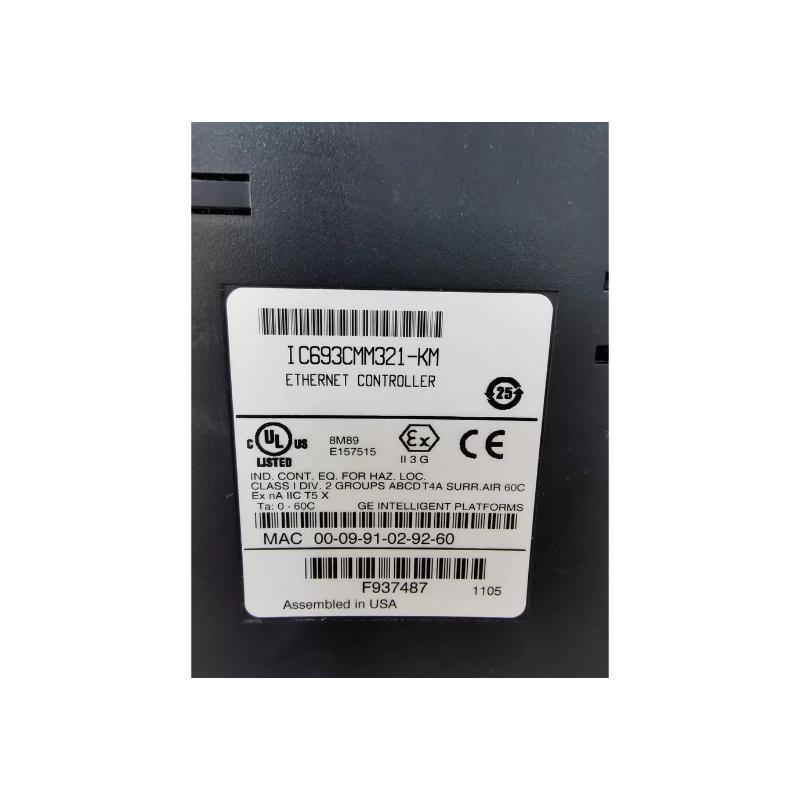

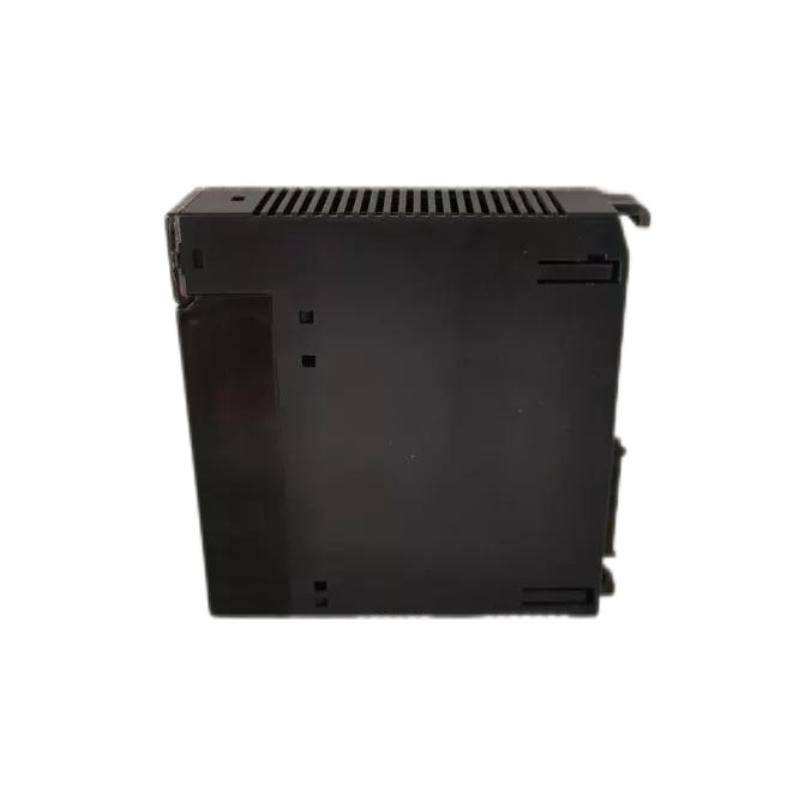

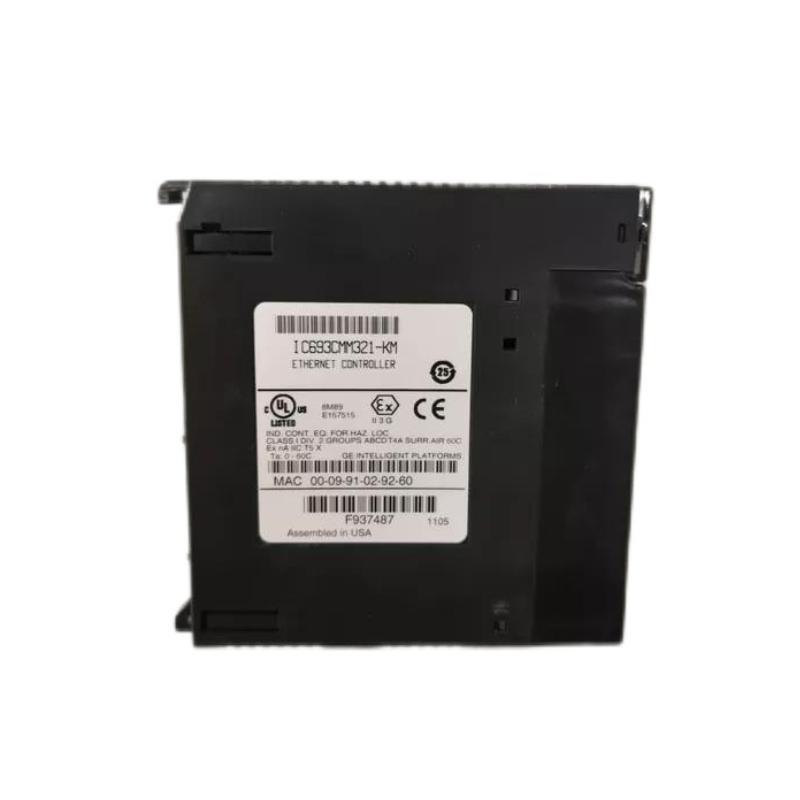

GE Fanuc IC693CMM321-BA Ethernet Interface Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC693CMM321-BA |
| Product Series | GE Fanuc Series 90-30 |
| Product Type | Ethernet Interface Module |
| Module Function | Provides Ethernet communication capability for Series 90-30 PLC systems |
| Communication Protocol | TCP/IP, SRTP (Service Request Transport Protocol) |
| Network Interface | Ethernet communication interface through external transceiver |
| Network Port | 1 × AAUI Ethernet port |
| Serial Ports | 1 × RS-232 Station Manager port; 1 × RS-485 Software Loader port |
| Maximum Server Connections | Up to 16 connections |
| Client Operation | Supported |
| Server Operation | Supported |
| Communication Purpose | PLC-to-PLC communication, HMI connection, SCADA integration, programming communication, and industrial data exchange |
| Compatible CPUs | Series 90-30 CPUs with compatible firmware versions |
| Module Slot Requirement | Single PLC rack slot |
| Backplane Voltage | 5 VDC supplied through PLC backplane |
| Power Consumption | Approximately 700 mA from 5 VDC backplane supply |

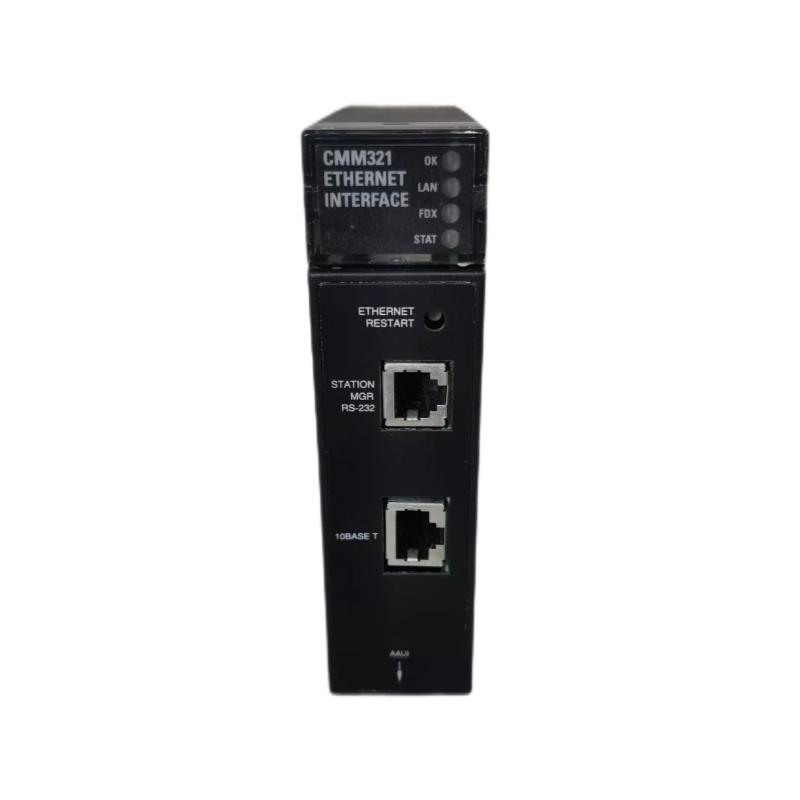

| LED Indicators | OK, LAN, SER, STAT status indicators |
| Configuration Method | PLC programming software configuration |
| Restart Function | Supports restart, LED testing, and maintenance functions |
| Mounting Method | Series 90-30 rack installation |
| Compatibility | GE Fanuc Series 90-30 PLC systems |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Dimensions | Approximately 130 × 35 × 135 mm (5.12 × 1.38 × 5.31 in) |
| Weight | Approximately 0.23 kg (0.50 lb) |
| Typical Applications | Industrial Ethernet networking, PLC communication, remote monitoring, HMI systems, and factory automation networks |
FAQ
Q1: What is the main function of the IC693CMM321-BA?
A: The IC693CMM321-BA is an Ethernet interface module designed for GE Fanuc Series 90-30 PLC systems. It enables Ethernet-based communication for programming, monitoring, and industrial data exchange.
Q2: What communication protocols does the IC693CMM321-BA support?
A: The module supports Ethernet TCP/IP communication and SRTP protocol, allowing communication between PLC systems, computers, HMIs, and supervisory control platforms.
Q3: What network interfaces are available on the IC693CMM321-BA?
A: The module provides an AAUI Ethernet port for network communication, along with RS-232 and RS-485 serial interfaces for maintenance and configuration functions.
Q4: Can the IC693CMM321-BA communicate with HMI and SCADA systems?
A: Yes. The module supports connections with HMI devices, SCADA systems, and industrial monitoring platforms for real-time data exchange and system management.
Q5: How many communication connections can the IC693CMM321-BA support?
A: The module supports up to 16 server connections, allowing multiple devices to access PLC data simultaneously.
Q6: What do the LED indicators on the IC693CMM321-BA show?
A: The LED indicators provide information about module operation, Ethernet activity, serial communication status, and overall diagnostic conditions.
Q7: Does the IC693CMM321-BA require additional network hardware?
A: Yes. Because it uses an AAUI Ethernet interface, a compatible external transceiver and network cable are required for Ethernet connection.
Q8: What should be checked when replacing an IC693CMM321-BA module?
A: Confirm Series 90-30 compatibility, CPU firmware support, Ethernet configuration, network parameters, communication settings, and PLC program requirements before replacement.
GE Fanuc IC693CMM321-BA Ethernet Interface Module is in stock. Please contact us for a quick quote and competitive pricing.
