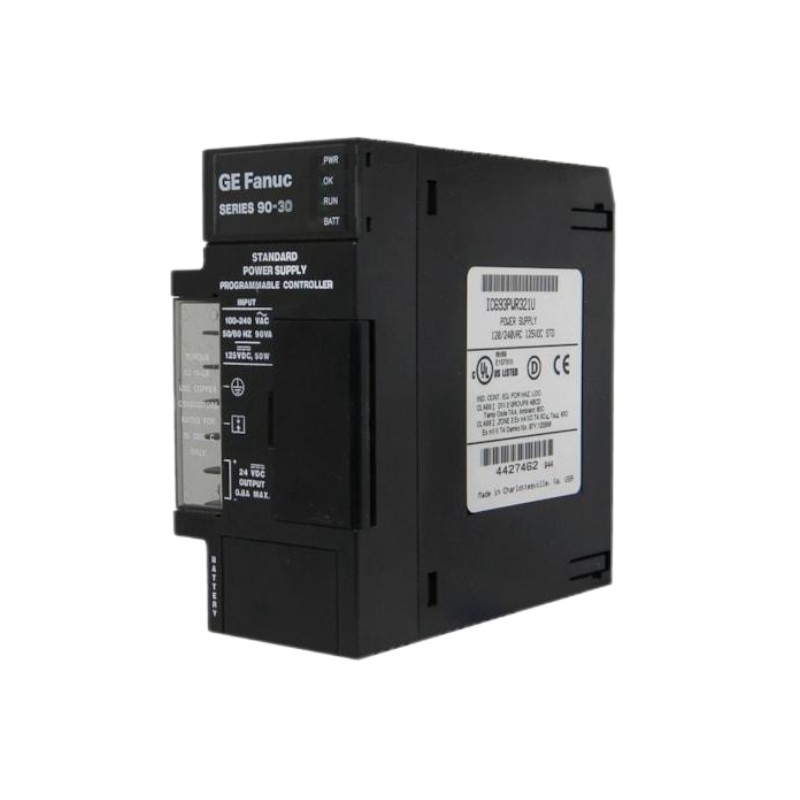

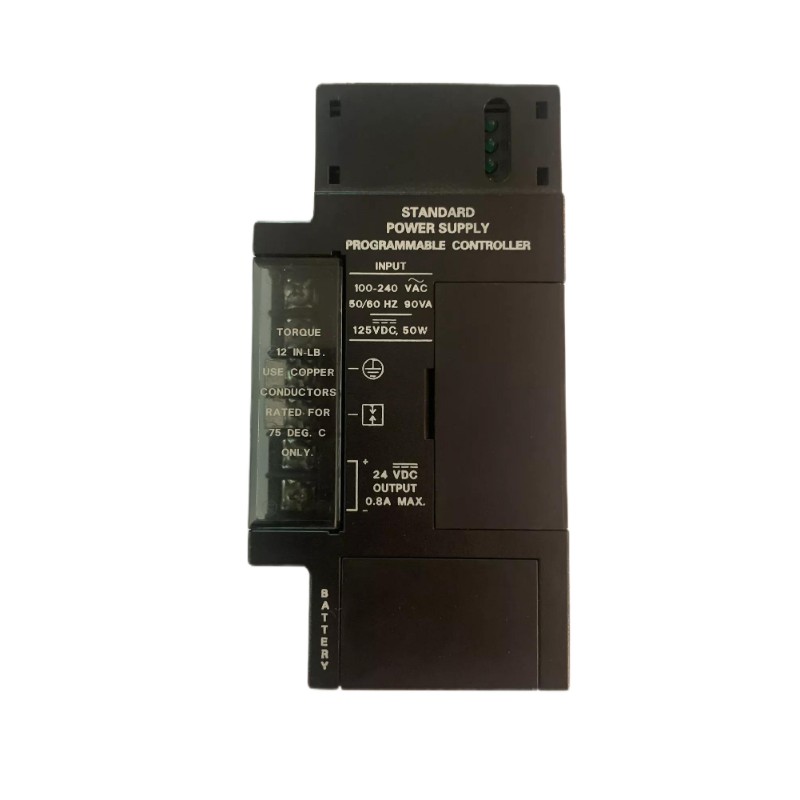

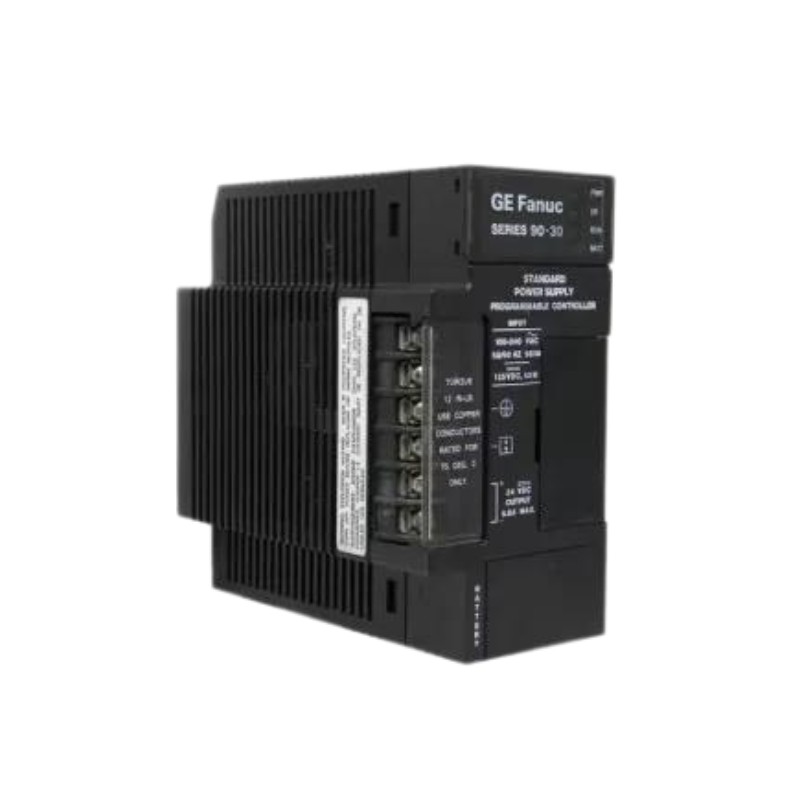

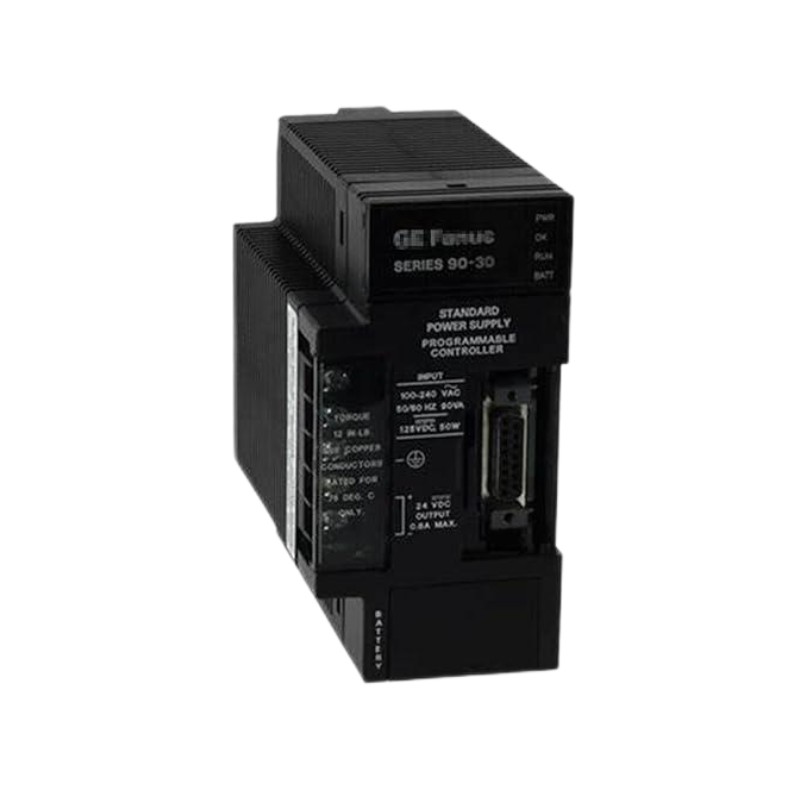

GE Fanuc IC693PWR321S AC/DC Power Supply Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC693PWR321S |
| Product Series | GE Fanuc Series 90-30 |
| Product Type | AC/DC Power Supply Module |
| Module Function | Provides regulated power for Series 90-30 PLC CPUs, I/O modules, and connected control components |
| Nominal Input Voltage | 120/240 VAC or 125 VDC |
| AC Input Voltage Range | 85 to 264 VAC |
| DC Input Voltage Range | 100 to 300 VDC |
| Input Frequency Range | 47 to 63 Hz (AC input) |
| Input Power Consumption | 90 VA maximum with AC input; 50 W maximum with DC input |
| Output Power Capacity | 30 W maximum total output power |
| Number of Outputs | 3 outputs |
| 5 VDC Output | 5.0 to 5.2 VDC, 15 W maximum |
| Relay 24 VDC Output | 24 to 28 VDC, 15 W maximum |
| Isolated 24 VDC Output | 21.5 to 28 VDC, 20 W maximum |
| Inrush Current | 4 A peak maximum for 250 ms |
| Overvoltage Protection | 5 VDC output protection at approximately 6.4 to 7 VDC |
| Overcurrent Protection | 5 VDC output limited to approximately 4 A maximum |
| Hold-Up Time | Minimum 20 ms |
| Communication Interface | RS-485 serial interface support |
| Installation Position | Leftmost slot of Series 90-30 baseplate |
| Diagnostic Features | LED status indication and built-in power monitoring functions |
| Protection Features | Short-circuit protection and output protection functions |
| Compatibility | GE Fanuc Series 90-30 PLC systems |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Dimensions | Approximately 130 × 70 × 120 mm (5.12 × 2.76 × 4.72 in) |
| Weight | Approximately 1.0 kg (2.2 lb) |
| Typical Applications | PLC power management, industrial automation systems, machine control, and process control applications |
FAQ
Q1: What is the main function of the IC693PWR321S?
A: The IC693PWR321S is a standard power supply module for GE Fanuc Series 90-30 PLC systems. It converts AC or DC input power into regulated DC outputs required by PLC components.
Q2: What input voltage types are supported by the IC693PWR321S?
A: The module supports both AC and DC power sources, including 120/240 VAC and 125 VDC nominal input operation.
Q3: What output voltages are provided by the IC693PWR321S?
A: The module provides a 5 VDC output for PLC electronics, a 24 VDC relay output, and an isolated 24 VDC output for external or specialized module requirements.
Q4: What is the maximum power capacity of the IC693PWR321S?
A: The module provides a maximum total output capacity of 30 watts across all available output channels.
Q5: Where is the IC693PWR321S installed in a Series 90-30 PLC system?
A: The module is installed in the leftmost slot of the Series 90-30 baseplate and supplies power to the PLC rack components.
Q6: Does the IC693PWR321S include protection functions?
A: Yes. The module includes protection features such as overvoltage protection, overcurrent limitation, and short-circuit protection to improve system reliability.
Q7: How can users identify the operating status of the IC693PWR321S?
A: The module uses LED indicators to display power status and diagnostic information, helping maintenance personnel quickly identify operating conditions.
Q8: What should be checked when replacing an IC693PWR321S module?
A: Confirm the Series 90-30 system compatibility, input voltage type, rack power requirements, output load capacity, terminal wiring, and PLC configuration before replacement.
GE Fanuc IC693PWR321S AC/DC Power Supply Module is in stock. Please contact us for a quick quote and competitive pricing.
