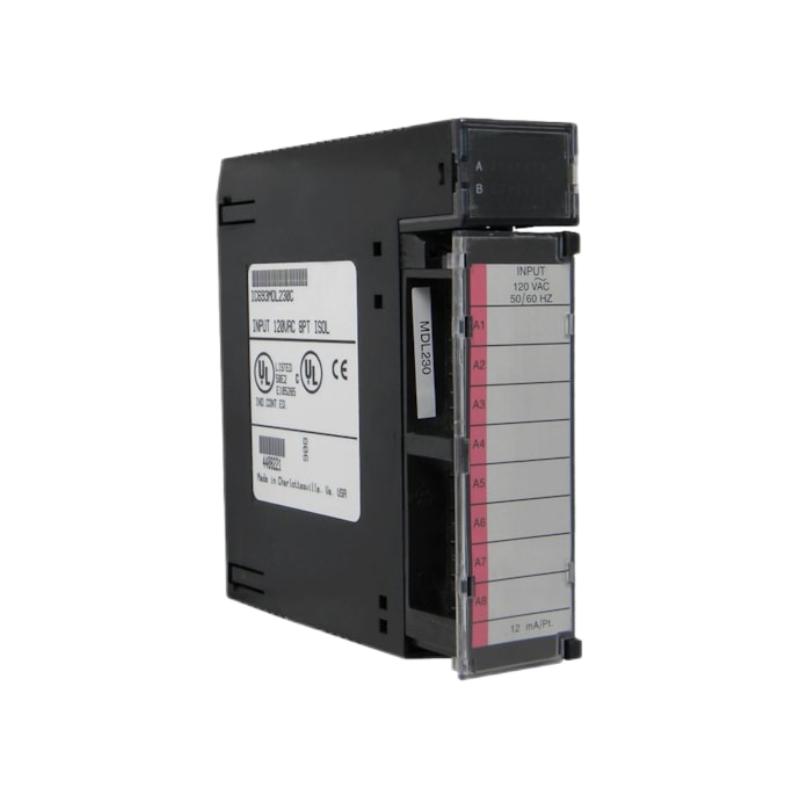

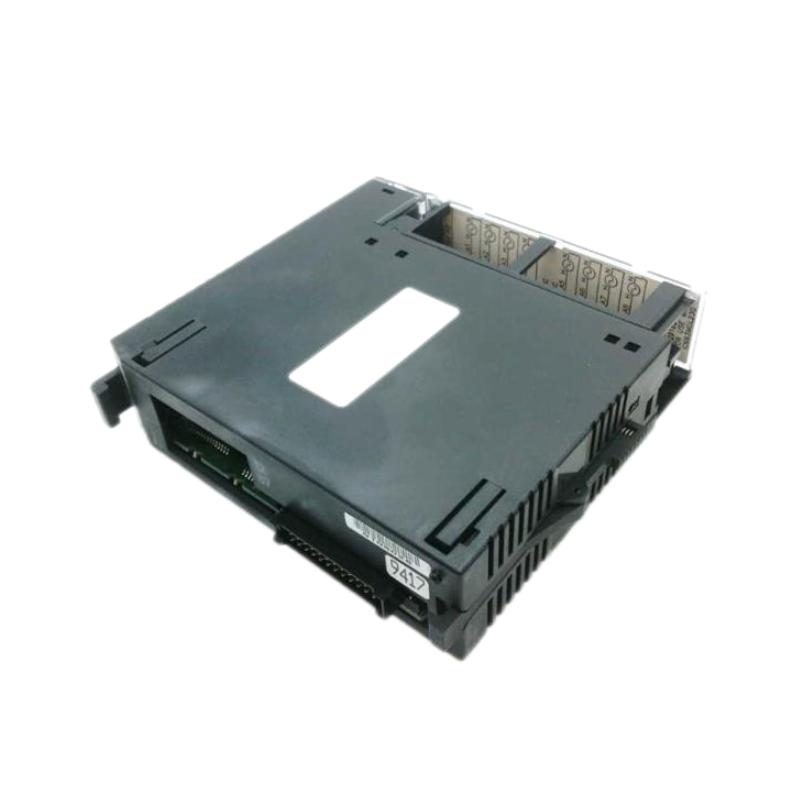

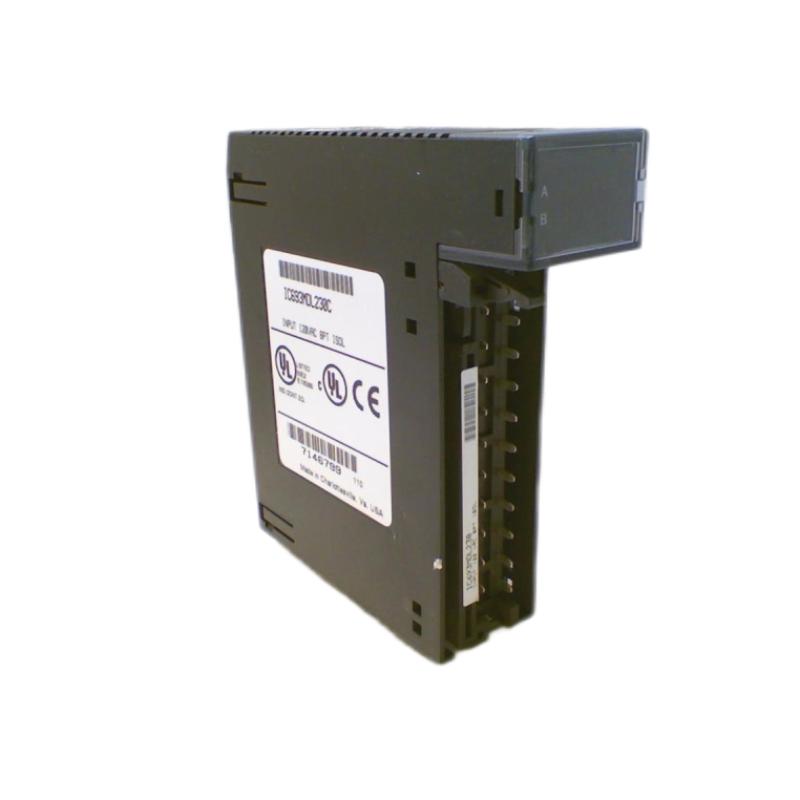

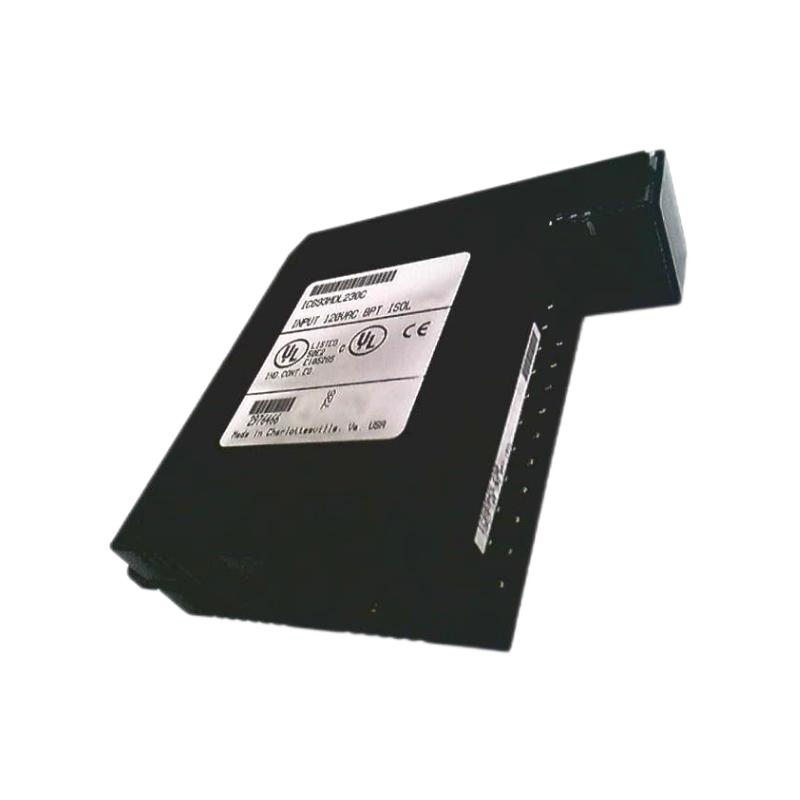

GE Fanuc IC693MDL230C AC Isolated Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC693MDL230C |
| Product Type | AC Isolated Input Module |
| Series Compatibility | GE Fanuc Series 90-30 PLC System |
| Module Function | Digital AC input signal acquisition module |
| Input Type | Isolated AC input |
| Number of Inputs | 8 input points |
| Rated Input Voltage | 120 VAC |
| Operating Voltage Range | 0 to 132 VAC |
| Input Frequency | 50/60 Hz |
| Input Current | Approx. 14.5 mA at rated voltage |
| Input Configuration | 8 isolated input circuits |
| Isolation Voltage | 1500 VAC between field side and logic side |
| Signal Type | AC field device input signals |
| Compatible Devices | Push buttons, limit switches, proximity switches, and industrial AC sensors |
| Status Indicators | Individual LED indicators for input status monitoring |
| Power Supply Requirement | 5 VDC backplane power from PLC system |
| DC Input Support | Not supported |
| Installation Method | Installed in GE Fanuc Series 90-30 PLC baseplate I/O slot |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions | Approx. 130 mm × 40 mm × 135 mm |
| Weight | Approx. 0.35 kg |
| Application Areas | Industrial automation, machine control, process monitoring, and PLC-based control systems |
| Reliability Features | Provides isolated AC signal detection with stable operation and improved noise resistance for industrial applications |
FAQ
Q1: What is the IC693MDL230C used for?
- The IC693MDL230C is an AC isolated input module designed for GE Fanuc Series 90-30 PLC systems. It receives AC field signals and transfers input status information to the PLC controller.
Q2: How many input points does the IC693MDL230C provide?
- The module provides 8 isolated AC input channels, allowing multiple external devices to be monitored within one PLC system.
Q3: What input voltage does the IC693MDL230C support?
- The module is designed for 120 VAC input applications and supports common industrial AC signal conditions.
Q4: What devices can be connected to the IC693MDL230C?
- It can be connected to various AC-operated field devices, including switches, sensors, and control equipment used in industrial automation systems.
Q5: Does the IC693MDL230C provide electrical isolation?
- Yes. The module provides isolation between field input circuits and PLC logic circuits, helping protect the control system from electrical interference.
Q6: Can the IC693MDL230C receive DC input signals?
- No. The module is designed specifically for AC input signals and is not intended for DC signal applications.
Q7: Which PLC systems are compatible with the IC693MDL230C?
- The module is designed for GE Fanuc Series 90-30 PLC systems and compatible I/O rack configurations.
Q8: What should be confirmed before installing an IC693MDL230C?
- Users should verify PLC compatibility, AC voltage requirements, wiring configuration, input device specifications, and installation conditions before installation or replacement.
GE Fanuc IC693MDL230C AC Isolated Input Module is in stock. Please contact us for a quick quote and competitive pricing.
