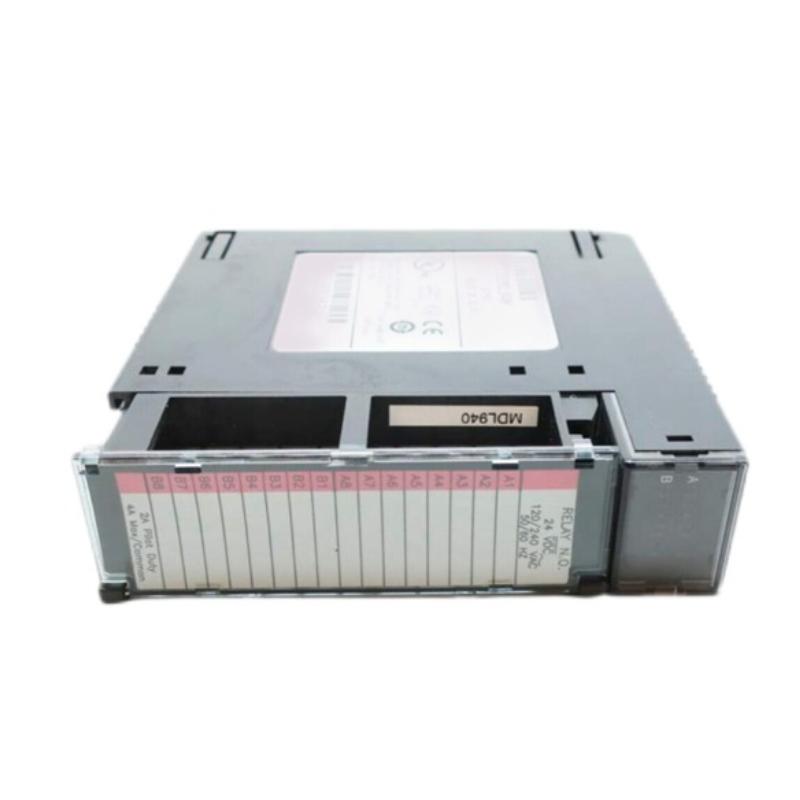

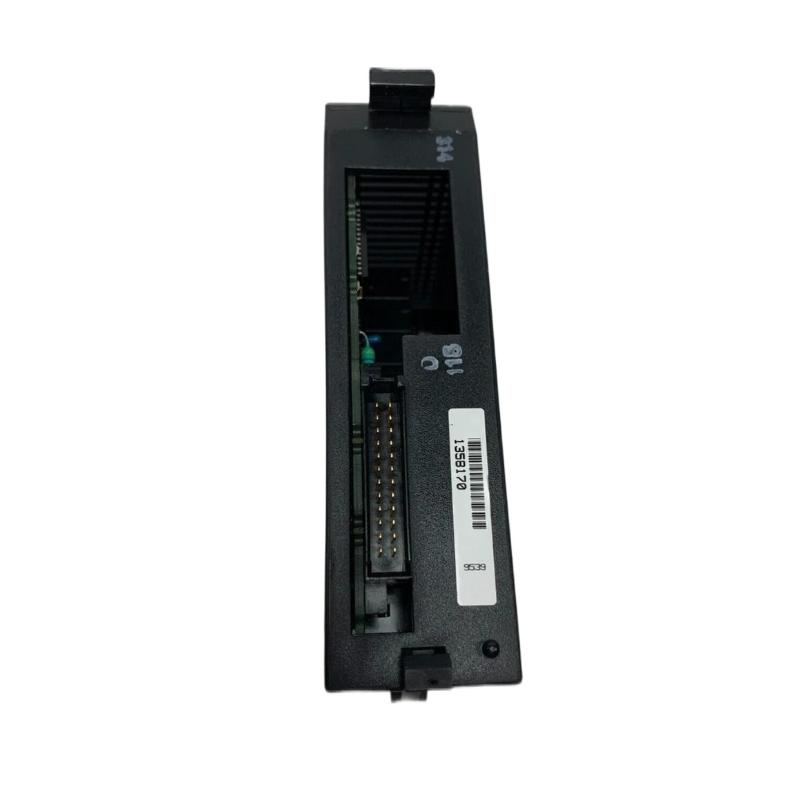

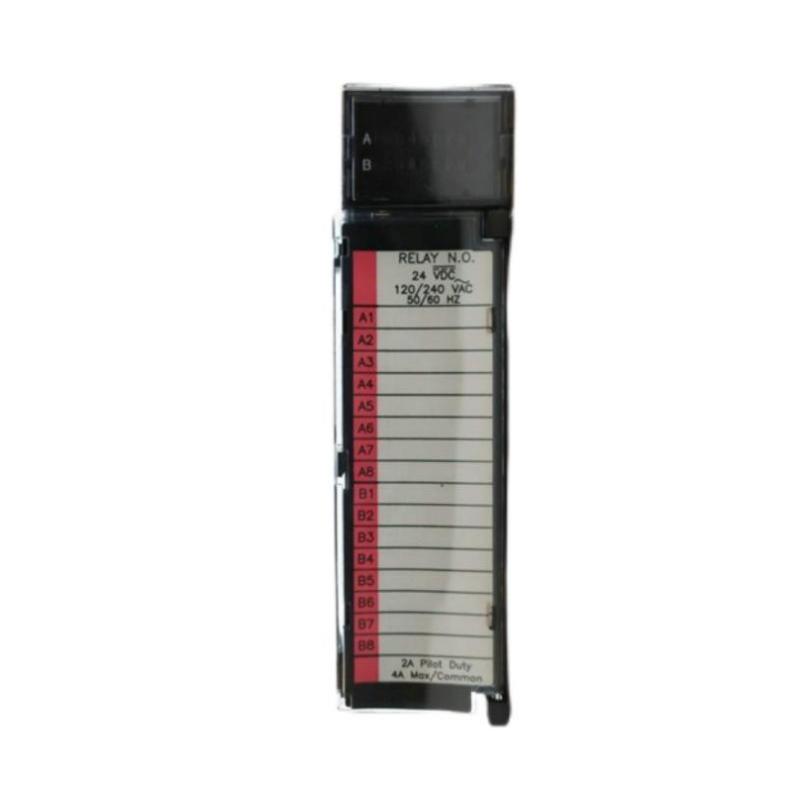

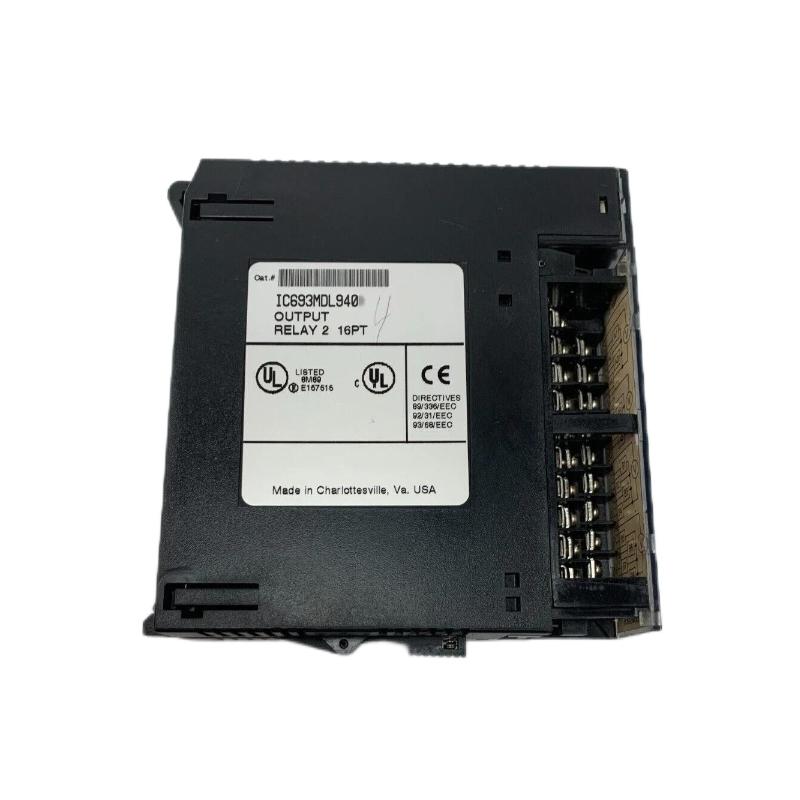

GE Fanuc IC693MDL940F Relay Output Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC693MDL940F |
| Product Type | Relay Output Module |
| Series Compatibility | GE Fanuc Series 90-30 PLC System |
| Module Function | Discrete relay output control module for industrial switching applications |
| Output Type | Relay output, Normally Open (NO) |
| Number of Outputs | 16 output points |
| Output Configuration | Four groups of four relay outputs |
| Rated Voltage | 24 VDC, 120/240 VAC nominal |
| Operating Voltage Range | 5 to 30 VDC; 5 to 250 VAC, 50/60 Hz |
| Maximum Load Current | 2 A maximum per output point |
| Maximum Common Current | 4 A maximum per common terminal |
| Maximum Module Current | 16 A maximum |
| Minimum Load Current | 10 mA |
| Maximum Inrush Current | 5 A |
| Response Time | 15 ms maximum for ON/OFF switching |
| Isolation Voltage | 1500 VAC between field side and logic side |
| Contact Form | Normally Open relay contact |
| Power Consumption | Approx. 7 mA from 5 VDC backplane supply and 135 mA from relay 24 V bus when outputs are energized |
| Status Indicators | Individual output status LEDs |
| Installation Method | Installed in GE Fanuc Series 90-30 PLC I/O rack |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions | Approx. 127 mm × 51 mm × 127 mm |
| Weight | Approx. 0.3 kg |
| Application Areas | Industrial automation, motor control, valve control, machine equipment, and PLC output systems |
| Reliability Features | Provides stable relay switching performance with electrical isolation for industrial control environments |
FAQ
Q1: What is the IC693MDL940F used for?
- The IC693MDL940F is a relay output module designed for GE Fanuc Series 90-30 PLC systems. It controls external devices such as motors, valves, contactors, and other industrial loads.
Q2: How many output channels does the IC693MDL940F provide?
- The module provides 16 relay output points arranged in four groups, allowing multiple field devices to be controlled through a single PLC module.
Q3: What voltage types are supported by the IC693MDL940F?
- The module supports both AC and DC switching applications, including 24 VDC and 120/240 VAC industrial control circuits.
Q4: What is the maximum load capacity of the IC693MDL940F?
- Each relay output point supports up to 2 A maximum load current, while each common terminal supports up to 4 A.
Q5: Does the IC693MDL940F provide electrical isolation?
- Yes. The module provides isolation between field circuits and PLC logic circuits, improving system protection and operational stability.
Q6: Where is the IC693MDL940F installed?
- The module is installed in a compatible GE Fanuc Series 90-30 PLC I/O rack and functions as part of the system’s discrete output control configuration.
Q7: What applications commonly use the IC693MDL940F?
- It is commonly used in factory automation, machine control, process equipment, industrial relay switching, and existing PLC-based systems.
Q8: What should be checked before replacing an IC693MDL940F module?
- Users should verify PLC system compatibility, output voltage requirements, load specifications, wiring configuration, and rack installation conditions before replacement.
GE Fanuc IC693MDL940F Relay Output Module is in stock. Please contact us for a quick quote and competitive pricing.
