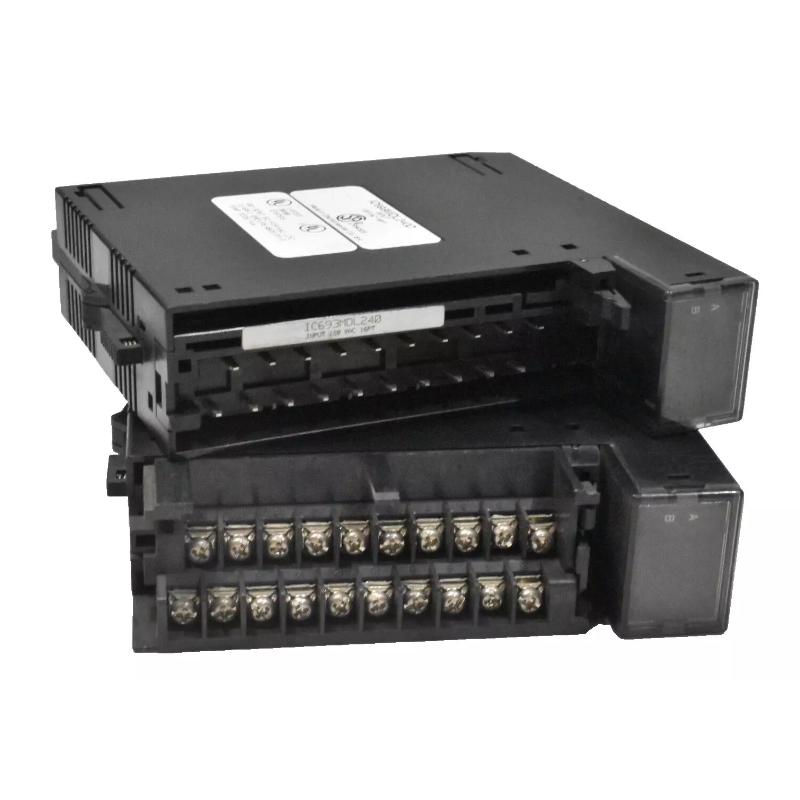

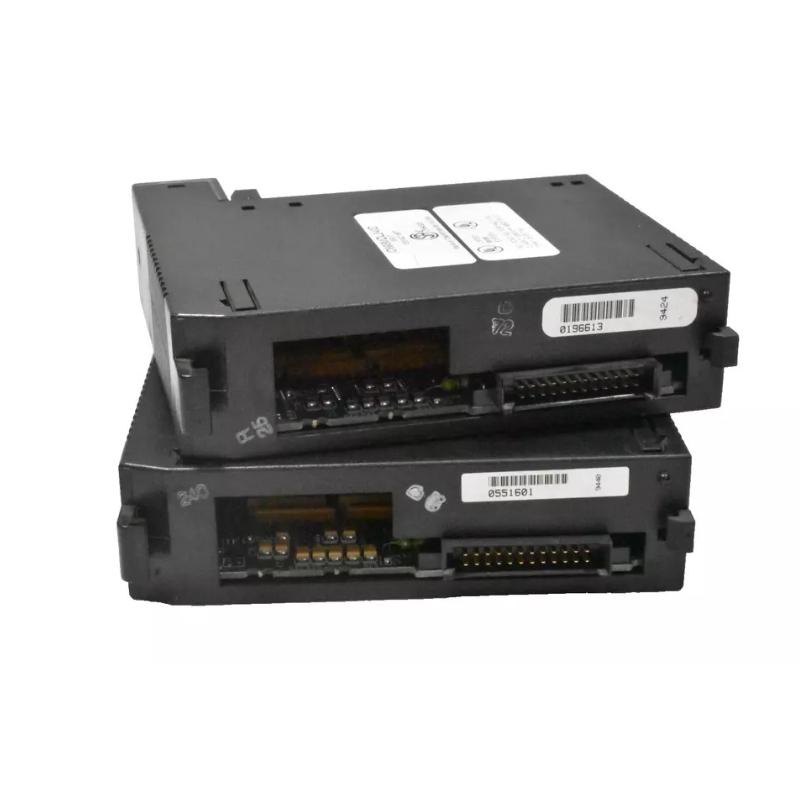

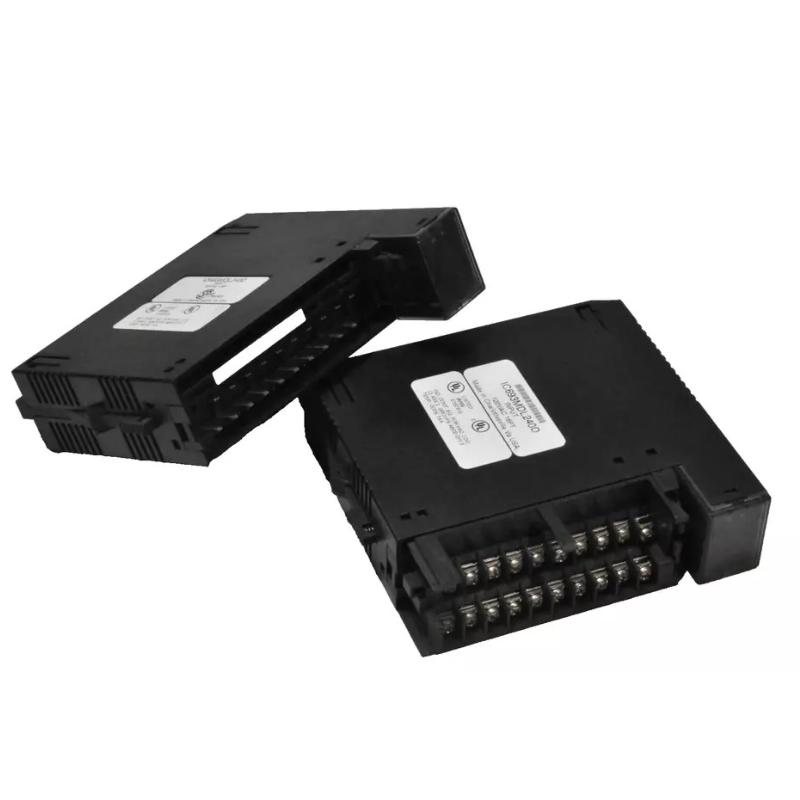

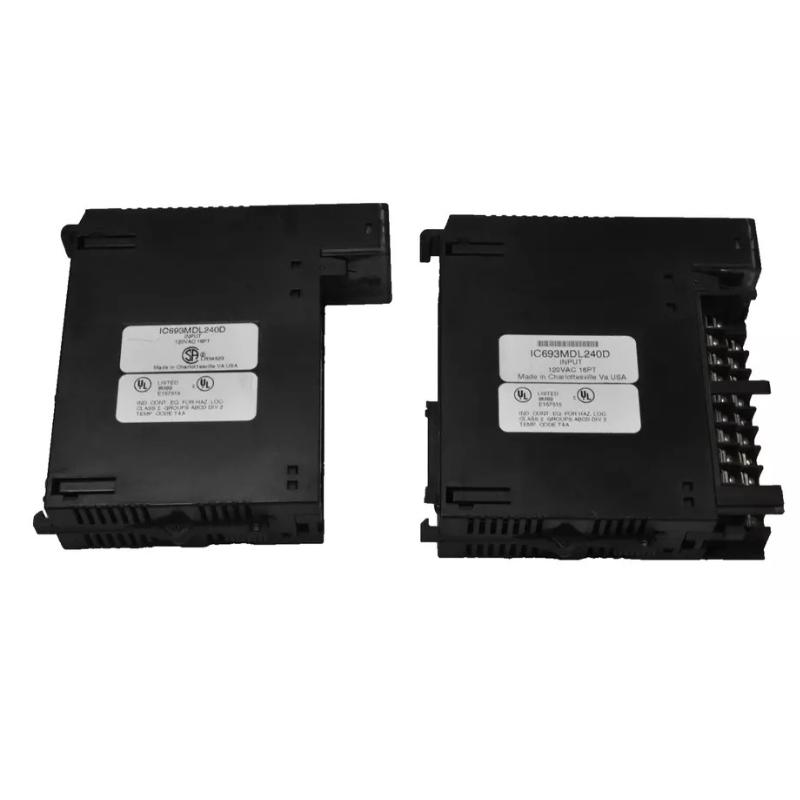

GE Fanuc IC693MDL240G AC Digital Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC693MDL240G |
| Manufacturer | GE Fanuc |
| Product Series | Series 90-30 |
| Product Type | AC Digital Input Module |
| Main Function | Receives 120 VAC discrete signals from field devices and transfers input status information to the PLC CPU |
| Application | Industrial automation, machine control, process monitoring, and factory control systems |
| Input Type | AC discrete input |
| Number of Inputs | 16 input points |
| Input Configuration | 16 inputs sharing one common terminal |
| Rated Input Voltage | 120 VAC |
| Input Voltage Range | 0 to 132 VAC |
| Frequency | 50/60 Hz |
| Input Current | Approximately 12 mA at rated voltage |
| Input Logic | Positive logic |
| Input Devices Supported | Pushbuttons, limit switches, proximity switches, and other AC switching devices |
| Input Response Time | ON response: approximately 30 ms maximum |
| Input Response Time | OFF response: approximately 45 ms maximum |
| Isolation Type | Field side to logic side isolation |
| Isolation Rating | 1500 VAC RMS |
| LED Indicators | Individual green LEDs for each input point status indication |
| Power Consumption | Approximately 90 mA from 5 VDC backplane supply |
| Terminal Connection | Terminal block interface |
| Mounting Type | Series 90-30 baseplate mounted module |
| Installation Position | Any available I/O slot in compatible Series 90-30 rack |
| Module Design | High-voltage AC input module |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions | Approximately 130 mm × 90 mm × 70 mm |
| Weight | Approximately 0.3 kg |
| Compatibility | GE Fanuc Series 90-30 PLC systems |
FAQ
Q1: What is the main function of the IC693MDL240G?
A: The IC693MDL240G is a GE Fanuc Series 90-30 120 VAC digital input module used to collect ON/OFF signals from AC field devices and send input status data to the PLC CPU.
Q2: How many input channels does the IC693MDL240G provide?
A: The module provides 16 AC input points with a shared common terminal.
Q3: What voltage does the IC693MDL240G support?
A: The module is designed for 120 VAC input applications and supports an operating range of approximately 0–132 VAC at 50/60 Hz.
Q4: What type of field devices can be connected to the IC693MDL240G?
A: The module can connect to AC-operated switches, pushbuttons, limit switches, proximity sensors, and other discrete AC signal devices.
Q5: Does the IC693MDL240G support DC input signals?
A: No. The IC693MDL240G is designed for AC input signals and requires an AC power source for operation.
Q6: What should be checked before replacing an IC693MDL240G module?
A: Verify Series 90-30 rack compatibility, input voltage type, field wiring arrangement, terminal connections, PLC configuration, and power conditions before replacement.
Q7: What factors may affect the performance of the IC693MDL240G?
A: Incorrect voltage levels, loose wiring, electrical noise, damaged terminals, unstable field power, and improper installation may affect input signal reliability.
Q8: How can the reliability of the IC693MDL240G be maintained?
A: Regular inspection of field wiring, secure terminal connections, proper cabinet conditions, stable power supply, and periodic PLC diagnostics help ensure reliable long-term operation.
GE Fanuc IC693MDL240G AC Digital Input Module is in stock. Please contact us for a quick quote and competitive pricing.
