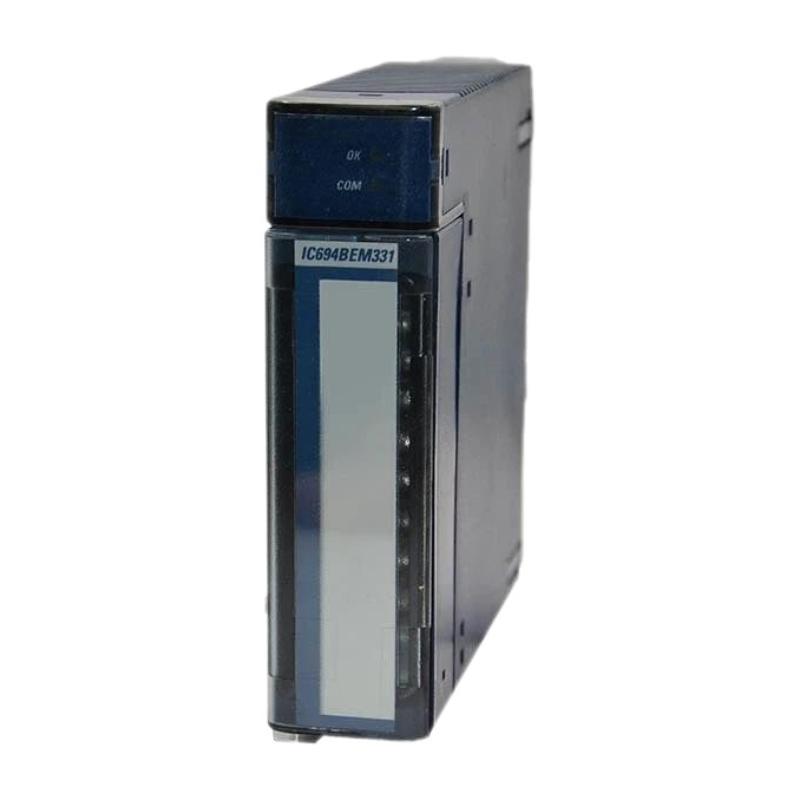

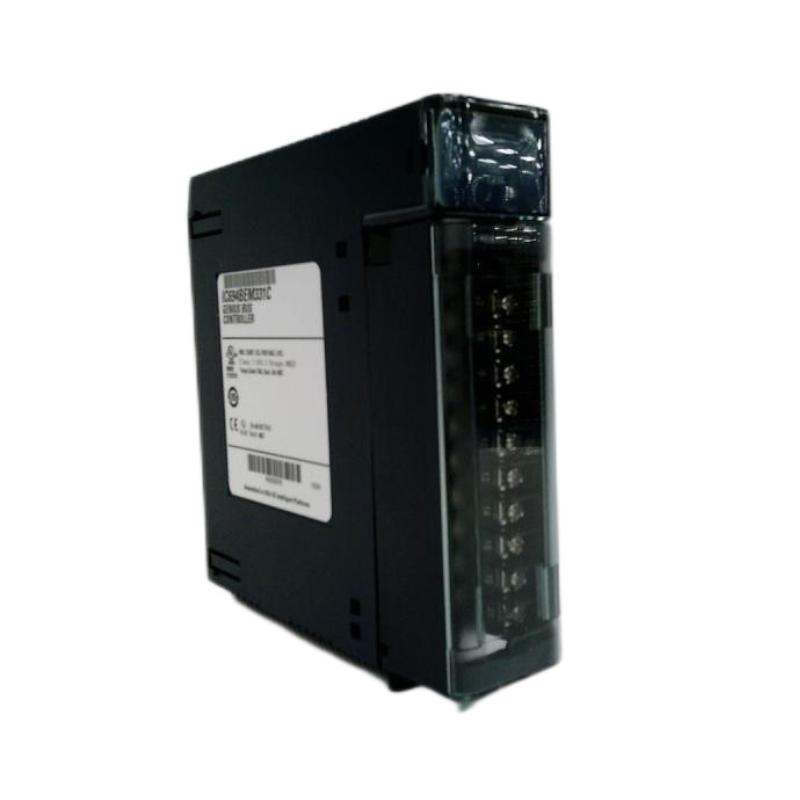

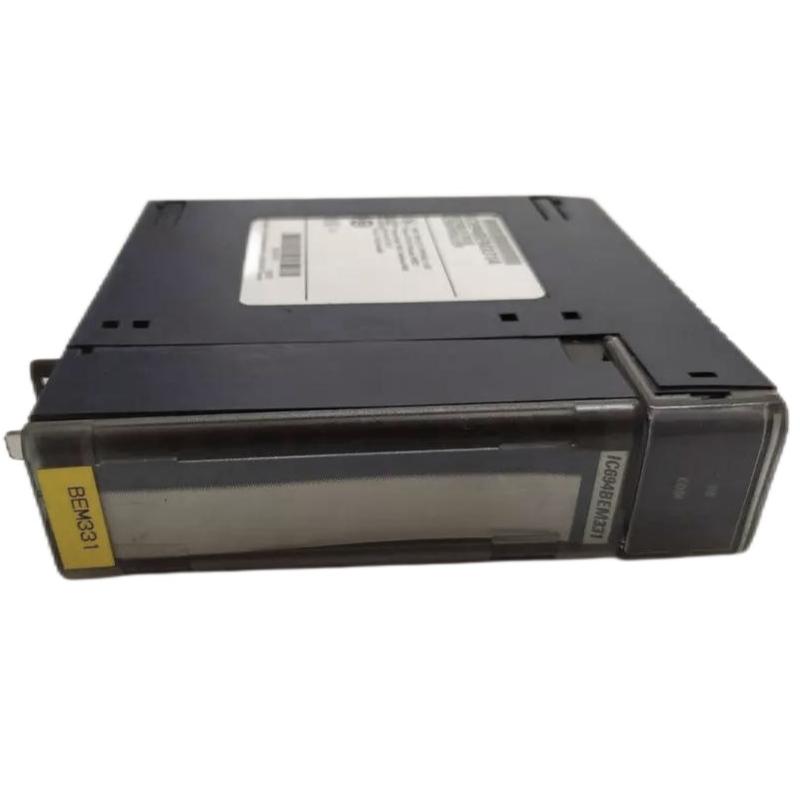

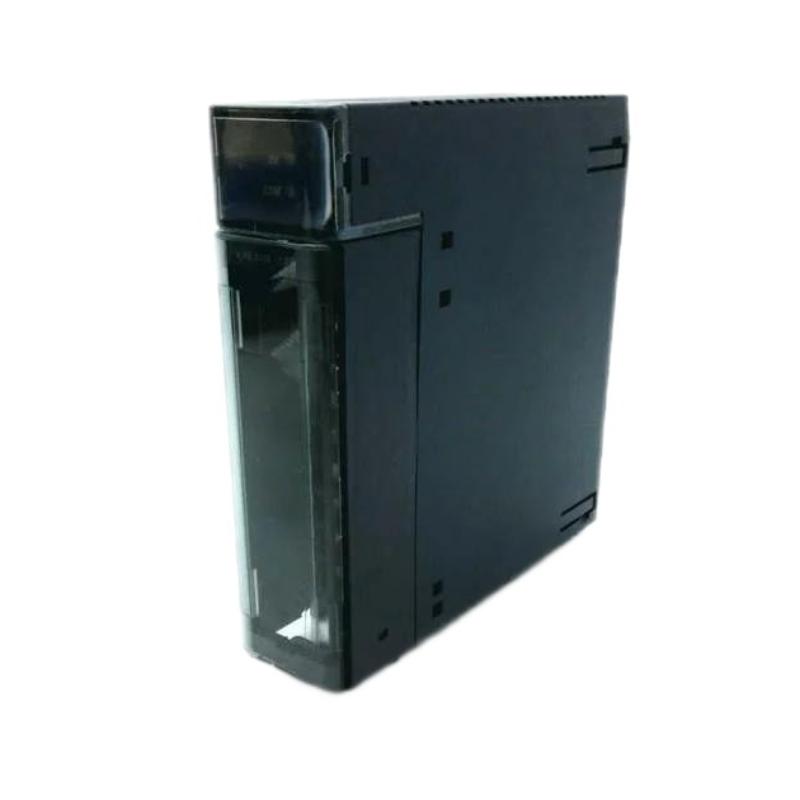

GE Fanuc IC694BEM331C Genius Bus Controller Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC694BEM331C |
| Product Type | Genius Bus Controller Module |
| Series Compatibility | GE Fanuc PACSystems RX3i PLC System |
| Module Function | Provides communication interface between RX3i PLC CPU and Genius I/O bus devices |
| Communication Network | Genius I/O Bus |
| Communication Function | Supports Global Data exchange and Datagram communication |
| Supported Devices | Genius I/O blocks, remote I/O stations, VersaMax I/O systems, Field Control I/O stations, and Genius-compatible controllers |
| Backplane Slot Requirement | 1 RX3i backplane slot |
| Operating Voltage | 5 VDC |
| Current Consumption | Approx. 300 mA at 5 VDC |
| Maximum Data Exchange | Up to 128 bytes per message |
| Maximum Number of Bus Devices | Up to 32 devices depending on network configuration |
| Communication Baud Rates | 38.4 Kbaud, 76.8 Kbaud, and 153.6 Kbaud |
| Maximum Bus Distance | Up to 7800 ft (approx. 2377 m) depending on communication speed |
| Bus Termination | Supports standard Genius bus termination configurations |
| Communication Cable | Shielded twisted pair cable compatible with Genius bus networks |
| Isolation | Electrical isolation between backplane and Genius bus interface |
| Isolation Voltage | 2000 VAC high-potential isolation |
| Status Indicators | LED indicators for module operation and communication status |
| Configuration Method | Configured through compatible GE Fanuc PLC programming software |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions | Approx. 130 mm × 40 mm × 130 mm |
| Weight | Approx. 0.36 kg |
| Application Areas | Industrial automation, distributed I/O control, remote device communication, and process control systems |
| Reliability Features | Provides stable Genius network communication with diagnostic monitoring and reliable remote I/O integration |
FAQ
Q1: What is the IC694BEM331C used for?
- The IC694BEM331C is a Genius Bus Controller module designed for GE Fanuc PACSystems RX3i PLC systems. It enables communication between the PLC CPU and Genius I/O network devices.
Q2: What communication network does the IC694BEM331C support?
- The module supports the Genius I/O Bus network, allowing data exchange between RX3i controllers and distributed field devices.
Q3: How many devices can the IC694BEM331C support on the Genius bus?
- The module can communicate with up to 32 Genius bus devices depending on the network configuration and operating conditions.
Q4: What communication speeds are available on the IC694BEM331C?
- The module supports 38.4 Kbaud, 76.8 Kbaud, and 153.6 Kbaud communication speeds for different application requirements.
Q5: Does the IC694BEM331C provide communication diagnostics?
- Yes. The module includes LED status indicators and diagnostic functions to help monitor communication status and troubleshoot network issues.
Q6: What devices can be connected to the IC694BEM331C?
- The module supports Genius I/O blocks, remote I/O stations, VersaMax I/O systems, Field Control modules, and other compatible Genius devices.
Q7: What applications commonly use the IC694BEM331C?
- Common applications include factory automation, distributed control systems, remote I/O networks, manufacturing equipment, and industrial process control.
Q8: What should be checked before replacing an IC694BEM331C module?
- Users should verify RX3i system compatibility, Genius bus configuration, communication parameters, wiring connections, termination settings, and power requirements before replacement.
GE Fanuc IC694BEM331C Genius Bus Controller Module is in stock. Please contact us for a quick quote and competitive pricing.
