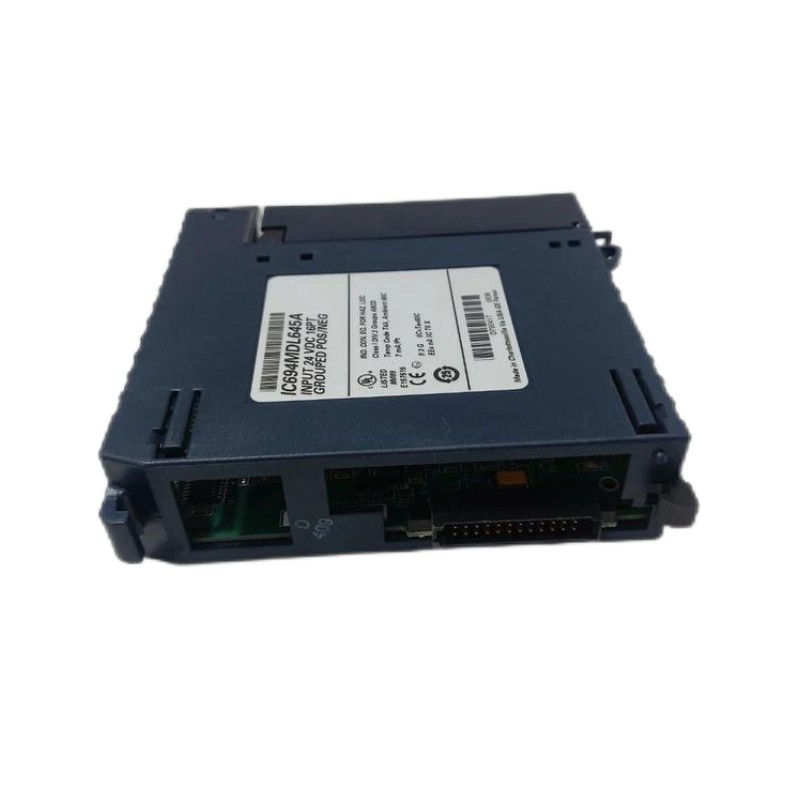

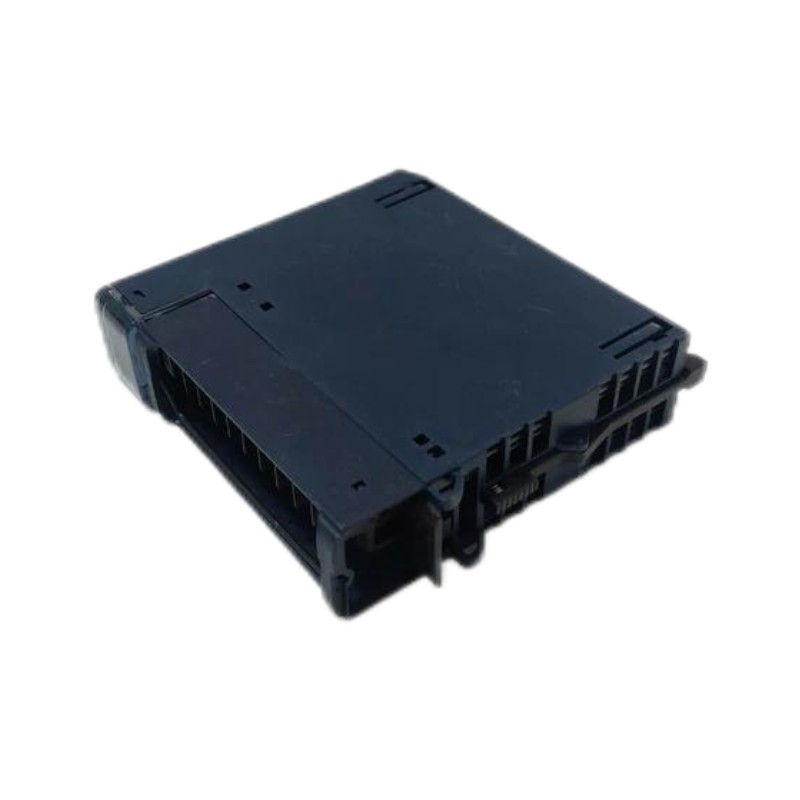

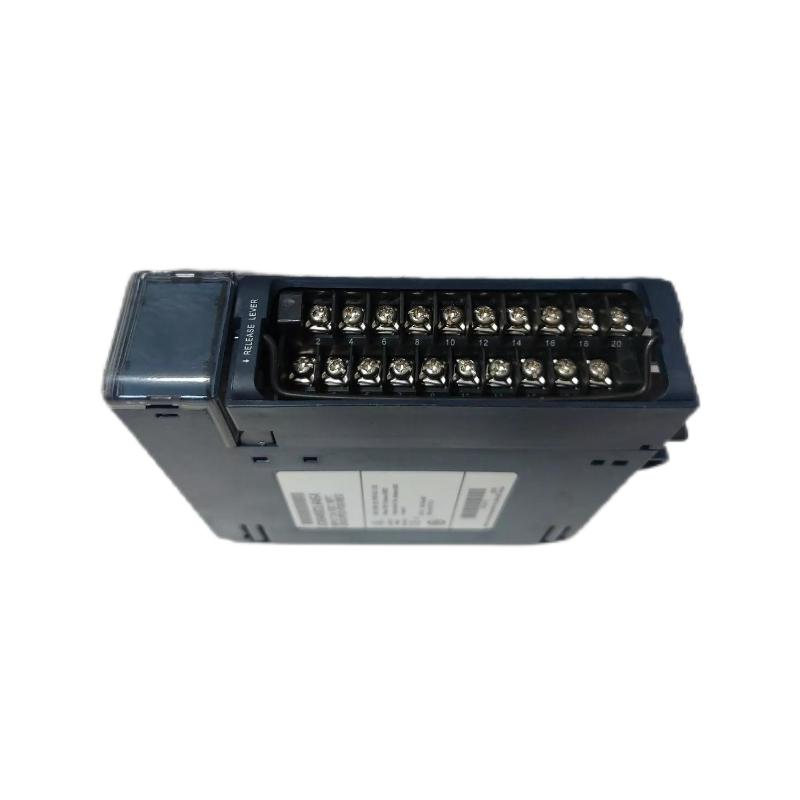

GE Fanuc IC694MDL645CA Discrete DC Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC694MDL645CA |
| Manufacturer | GE Fanuc / Emerson |
| Product Series | PACSystems RX3i / Series 90-30 Compatible I/O |
| Product Type | Discrete DC Input Module |
| Main Function | Provides 24 VDC digital signal acquisition from field devices and transfers input status data to the PLC CPU |
| Application | Industrial automation, machine control, process monitoring, and distributed I/O systems |
| Input Type | Positive/Negative Logic DC Input |
| Number of Inputs | 16 input points |
| Input Configuration | 1 group with a single common terminal |
| Rated Input Voltage | 24 VDC |
| Input Voltage Range | 0 to +30 VDC |
| Input Logic | Supports both positive logic and negative logic wiring |
| Input Current | Approximately 7 mA at rated voltage |
| On-State Voltage | 11.5 to 30 VDC |
| Off-State Voltage | 0 to +5 VDC |
| On-State Current | Minimum 3.2 mA |
| Off-State Current | Maximum 1.1 mA |
| Input Response Time | Approximately 7 ms ON and 7 ms OFF |
| Isolation | Optical isolation between field side, backplane, and frame ground |
| Isolation Rating | 250 VAC continuous, 1500 VAC for 1 minute |
| LED Indicators | 16 green LEDs for individual input ON/OFF status indication |
| Field Device Compatibility | Pushbuttons, limit switches, proximity sensors, and other 24 VDC devices |
| Backplane Interface | RX3i backplane communication interface |
| Installation Position | Any available I/O slot in RX3i system |
| Hot Swap Support | Supported when field-side terminal is disconnected |
| Power Consumption | 80 mA from 5 VDC backplane supply; approximately 125 mA from 24 VDC supply |
| Mounting Type | PLC rack module installation |
| Module Design | Low-voltage discrete input module |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions | Approximately 130 mm × 32 mm × 120 mm |
| Weight | Approximately 0.25 kg |
| Compatibility | GE Fanuc PACSystems RX3i and compatible industrial control platforms |
FAQ
Q1: What is the main function of the IC694MDL645CA?
A: The IC694MDL645CA is a 24 VDC discrete input module designed to collect digital signals from field devices and provide input status information to GE Fanuc PLC control systems.
Q2: How many input channels does the IC694MDL645CA provide?
A: The module provides 16 DC input channels arranged in one group with a common terminal for simplified field wiring.
Q3: Does the IC694MDL645CA support both positive and negative logic?
A: Yes. The module supports both positive logic and negative logic wiring configurations, allowing flexible connection with different field devices.
Q4: What type of devices can be connected to the IC694MDL645CA?
A: The module can interface with devices such as pushbuttons, limit switches, electronic proximity switches, and other 24 VDC digital sensors.
Q5: What voltage range does the IC694MDL645CA support?
A: The module supports a 24 VDC nominal input voltage with an operating range from 0 to +30 VDC.
Q6: What should be checked before replacing an IC694MDL645CA module?
A: Users should verify PLC rack compatibility, input wiring configuration, module type, power supply conditions, field device connections, and system configuration parameters before replacement.
Q7: What factors may affect the performance of the IC694MDL645CA?
A: Incorrect wiring, unstable field power supply, electrical noise, damaged terminals, improper grounding, and environmental conditions outside specifications may affect module performance.
Q8: How can the reliability of the IC694MDL645CA be maintained?
A: Regular inspection of field wiring, proper cabinet conditions, stable power supply, secure terminal connections, and periodic PLC diagnostics help maintain reliable long-term operation.
GE Fanuc IC694MDL645CA Discrete DC Input Module is in stock. Please contact us for a quick quote and competitive pricing.
