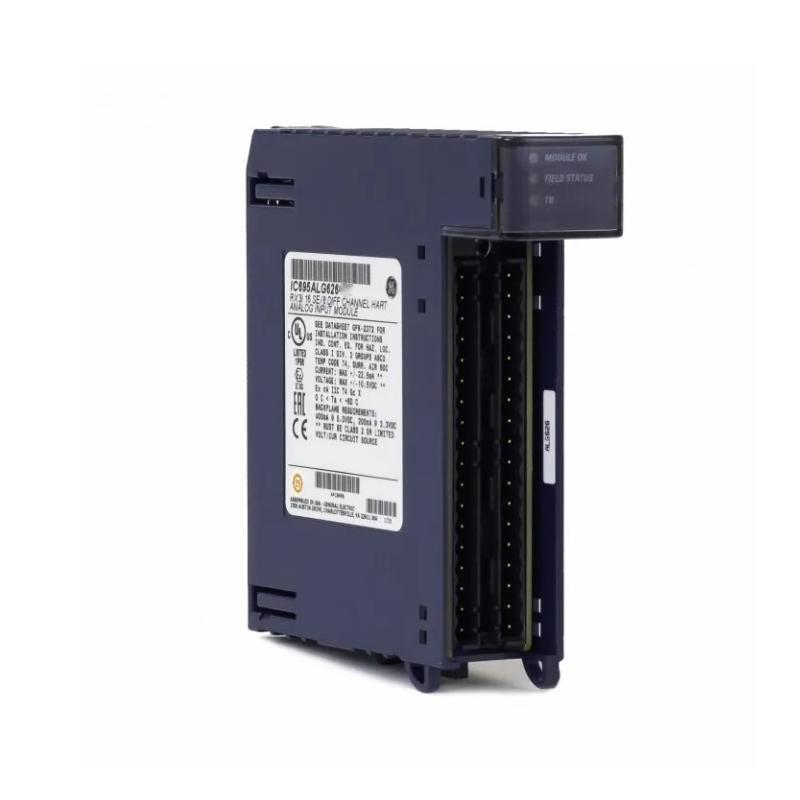

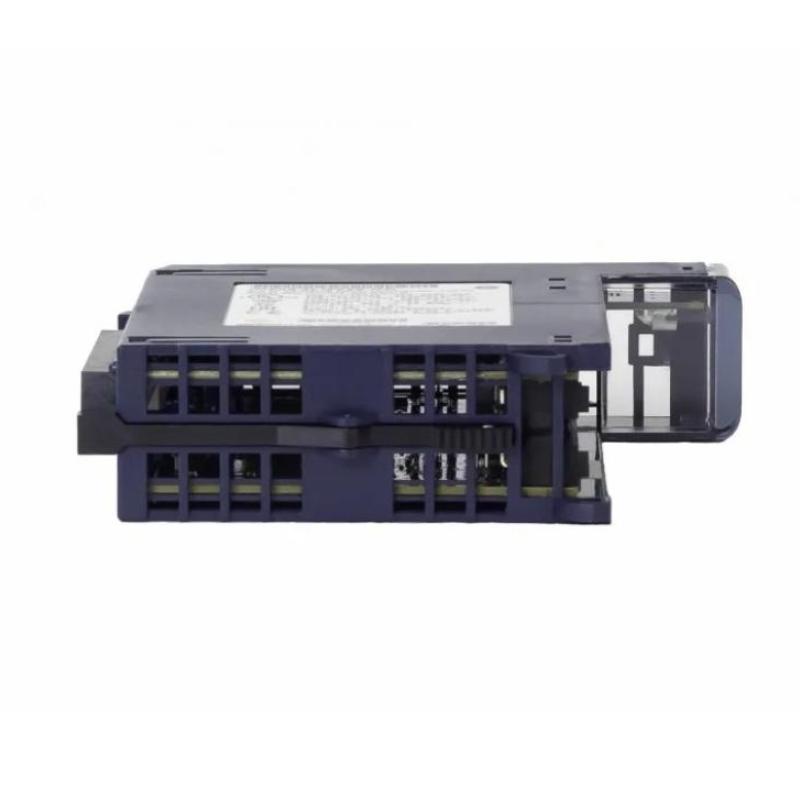

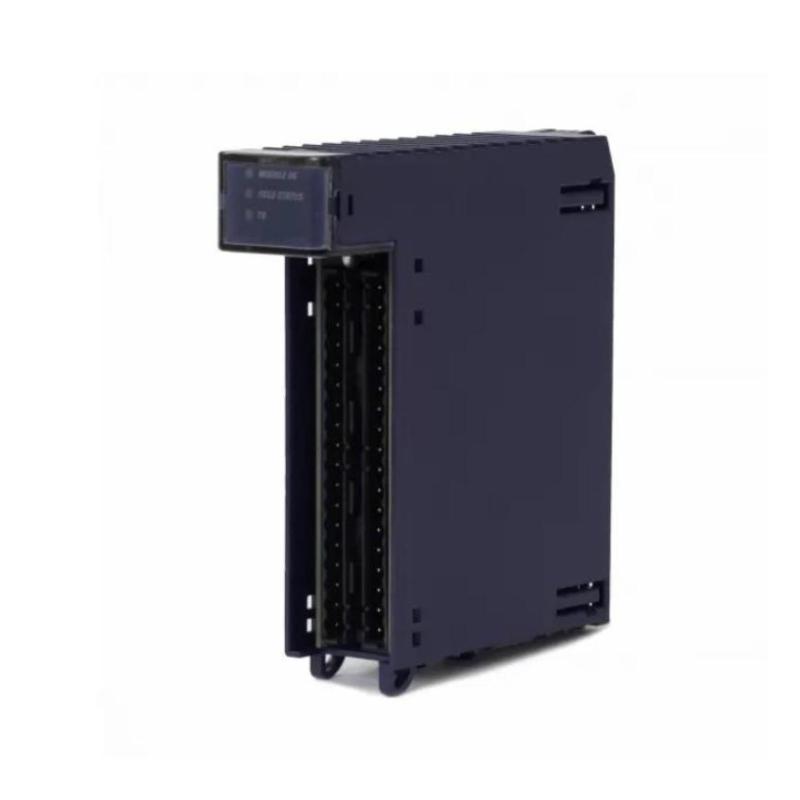

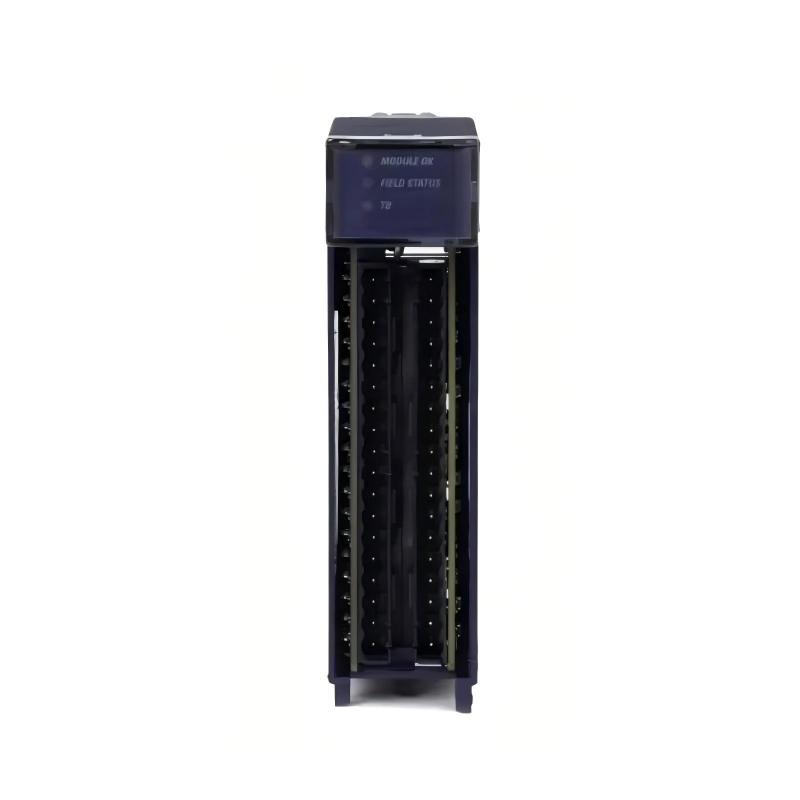

GE Fanuc IC695ALG626CA HART Analog Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC695ALG626CA |
| Manufacturer | GE Fanuc / Emerson |
| Product Series | PACSystems RX3i |
| Product Type | HART Analog Input Module |
| Main Function | Provides analog signal acquisition with HART communication capability for industrial measurement and control applications |
| Application | Process control, factory automation, energy systems, and distributed control applications |
| Input Type | Non-isolated differential voltage/current analog input |
| Number of Inputs | 16 single-ended inputs or 8 differential inputs |
| Channel Configuration | Software configurable input channels |
| HART Communication | Integrated HART communication support with four internal HART modems |
| Input Current Ranges | 0 to 20 mA, 4 to 20 mA, ±20 mA |
| Input Voltage Ranges | ±10 V, 0 to 10 V, ±5 V, 0 to 5 V, 1 to 5 V |
| Resolution | 16-bit analog-to-digital conversion |
| Input Accuracy | High-precision analog signal measurement with digital calibration support |
| Signal Processing | Digital filtering, scaling, diagnostics, and signal conversion |
| Isolation Type | Non-isolated analog input channels |
| HART Function | Supports HART field device communication and configuration data exchange |
| Internal Power Requirement | 3.3 VDC: approximately 600 mA; 5 VDC: approximately 450 mA |
| Slot Requirement | 1 RX3i universal backplane slot |
| Backplane Interface | PCI-based RX3i universal backplane communication |
| Configuration Software | Proficy Machine Edition |
| Diagnostics | Channel fault detection, input range monitoring, module status diagnostics |
| LED Indicators | Module status and fault indication LEDs |
| Hot Swap Support | Supported with proper system configuration |
| Mounting Type | RX3i rack-mounted module installation |
| Protection Design | Conformal coated version for improved environmental resistance |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions | Approximately 130 mm × 35 mm × 140 mm |
| Weight | Approximately 0.3 kg |
| Compatibility | GE Fanuc / Emerson PACSystems RX3i control platforms |
FAQ
Q1: What is the main function of the IC695ALG626CA?
A: The IC695ALG626CA is a PACSystems RX3i HART analog input module designed to collect voltage and current signals from field instruments and provide digital data processing for PLC applications.
Q2: How many analog input channels does the IC695ALG626CA provide?
A: The module provides up to 16 single-ended analog inputs or 8 differential analog inputs depending on the selected configuration.
Q3: What input signal types are supported by the IC695ALG626CA?
A: The module supports multiple voltage and current ranges, including 0–20 mA, 4–20 mA, ±20 mA, ±10 V, 0–10 V, ±5 V, 0–5 V, and 1–5 V inputs.
Q4: Does the IC695ALG626CA support HART communication?
A: Yes. The module includes integrated HART communication capability with internal HART modems, allowing communication with compatible smart field devices.
Q5: What PLC systems are compatible with the IC695ALG626CA?
A: The module is designed for GE Fanuc and Emerson PACSystems RX3i control platforms using the universal backplane architecture.
Q6: What should be checked before replacing an IC695ALG626CA module?
A: Users should verify RX3i rack compatibility, module configuration, input wiring, HART settings, firmware version, backplane power availability, and application parameters before replacement.
Q7: What factors may affect the performance of the IC695ALG626CA?
A: Incorrect wiring, unstable field power, electrical interference, improper grounding, incorrect channel configuration, and environmental conditions outside specifications may affect measurement accuracy.
Q8: How can the reliability of the IC695ALG626CA be maintained?
A: Regular inspection of field wiring, proper shielding and grounding, stable rack power, firmware maintenance, calibration checks, and periodic diagnostic monitoring help ensure reliable long-term operation.
GE Fanuc IC695ALG626CA HART Analog Input Module is in stock. Please contact us for a quick quote and competitive pricing.
