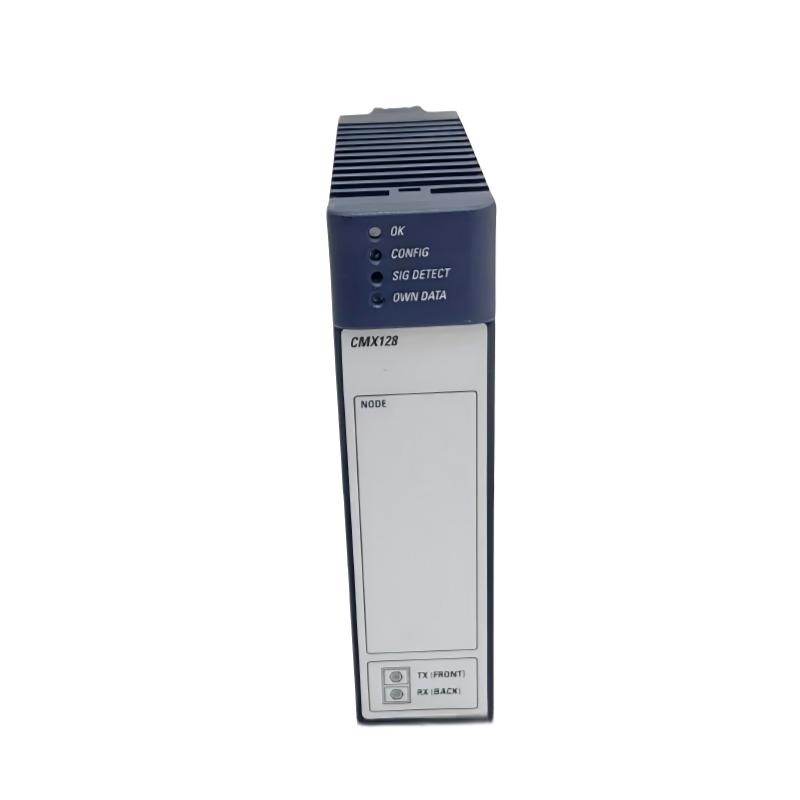

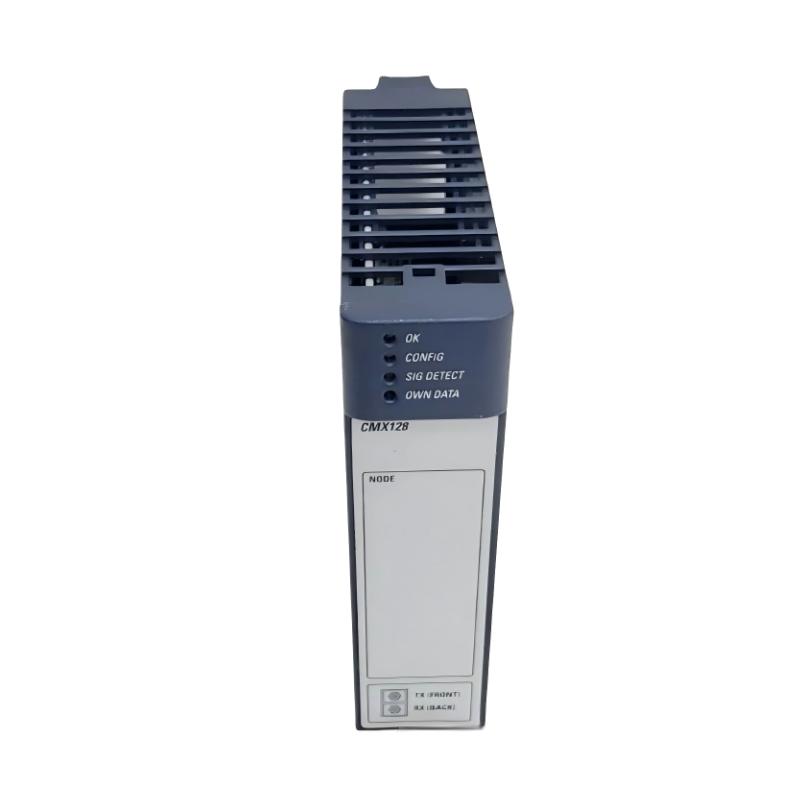

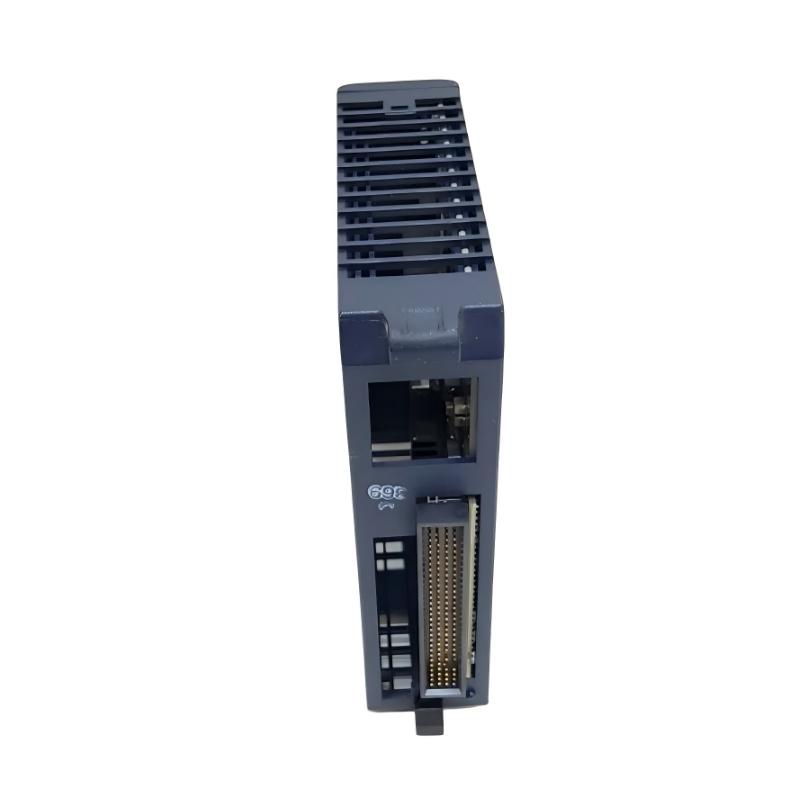

GE Fanuc IC695CMX128 Reflective Memory / Control Memory Xchange Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | IC695CMX128 Control Memory Xchange Module |
| Manufacturer | Emerson Electric Co. (PACSystems / formerly GE Fanuc) |
| Product Type | Reflective Memory / Control Memory Xchange Module |
| System Platform | RX3i PACSystems |
| Function | High-speed deterministic data sharing via reflective memory network |
| Memory Capacity | 128 MB SDRAM (with parity) |
| Network Technology | Reflective memory over fiber optic loop |
| Network Topology | Daisy-chained loop architecture |
| Max Network Nodes | Up to 256 nodes per network |
| Bus / Link Speed | 2.1 Gbit/s link speed |
| Packet Size | Dynamic 4 to 68 bytes (firmware dependent) |
| Transfer Rate | Up to 174 Mbyte/s (max packet size) |
| Fiber Interface | LC-type optical connectors (IEC 61754-20) |
| Optical Cable Type | Multimode fiber (typical up to 300 m per segment) |
| Input Power | 660 mA @ +3.3 VDC; 253 mA @ +5 VDC |
| Backplane Requirement | RX3i Universal Backplane (PCI-based) |
| Slot Usage | Single-slot module |
| Operating Temperature | 0°C to 60°C (industrial cabinet environment typical) |
| Storage Temperature | -40°C to 85°C |
| Dimensions | Approx. 120 mm × 30 mm × 300 mm |
| Weight | Approx. 0.45 kg (1.0 lb) |
| Installation | Rack-mounted, hot-insert capable (system dependent) |
| Compliance Notes | Requires enclosure for EMC/radiated emissions compliance |
FAQ
Q1: What is the IC695CMX128 used for?
A: It is a reflective memory module designed to share real-time deterministic data across multiple PLCs and computing nodes in a high-speed network.
Q2: How does the IC695CMX128 communicate?
A: It uses a fiber-optic reflective memory network where data written to one node is automatically replicated across all connected nodes.
Q3: What is the maximum number of nodes supported?
A: The network can support up to 256 interconnected nodes.
Q4: Does the module require CPU processing to transfer data?
A: No. Data synchronization is hardware-based and operates independently of CPU processing.
Q5: What type of fiber connection does it use?
A: It uses LC-type multimode fiber optic connectors compliant with IEC standards.
Q6: Can IC695CMX128 operate in a standard expansion rack?
A: No. It must be installed in an RX3i main rack with PCI backplane support.
Q7: What is the power consumption of the module?
A: It draws approximately 660 mA at 3.3 VDC and 253 mA at 5 VDC.
Q8: What happens if the fiber network loop is broken?
A: The reflective memory synchronization is interrupted, which may cause loss of real-time data consistency across nodes.
GE Fanuc IC695CMX128 Reflective Memory / Control Memory Xchange Module is in stock. Please contact us for a quick quote and competitive pricing.
