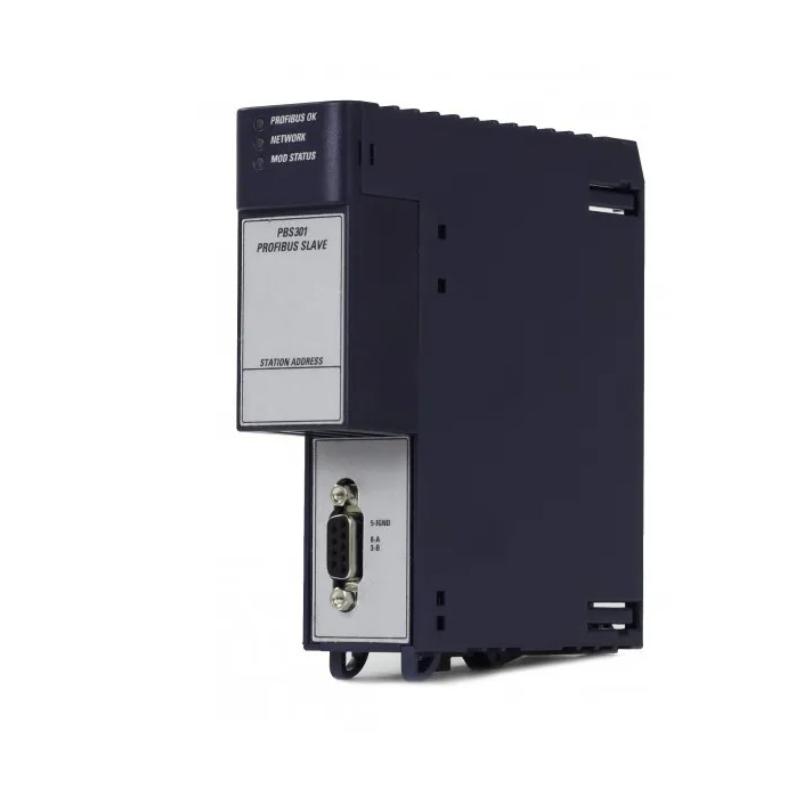

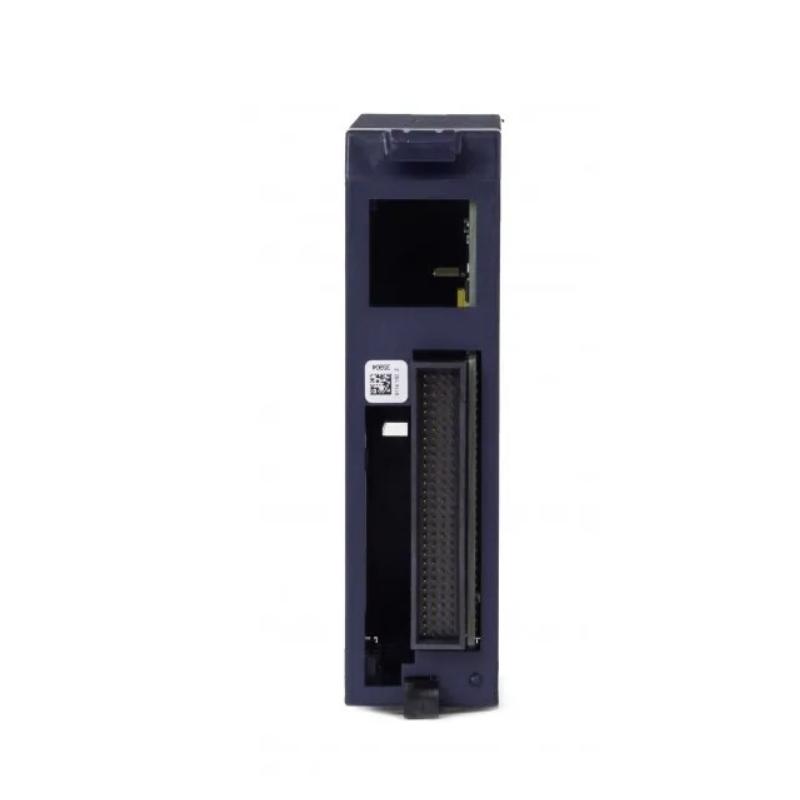

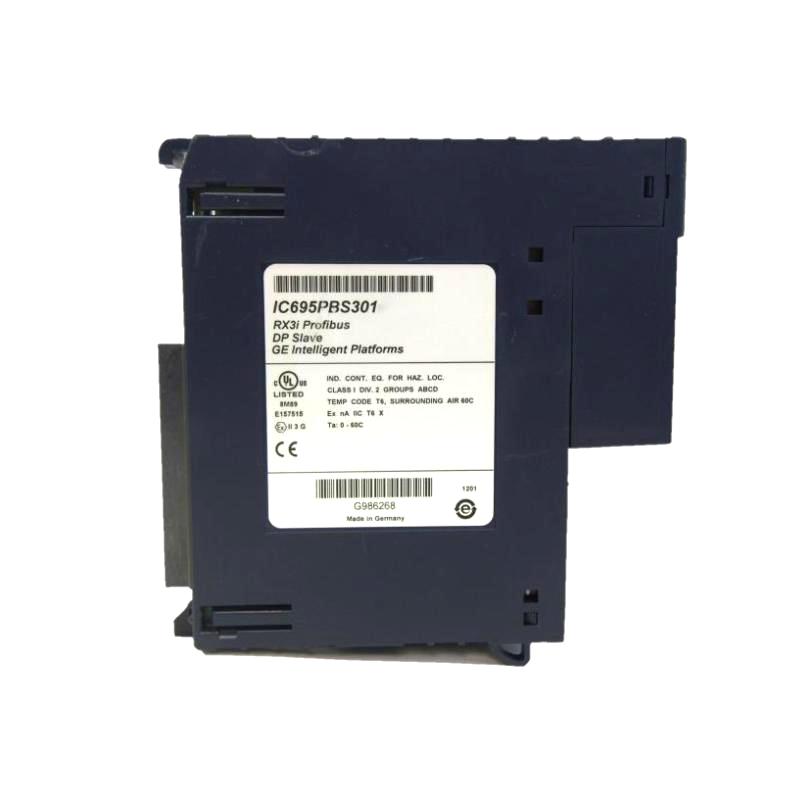

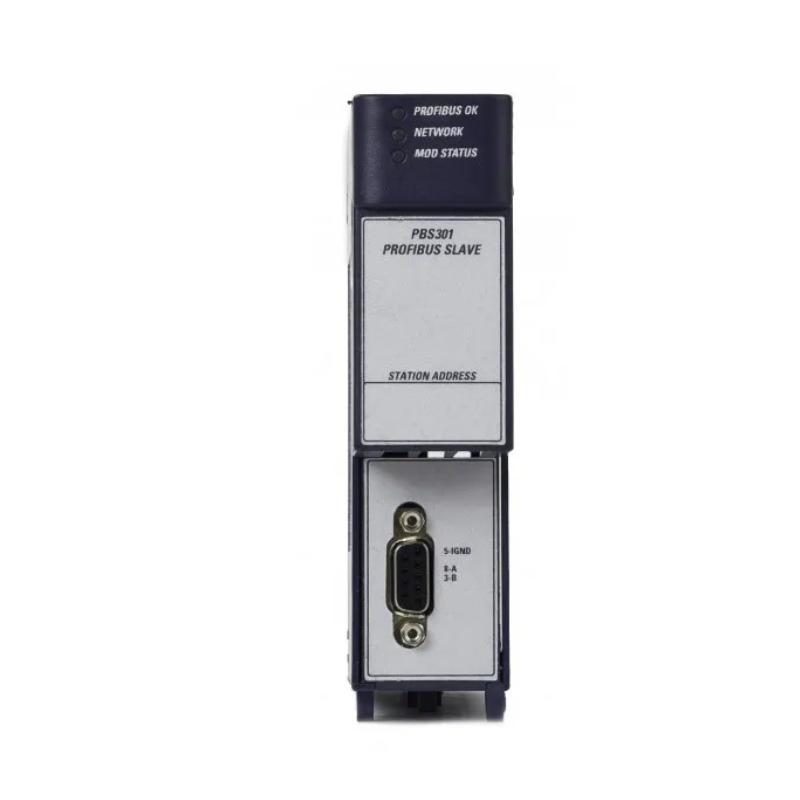

GE Fanuc IC695PBS301 RX3i Communication Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | IC695PBS301 PROFIBUS-DP Slave Module |
| Manufacturer | Emerson Electric Co. (PACSystems / formerly GE Fanuc Intelligent Platforms) |
| Product Type | RX3i Communication Module |
| Series | PACSystems RX3i |
| Communication Protocol | PROFIBUS-DP (Slave) |
| DP Version Support | DP-V0 / DP-V1 |
| Function | Acts as a PROFIBUS slave interface for RX3i PLC systems |
| Bus Interface | RX3i PCI backplane |
| Fieldbus Connector | 1 × 9-pin D-sub (RS-485 PROFIBUS interface) |
| Data Transfer Rate | 9.6 kbit/s to 12 Mbit/s (auto-baud supported) |
| I/O Data Capacity | Up to 244 bytes input + 244 bytes output |
| Module Role | Slave only (no master capability) |
| CPU Compatibility | RX3i CPUs (e.g., CPE310, CPE330, CRU320 families, firmware dependent) |
| Configuration Tool | PAC Machine Edition (PME) |
| Backplane Compatibility | IC695CHS universal backplane series |
| Power Consumption | ~440 mA @ 3.3 VDC |
| LED Indicators | PROFIBUS OK / Network / Module Status |
| Hot Swap Support | Supported (system dependent) |
| Diagnostics | DP-V1 diagnostics, fault/status reporting |
| Mounting Type | RX3i rack-mounted module (single slot) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Weight | Approx. 0.16–1.36 kg (varies by revision/packaging) |
| Dimensions | Approx. 120 mm × 30 mm × 200–300 mm |
FAQ
Q1: What is IC695PBS301 used for?
A: It is a PROFIBUS-DP slave communication module used to connect an RX3i PLC system to a PROFIBUS master such as a Siemens PLC or DCS.
Q2: Is IC695PBS301 a master or slave module?
A: It is strictly a slave module and cannot act as a PROFIBUS master.
Q3: What communication speed does it support?
A: It supports standard PROFIBUS speeds from 9.6 kbit/s up to 12 Mbit/s with auto-baud detection.
Q4: How much data can it exchange?
A: It supports up to 244 bytes of input data and 244 bytes of output data per cycle.
Q5: What hardware does it require to operate?
A: It must be installed in an RX3i universal backplane and used with a compatible RX3i CPU.
Q6: What software is used for configuration?
A: It is configured using PAC Machine Edition (PME) engineering software.
Q7: Does it support diagnostics?
A: Yes, it supports DP-V1 diagnostics including module status, network status, and fault reporting.
Q8: What happens if PROFIBUS communication fails?
A: The module will enter a fault state and signal errors via LEDs and diagnostics, and I/O data exchange with the master will stop or hold last state depending on configuration.
GE Fanuc IC695PBS301 RX3i Communication Module is in stock. Please contact us for a quick quote and competitive pricing.
