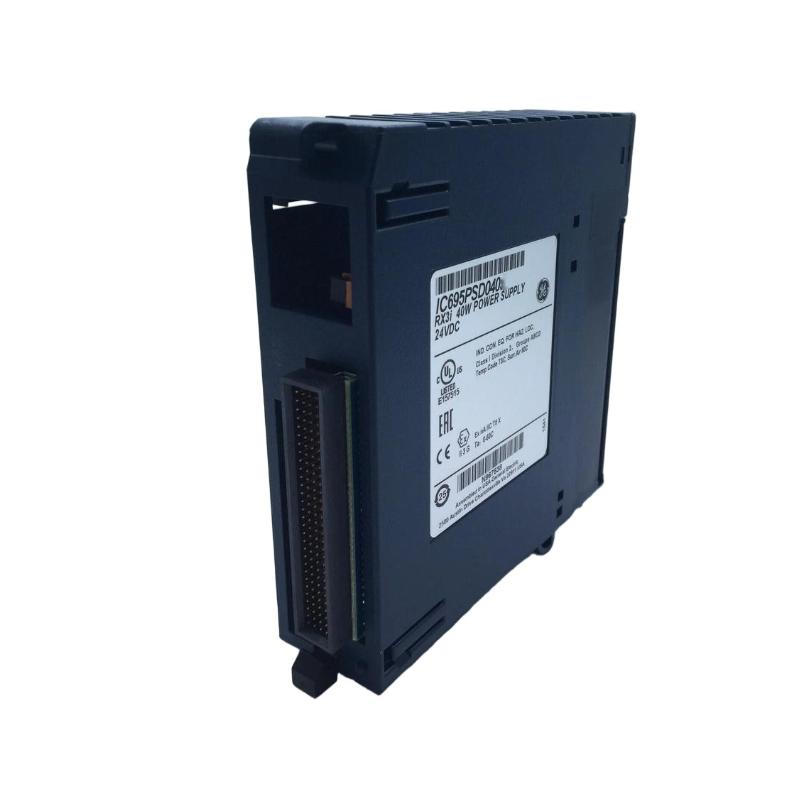

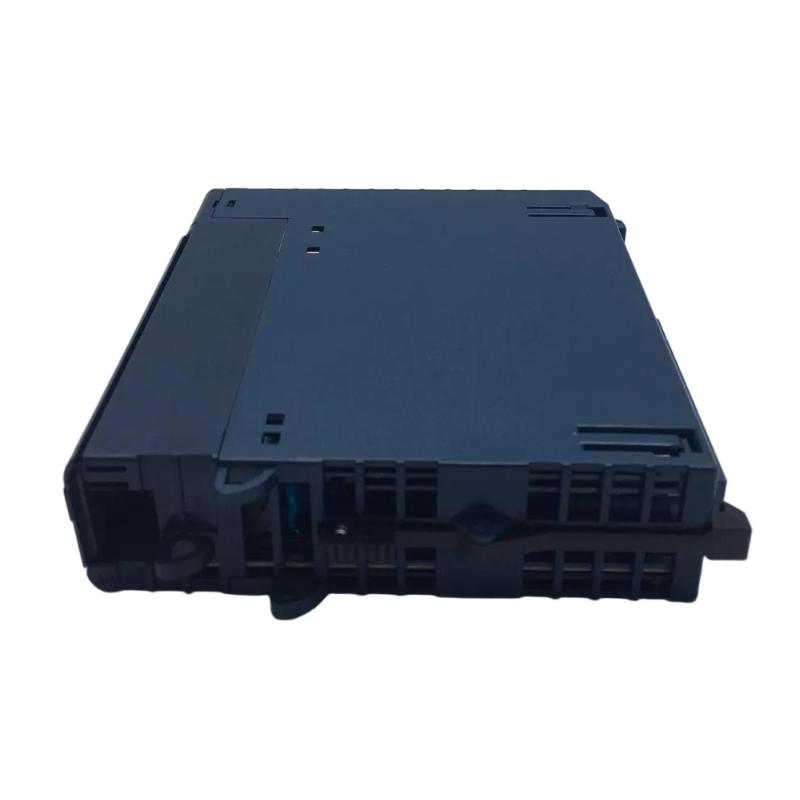

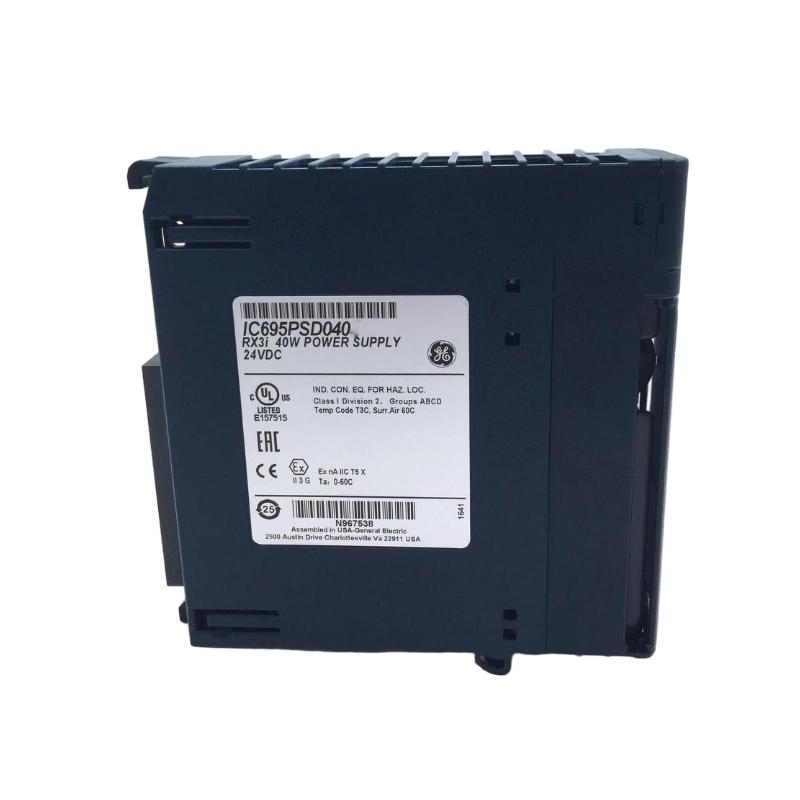

GE Fanuc IC695PDSD040 RX3i DC Power Supply Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | IC695PSD040 Power Supply Module |
| Manufacturer | Emerson Electric Co. (PACSystems / formerly GE Fanuc Intelligent Platforms) |
| Product Type | RX3i DC Power Supply Module |
| Series | PACSystems RX3i |
| Input Voltage | 24 VDC nominal (18 to 30 VDC operating range) |
| Output Voltage | 5.1 VDC (3.3 VDC backplane power also supported) |
| Output Power | 40 W total load capacity |
| Output Current | 5.1 VDC: up to 6 A; 3.3 VDC: up to 9 A |
| Inrush Current | ~4 A (100 ms maximum) |
| Backplane Interface | RX3i Universal Backplane (PCI-based) |
| Slot Requirement | 1 slot |
| Load Sharing / Redundancy | Not supported |
| Wiring Terminals | 14–22 AWG single-wire terminals |
| Protection Features | Overload, overtemperature, fault detection |

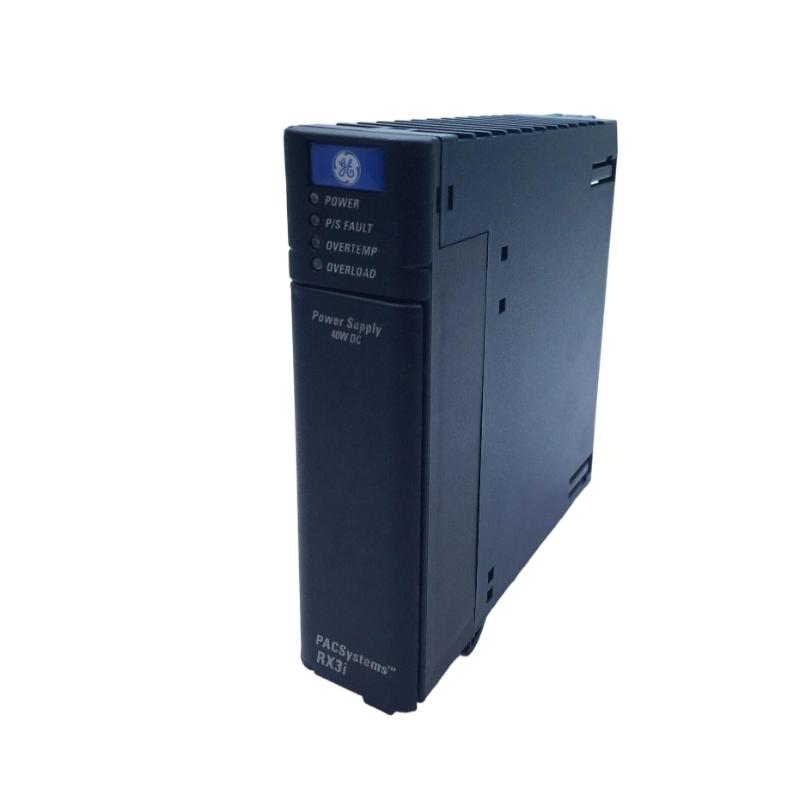

| LED Indicators | Power, P/S Fault, Overload, Overtemperature |
| Module Functions | Supplies backplane logic power for RX3i modules |
| Compatibility | IC695CHS series RX3i universal backplanes |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
| Weight | Approx. 2 kg |
| Dimensions | Approx. 120 mm × 30 mm × 200–300 mm |
FAQ
Q1: What is IC695PSD040 used for?
A: It is a 24 VDC power supply module used in RX3i PLC systems to provide backplane power for CPUs, I/O modules, and communication modules.
Q2: What is the input voltage range of IC695PSD040?
A: It operates from 18 to 30 VDC, with a nominal input of 24 VDC.
Q3: What outputs does this power supply provide?
A: It supplies 5.1 VDC and 3.3 VDC power rails for RX3i backplane modules.
Q4: How much power can it deliver?
A: The module provides up to 40 watts of total output power.
Q5: Does IC695PSD040 support redundancy?
A: No, it does not support load sharing or redundant power configurations.
Q6: What happens if the power supply fails?
A: The RX3i backplane loses power, causing the PLC system to stop operation and all modules to go offline.
Q7: What type of wiring is used?
A: It accepts single conductors in the range of 14 to 22 AWG.
Q8: Where is this module typically installed?
A: It is installed in the RX3i universal backplane system to supply internal rack power for all modules.
GE Fanuc IC695PDSD040 RX3i DC Power Supply Module is in stock. Please contact us for a quick quote and competitive pricing.
