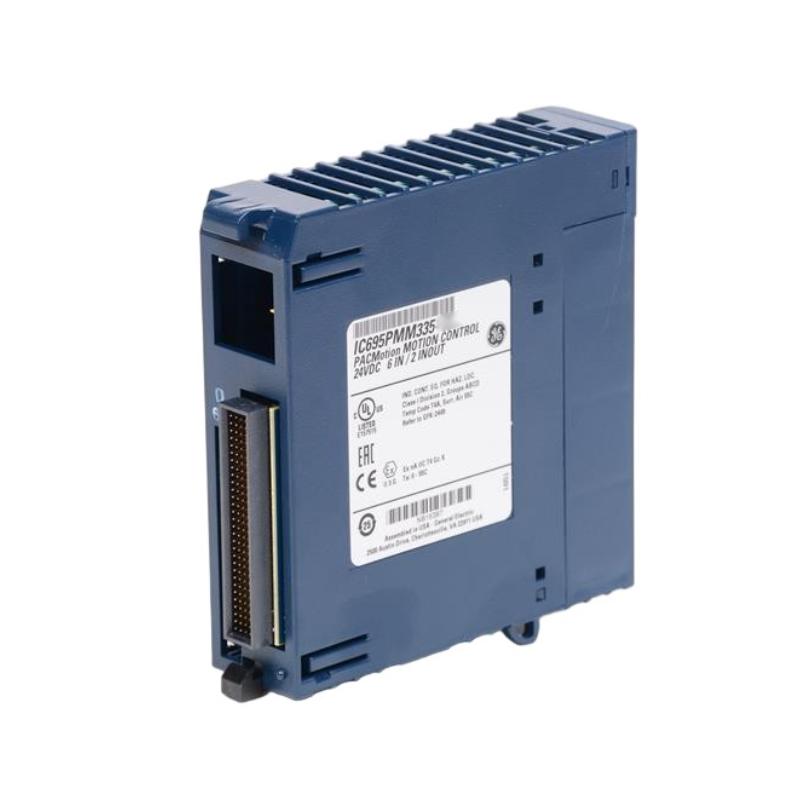

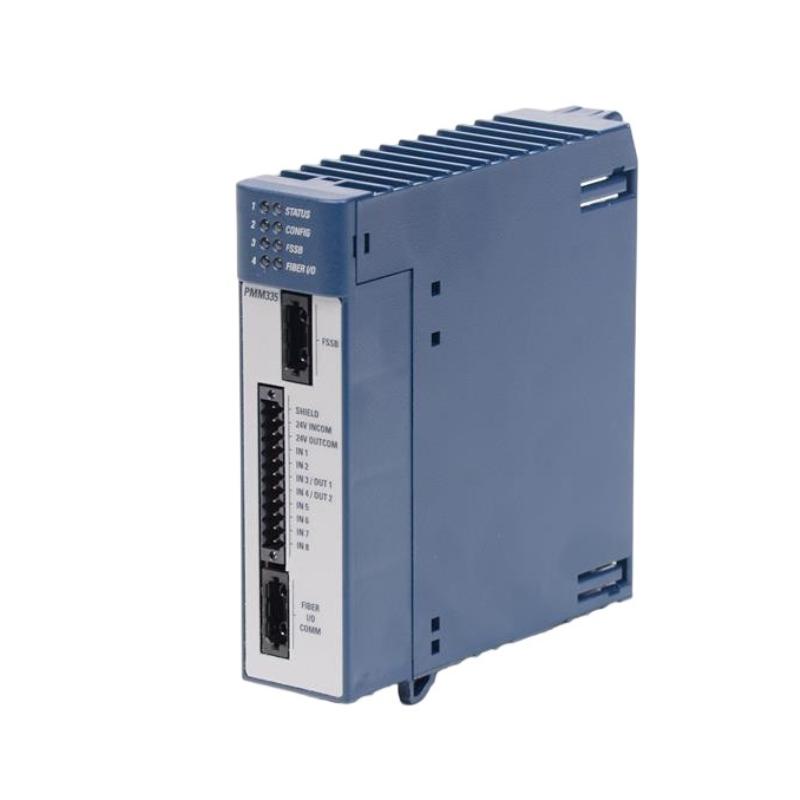

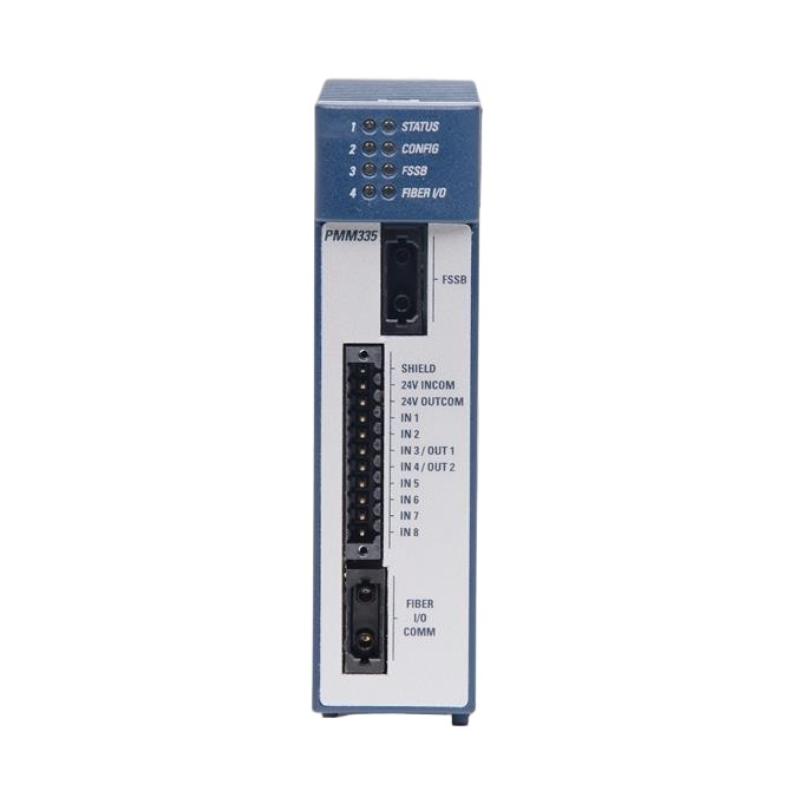

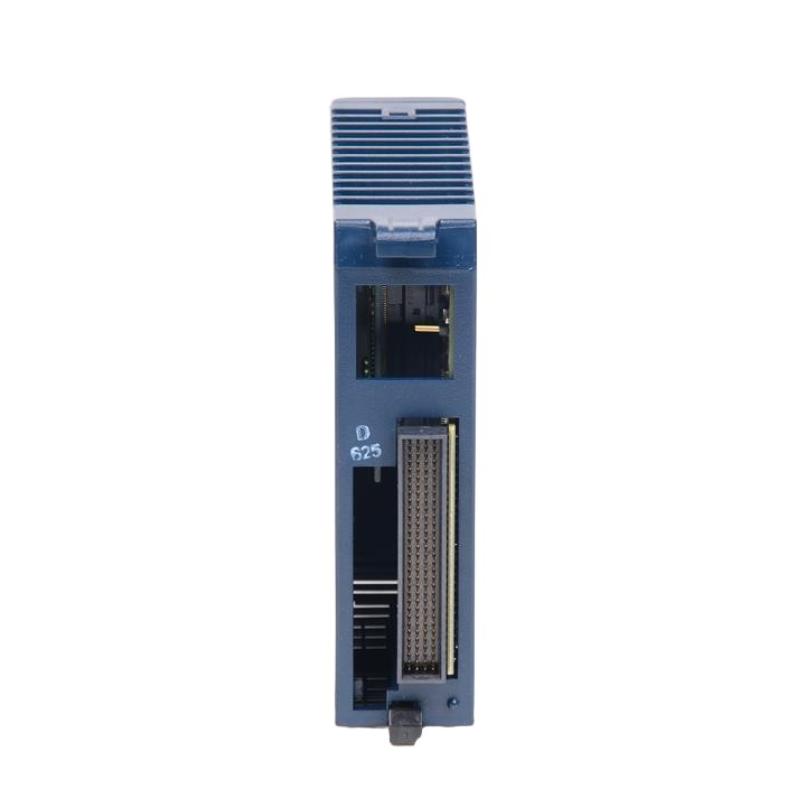

GE Fanuc IC695PMM335 RX3i Motion Control Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | IC695PMM335 PACMotion Multi-Axis Motion Controller |
| Manufacturer | Emerson Electric Co. (PACSystems / formerly GE Fanuc Intelligent Platforms) |
| Product Type | RX3i Motion Control Module |
| Series | PACSystems RX3i |
| Function | Multi-axis servo motion controller |
| Number of Axes | Up to 4 servo axes + virtual axes |
| Motion Control Loops | Position, velocity, torque loops |
| Update Rate | Position loop: 500 µs; velocity loop: 125 µs; path planning: 1 ms |
| Communication Interface | RX3i PCI backplane + fiber-optic motion interface |
| Servo Interface | Digital servo (Fanuc Serial Servo Bus / compatible digital drives) |
| Encoder Support | Incremental and absolute serial encoders |
| Built-in I/O | 24 VDC isolated inputs and configurable I/O (faceplate I/O) |
| High-Speed Inputs | Yes (touch probe / limit / home inputs supported) |
| Output Functions | Digital cam switch outputs, programmable limit switching |
| Cam Functionality | Electronic camming with up to 2048 cam profiles |
| Gear Functions | Electronic gearing (velocity and position synchronization) |
| Programming Environment | PAC Machine Edition (PME) |
| Motion Standards | PLCopen compliant motion function blocks |
| Diagnostic Features | Runtime diagnostics, logic blocks, data logging |
| Interrupt Capability | Up to 3 configurable interrupts |
| Backplane Compatibility | IC695CHS universal RX3i backplane |
| Slot Requirement | 1 slot |
| Power Consumption | ~1.5 A @ 3.3 VDC; ~0.5 A @ 5 VDC |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Mounting Type | RX3i rack-mounted module |
| Weight | Approx. 0.25–0.60 kg |
| Dimensions | Approx. 120 mm × 30 mm × 200–300 mm |
FAQ
Q1: What is IC695PMM335 used for?
A: It is a PACSystems RX3i motion controller module used for multi-axis servo control in high-speed industrial automation systems.
Q2: How many axes can IC695PMM335 control?
A: It can control up to 4 servo axes, with additional support for virtual or time-based axes.
Q3: What types of motion control does it support?
A: It supports position, velocity, and torque control loops, as well as electronic gearing and camming functions.
Q4: What is the update speed of this module?
A: The position loop update rate is approximately 500 microseconds, with 1 ms motion path planning.
Q5: Does IC695PMM335 require a special servo drive?
A: Yes, it is designed for digital servo systems (such as Fanuc Serial Servo Bus or compatible digital drive interfaces).
Q6: Can it handle high-speed inputs and outputs?
A: Yes, it includes faceplate I/O with high-speed inputs for functions like touch probe, home, and limit switches.
Q7: What software is used for configuration?
A: It is configured using PAC Machine Edition (PME) with motion configuration tools and cam editors.
Q8: Is IC695PMM335 still widely used?
A: It is a legacy but still widely installed motion control module, especially in precision multi-axis industrial machines.
GE Fanuc IC695PMM335 RX3i Motion Control Module is in stock. Please contact us for a quick quote and competitive pricing.
