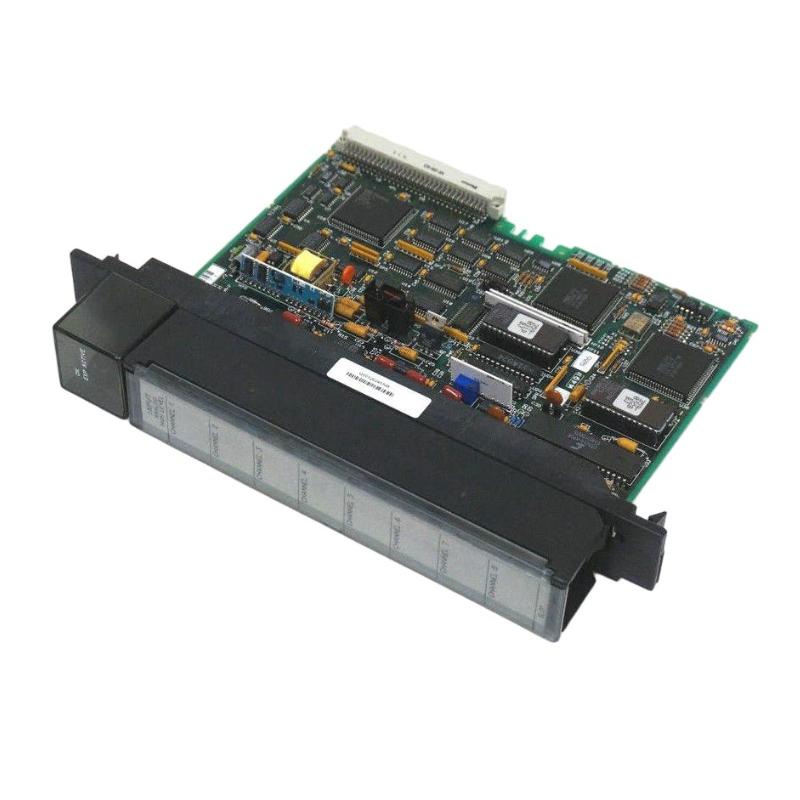

GE Fanuc IC697ALG230J PLC Analog Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | IC697ALG230J Analog Input Base Converter Module |
| Manufacturer | Emerson Electric Co. (formerly GE Fanuc Automation) |
| Product Type | PLC Analog Input Module |
| Series | GE Fanuc Series 90-70 |
| Function | 8-channel analog input conversion module (revision J) |
| Channels | 8 differential analog input channels |
| Input Signal Types | Voltage: -10 V to +10 V / 0–10 V; Current: 4–20 mA / 0–20 mA |
| Resolution | 14-bit to 16-bit (effective system resolution) |
| Update Rate | 2.4 ms – 2.8 ms typical |
| Input Configuration | Software configurable per channel |
| Expander Support | IC697ALG440 (current expander), IC697ALG441 (voltage expander) |
| Input Impedance | Voltage >10 MΩ / Current ~250 Ω |
| Isolation | Channel-to-backplane isolation (~1500 VAC typical industrial design) |
| Backplane Interface | Series 90-70 VME-based rack backplane |
| Slot Requirement | 1 slot |
| Power Consumption | ~0.8 A @ 5 VDC (~4 W) |
| Diagnostics | Overrange, underrange, open-wire detection, module fault LEDs |
| Configuration Tool | Proficy Machine Edition / legacy GE configuration software |
| Revision Type | “J” hardware revision (minor design/firmware update over prior versions) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
| Weight | 0.64–0.66 kg |
| Dimensions | Approx. 40 mm × 218 mm × 292 mm |
FAQ
Q1: What is IC697ALG230J used for?
A: It is an 8-channel analog input module used in GE Fanuc Series 90-70 PLC systems to convert field analog signals into digital values for PLC processing.
Q2: What does the “J” suffix mean?
A: The “J” indicates a later hardware revision, typically involving internal PCB or component updates while maintaining the same core function.
Q3: What signals does it support?
A: It supports -10 to +10 V, 0–10 V voltage signals and 4–20 mA / 0–20 mA current loop signals.
Q4: What is the difference between IC697ALG230F and IC697ALG230J?
A: Both perform the same function; “J” is a newer revision than “F”, usually with incremental hardware improvements and production updates.
Q5: How many input channels are available?
A: It provides 8 fully differential analog input channels.
Q6: What is the typical accuracy and resolution?
A: It typically provides up to 16-bit resolution with high-precision industrial-grade conversion.
Q7: Is it still used in modern automation systems?
A: No, it is mainly found in legacy GE Fanuc Series 90-70 installations.
Q8: Does it require any DIP switch configuration?
A: No, all configuration is done via software.
