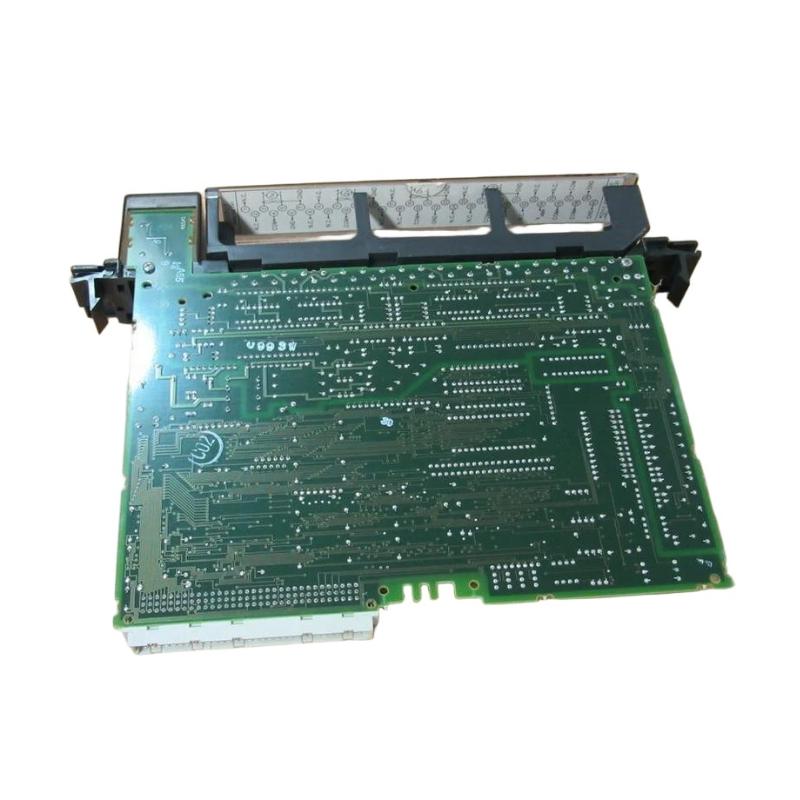

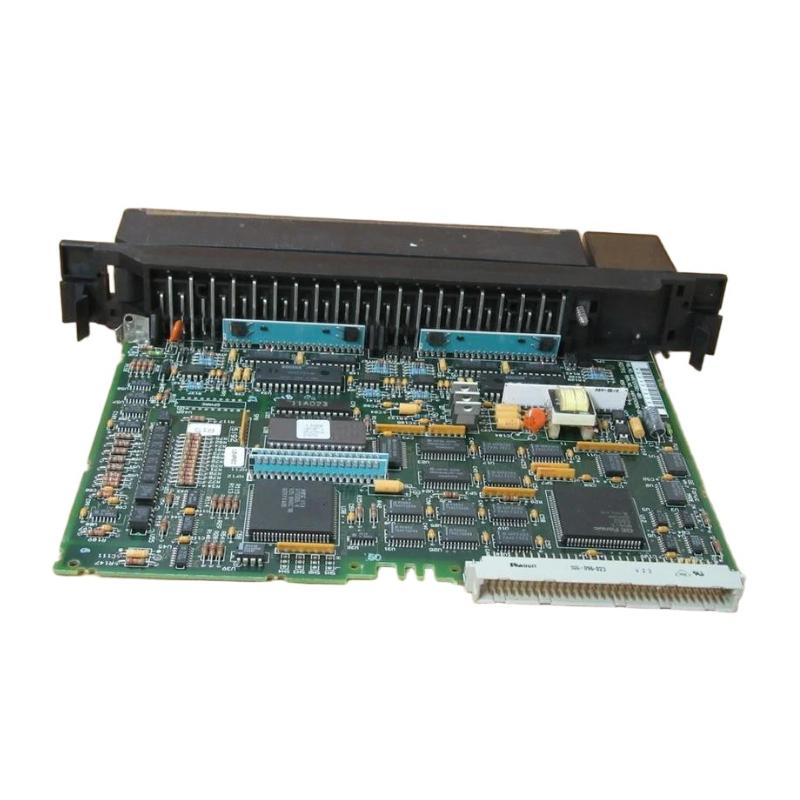

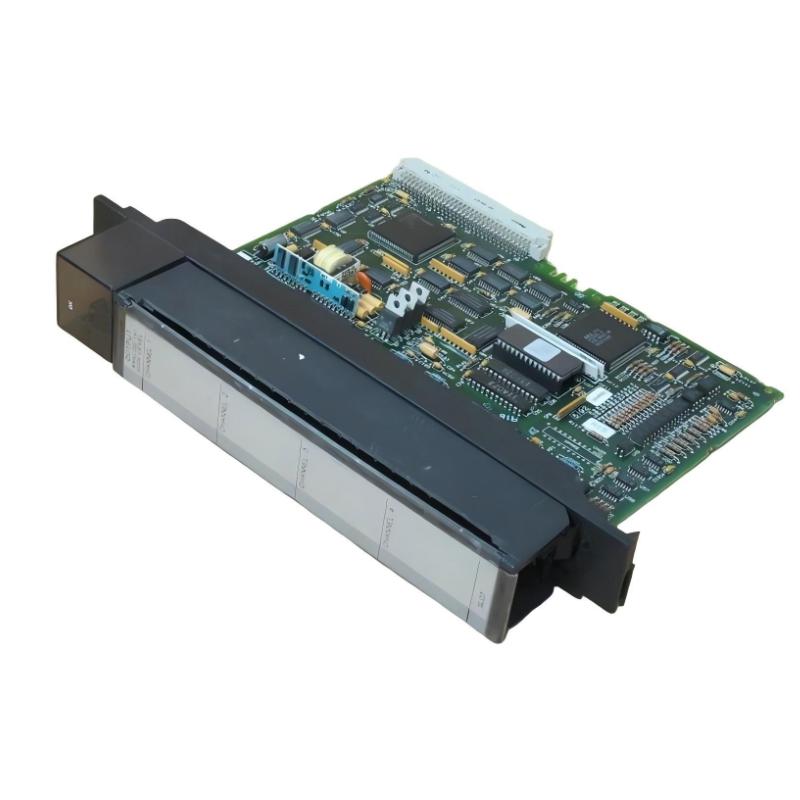

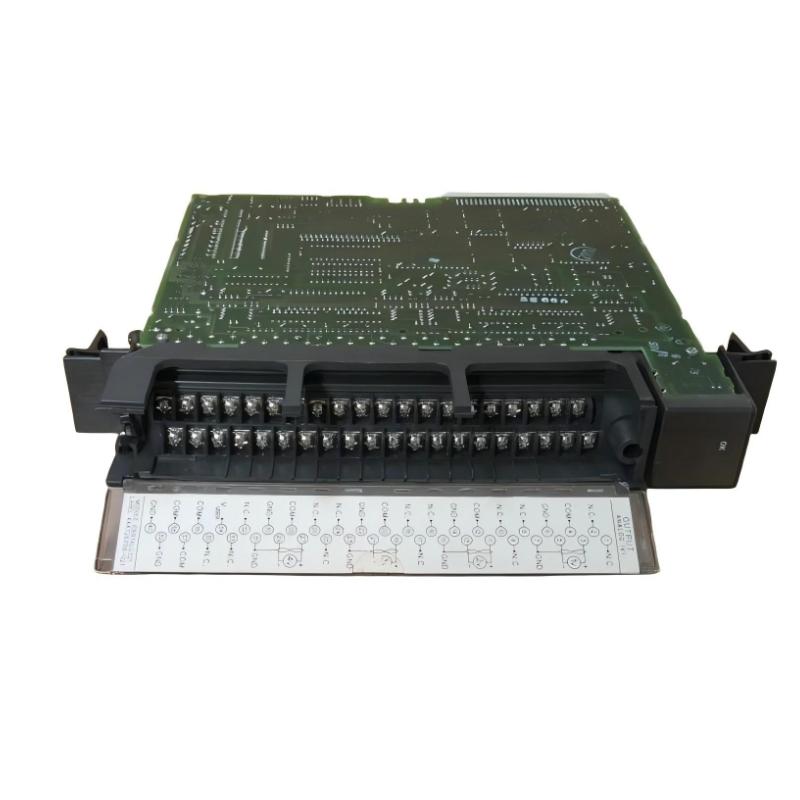

GE Fanuc IC697ALG321 High-Performance Analog Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | IC697ALG321 Analog Input Module |
| Manufacturer | Emerson Electric Co. (formerly GE Fanuc Automation) |
| Product Type | High-Performance Analog Input Module |
| Series | GE Fanuc Series 90-70 |
| Function | Converts field analog signals into digital values for PLC processing |
| Channels | 4 isolated analog input channels |
| Input Signal Types | Voltage: ±10 V, 0–10 V; Current: 4–20 mA |
| Input Configuration | Channel-independent configuration |
| Resolution | 12-bit to 16-bit effective (depends on mode) |
| Isolation | Channel-to-channel isolation + channel-to-backplane isolation |
| Input Impedance | Voltage: high impedance; Current: ~250 Ω |
| Update Time | Fast conversion module (approx. few ms per channel, scan-dependent) |
| Backplane Interface | Series 90-70 PLC rack backplane |
| Slot Requirement | 1 slot |
| Power Consumption | ~0.8 A @ 5 VDC |
| Diagnostics | Open wire detection, overrange/underrange, module fault indicators |
| Wiring Method | Differential analog input wiring |
| Compatible Modules | IC697ALG440 / IC697ALG441 expanders (system dependent) |
| Configuration | Software-based via PLC configuration tools |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
| Weight | ~0.27 kg |
| Dimensions | ~2.1 cm × 20.2 cm × 26.1 cm |
FAQ
Q1: What is IC697ALG321 used for?
A: It is a 4-channel isolated analog input module used in GE Fanuc Series 90-70 PLC systems to acquire high-precision analog signals from field instruments.
Q2: What signals does it support?
A: It supports ±10 V, 0–10 V voltage signals and 4–20 mA current loop inputs.
Q3: How many channels does it have?
A: It has 4 fully isolated analog input channels.
Q4: What makes it different from IC697ALG230 or ALG234?
A: IC697ALG321 is a higher-performance, fully isolated analog input module with fewer channels but better signal integrity per channel.
Q5: Is each channel isolated?
A: Yes, it provides both channel-to-channel and channel-to-backplane isolation for improved noise immunity.
Q6: What is the typical application?
A: It is used in critical process control systems where signal accuracy and electrical isolation are important, such as energy, chemical, and manufacturing systems.
Q7: Is configuration hardware-based?
A: No, it is configured via software; there are no DIP switches.
Q8: Is IC697ALG321 still widely used?
A: It is mainly used in legacy GE Fanuc Series 90-70 systems rather than modern PLC platforms.
GE Fanuc IC697ALG321 High-Performance Analog Input Module is in stock. Please contact us for a quick quote and competitive pricing.
