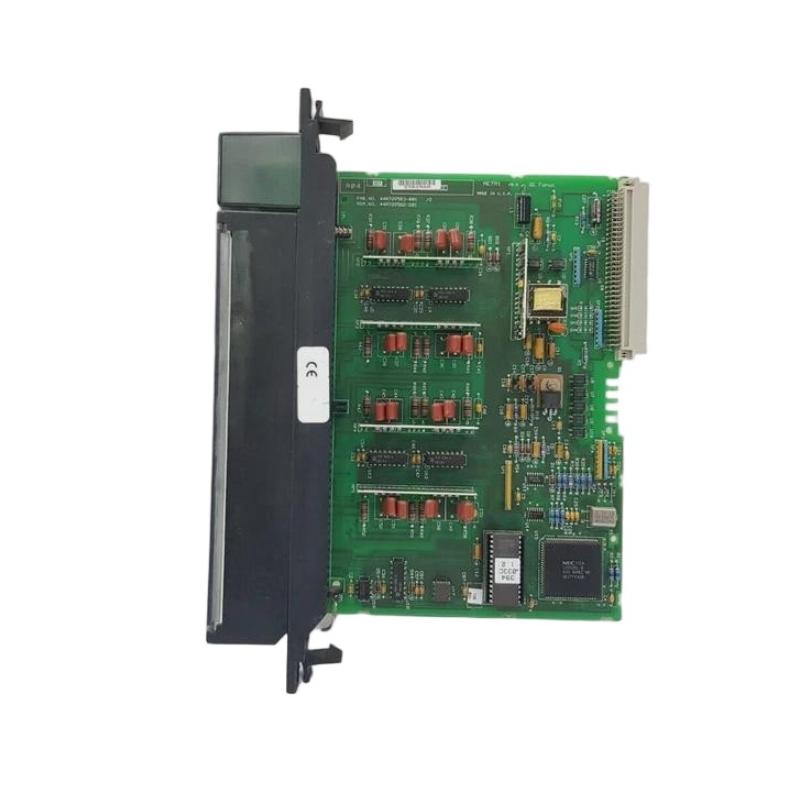

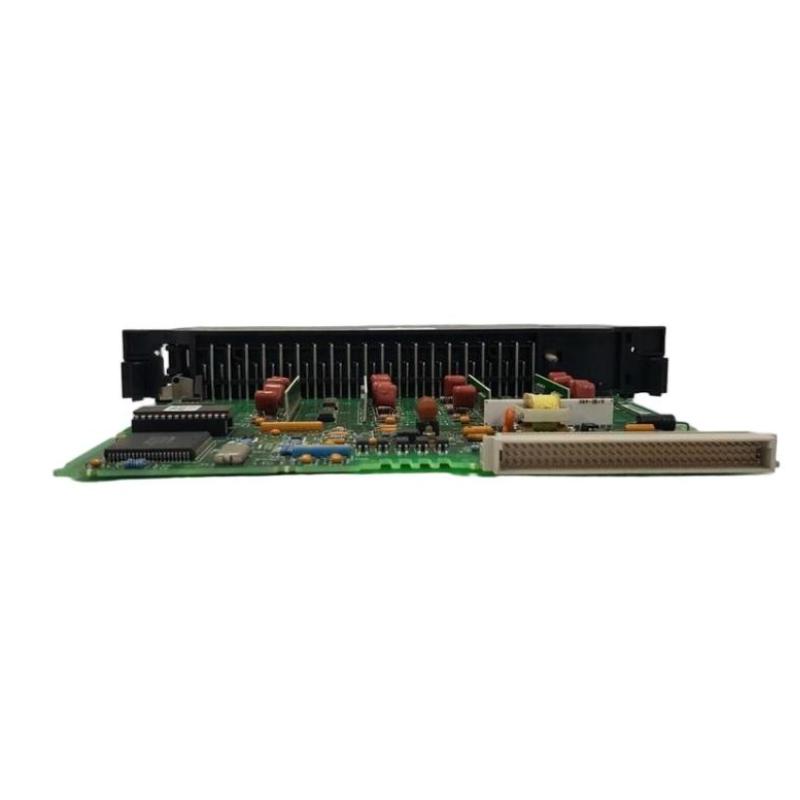

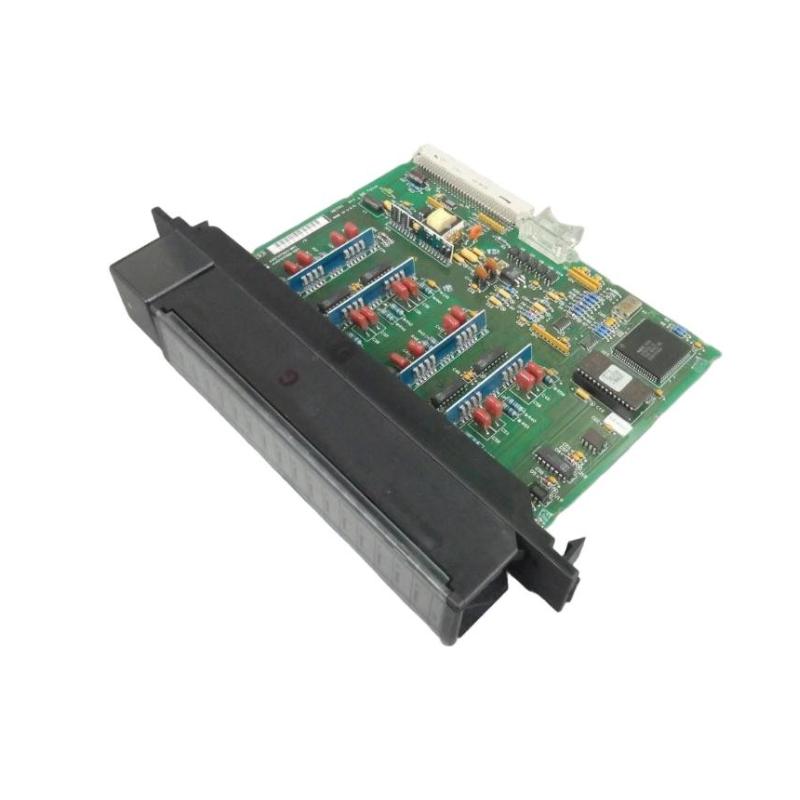

GE Fanuc IC697ALG440 Series 90-70 PLC Analog Input Expansion Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | IC697ALG440 Current Input Expander Module |
| Manufacturer | Emerson Electric Co. (formerly GE Fanuc Automation) |
| Product Type | Series 90-70 PLC Analog Input Expansion Module |
| Series | GE Fanuc Series 90-70 |
| Function | Expands analog input capacity for base converter systems |
| Channels | 16 analog input channels |
| Input Signal Types | 4–20 mA current loop (primary), selectable current/voltage depending on system configuration |
| Resolution | 12-bit ADC (4096 counts) |
| Update Rate | Approx. 2.4 ms |
| Input Configuration | Used in combination with ALG230/ALG321 base converter |
| System Architecture | Requires base converter + optional voltage expander |
| Backplane Interface | Series 90-70 PLC rack backplane |
| Slot Requirement | 1 slot |
| Power Consumption | ~0.4 A @ 5 VDC (~2 W) |
| Diagnostics | Channel fault detection, module status LEDs |
| Isolation | Field-to-backplane isolation (industrial grade, typically ~1500 VAC) |
| Calibration | Factory calibrated |
| Wiring Type | Current loop field wiring (4–20 mA standard) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
| Weight | 0.65 kg (approx. 1.44 lbs) |
| Dimensions | Approx. 118 mm × 70 mm × 25 mm (standard Series 90-70 single-slot module form factor) |
FAQ
Q1: What is IC697ALG440 used for?
A: It is a 16-channel current input expander module used in GE Fanuc Series 90-70 PLC systems to extend analog input capacity for 4–20 mA field signals.
Q2: Does IC697ALG440 work alone?
A: No, it must be used together with a base converter module (such as IC697ALG230 or similar) to form a complete analog input subsystem.
Q3: What type of signals does it support?
A: Primarily 4–20 mA industrial current loop signals from transmitters and sensors.
Q4: How many channels are available?
A: It provides 16 analog input channels.
Q5: What is the resolution of the module?
A: It uses a 12-bit analog-to-digital conversion (4096 counts).
Q6: What is its role in the system architecture?
A: It expands the number of analog inputs beyond the base converter’s native channels, enabling scalable process monitoring.
Q7: Is it voltage or current input?
A: It is primarily designed for current input (4–20 mA loops).
Q8: Is IC697ALG440 still used in modern PLC systems?
A: No, it is mainly used in legacy GE Fanuc Series 90-70 installations.
GE Fanuc IC697ALG440 Series 90-70 PLC Analog Input Expansion Module is in stock. Please contact us for a quick quote and competitive pricing.
