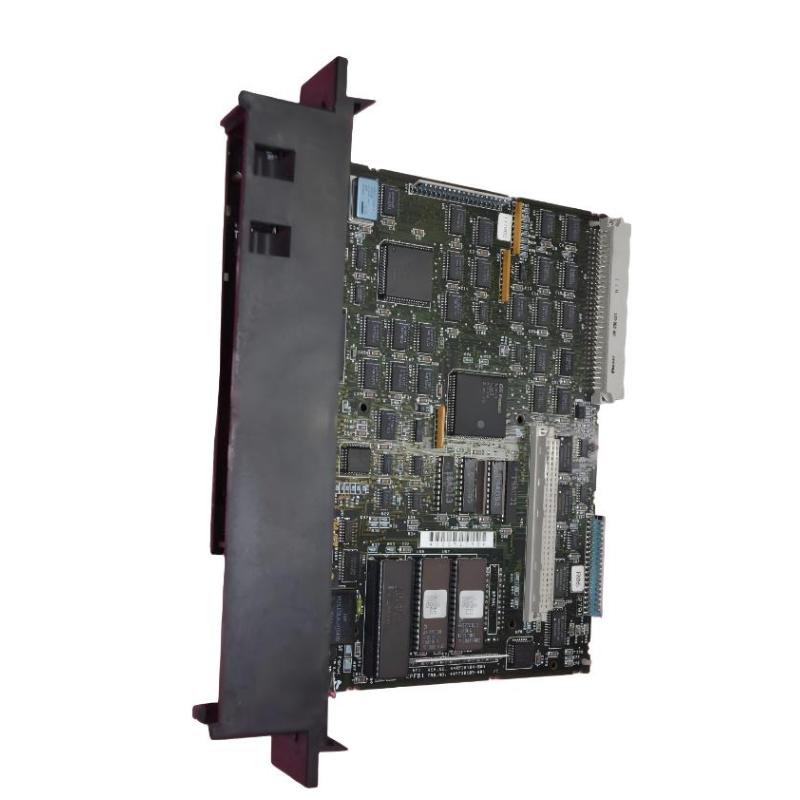

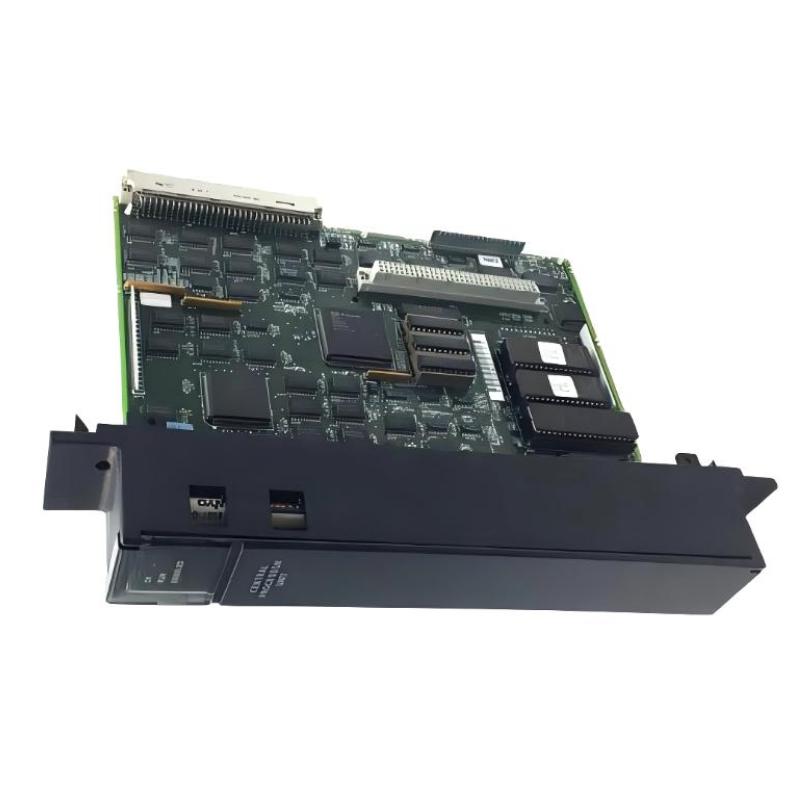

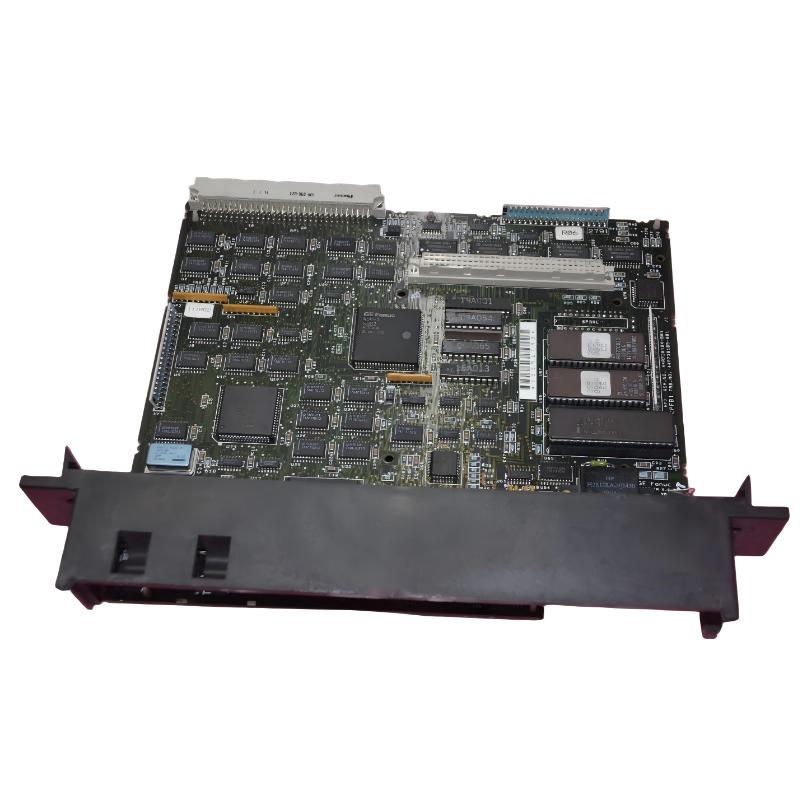

GE Fanuc IC697CPU732 Single-slot PLC CPU Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | IC697CPU732 |
| Product Type | Single-slot PLC CPU Module |
| Series | GE Fanuc Series 90-70 |
| Function | Central processing unit for real-time industrial automation and process control |
| Processor | Intel 80C186 microprocessor |
| Clock Speed | 12 MHz |
| Architecture | 16-bit optimized PLC control architecture |
| Execution Speed | ~0.4 µs per Boolean instruction |
| Memory | 32 KB battery-backed CMOS RAM |
| I/O Capacity | Up to 512 discrete I/O points (mixed configuration) |
| Analog I/O Capacity | Up to 8,000 analog I/O points |
| Communication Port | 1 × 15-pin serial port |
| Protocol Support | RS-422 / RS-485 (programming and diagnostics) |
| Programming Software | GE IC641 / LM90-compatible tools |
| Backplane Interface | Series 90-70 VME C.1 rack bus |
| Power Supply | 5 VDC via rack backplane |
| Current Consumption | ~1.0 A |
| Timekeeping | Battery-backed real-time clock |
| Battery Backup | Lithium CMOS battery for memory retention |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions (W × H × D) | Approx. 135 mm × 285 mm × 290 mm |
| Weight | Approx. 0.57 kg |
| Installation | Single-slot Series 90-70 rack module |
| Indicators | CPU status, RUN, FAULT LEDs |
FAQ
What is IC697CPU732 used for?
It is a CPU module used in GE Fanuc Series 90-70 PLC systems to execute control logic for industrial automation processes such as manufacturing, material handling, and utility systems.
What processor does IC697CPU732 use?
It is based on an Intel 80C186 16-bit microprocessor running at 12 MHz.
How many I/O points does it support?
It supports up to 512 discrete I/O points and up to 8,000 analog I/O points depending on system configuration.
Does IC697CPU732 support floating point operations?
Yes, it supports floating point math operations, which improves performance in analog and process control applications.
What communication interface is available?
It includes one 15-pin serial port supporting RS-422 and RS-485 protocols for programming and diagnostics.
What is the memory capacity of this CPU?
It provides 32 KB of battery-backed CMOS RAM used for program storage and runtime data.
What is the power requirement?
It operates on 5 VDC supplied through the rack backplane with a typical current draw of about 1.0 A.
Is IC697CPU732 still used in modern systems?
It is mainly deployed in legacy GE Fanuc Series 90-70 installations and has largely been replaced by newer PLC/PAC platforms in modern automation systems.
GE Fanuc IC697CPU732 Single-slot PLC CPU Module is in stock. Please contact us for a quick quote and competitive pricing.
